Speed Control Module (2005) Connector End View

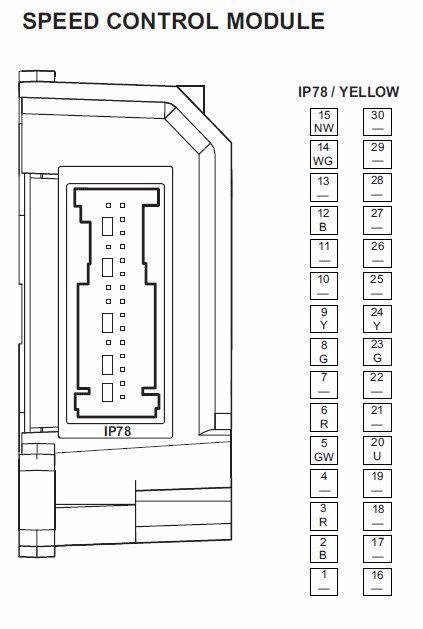

Fig 1: Speed Control Module (2005) Connector End View
G00558679Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
