Electronic Engine Controls: Notes
Vehicles with supercharger

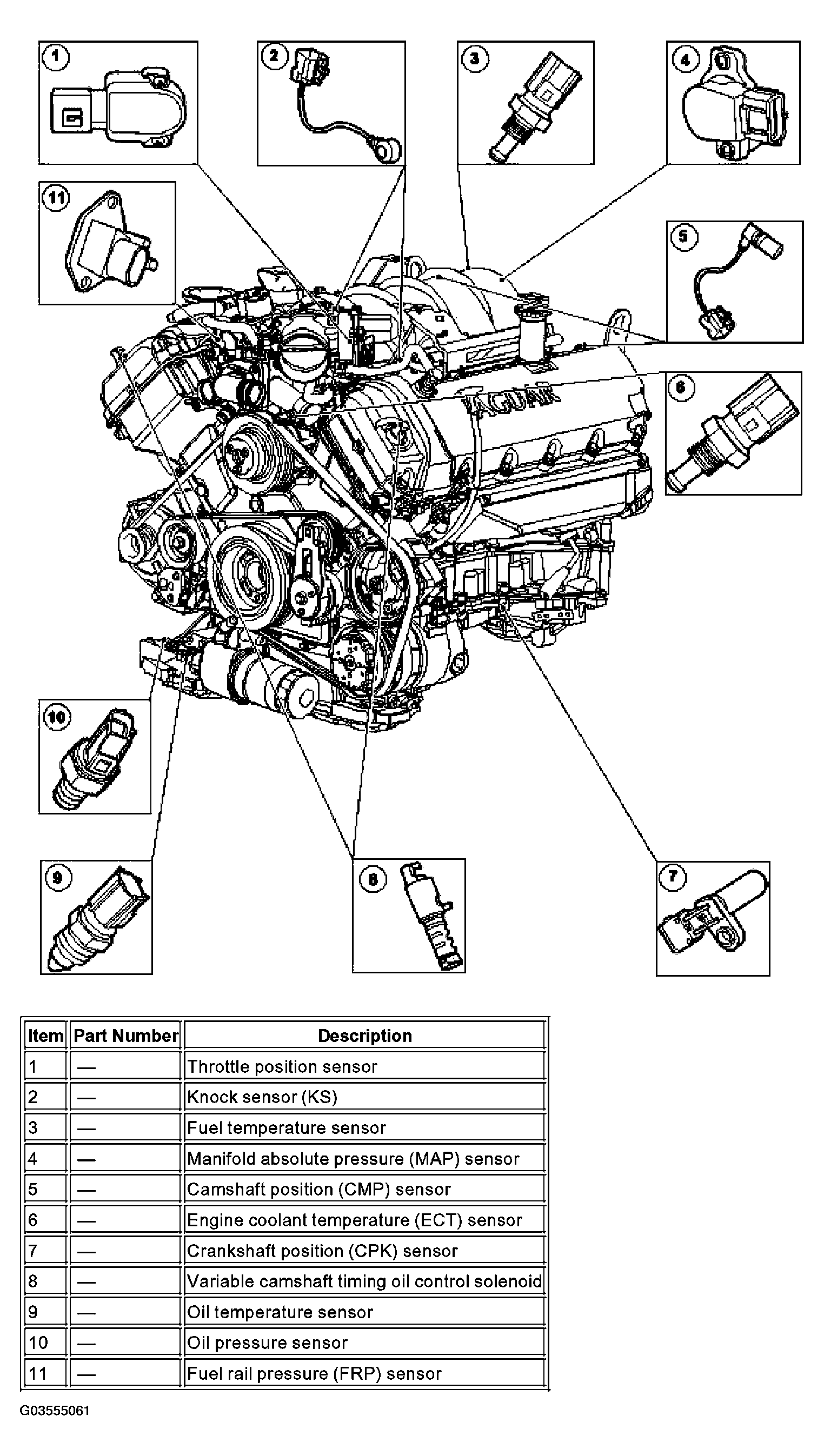

Fig 1: Identifying Components Of Electronic Engine Controls (Vehicles With Supercharger)
Courtesy of JAGUAR CARS, INC.
Vehicles without supercharger

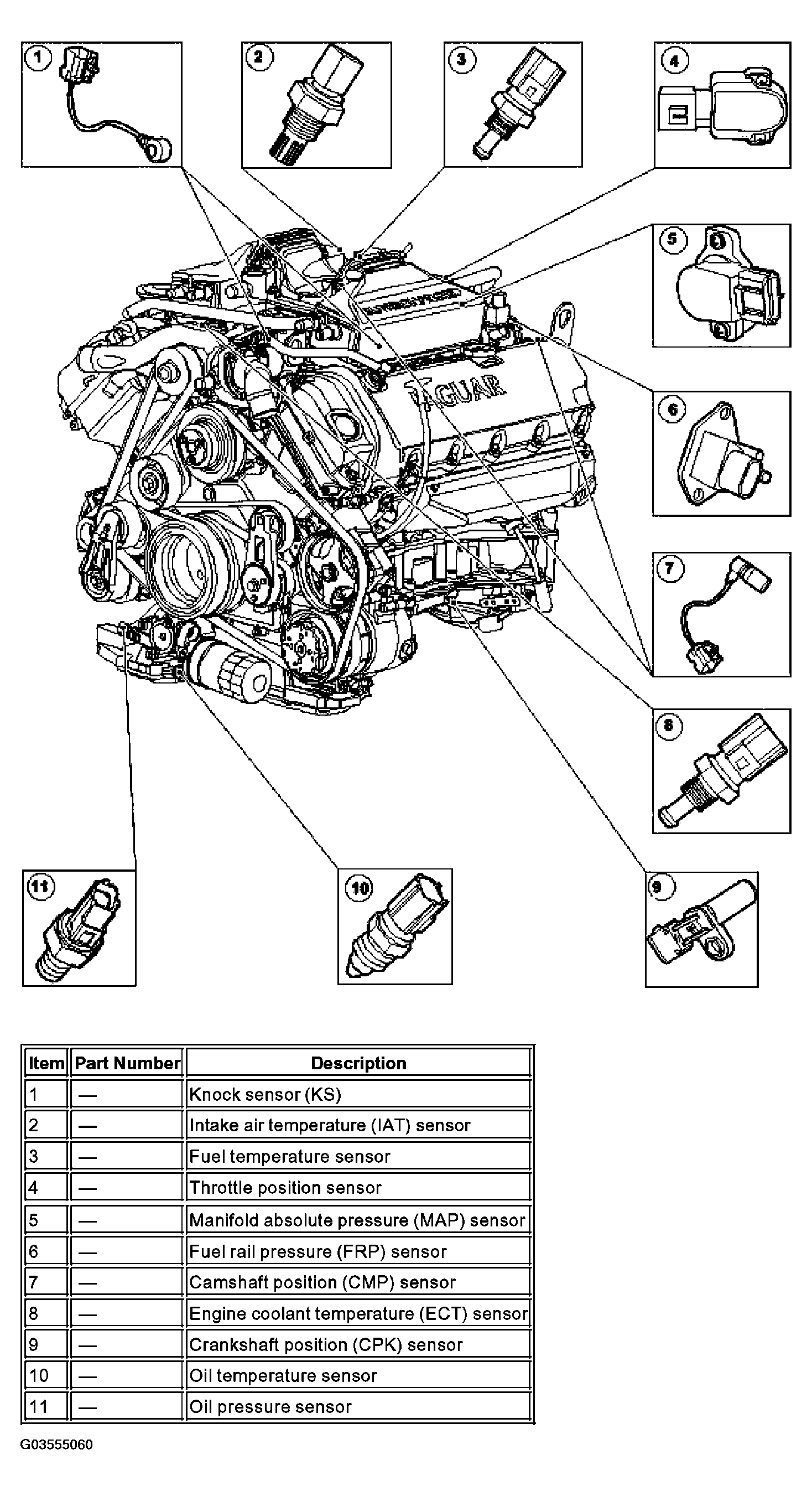

Fig 2: Identifying Components Of Electronic Engine Controls (Vehicles Without Supercharger)
Courtesy of JAGUAR CARS, INC.

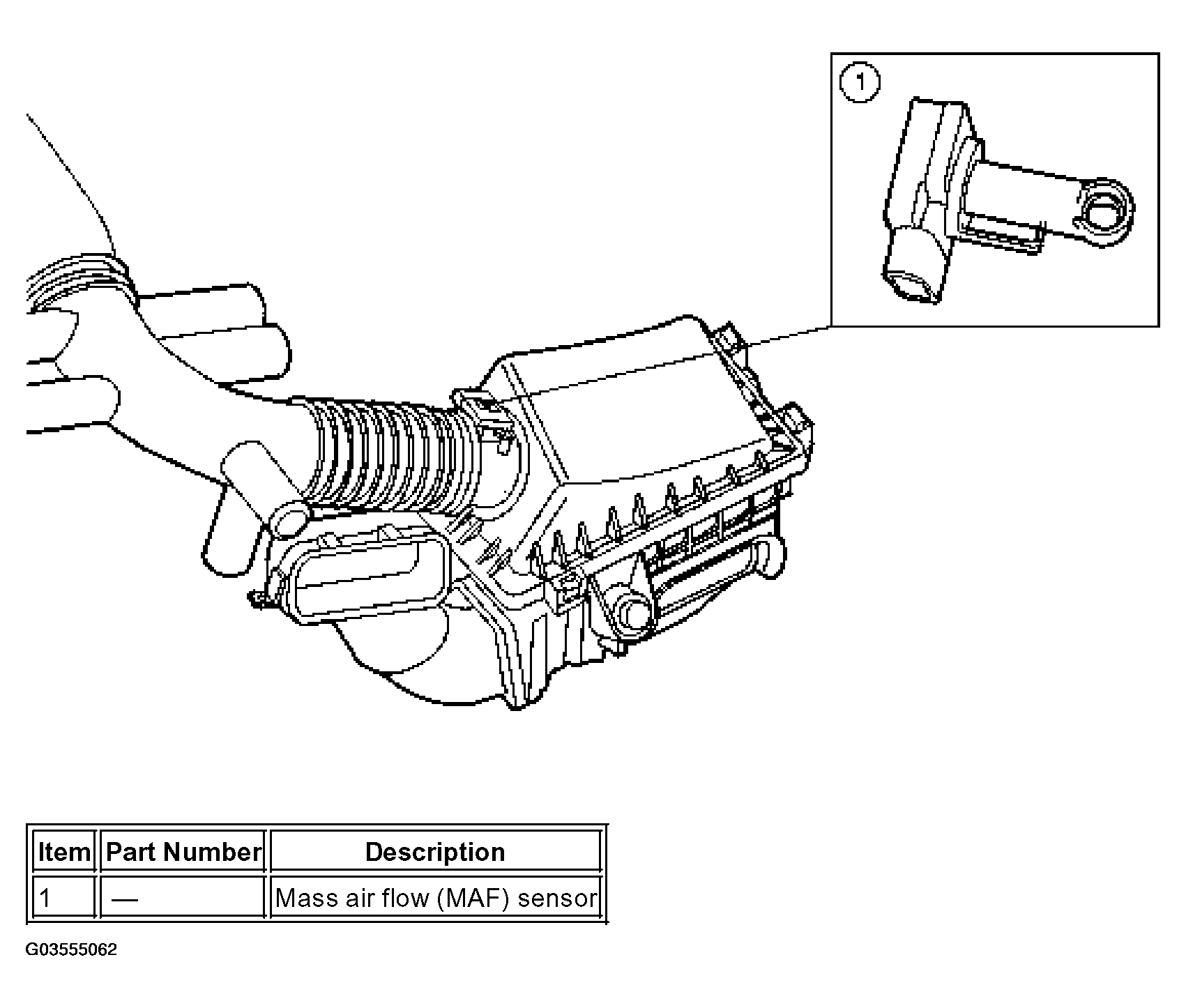

Fig 3: Identifying Mass Air Flow Sensor
Courtesy of JAGUAR CARS, INC.

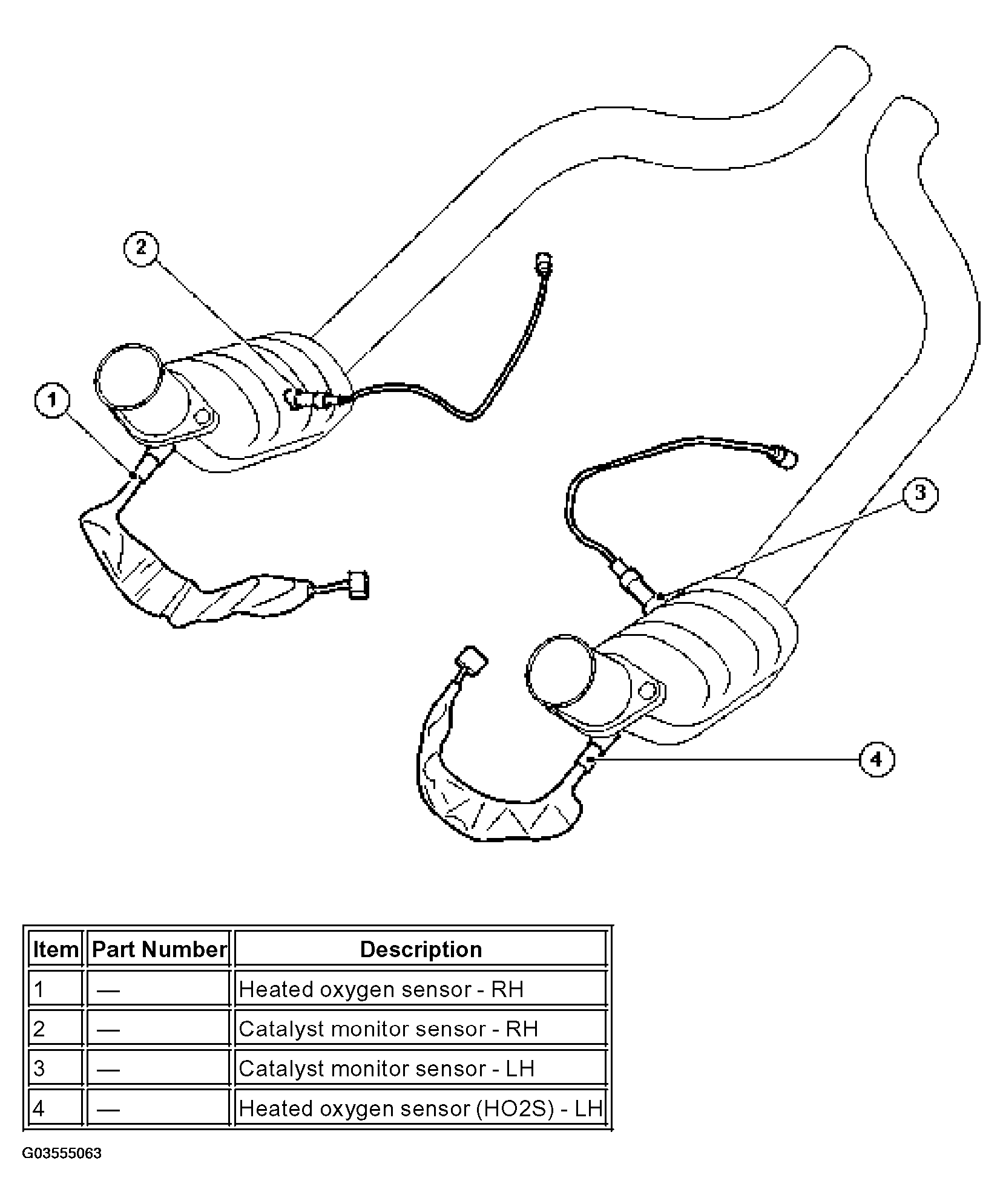

Fig 4: Identifying Heated Oxygen Sensor
Courtesy of JAGUAR CARS, INC.
