Cylinder Numbering

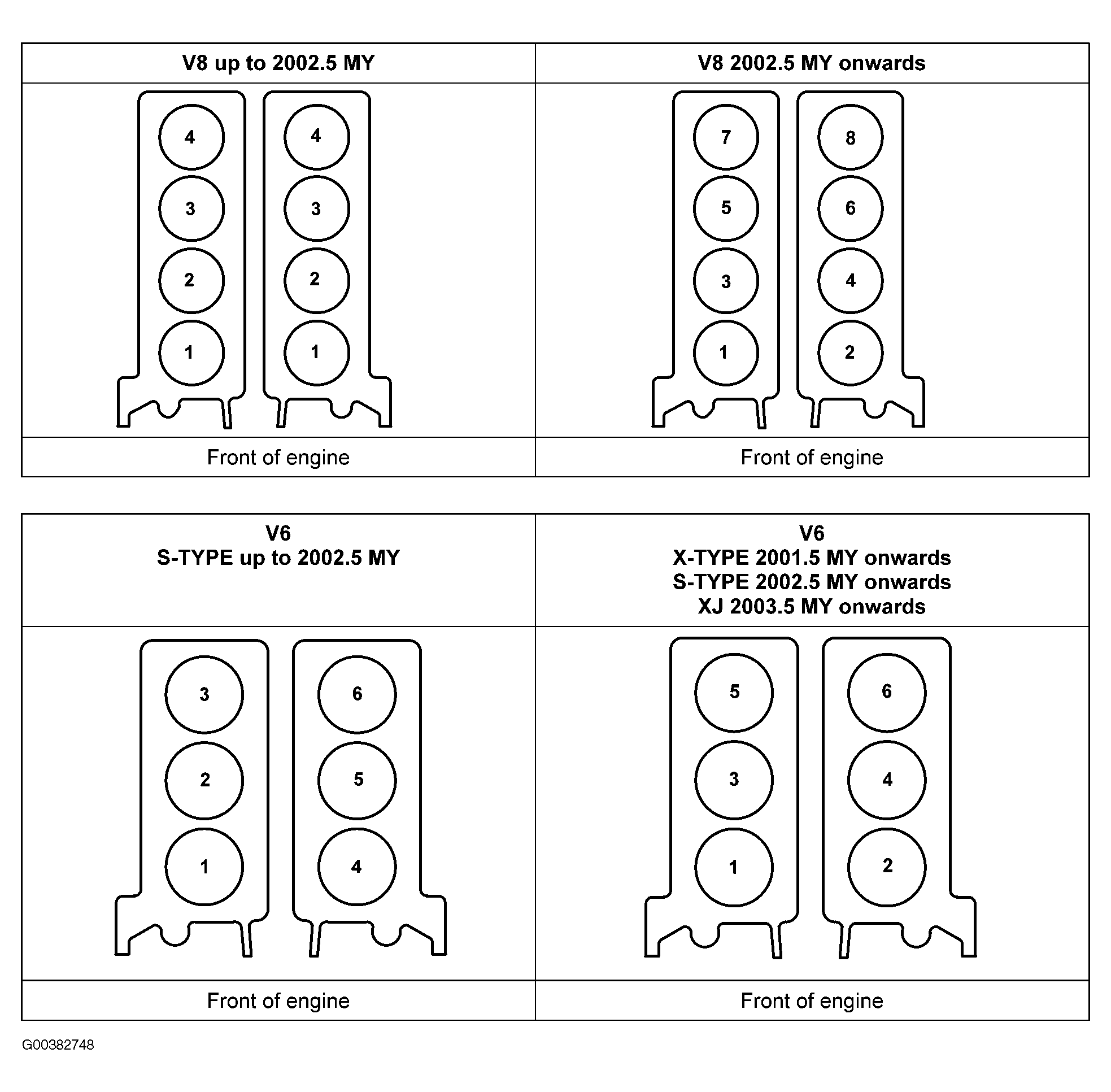

Fig 1: Identifying Cylinder Numbering
Courtesy of JAGUAR CARS, INC.
Courtesy of JAGUAR CARS, INC.
