DTC Descriptions & Possible Causes

NOTE: It is recommended that the applicable WIRING DIAGRAMS be referenced when using the information contained in Fig 3 -Fig 91 .

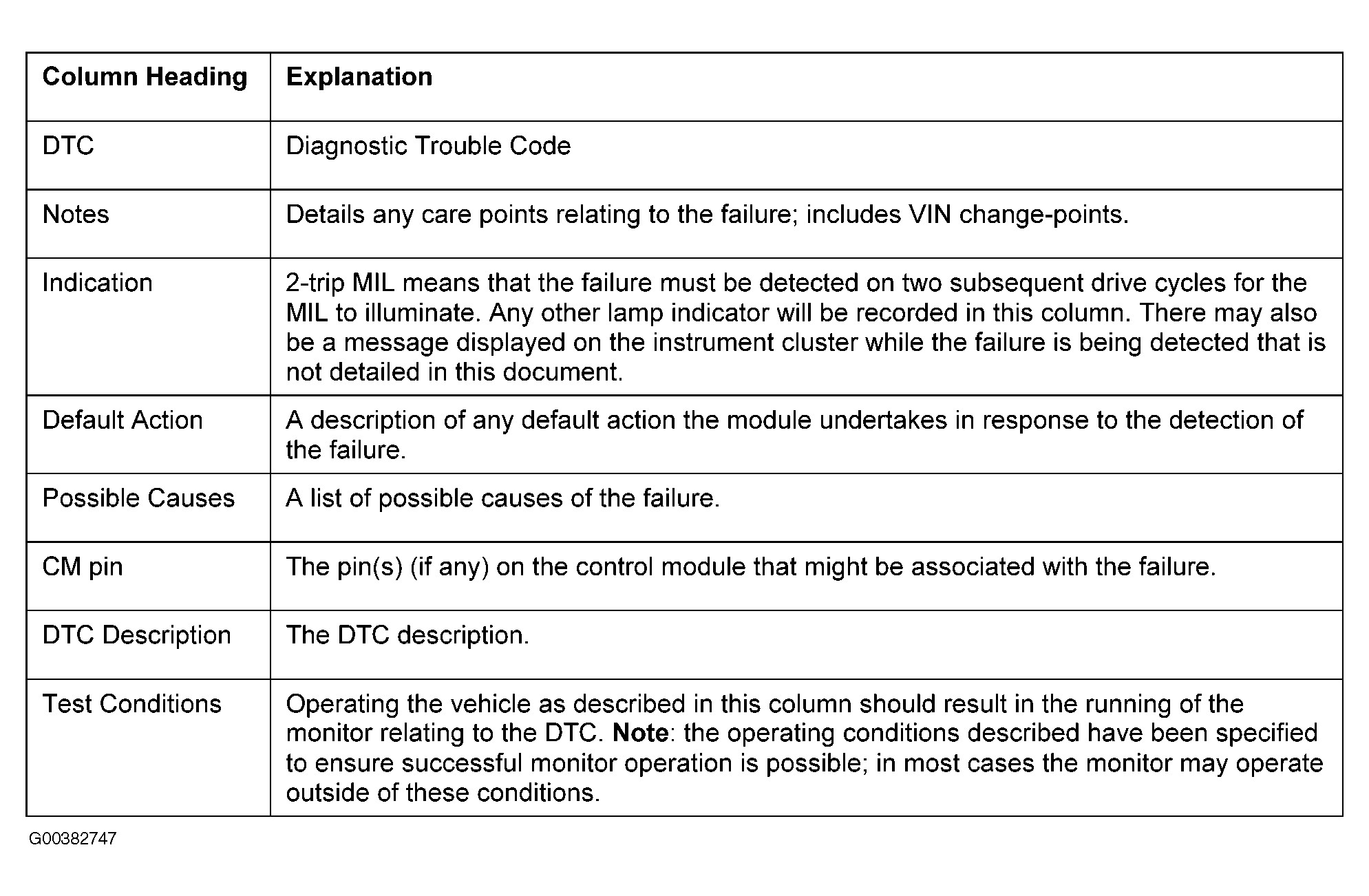

Fig 1: DTC Possible Causes & Conditions Column Heading Descriptions (Figures 4-92)

G00382747

Courtesy of JAGUAR CARS, INC.

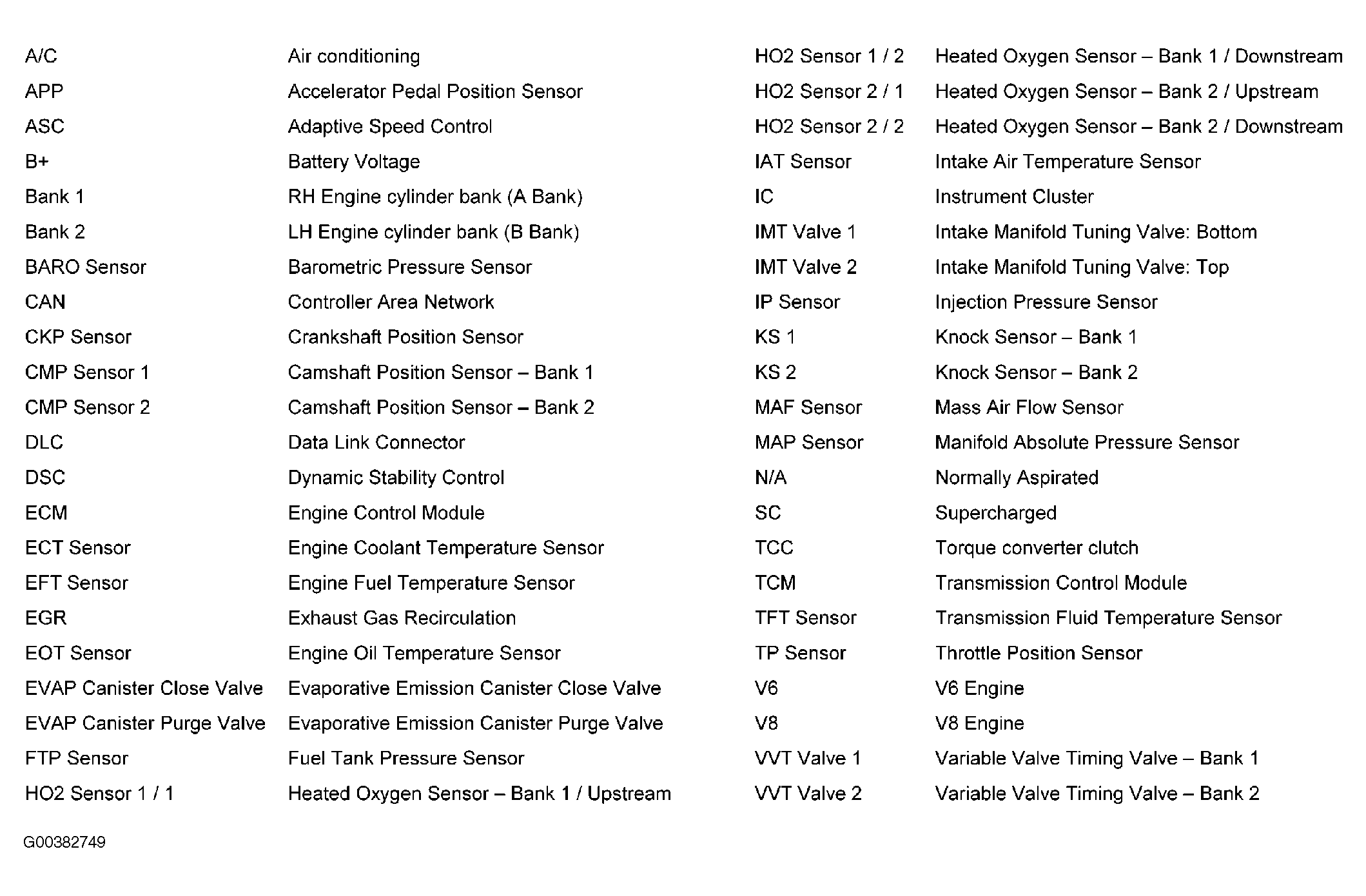

Fig 2: Acronyms For DTC Possible Causes & Conditions (Figures 4-92)

G00382749

Courtesy of JAGUAR CARS, INC.

Fig 3: DTC P0010, P0020, P0031, P0032 & P0037 Possible Causes & Conditions

G00382750

Courtesy of JAGUAR CARS, INC.

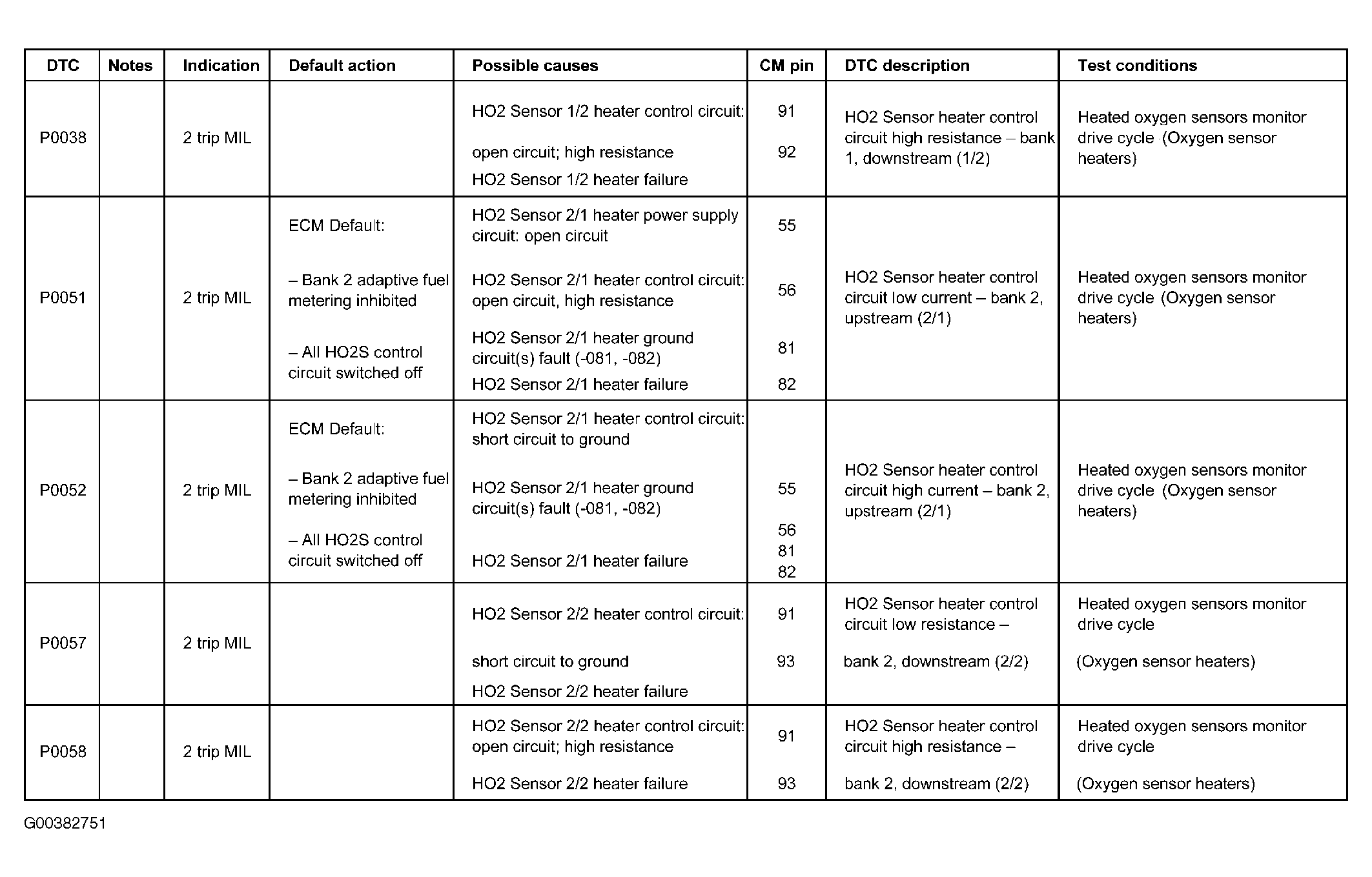

Fig 4: DTC P0038, P0051, P0052, P0057 & P0058 Possible Causes & Conditions

G00382751

Courtesy of JAGUAR CARS, INC.

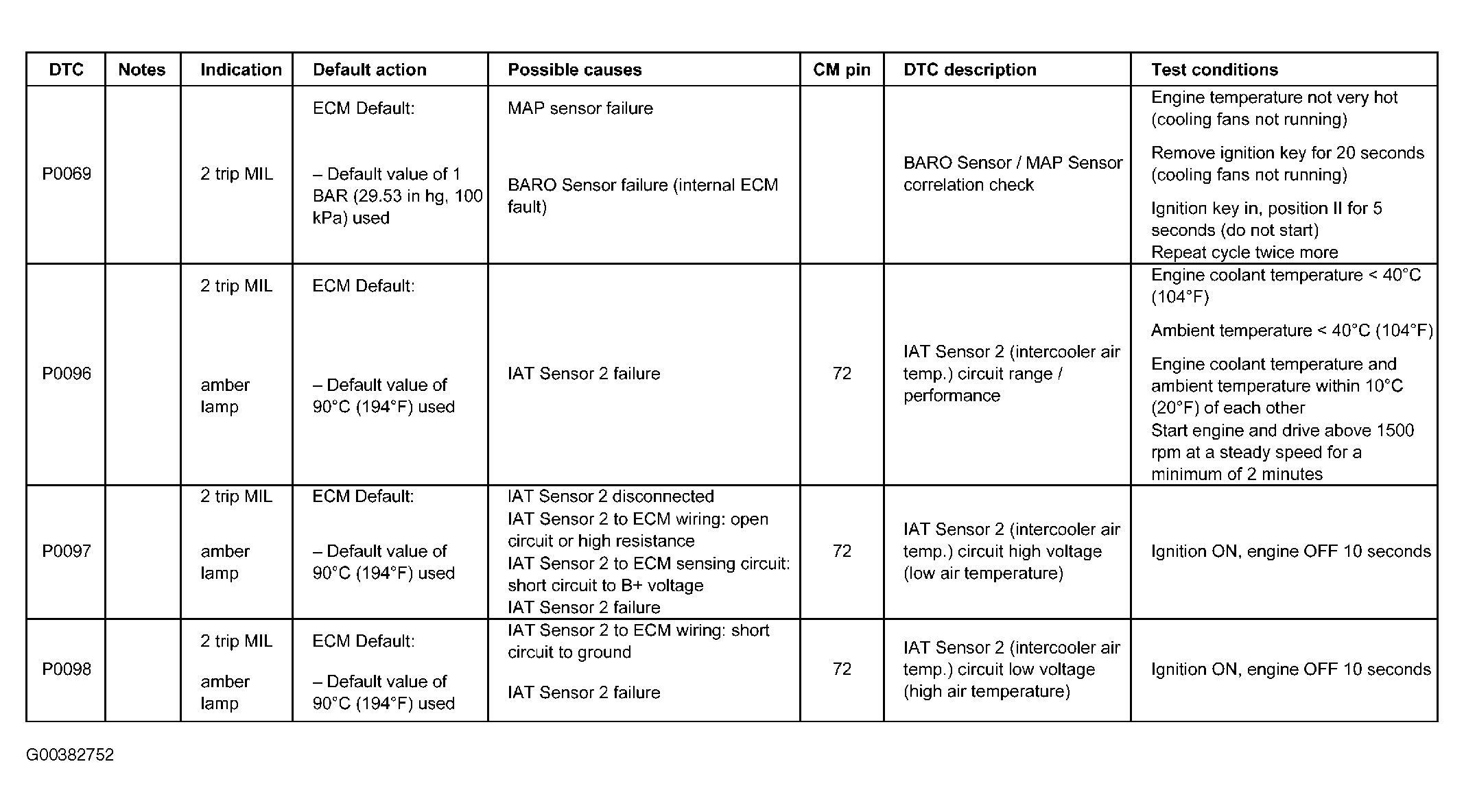

Fig 5: DTC P0069, P0096, P0097 & P0098 Possible Causes & Conditions

G00382752

Courtesy of JAGUAR CARS, INC.

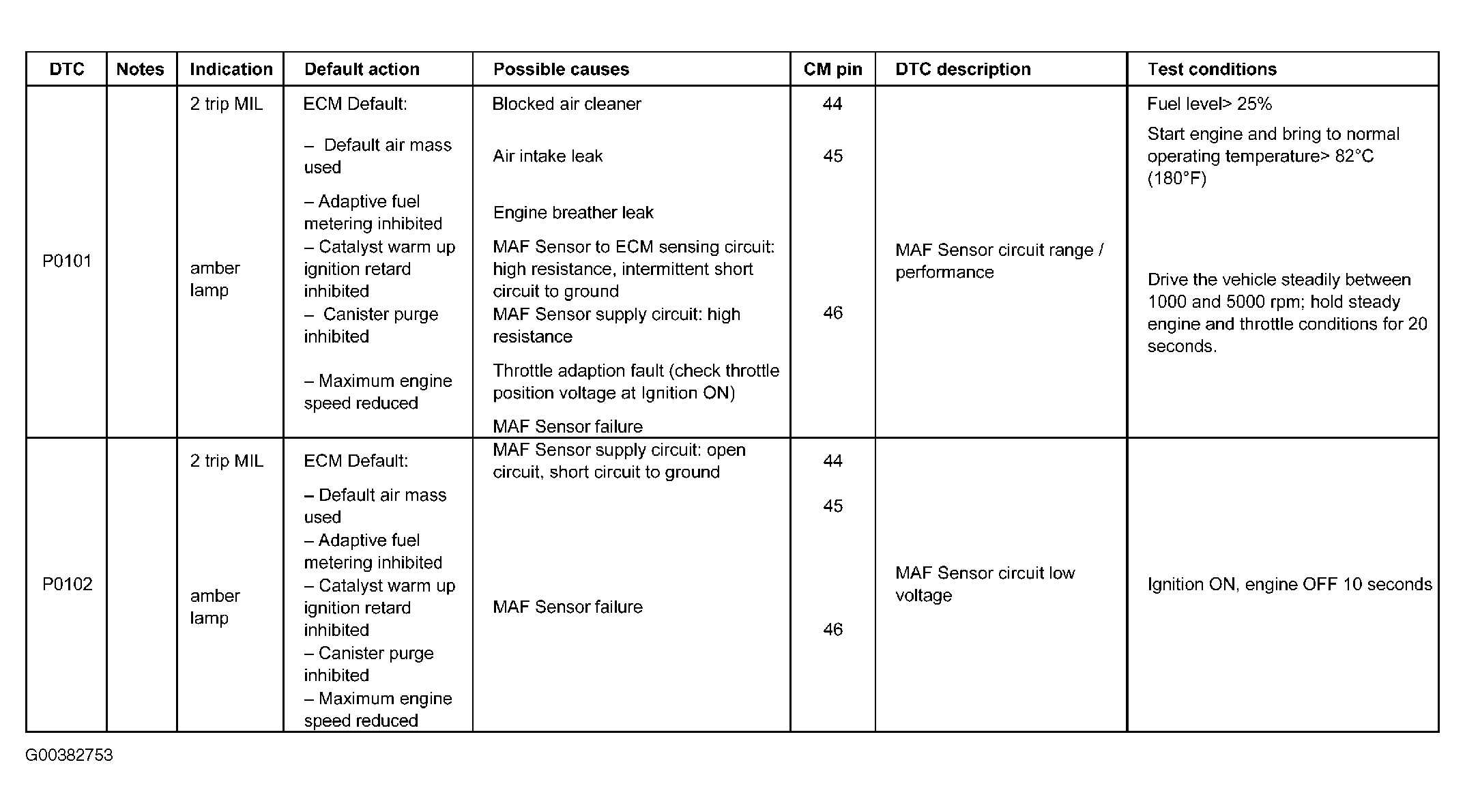

Fig 6: DTC P0101 & P0102 Possible Causes & Conditions

G00382753

Courtesy of JAGUAR CARS, INC.

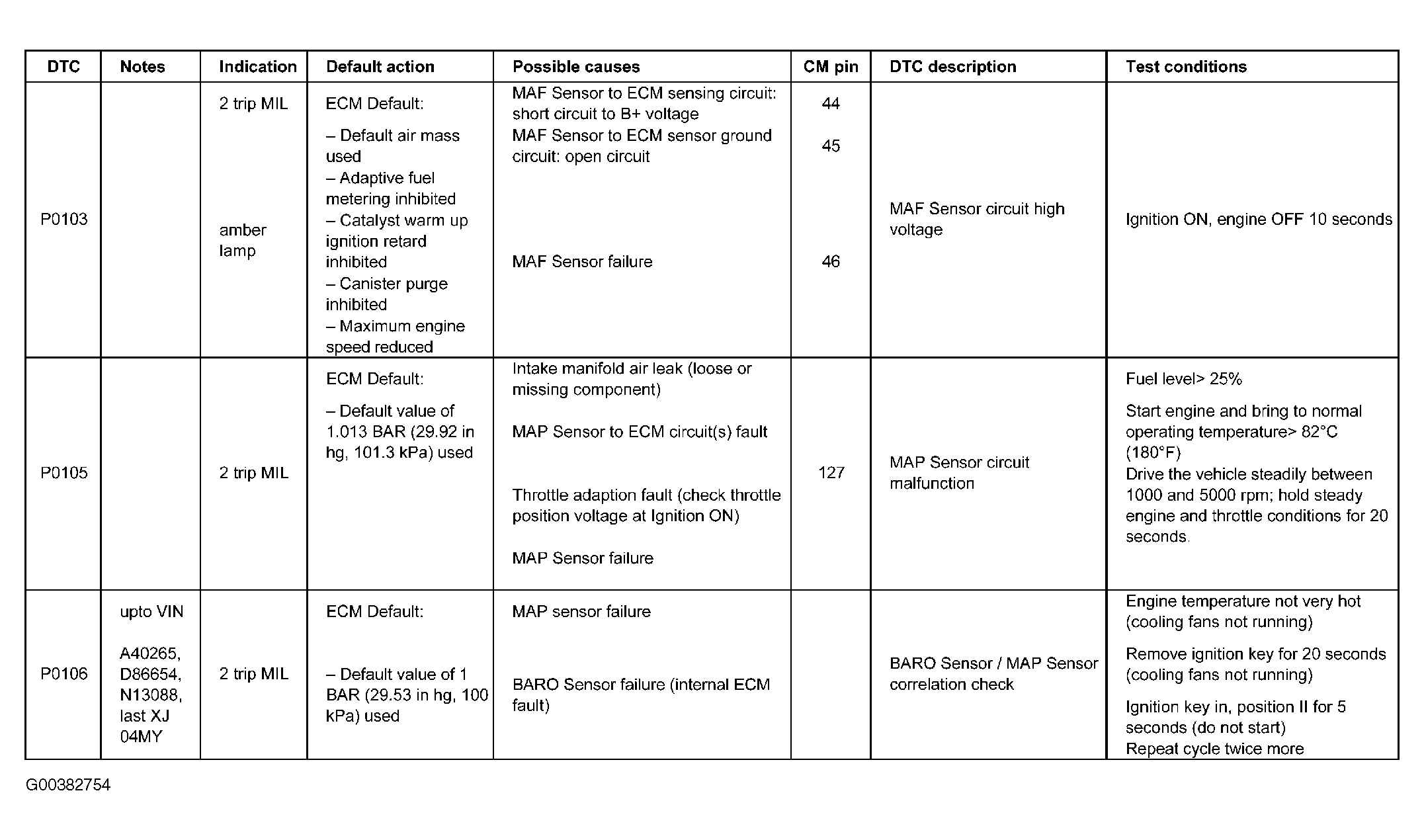

Fig 7: DTC P0103, P0105 & P0106 Possible Causes & Conditions

G00382754

Courtesy of JAGUAR CARS, INC.

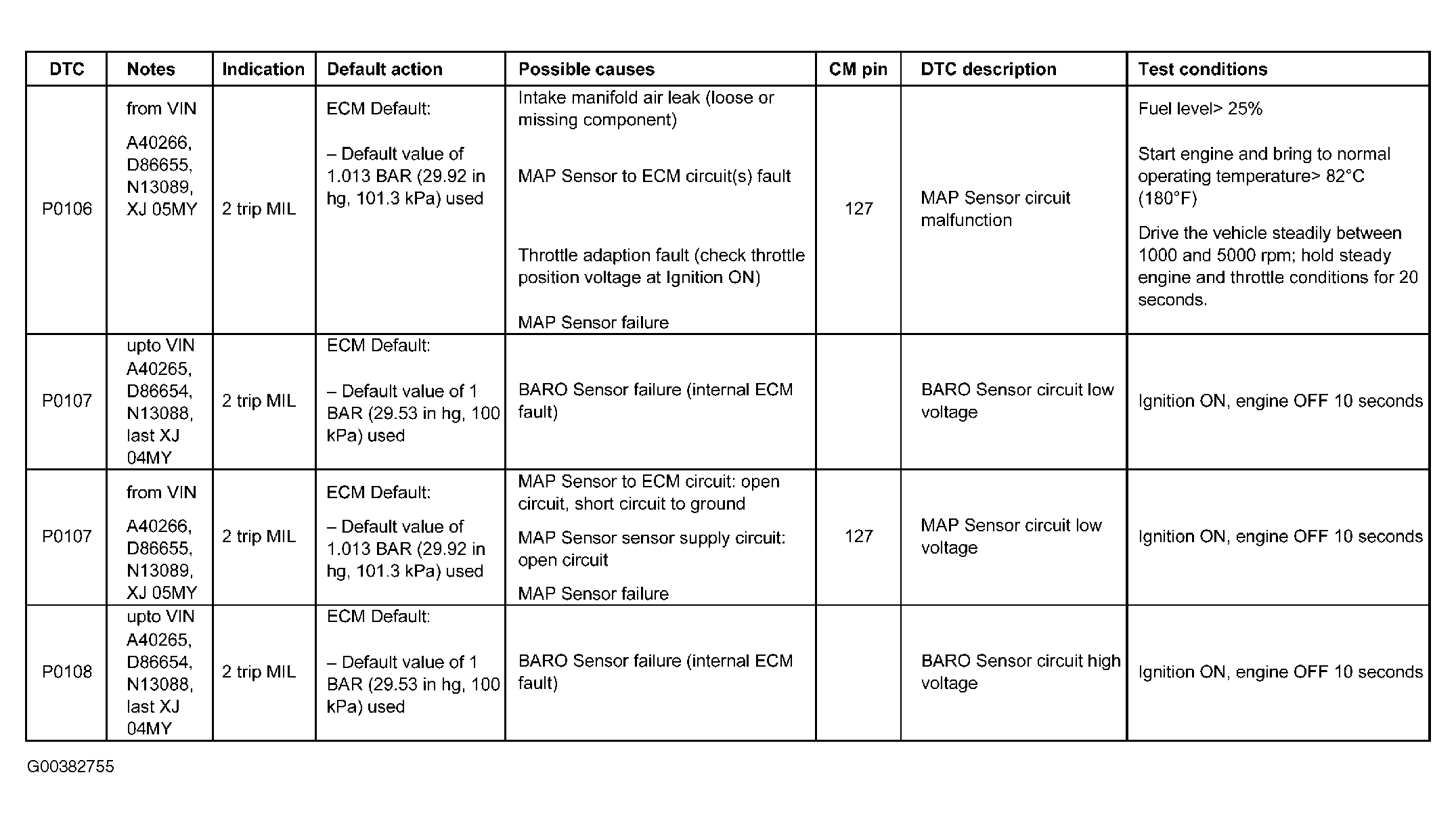

Fig 8: DTC P0106, P0107 & P0108 Possible Causes & Conditions

G00382755

Courtesy of JAGUAR CARS, INC.

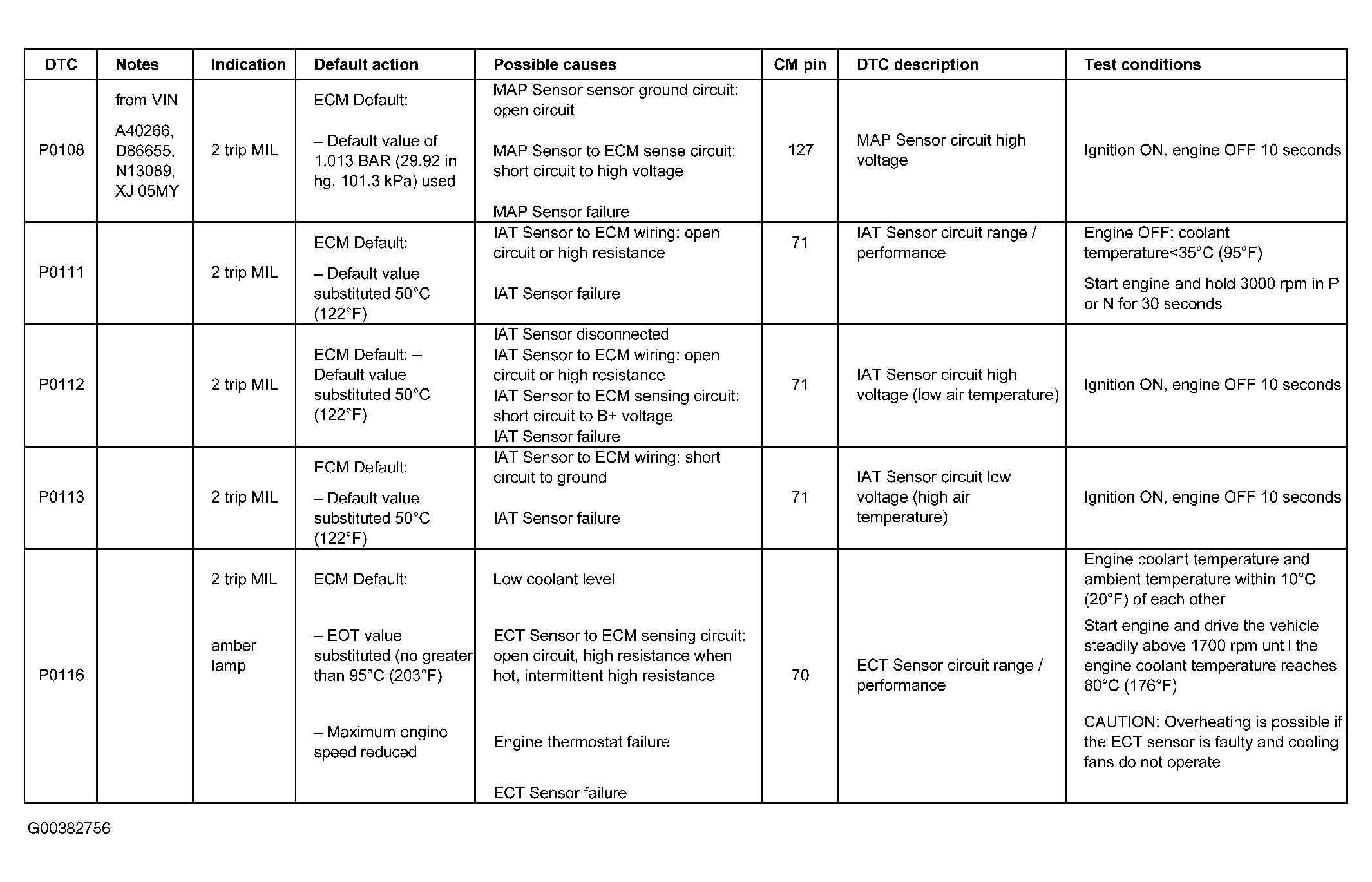

Fig 9: DTC P0108, P0111, P0112, P0113 & P0116 Possible Causes & Conditions

G00382756

Courtesy of JAGUAR CARS, INC.

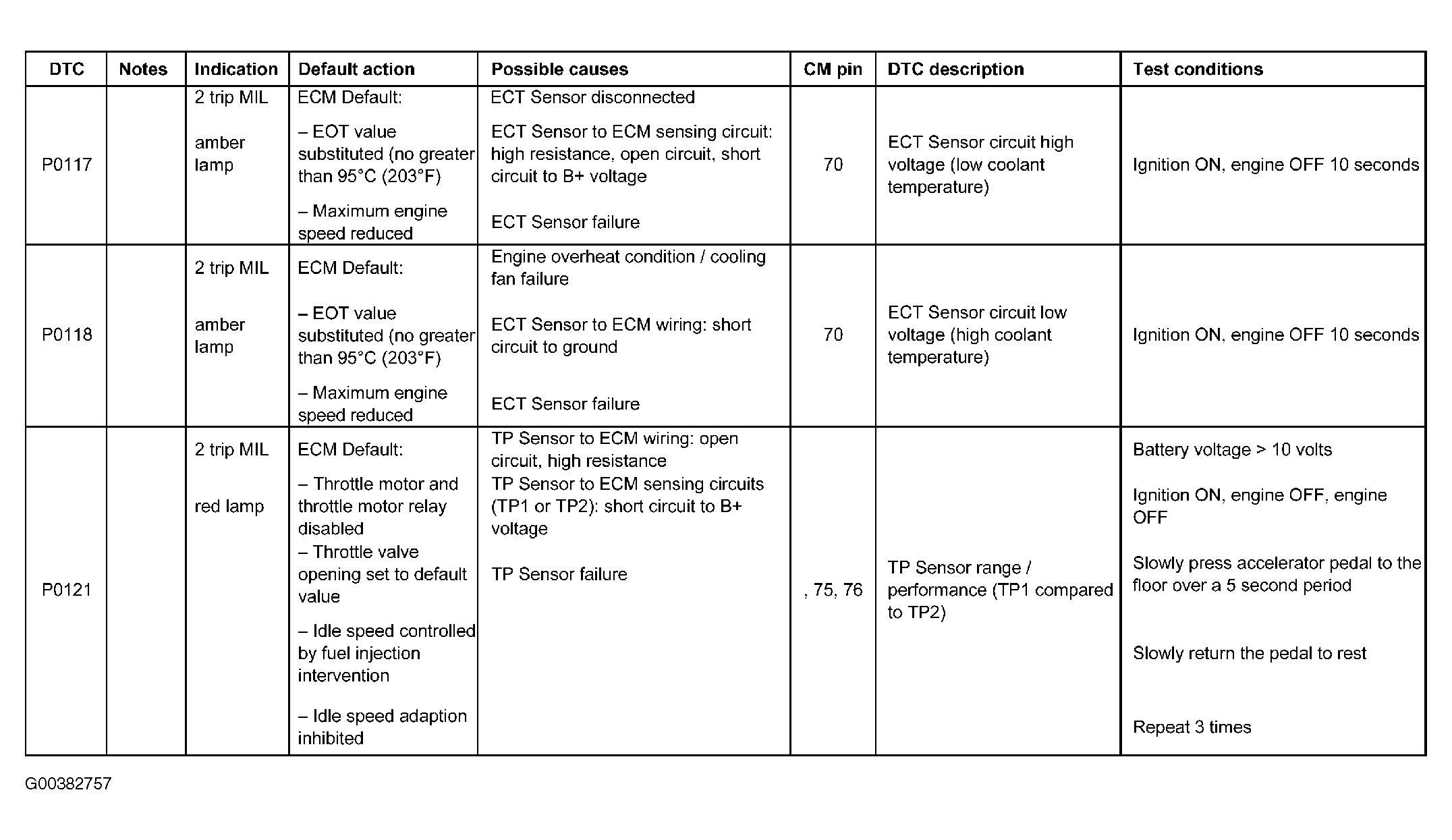

Fig 10: DTC P0117, P0118 & P0121 Possible Causes & Conditions

G00382757

Courtesy of JAGUAR CARS, INC.

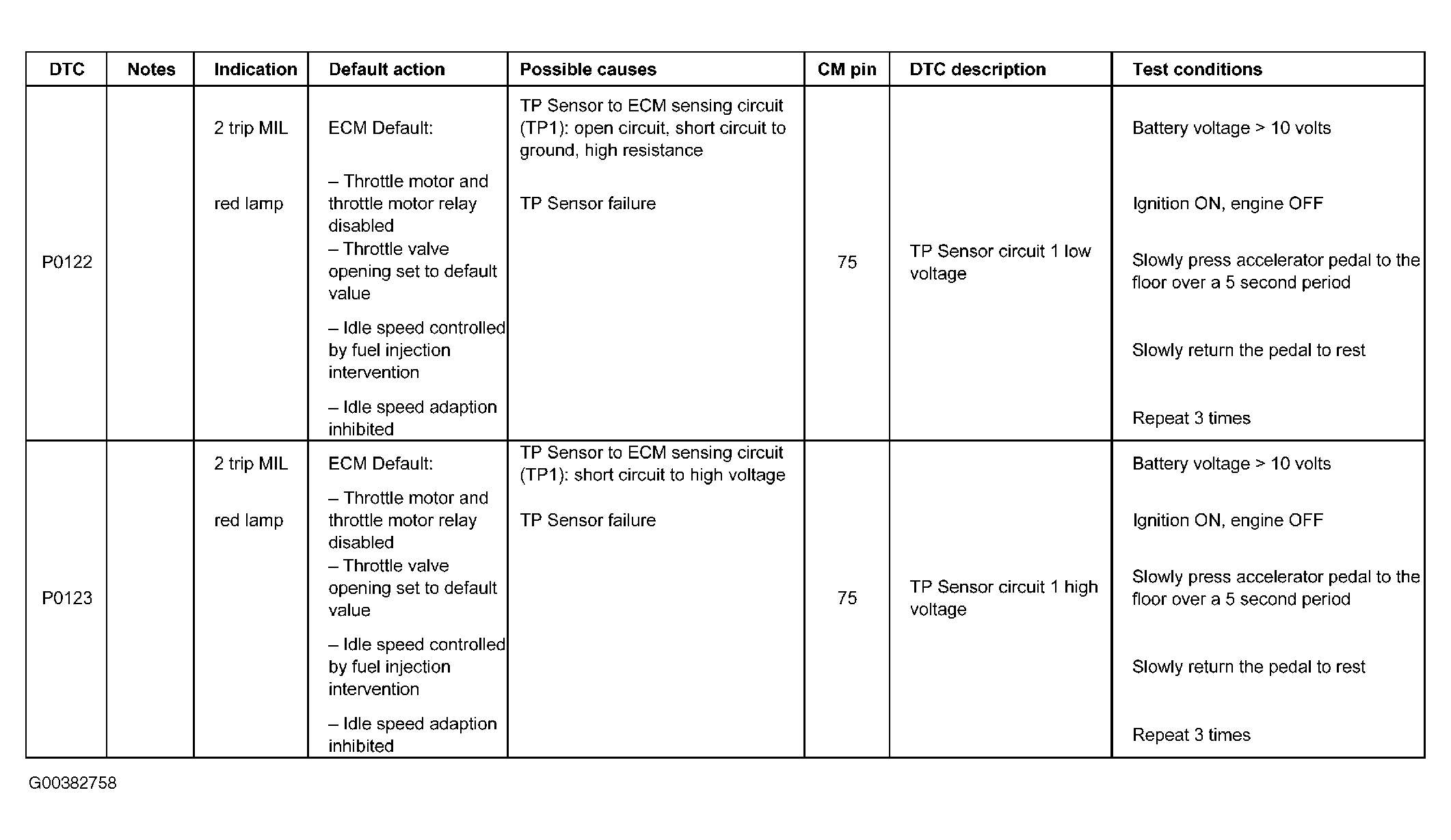

Fig 11: DTC P0122 & P0123 Possible Causes & Conditions

G00382758

Courtesy of JAGUAR CARS, INC.

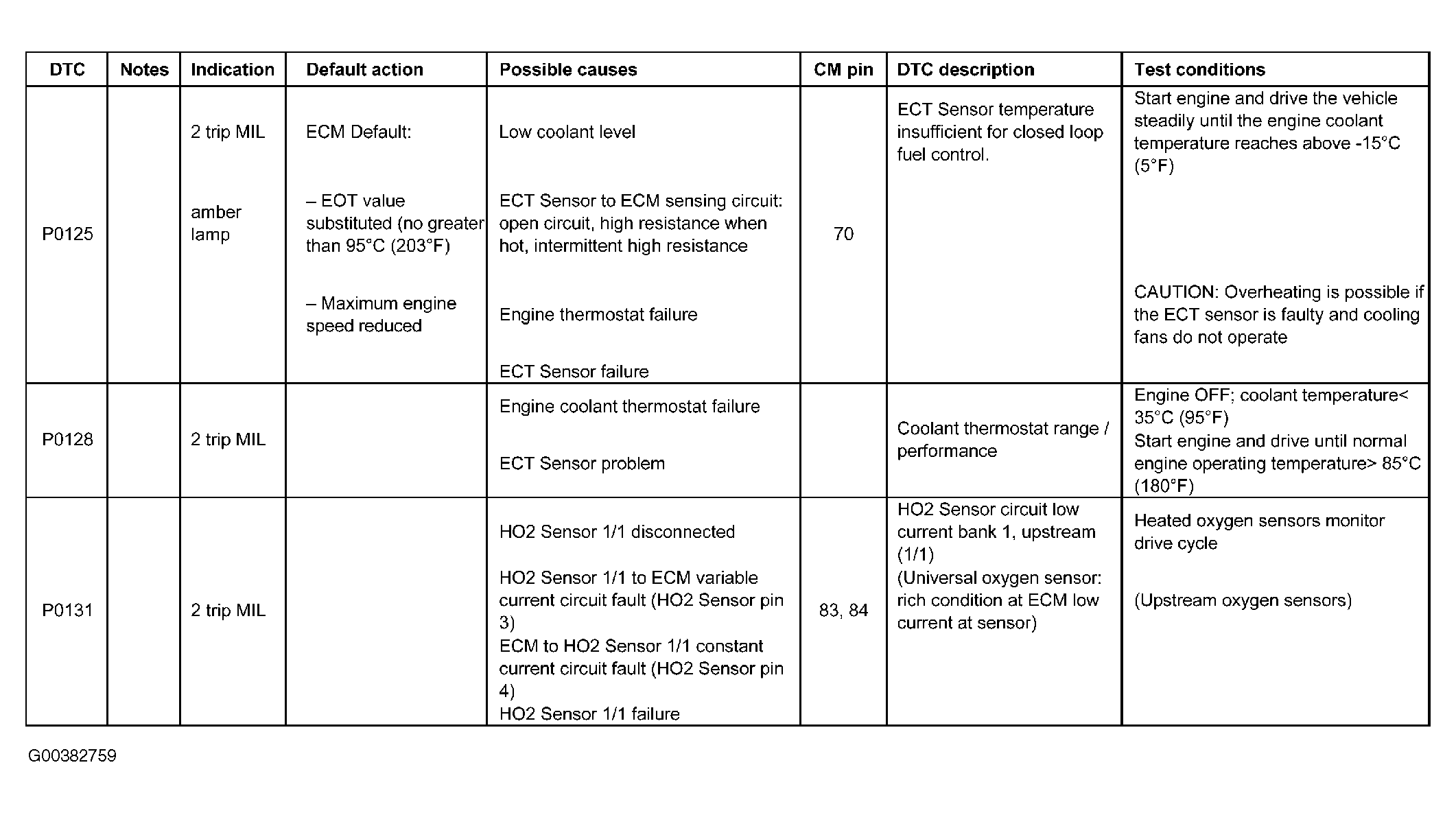

Fig 12: DTC P0125, P0128 & P0131 Possible Causes & Conditions

G00382759

Courtesy of JAGUAR CARS, INC.

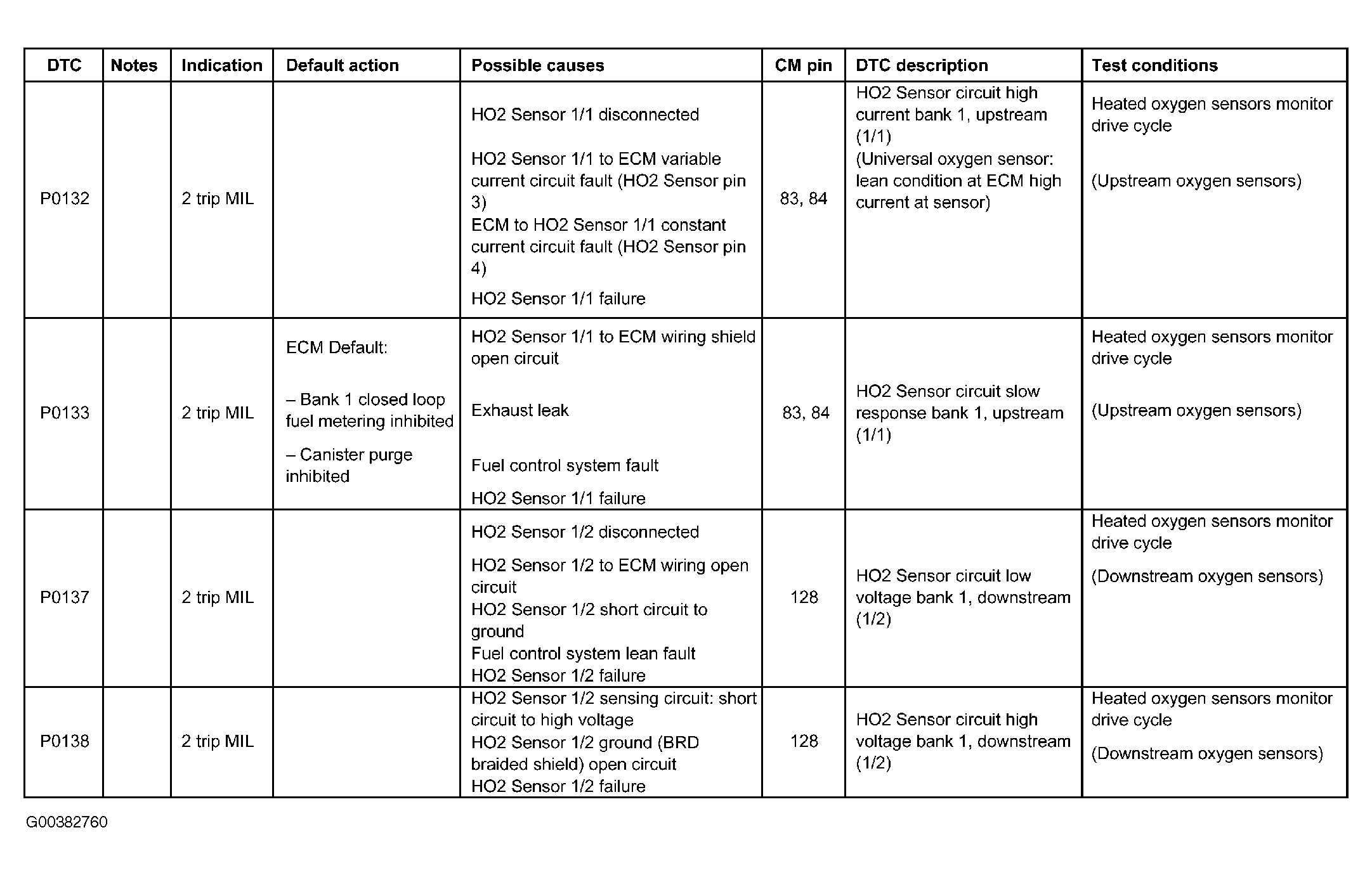

Fig 13: DTC P0132, P0133, P0137 & P0138 Possible Causes & Conditions

G00382760

Courtesy of JAGUAR CARS, INC.

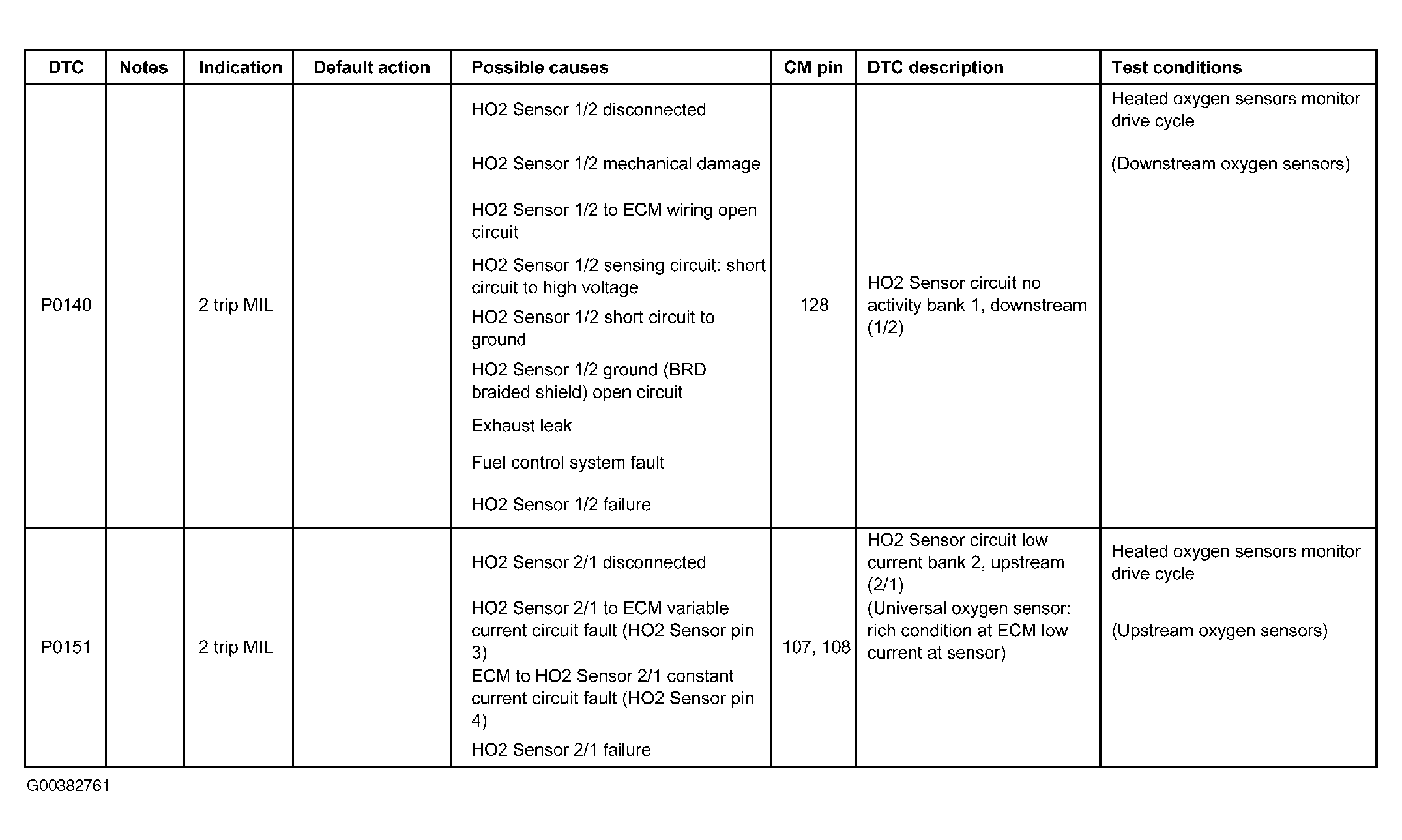

Fig 14: DTC P0140 & P0151 Possible Causes & Conditions

G00382761

Courtesy of JAGUAR CARS, INC.

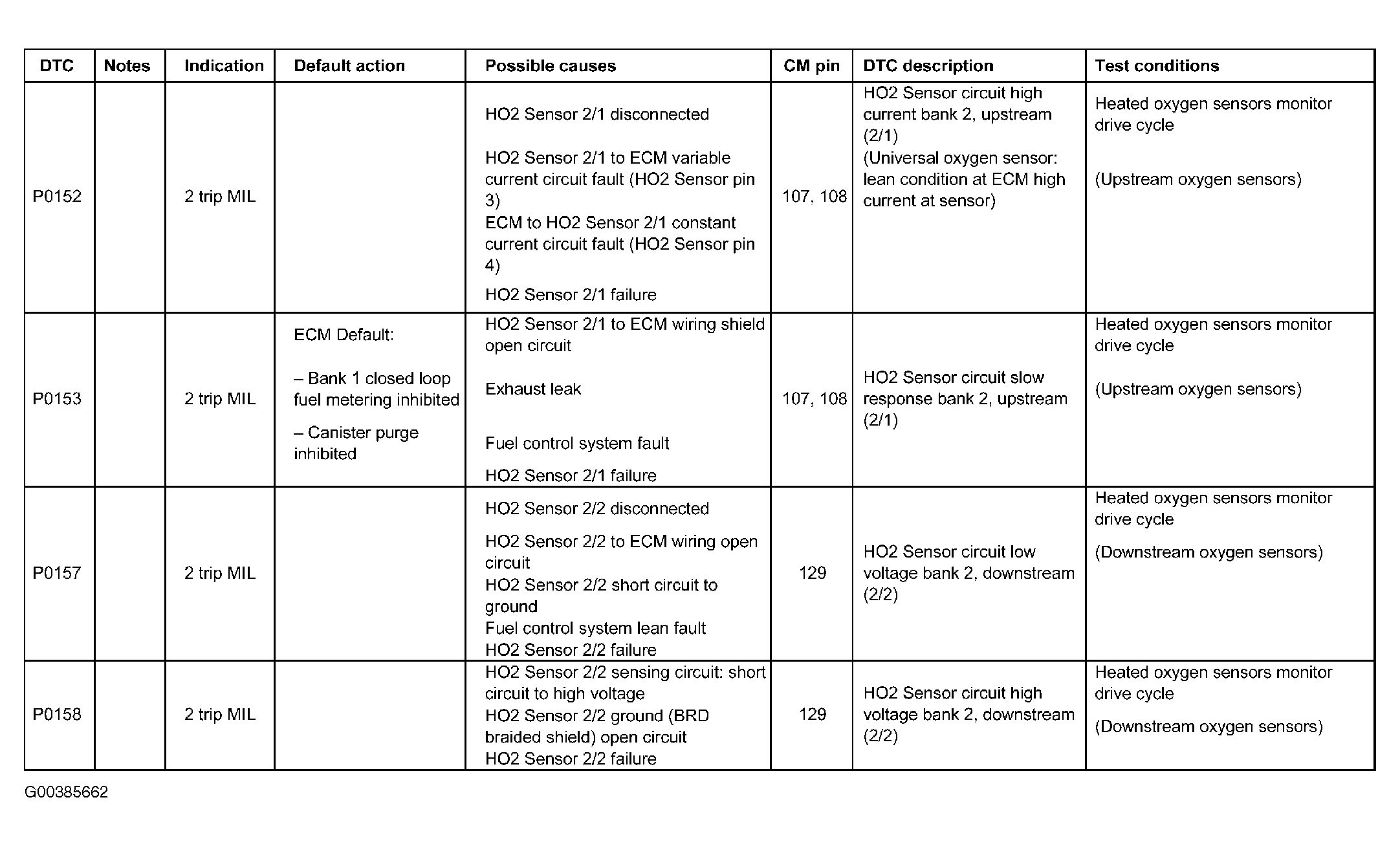

Fig 15: DTC P0152, P0153, P0157 & P0158 Possible Causes & Conditions

G00382762

Courtesy of JAGUAR CARS, INC.

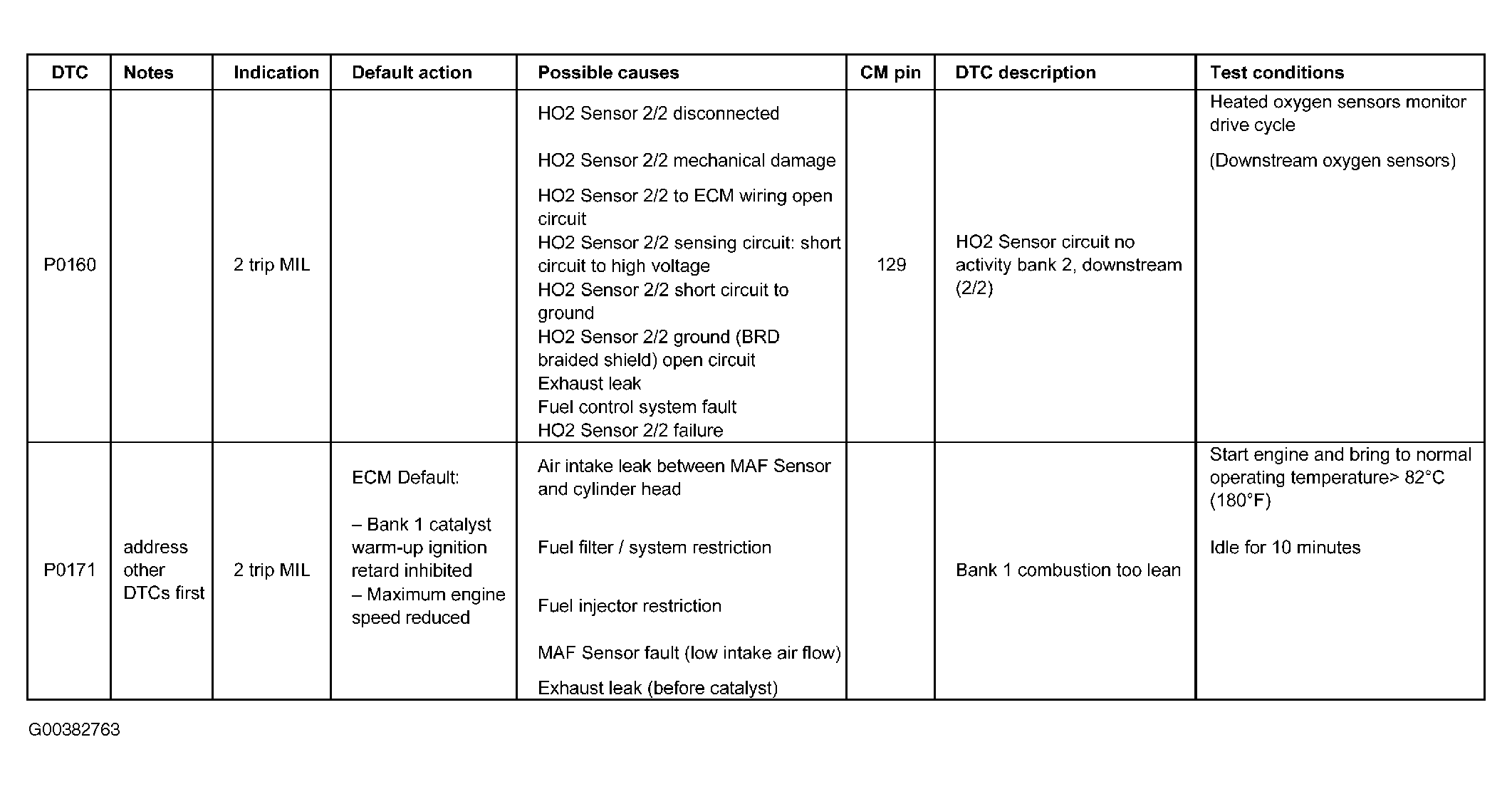

Fig 16: DTC P0160 & P0171 Possible Causes & Conditions

G00382763

Courtesy of JAGUAR CARS, INC.

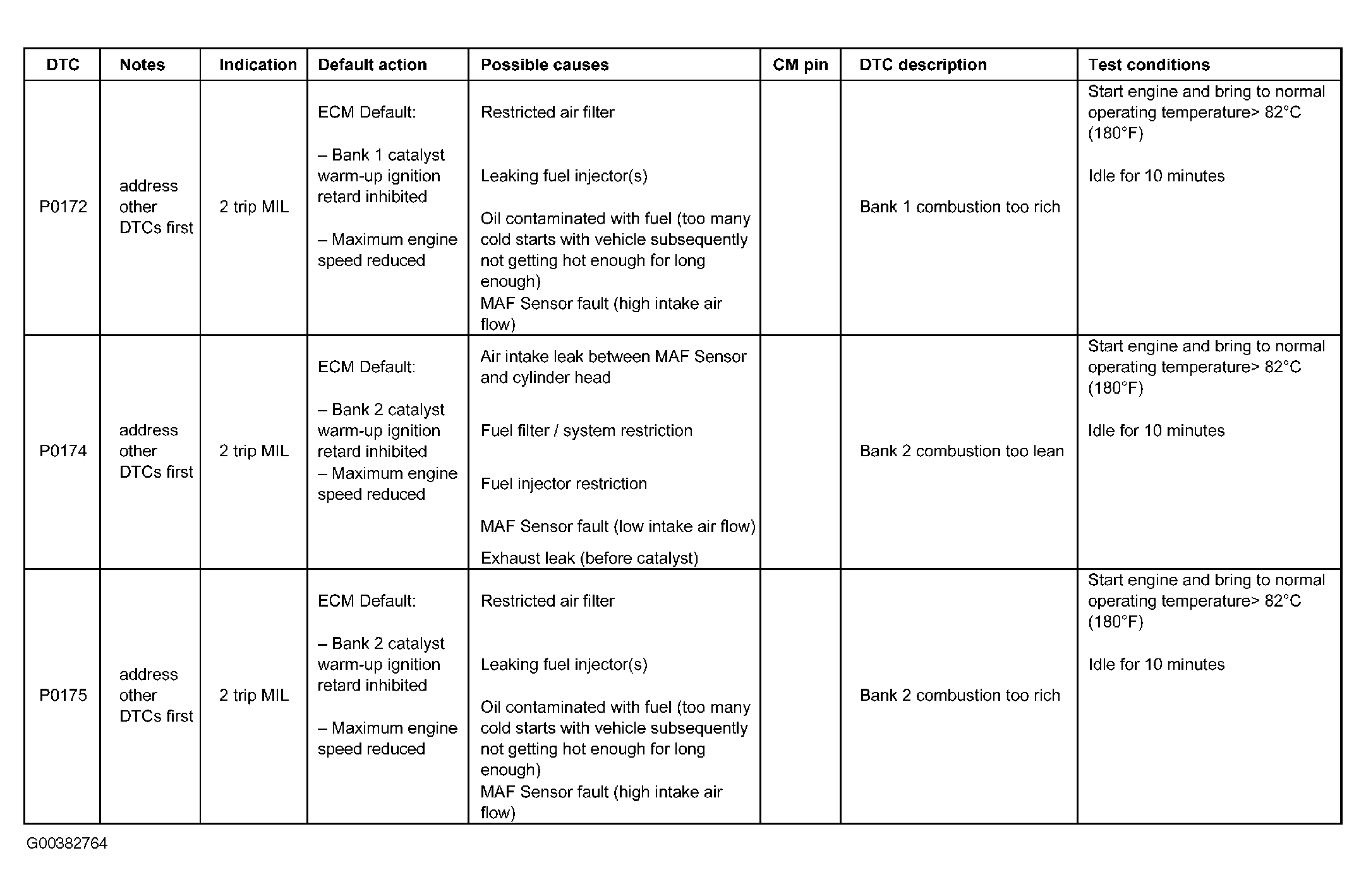

Fig 17: DTC P0172, P0174 & P0175 Possible Causes & Conditions

G00382764

Courtesy of JAGUAR CARS, INC.

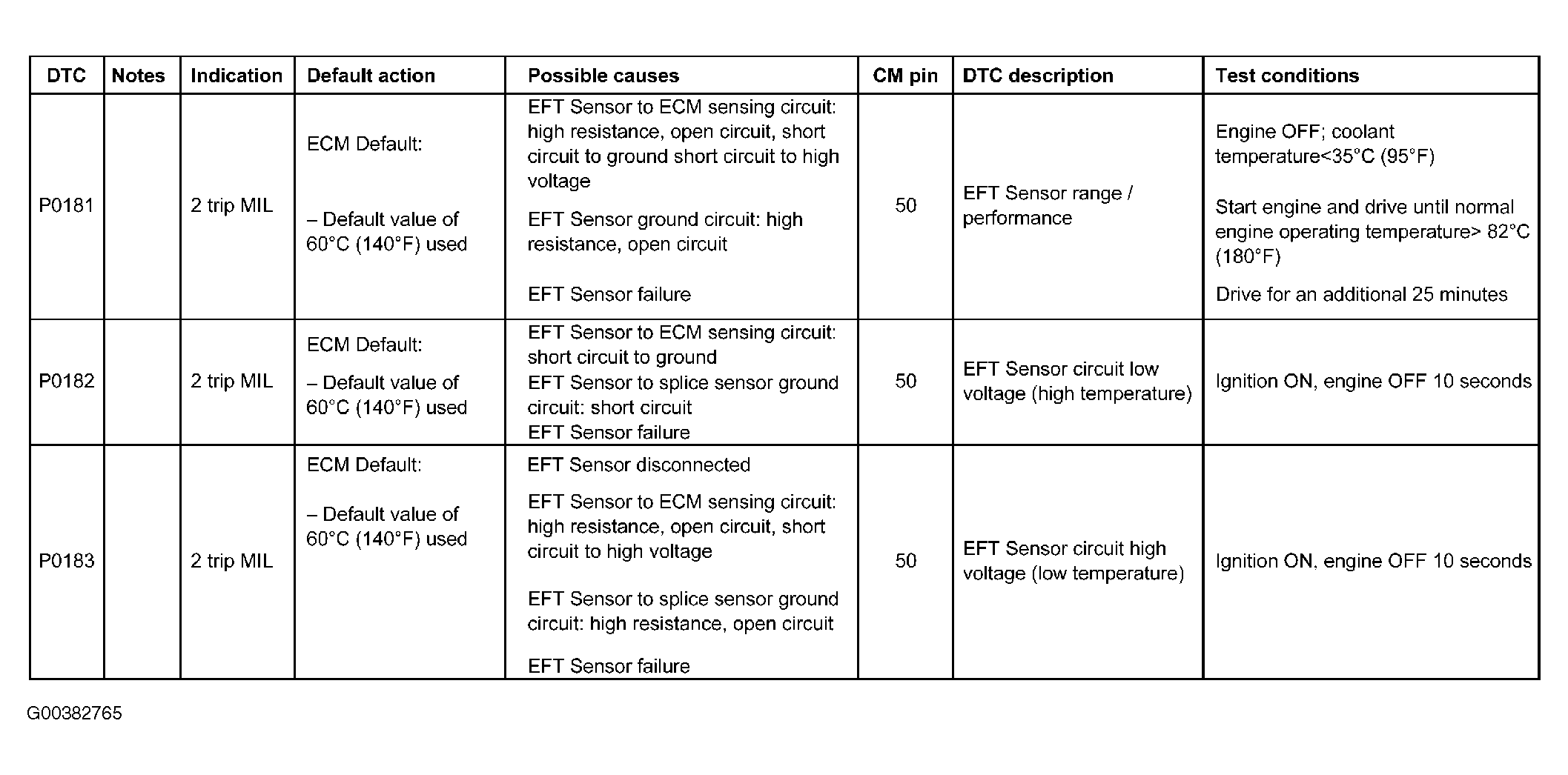

Fig 18: DTC P0181, P0182 & P0183 Possible Causes & Conditions

G00382765

Courtesy of JAGUAR CARS, INC.

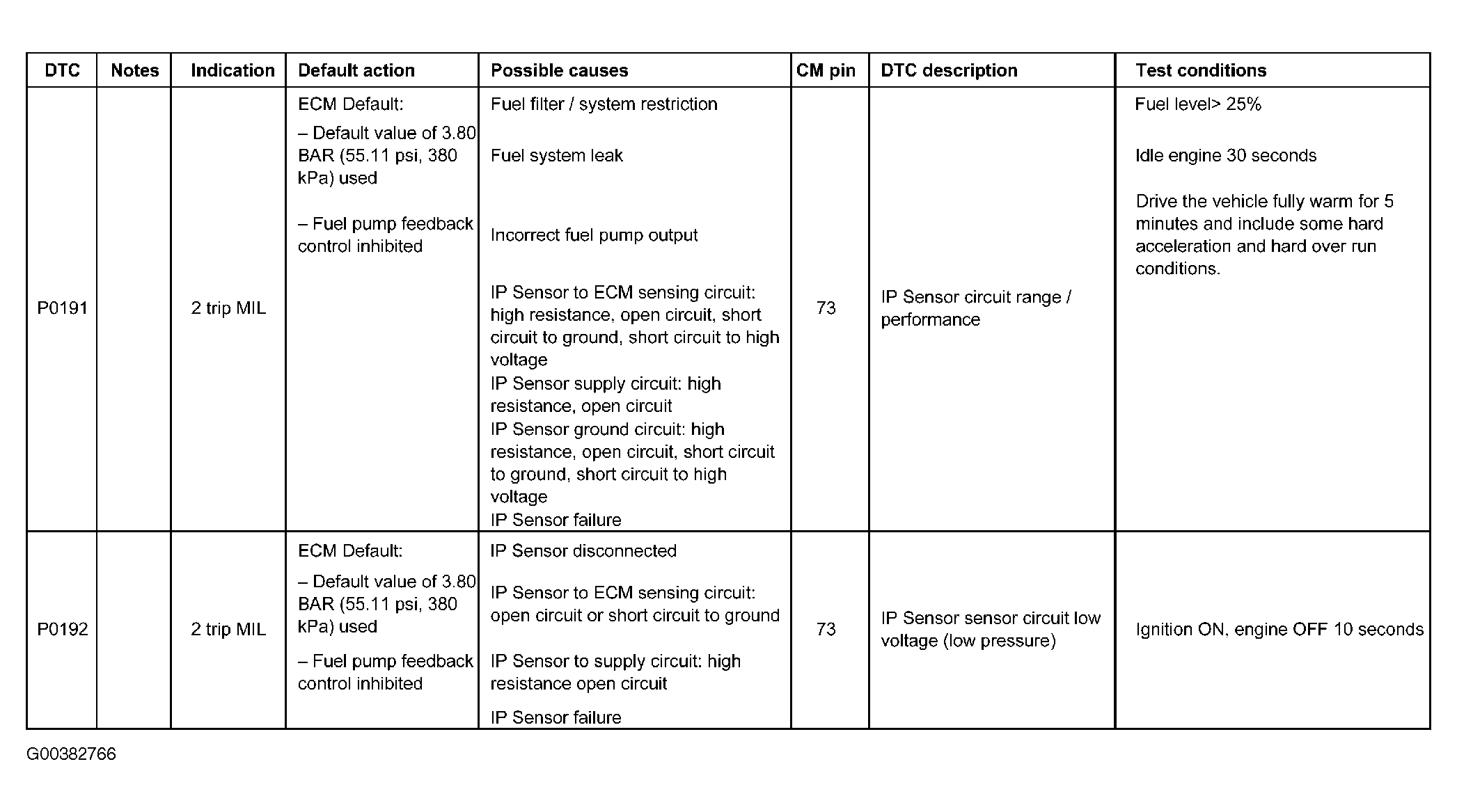

Fig 19: DTC P0191 & P0192 Possible Causes & Conditions

G00382766

Courtesy of JAGUAR CARS, INC.

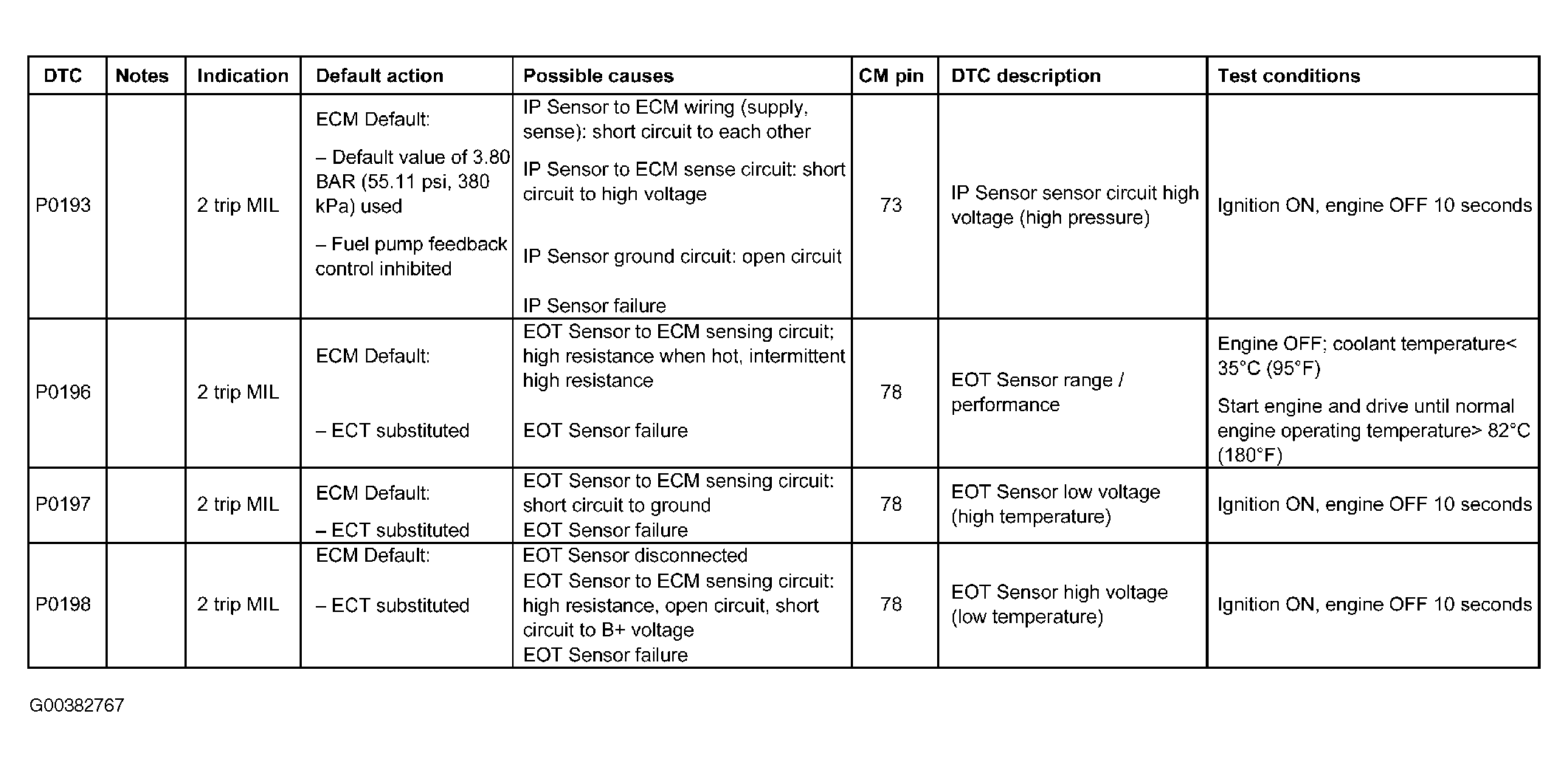

Fig 20: DTC P0193, P0196, P0197 & P0198 Possible Causes & Conditions

G00382767

Courtesy of JAGUAR CARS, INC.

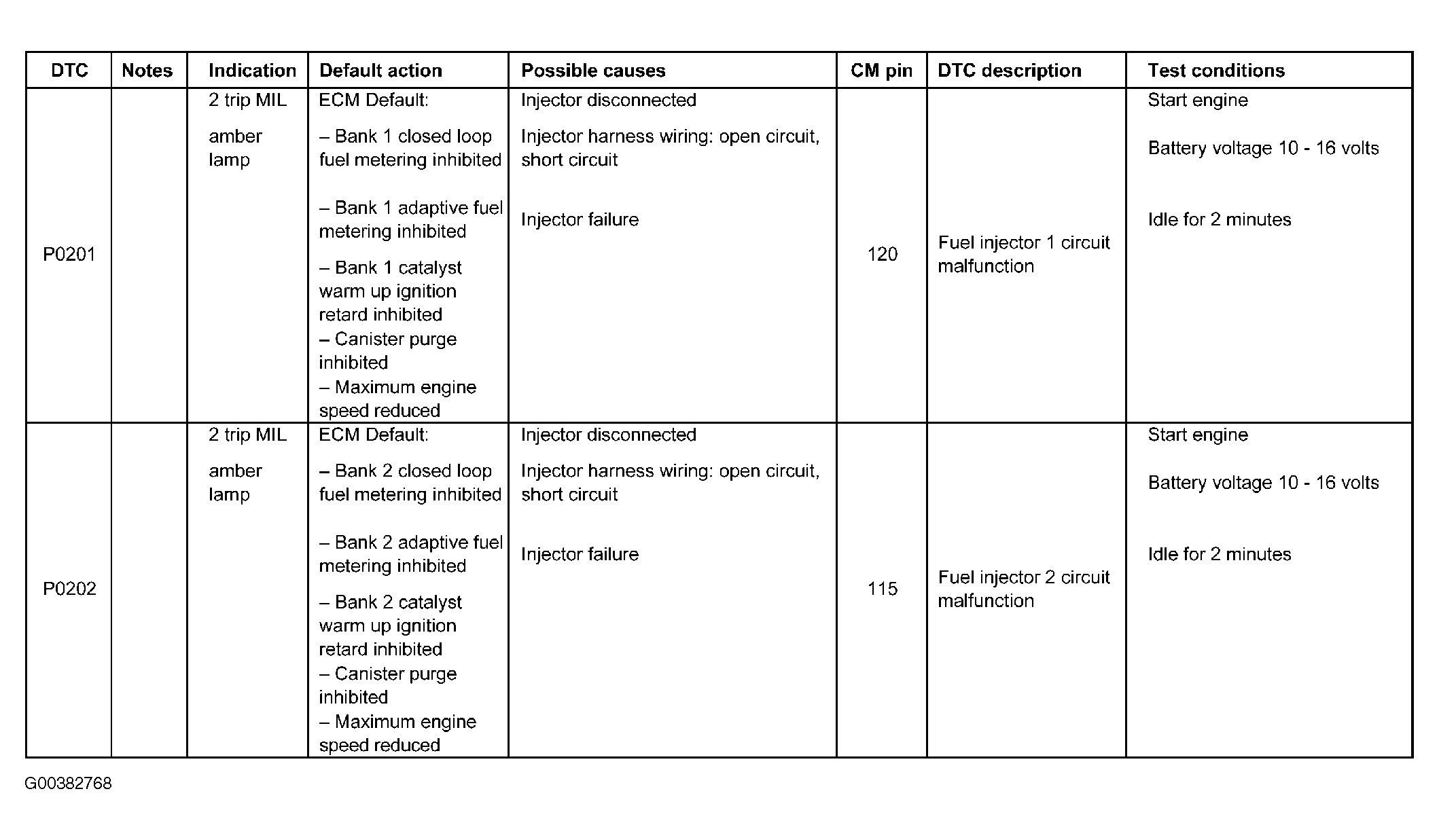

Fig 21: DTC P0201 & P0202 Possible Causes & Conditions

G00382768

Courtesy of JAGUAR CARS, INC.

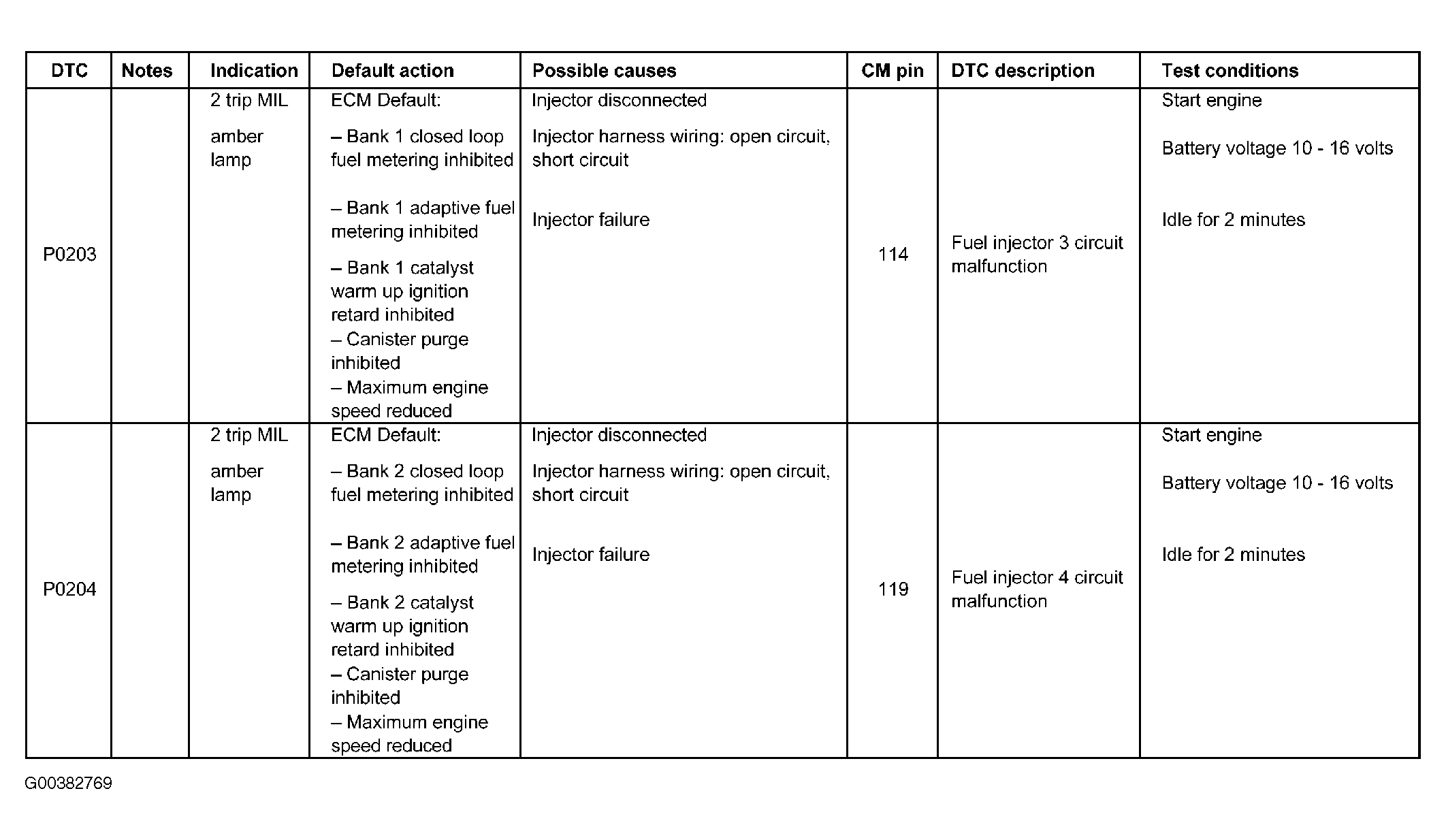

Fig 22: DTC P0203 & P0204 Possible Causes & Conditions

G00382769

Courtesy of JAGUAR CARS, INC.

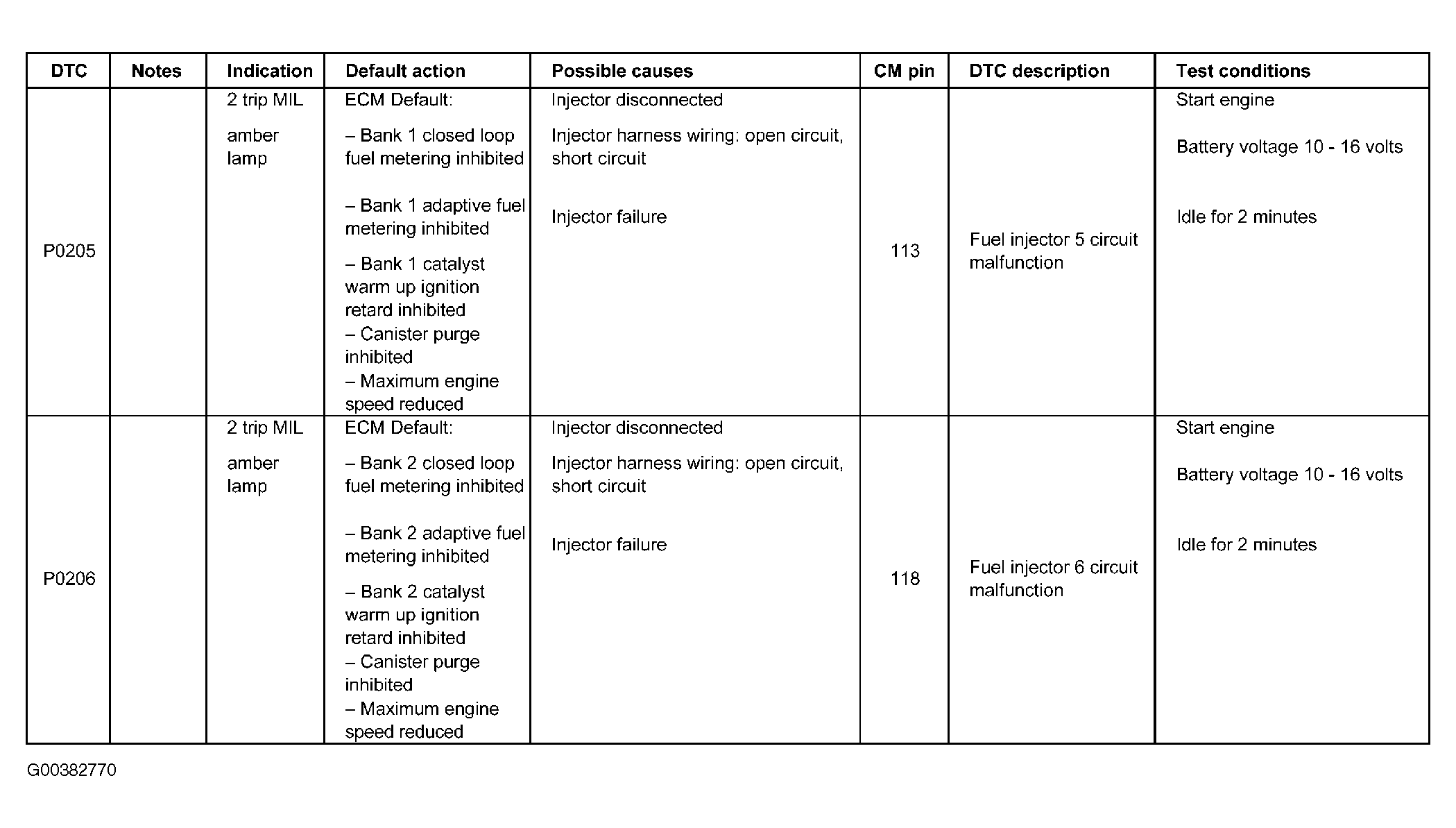

Fig 23: DTC P0205 & P0206 Possible Causes & Conditions

G00382770

Courtesy of JAGUAR CARS, INC.

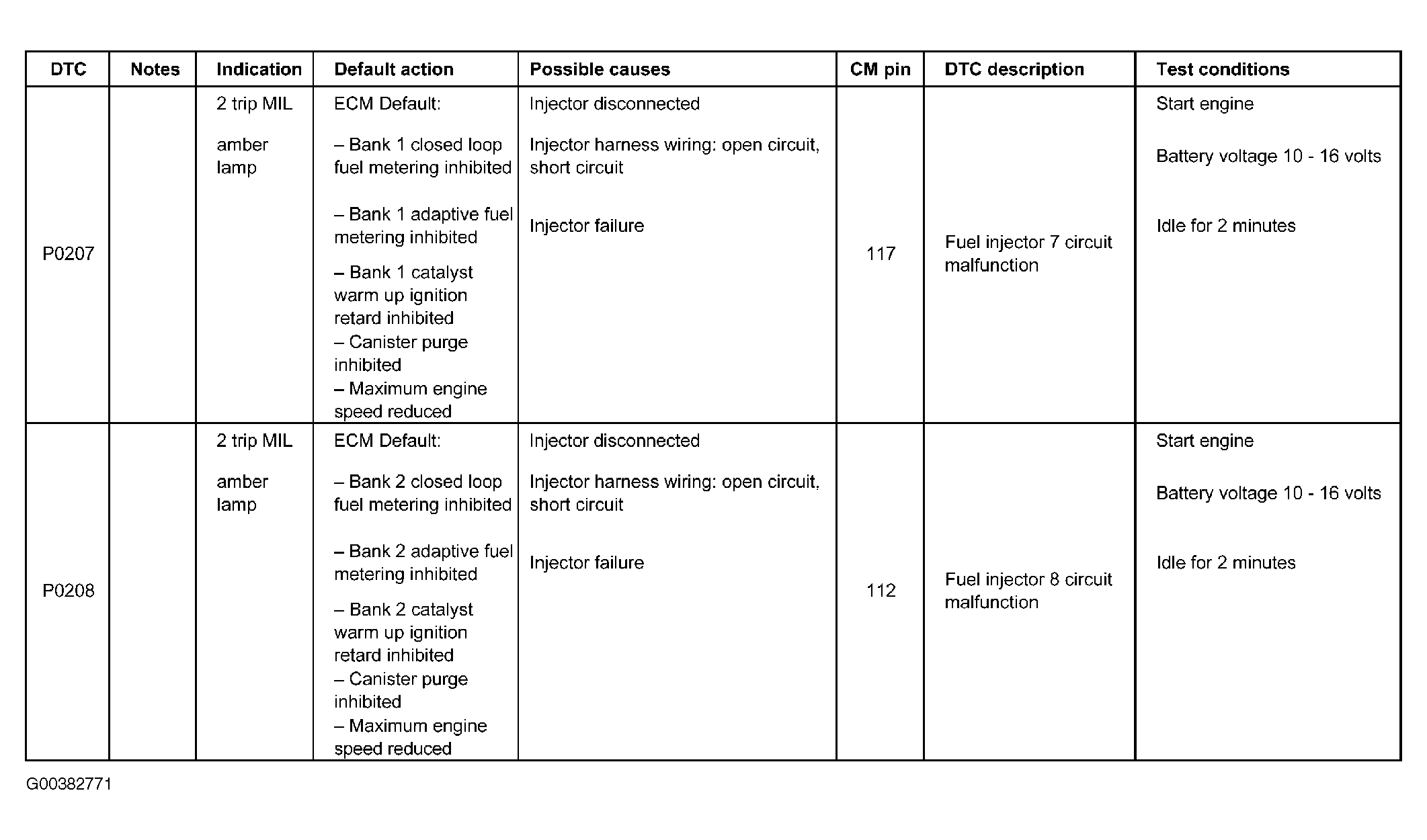

Fig 24: DTC P0207 & P0208 Possible Causes & Conditions

G00382771

Courtesy of JAGUAR CARS, INC.

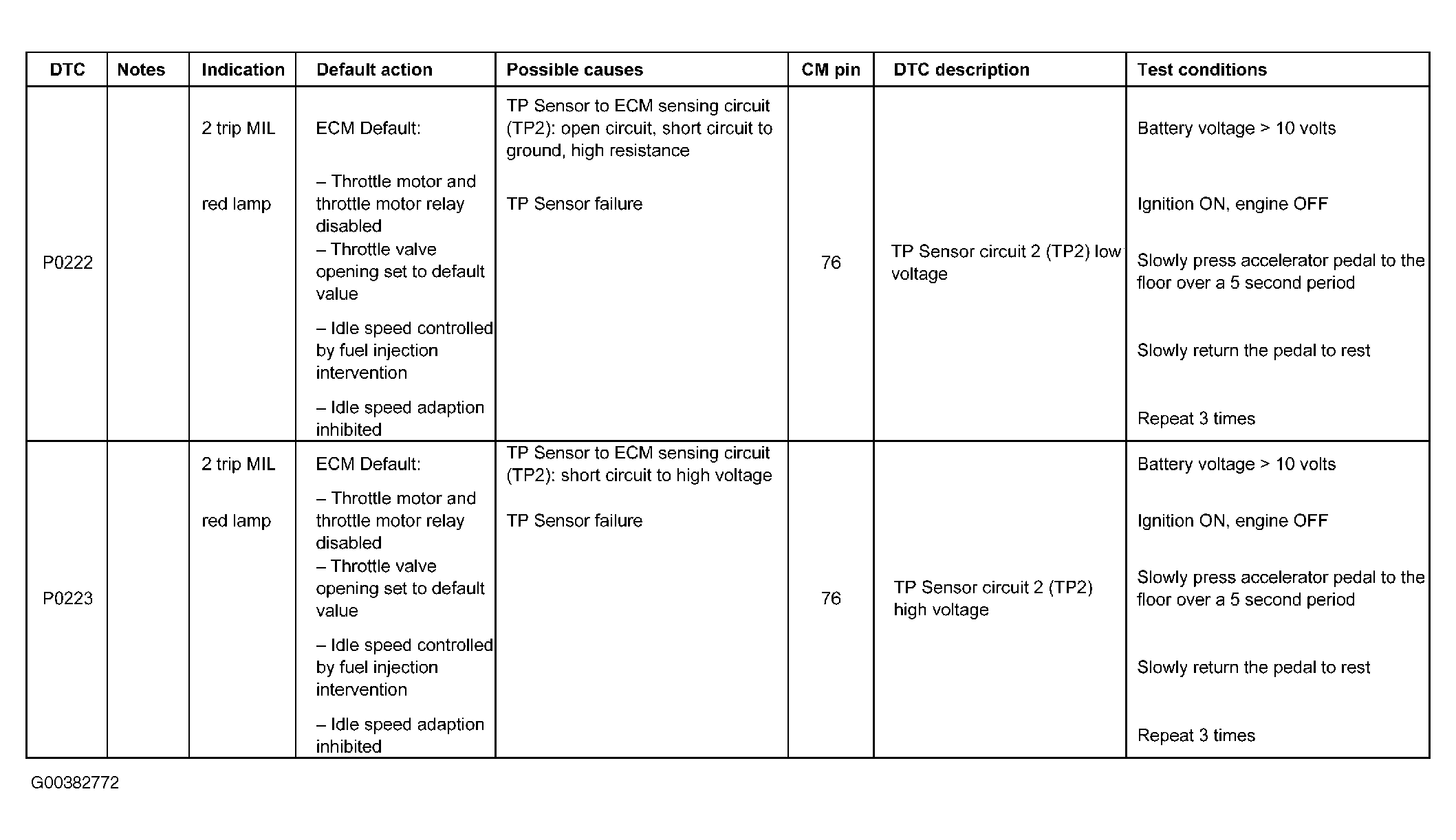

Fig 25: DTC P0222 & P0223 Possible Causes & Conditions

G00382772

Courtesy of JAGUAR CARS, INC.

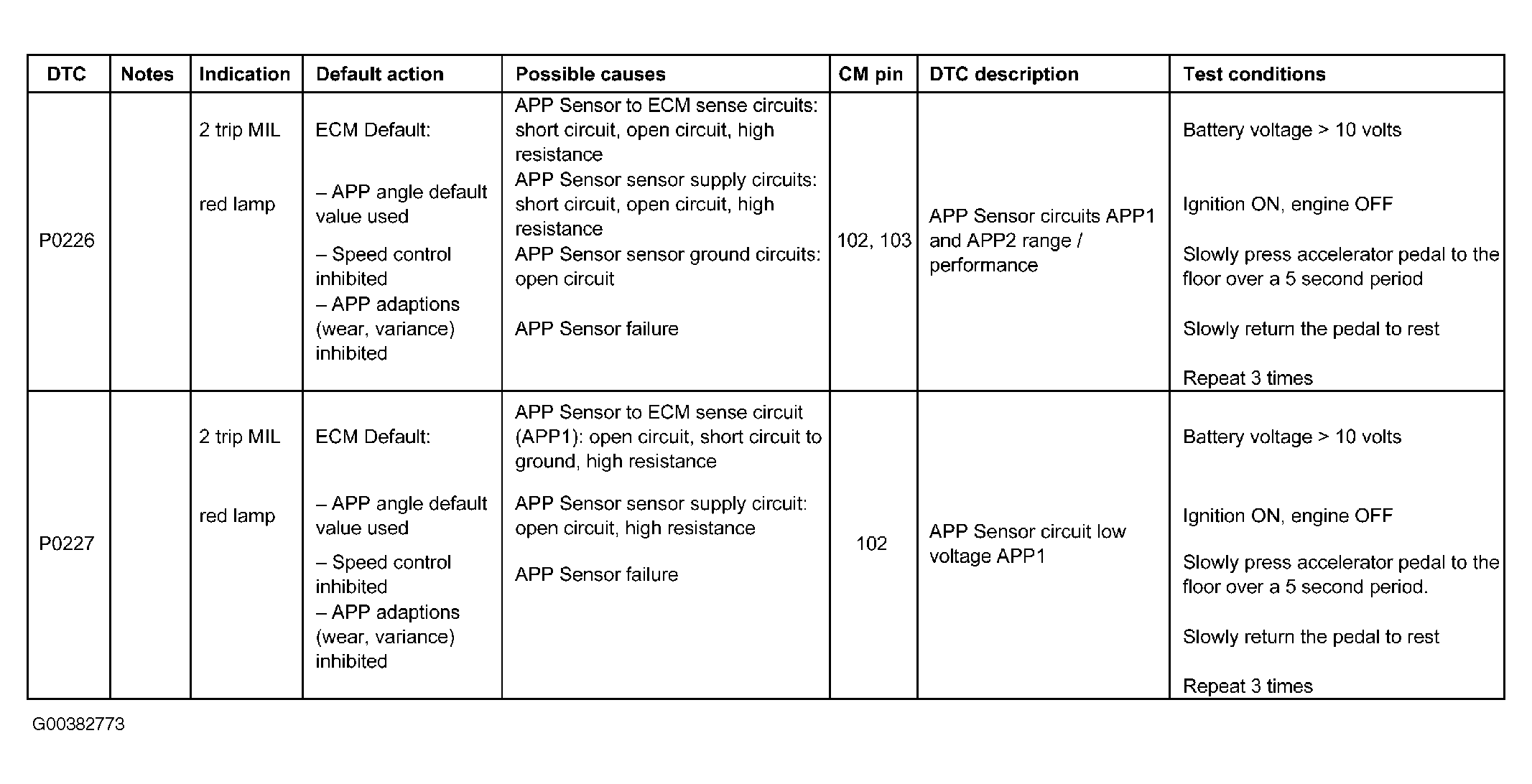

Fig 26: DTC P0226 & P0227 Possible Causes & Conditions

G00382773

Courtesy of JAGUAR CARS, INC.

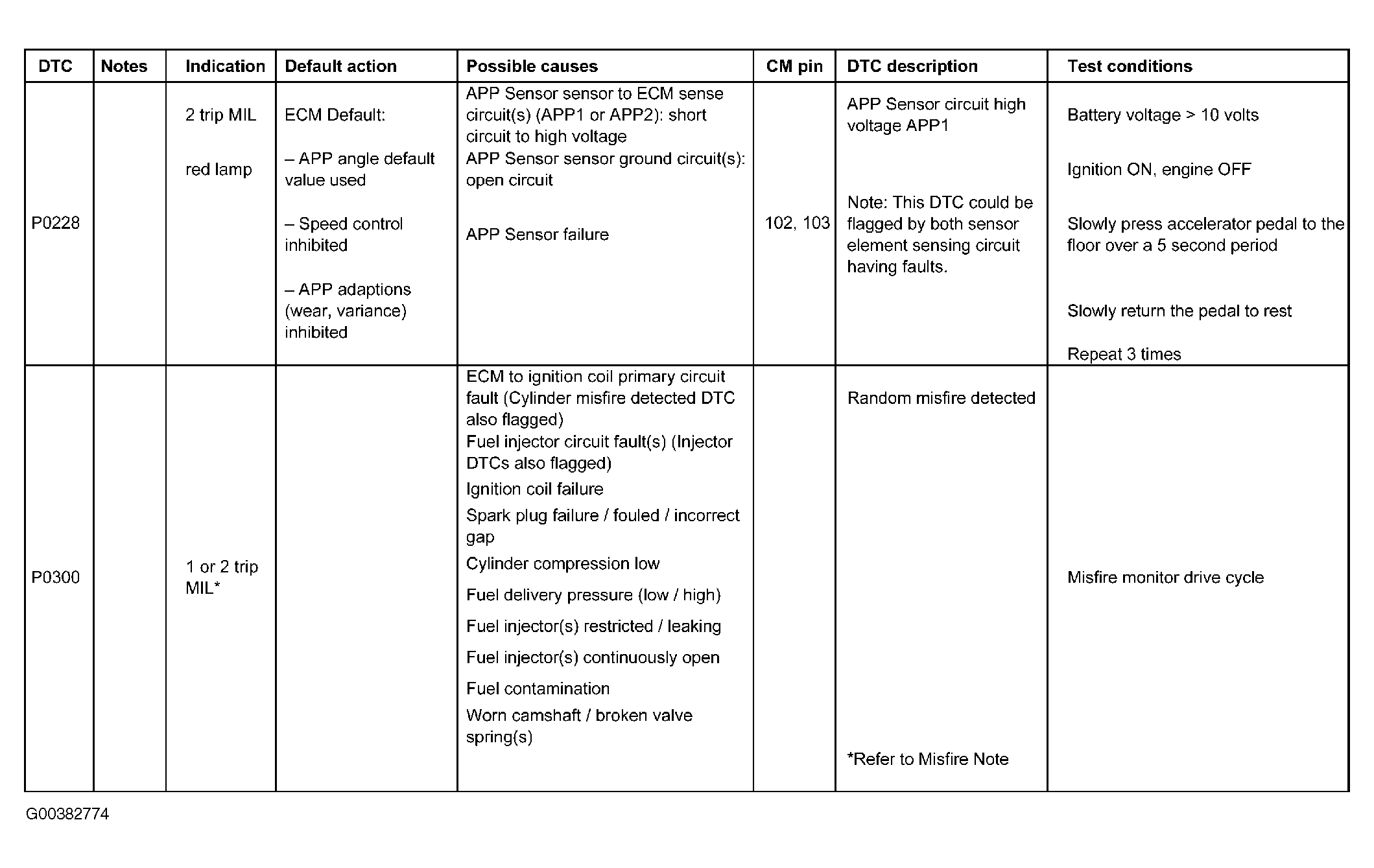

Fig 27: DTC P0228 & P0300 Possible Causes & Conditions

G00382774

Courtesy of JAGUAR CARS, INC.

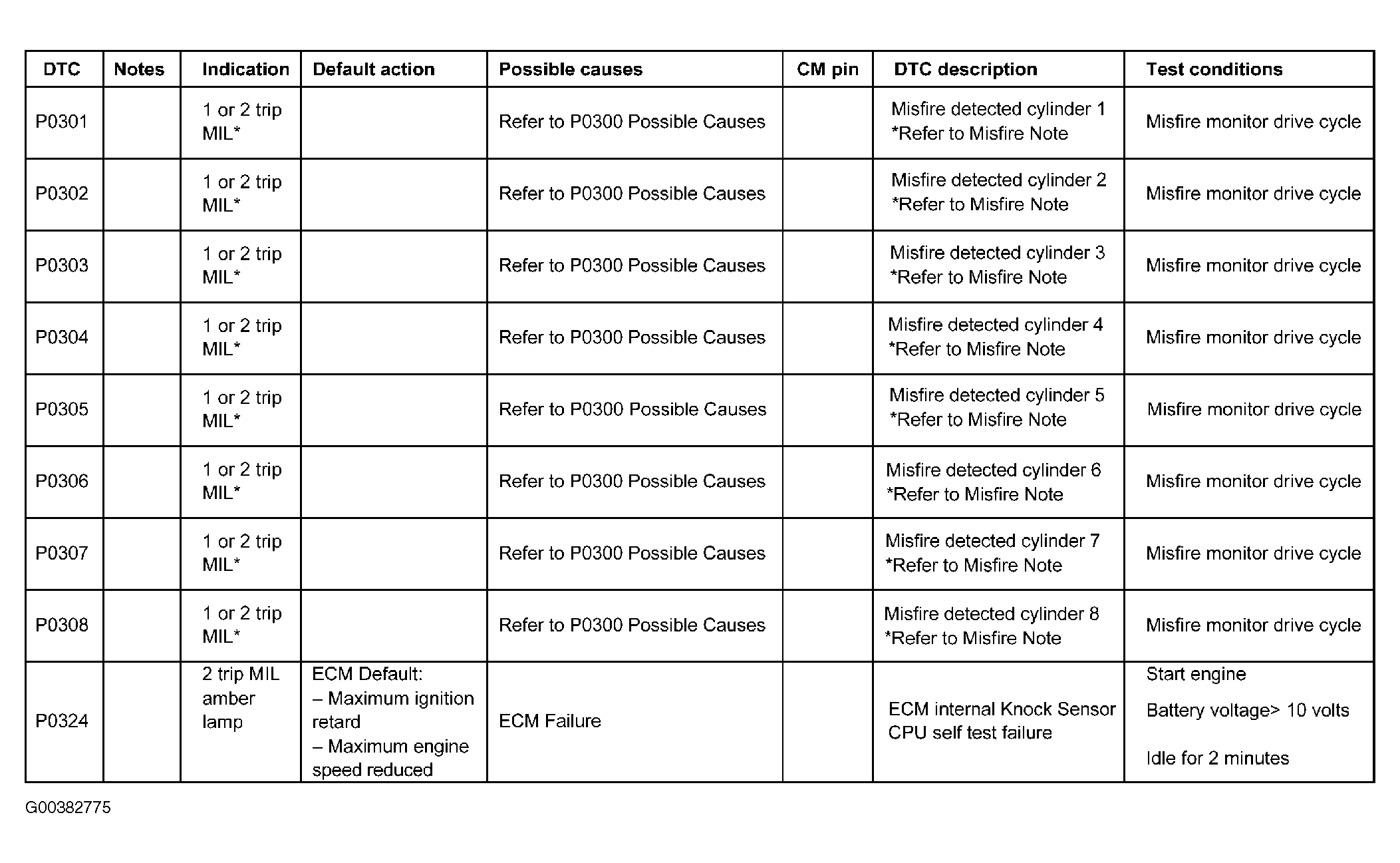

Fig 28: DTC P0301, P0302, P0303, P0304, P0305, P0306, P0307, P0308 & P0324 Possible Causes & Conditions

G00382775

Courtesy of JAGUAR CARS, INC.

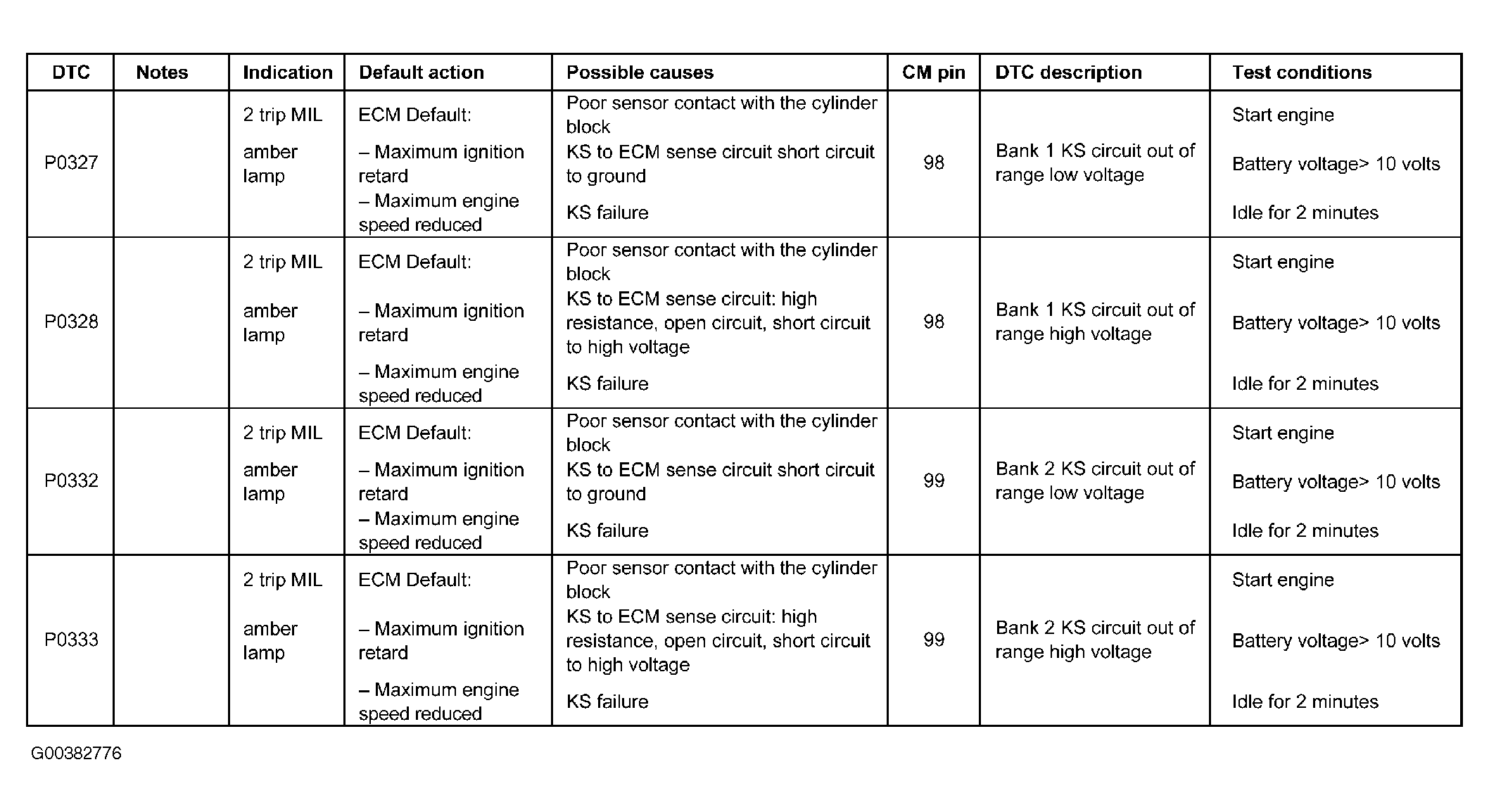

Fig 29: DTC P0327, P0328, P0332 & P0333 Possible Causes & Conditions

G00382776

Courtesy of JAGUAR CARS, INC.

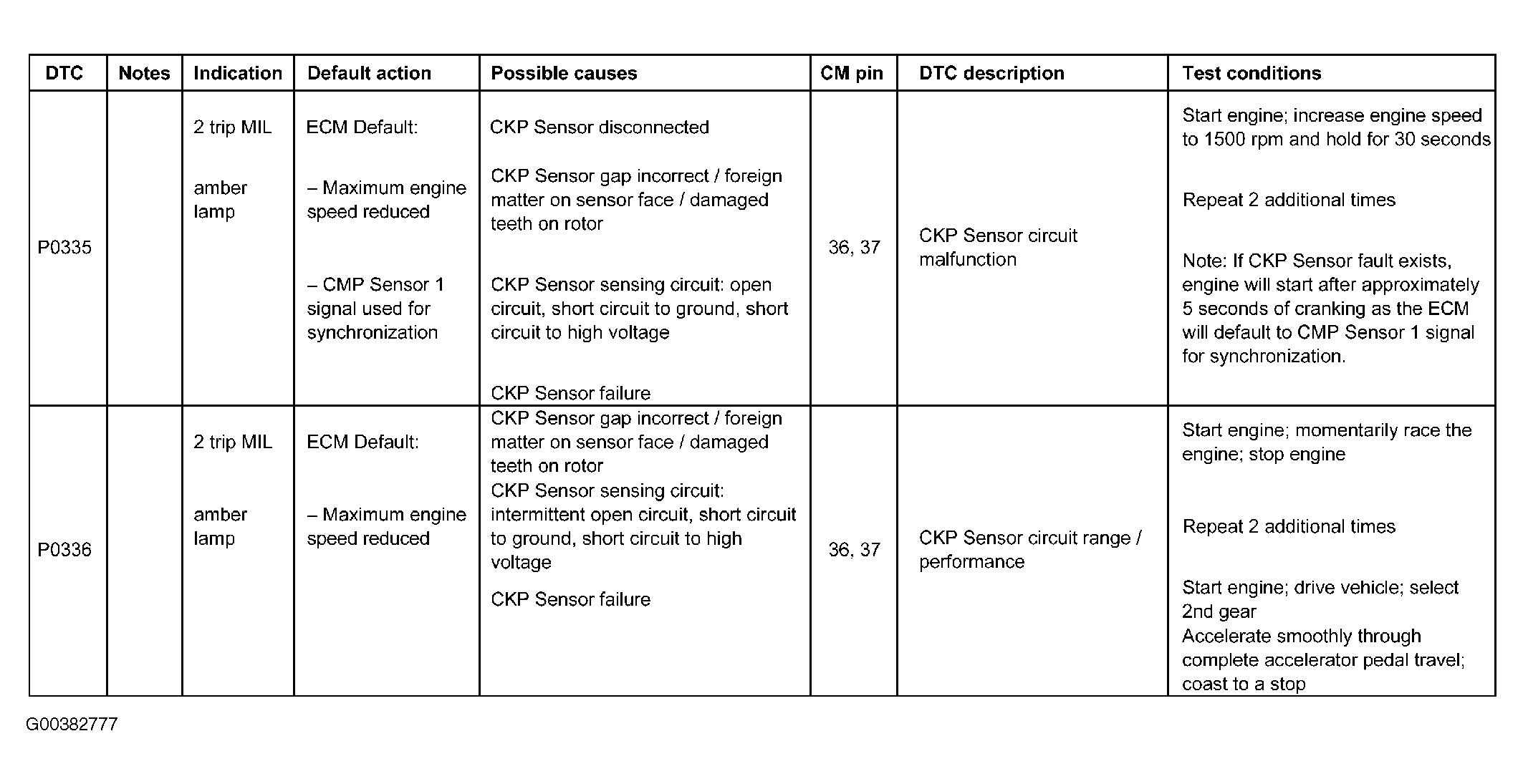

Fig 30: DTC P0335 & P0336 Possible Causes & Conditions

G00382777

Courtesy of JAGUAR CARS, INC.

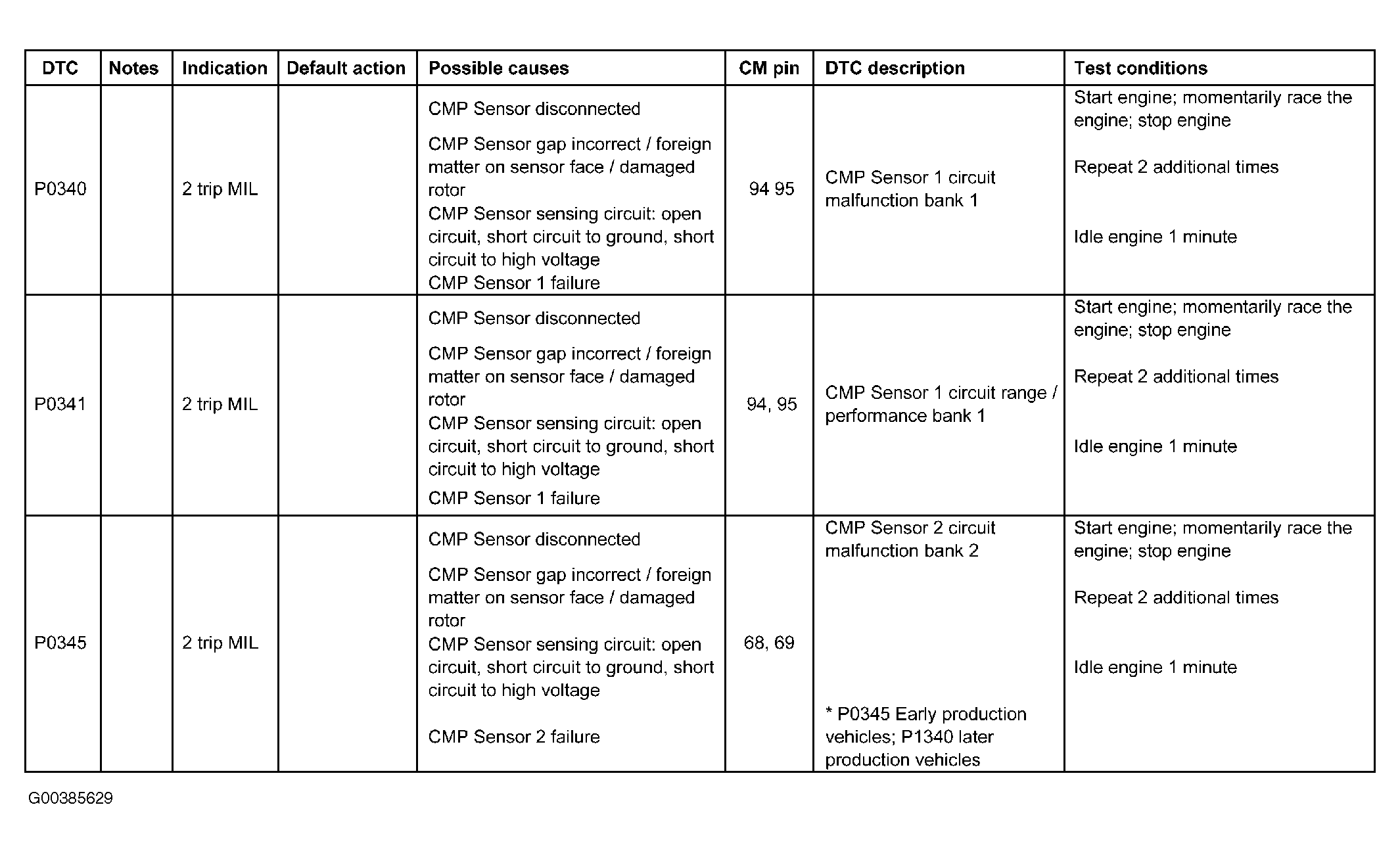

Fig 31: DTC P0340, P0341& P345 Possible Causes & Conditions

G00385629

Courtesy of JAGUAR CARS, INC.

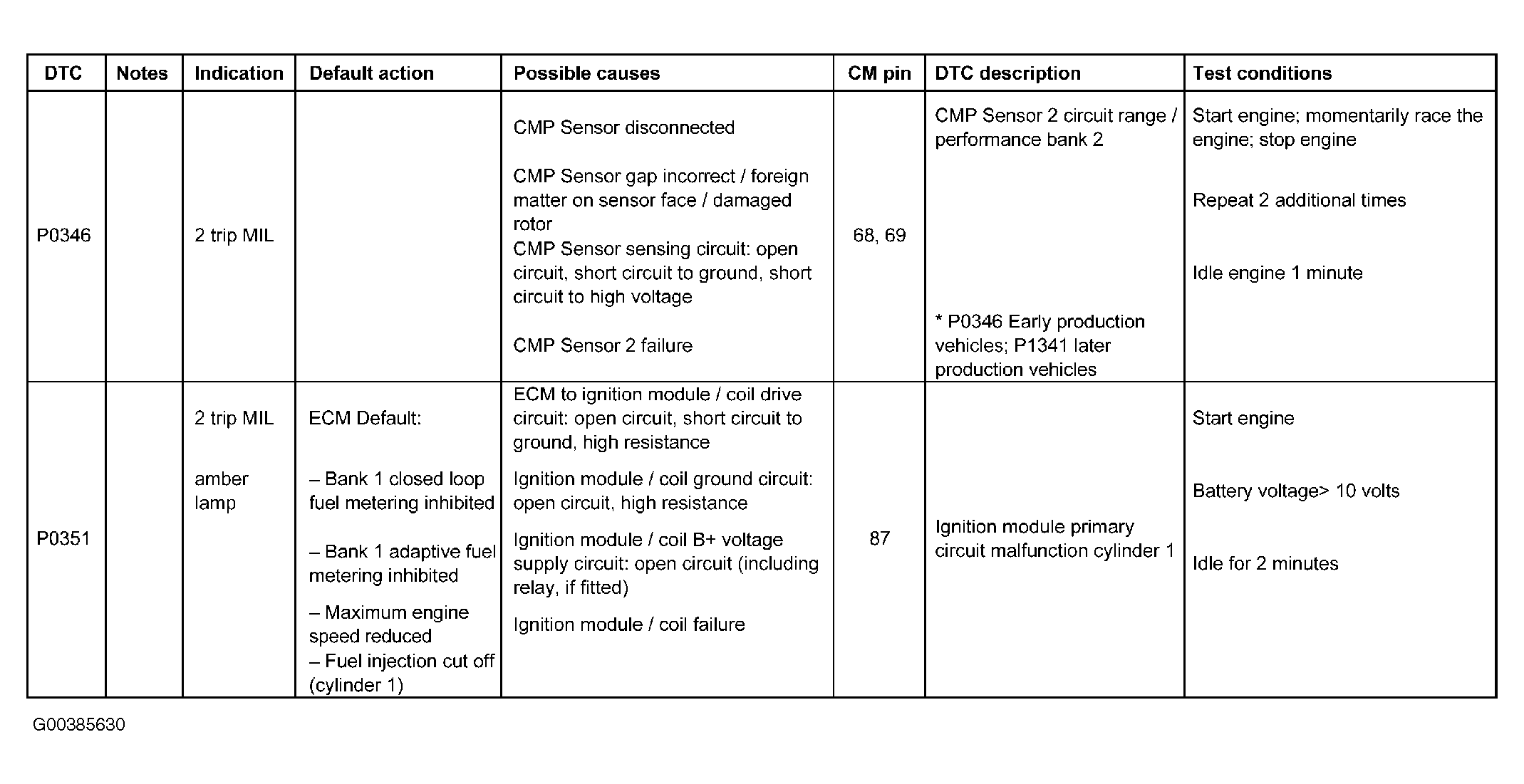

Fig 32: DTC P0346 & P0351 Possible Causes & Conditions

G00385630

Courtesy of JAGUAR CARS, INC.

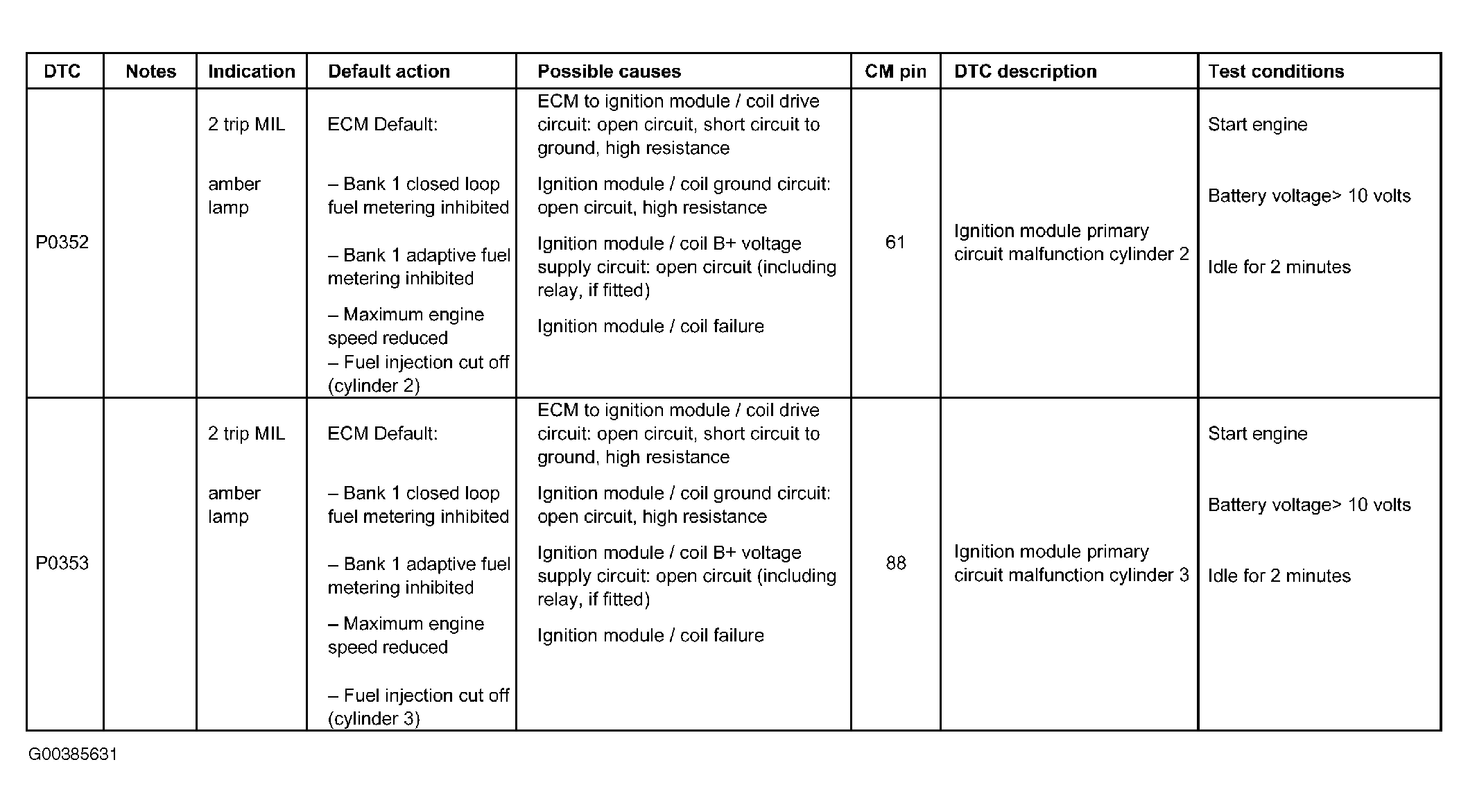

Fig 33: DTC P0352 & P0353 Possible Causes & Conditions

G00385631

Courtesy of JAGUAR CARS, INC.

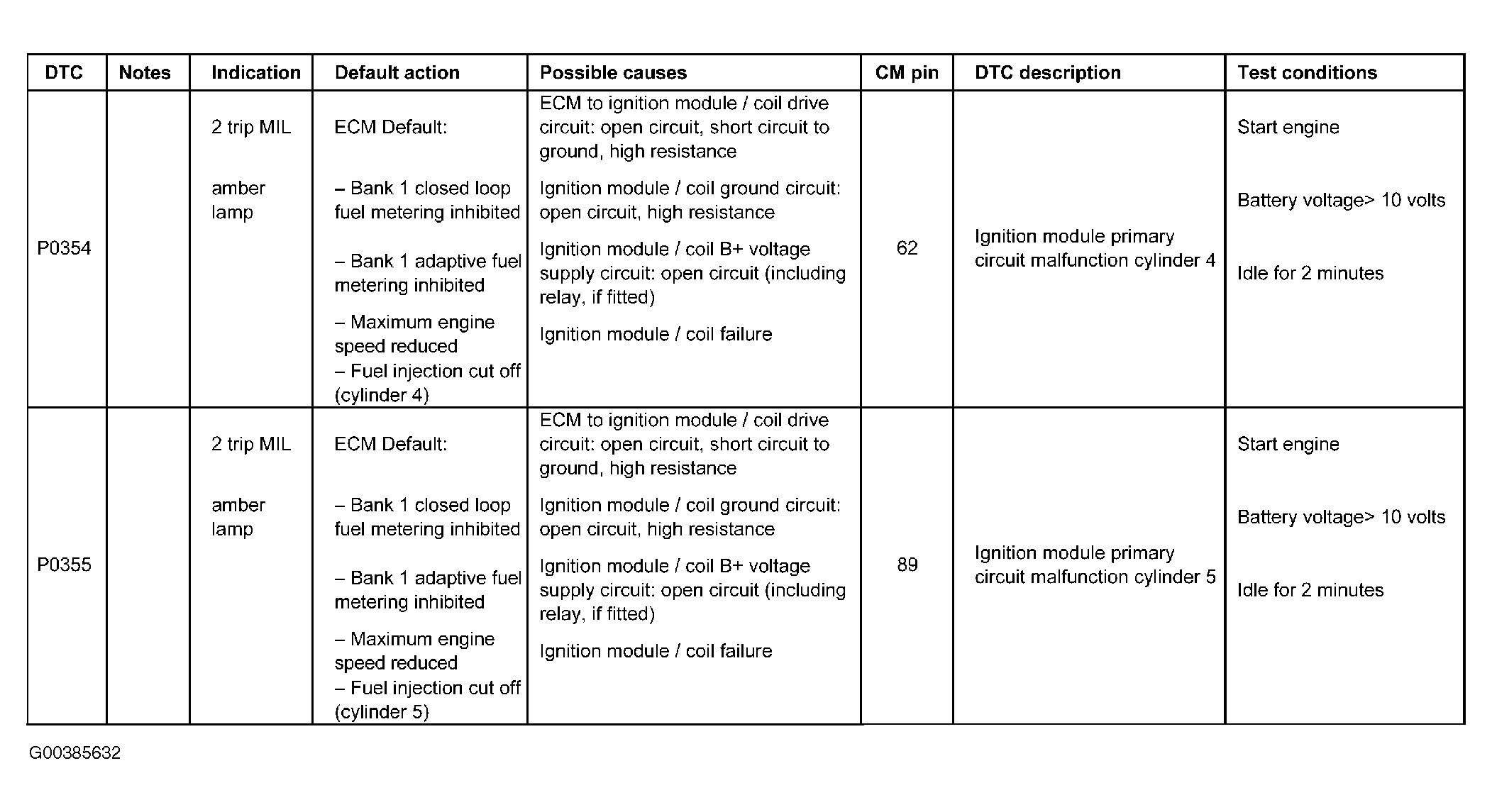

Fig 34: DTC P0354 & P0355 Possible Causes & Conditions

G00385632

Courtesy of JAGUAR CARS, INC.

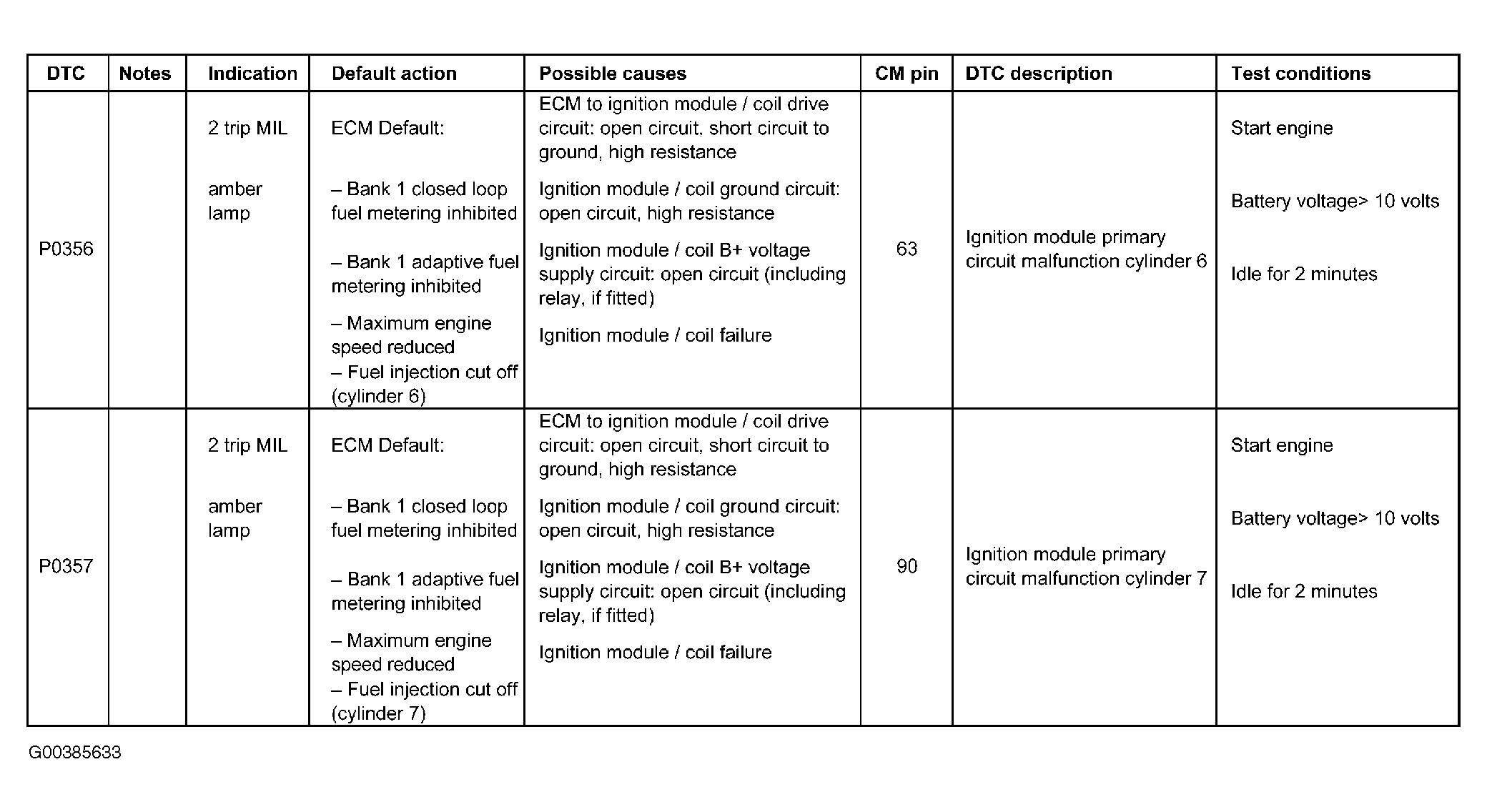

Fig 35: DTC P0356 & P0357 Possible Causes & Conditions

G00385633

Courtesy of JAGUAR CARS, INC.

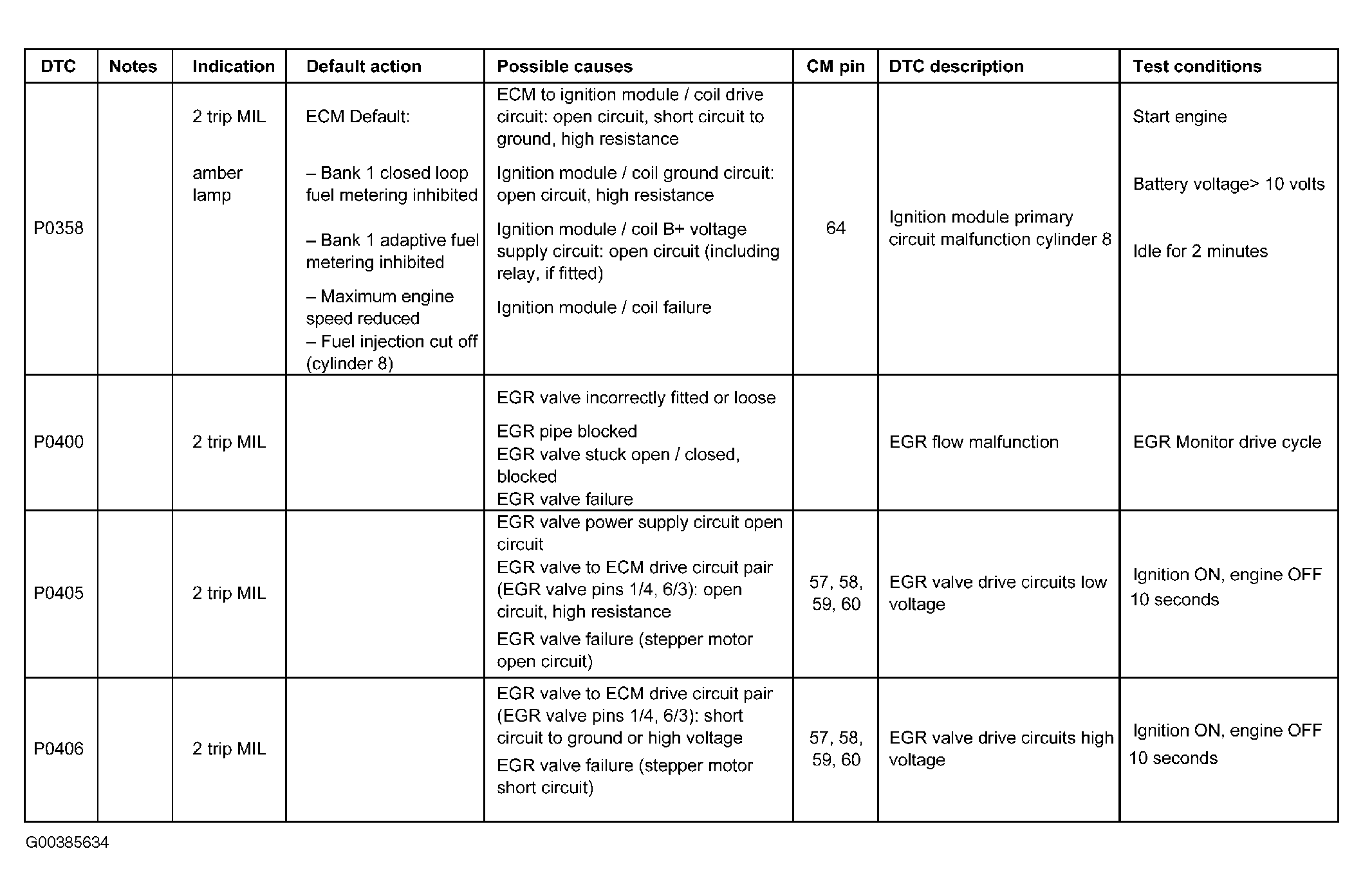

Fig 36: DTC P0358, P0400, P0405 & P0406 Possible Causes & Conditions

G00385634

Courtesy of JAGUAR CARS, INC.

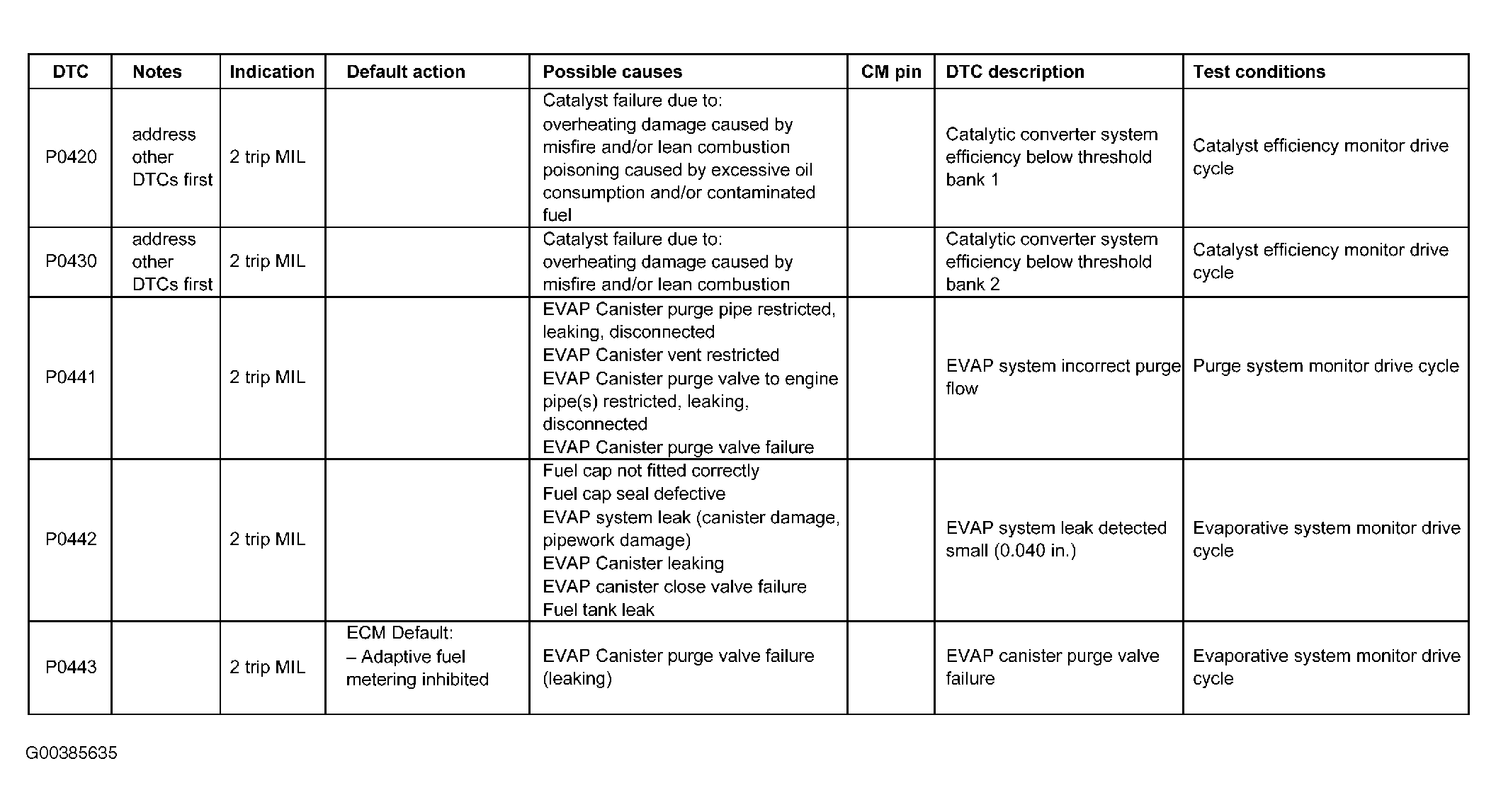

Fig 37: DTC P0420, P0430, P0441, P0442 & P0443 Possible Causes & Conditions

G00385635

Courtesy of JAGUAR CARS, INC.

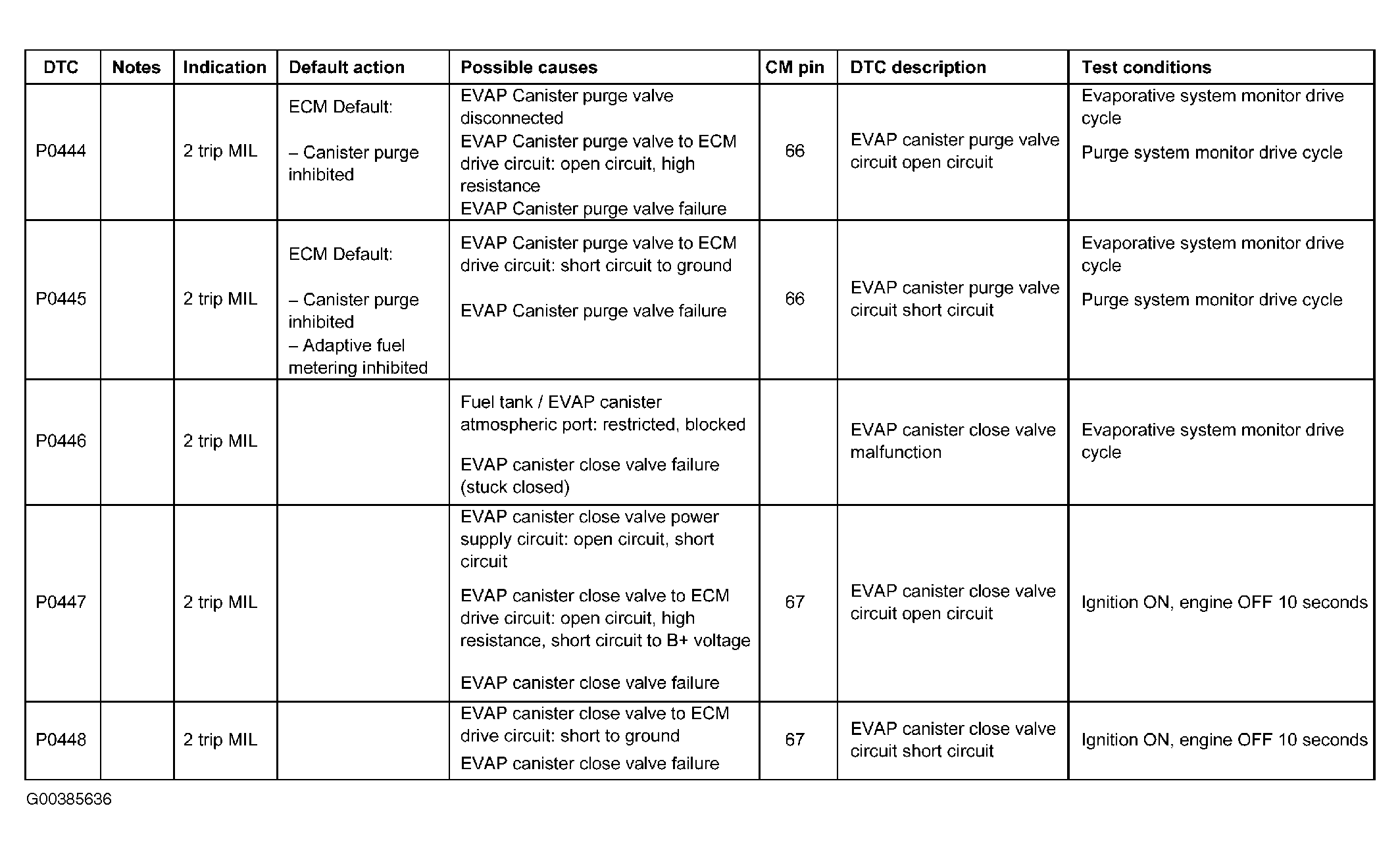

Fig 38: DTC P0444, P0445, P0446, P0447 & P0448 Possible Causes & Conditions

G00385636

Courtesy of JAGUAR CARS, INC.

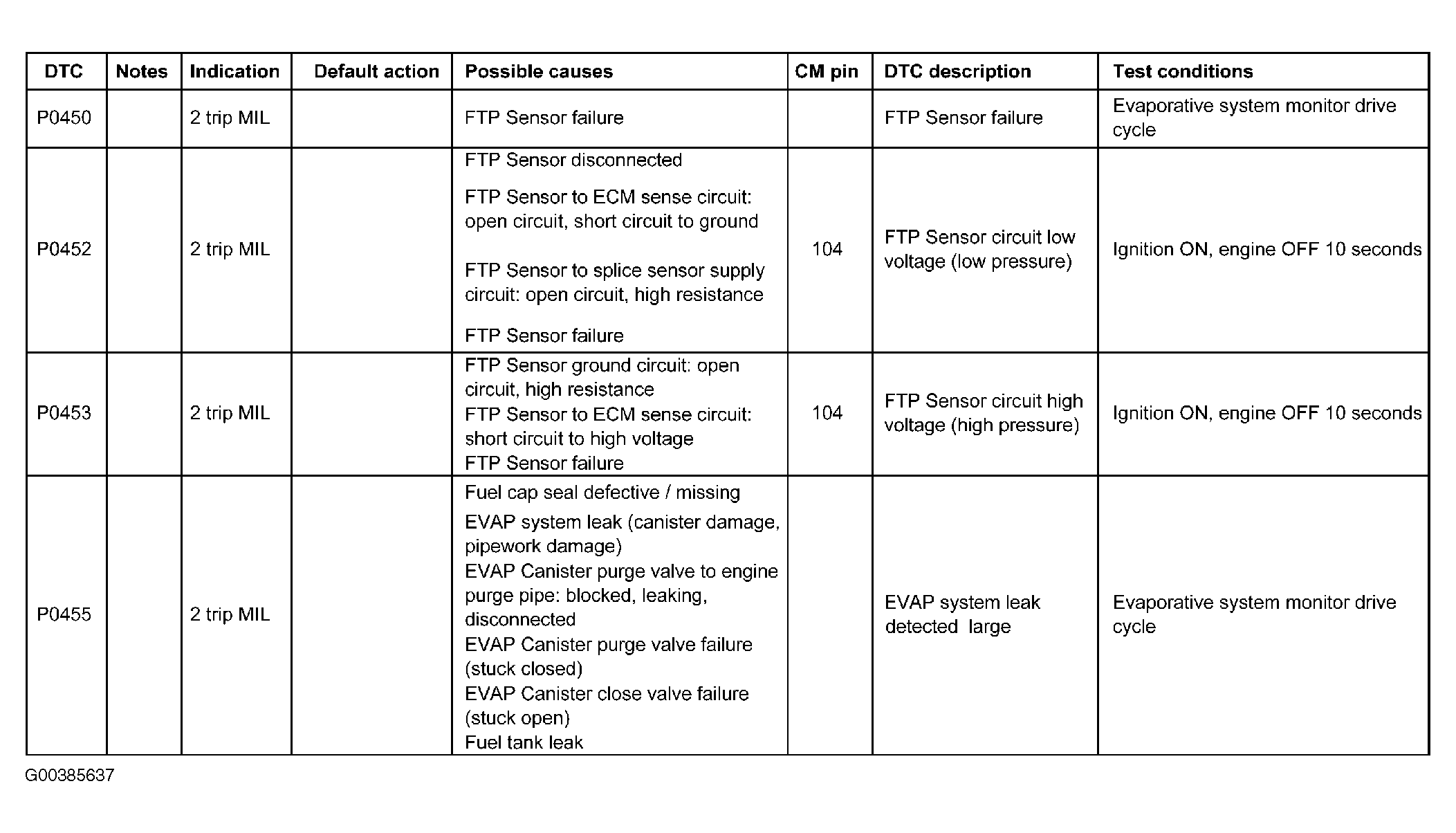

Fig 39: DTC P0450, P0452, P0453 & P0455 Possible Causes & Conditions

G00385637

Courtesy of JAGUAR CARS, INC.

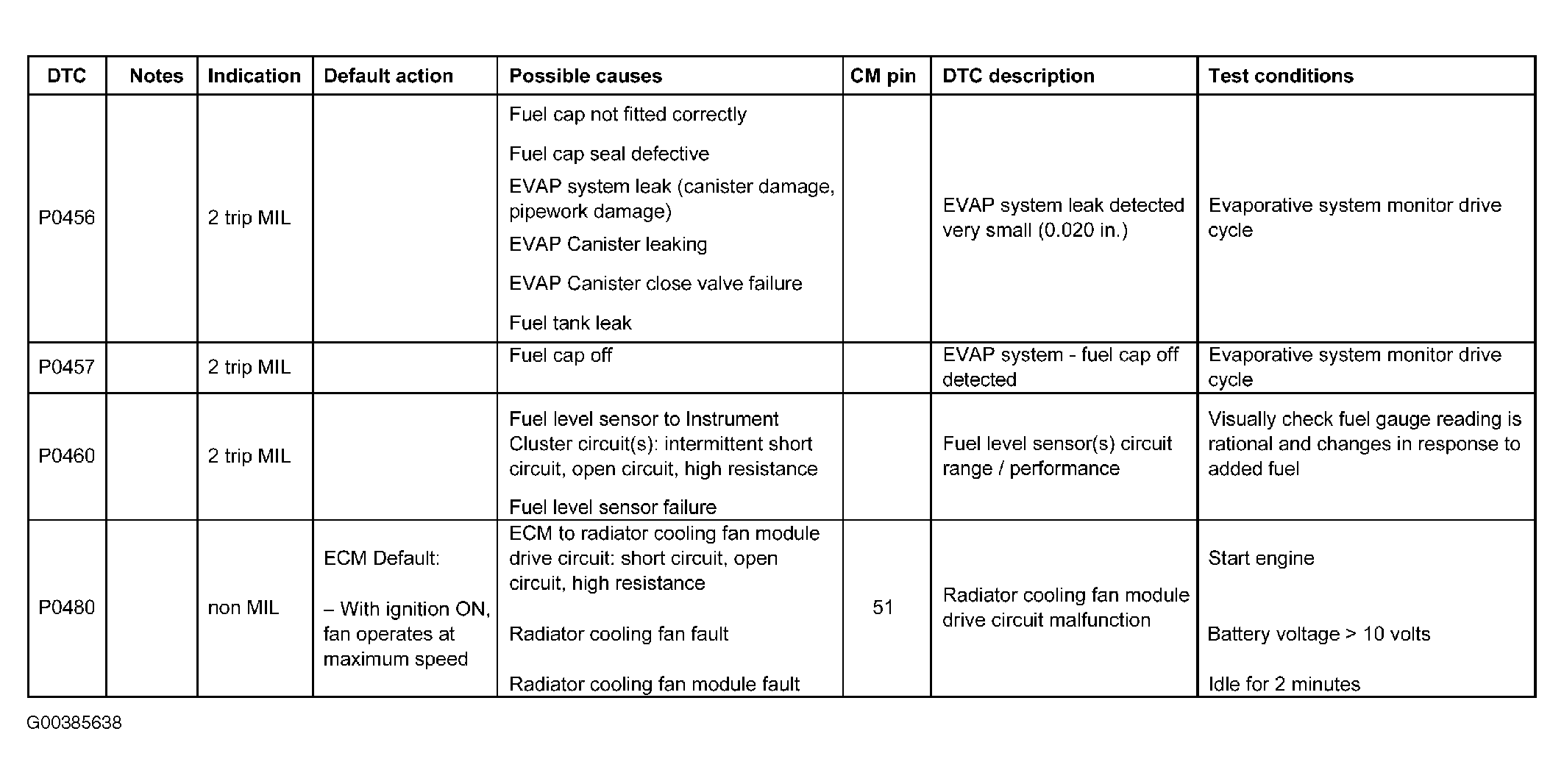

Fig 40: DTC P0456, P0457, P0460 & P0480 Possible Causes & Conditions

G00385638

Courtesy of JAGUAR CARS, INC.

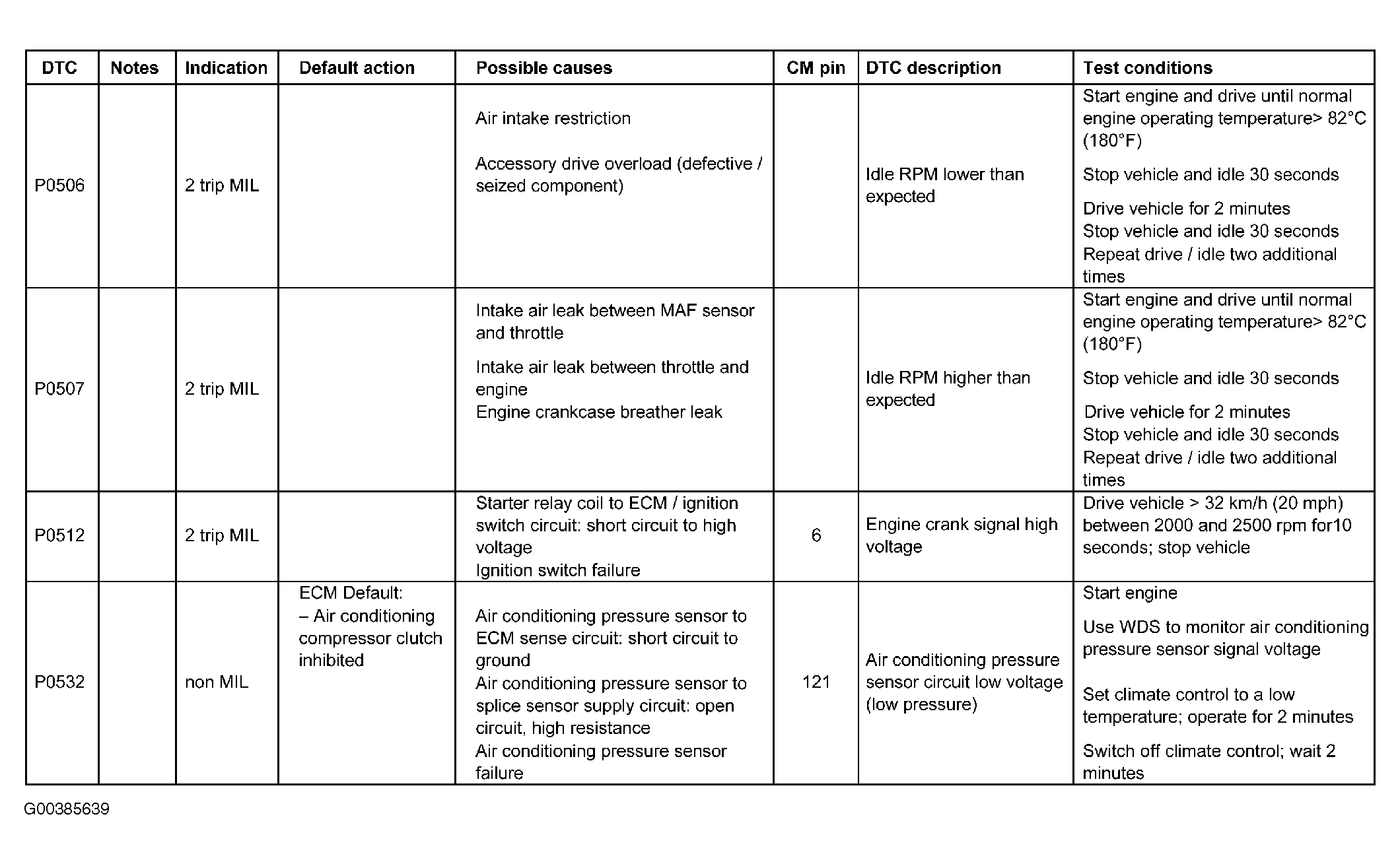

Fig 41: DTC P0506, P0507, P0512 & P0532 Possible Causes & Conditions

G00385639

Courtesy of JAGUAR CARS, INC.

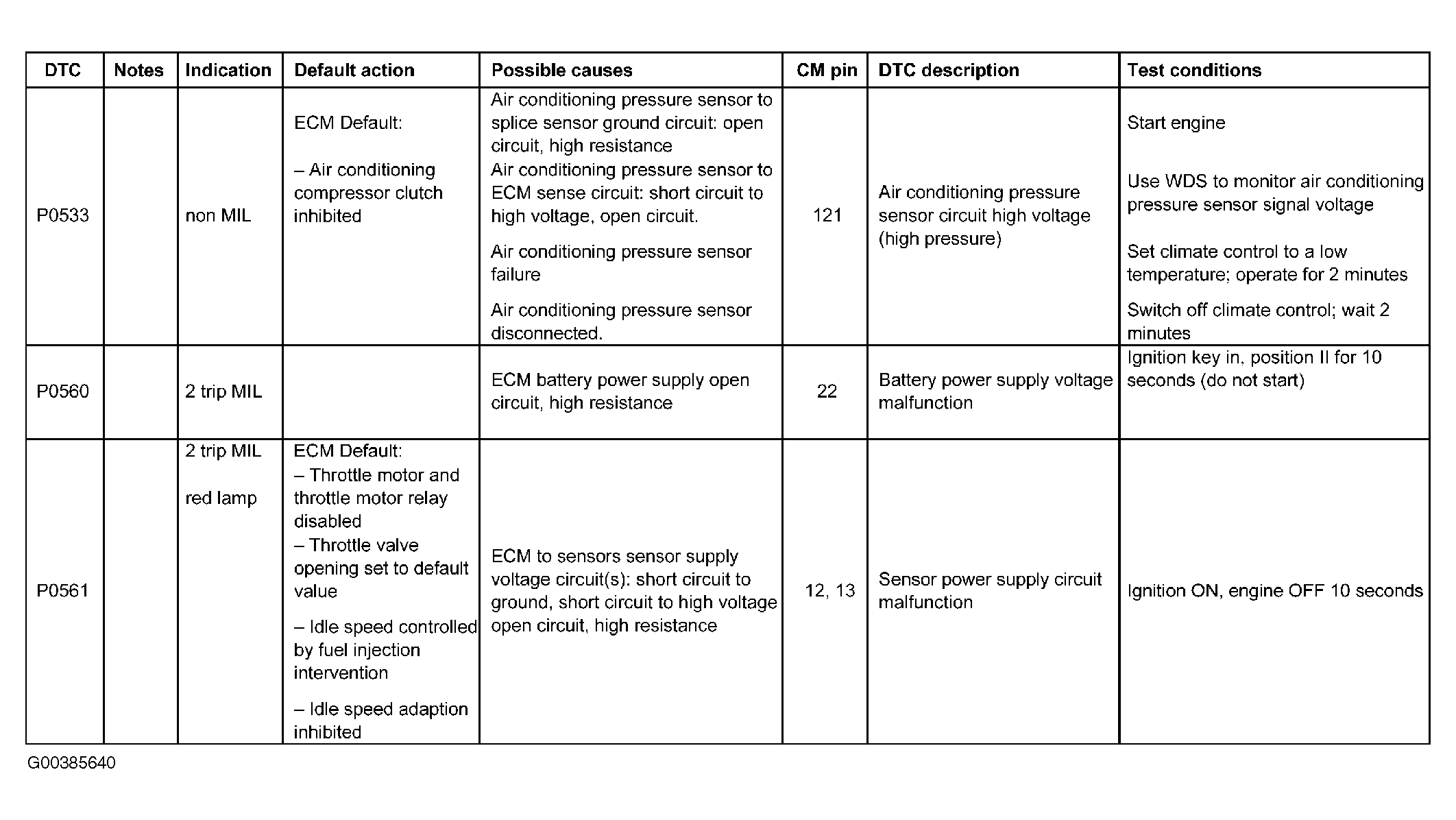

Fig 42: DTC P0533, P0560 & P0561 Possible Causes & Conditions

G00385640

Courtesy of JAGUAR CARS, INC.

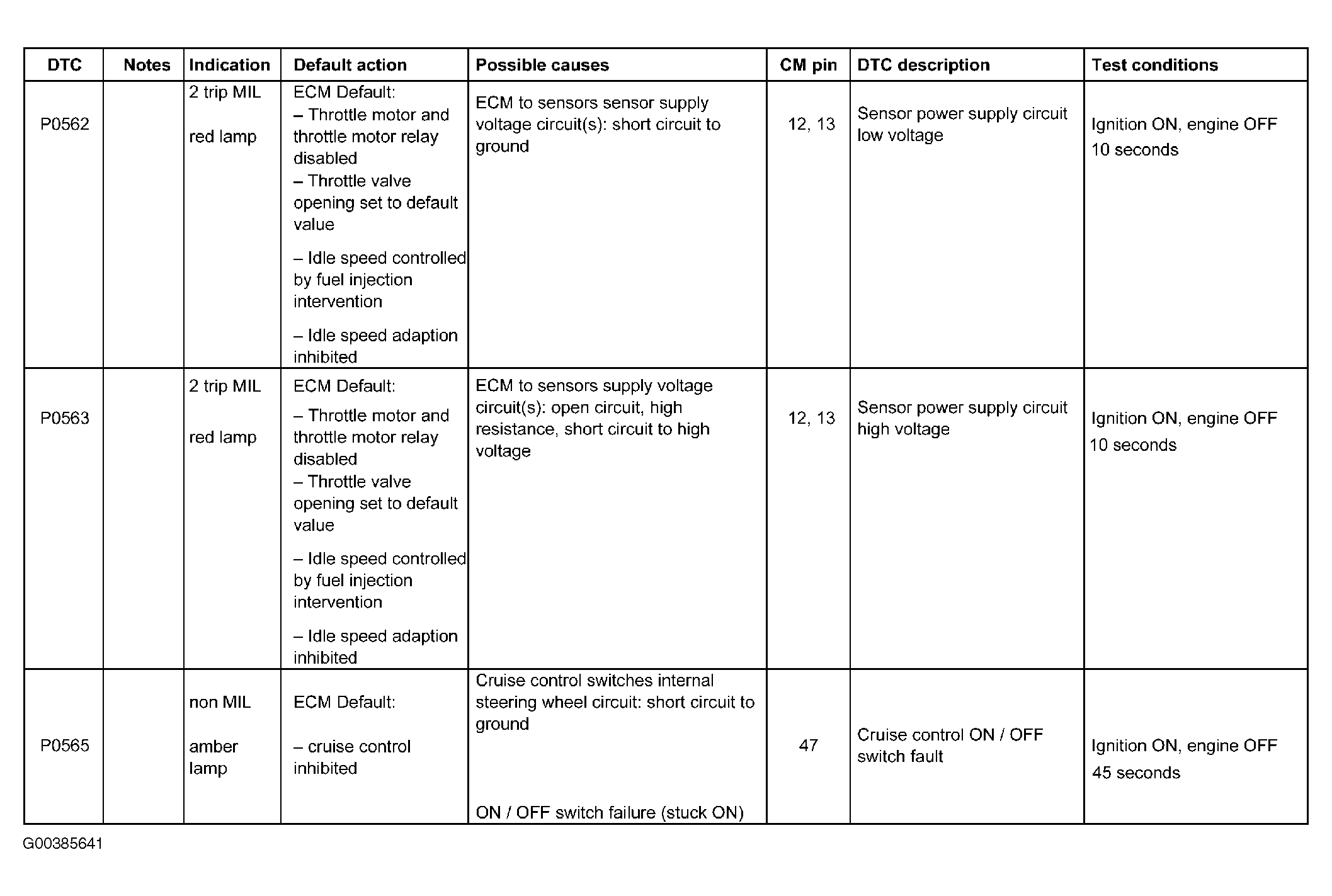

Fig 43: DTC P0562, P0563 & P0565 Possible Causes & Conditions

G00385641

Courtesy of JAGUAR CARS, INC.

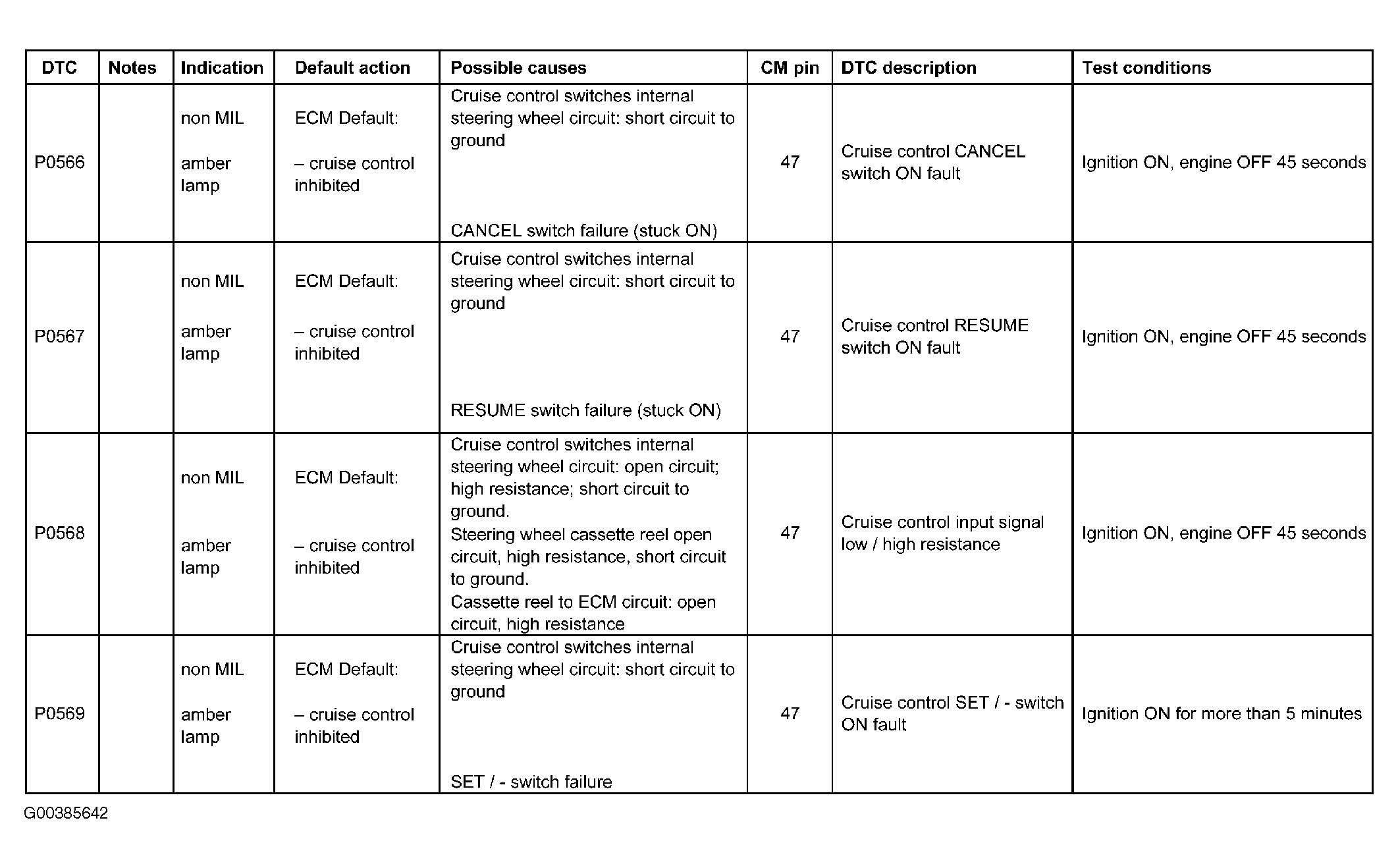

Fig 44: DTC P0566, P0567, P0568 & P0569 Possible Causes & Conditions

G00385642

Courtesy of JAGUAR CARS, INC.

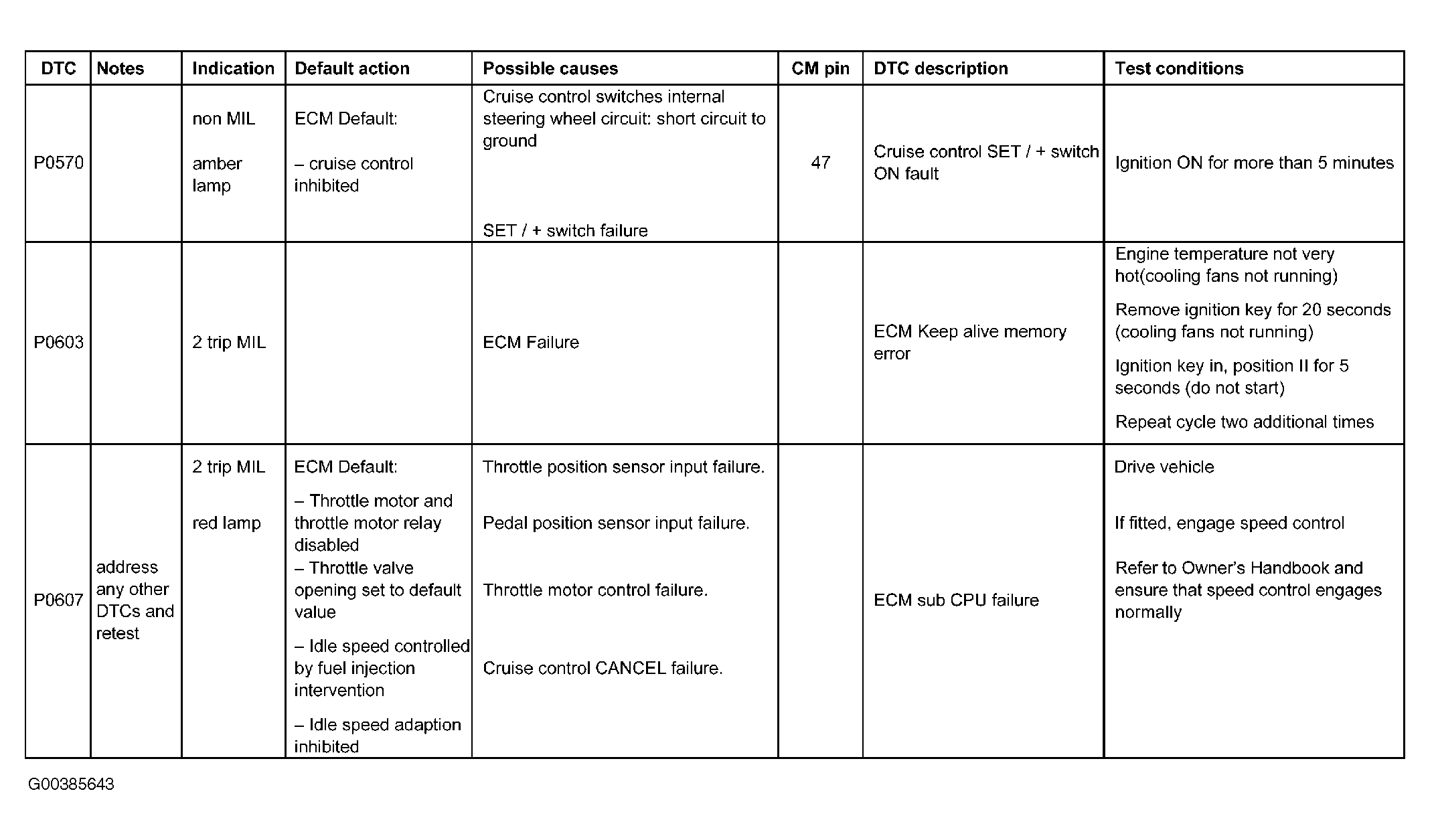

Fig 45: DTC P0570, P0603 & P0607 Possible Causes & Conditions

G00385643

Courtesy of JAGUAR CARS, INC.

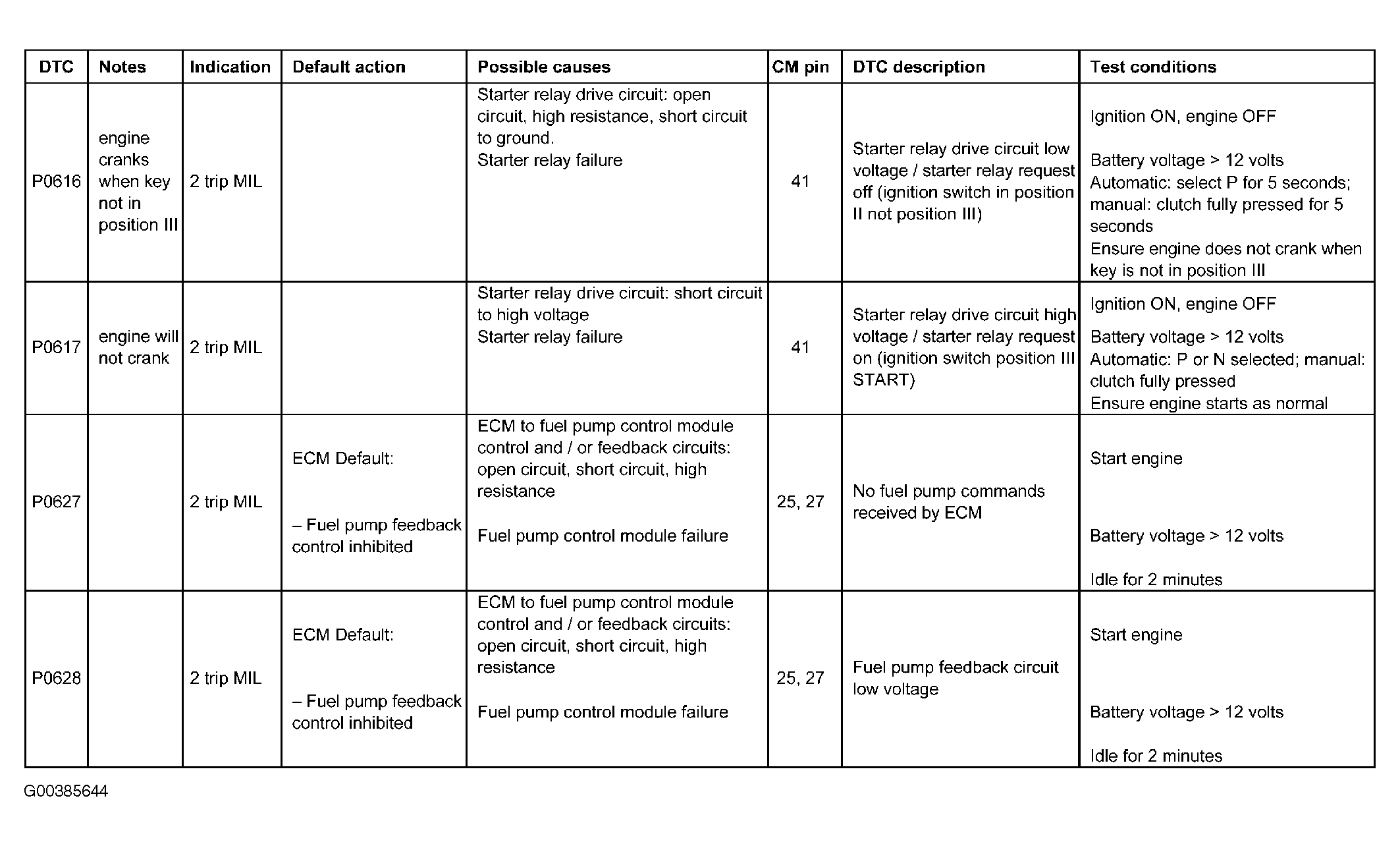

Fig 46: DTC P0616, P0617, P0627 & P0628 Possible Causes & Conditions

G00385644

Courtesy of JAGUAR CARS, INC.

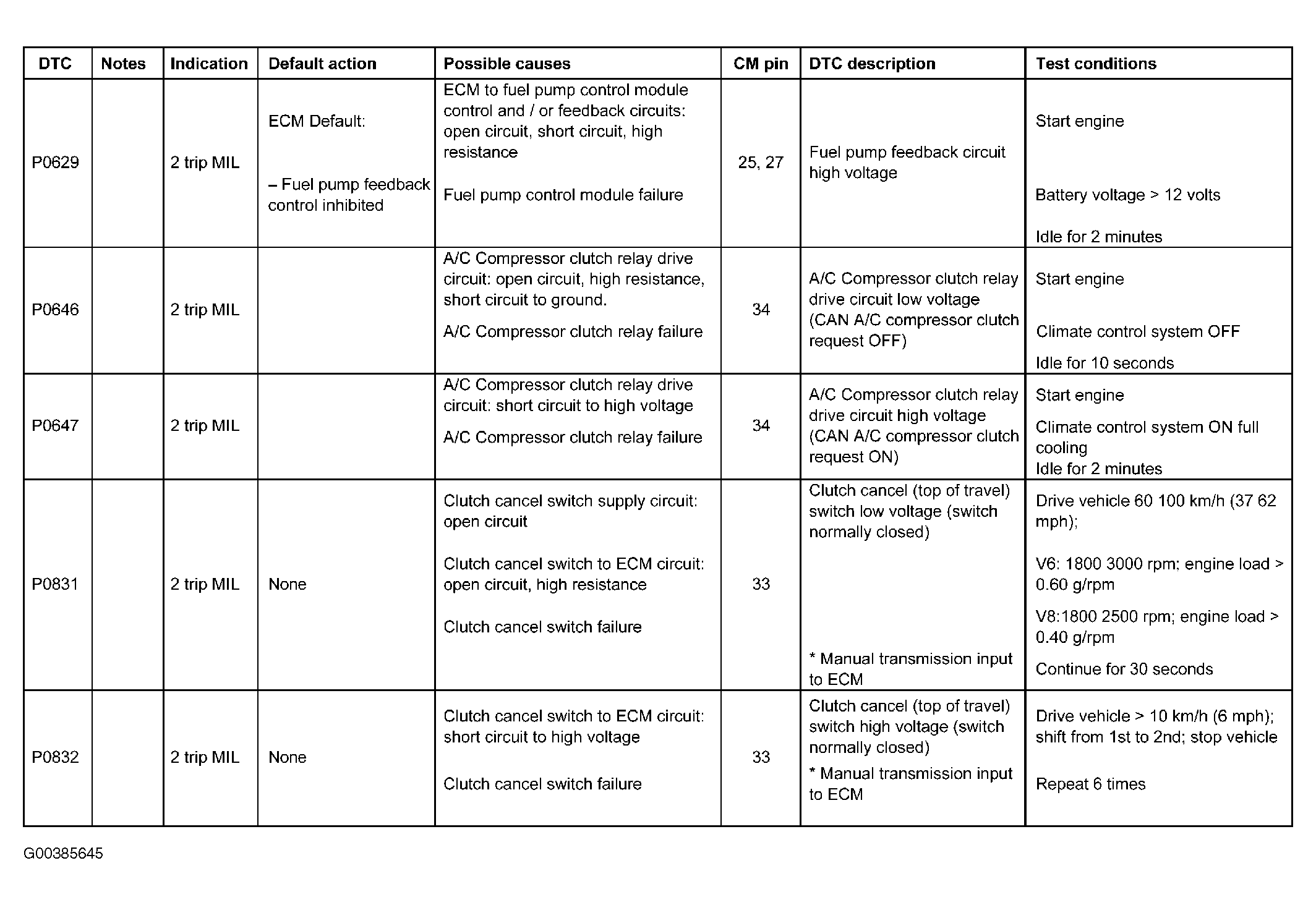

Fig 47: DTC P0629, P0646, P0647, P0831 & P832 Possible Causes & Conditions

G00385645

Courtesy of JAGUAR CARS, INC.

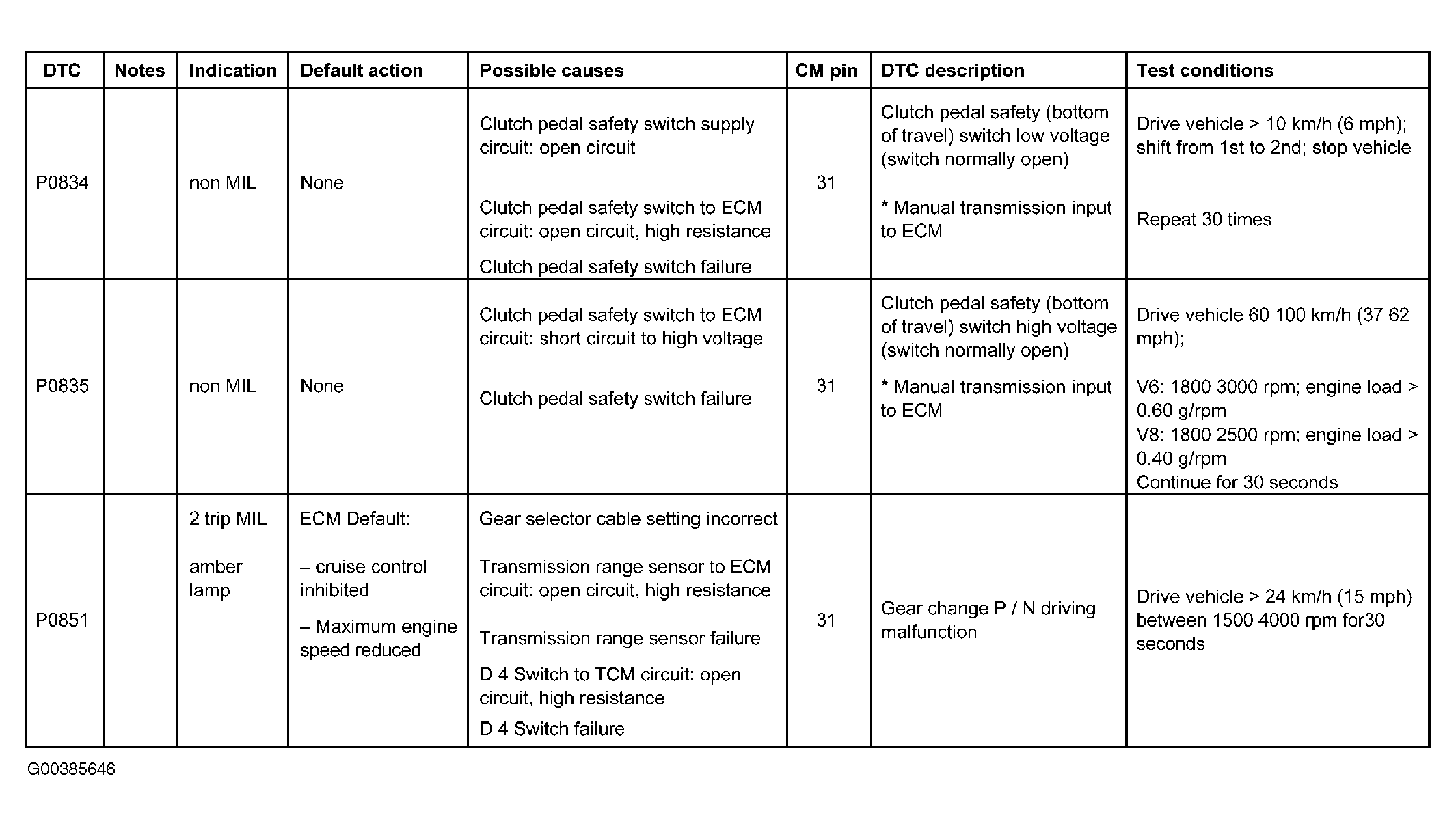

Fig 48: DTC P0834, P0835 & P0851 Possible Causes & Conditions

G00385646

Courtesy of JAGUAR CARS, INC.

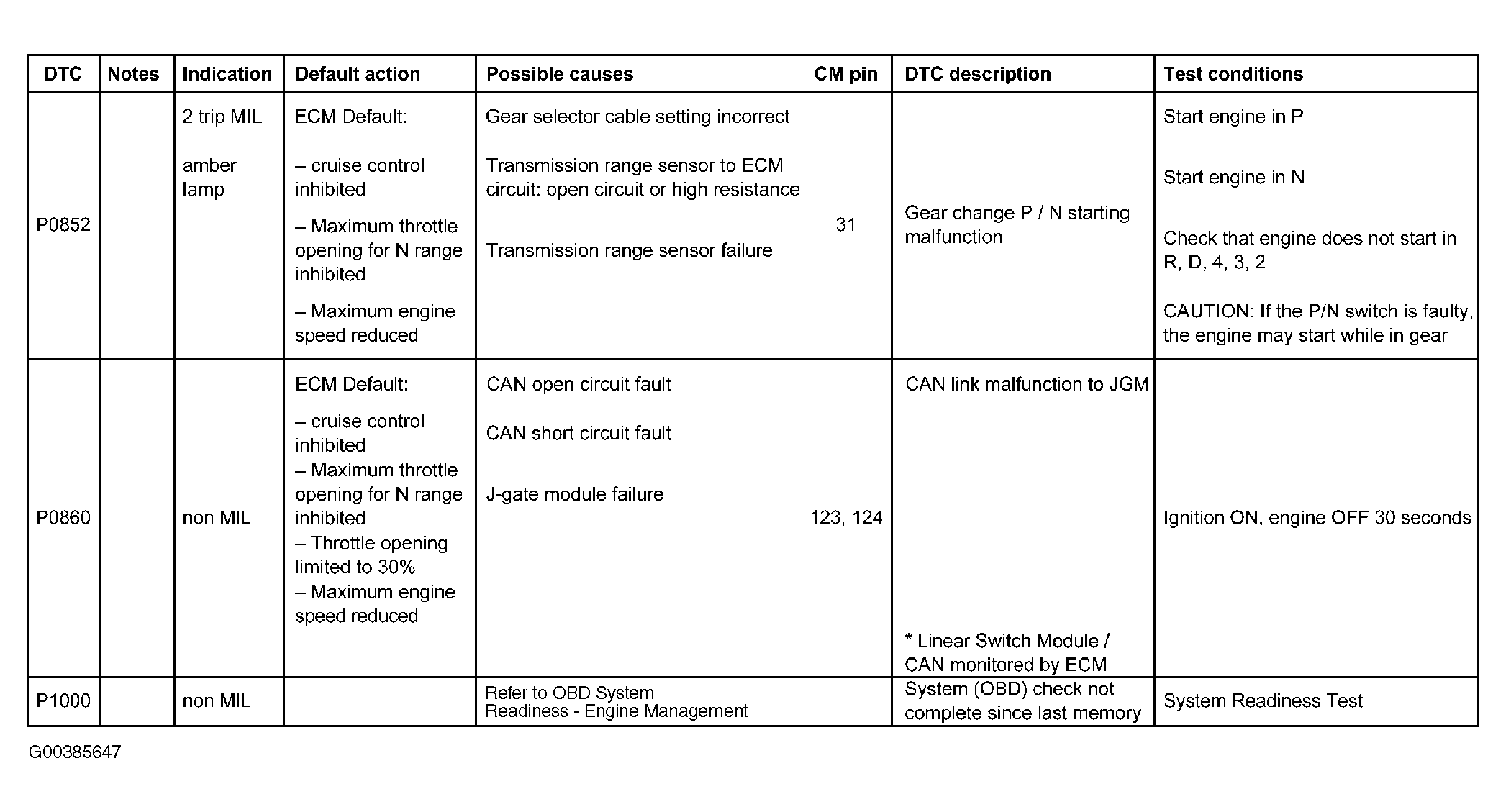

Fig 49: DTC P0852, P0860 & P1000 Possible Causes & Conditions

G00385647

Courtesy of JAGUAR CARS, INC.

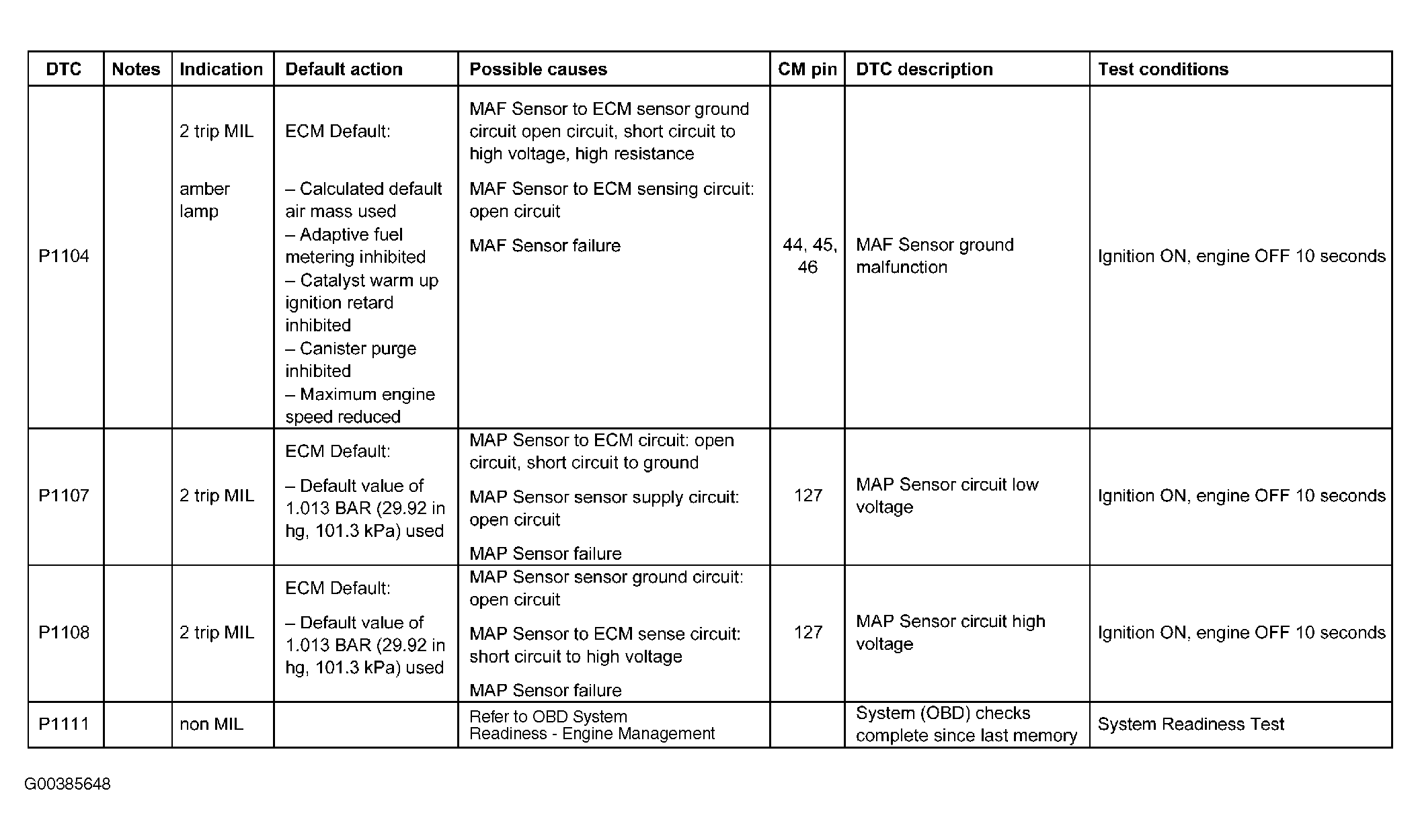

Fig 50: DTC P01104, P1107, P1108 & P1111 Possible Causes & Conditions

G00385648

Courtesy of JAGUAR CARS, INC.

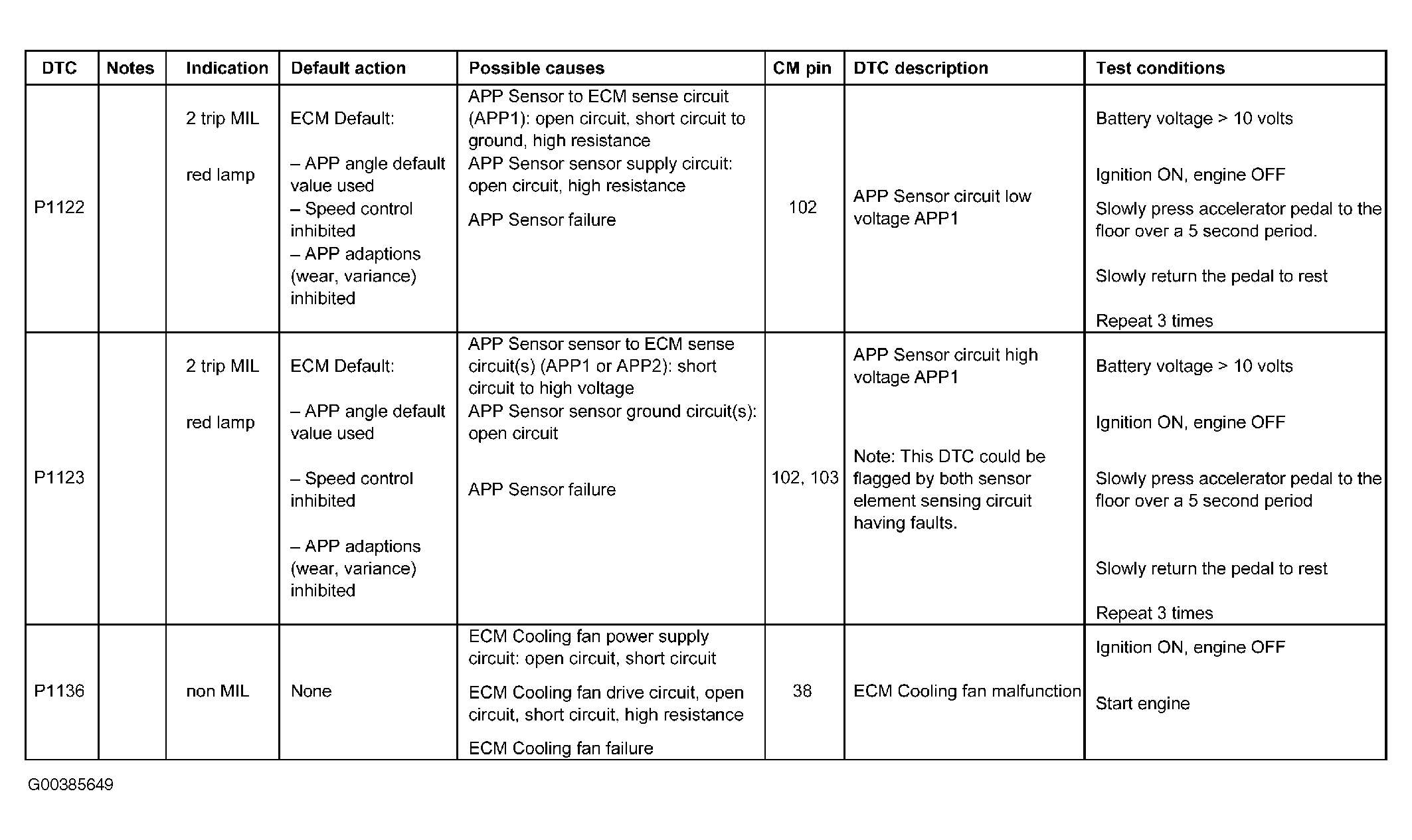

Fig 51: DTC P1122, P1123 & P136 Possible Causes & Conditions

G00385649

Courtesy of JAGUAR CARS, INC.

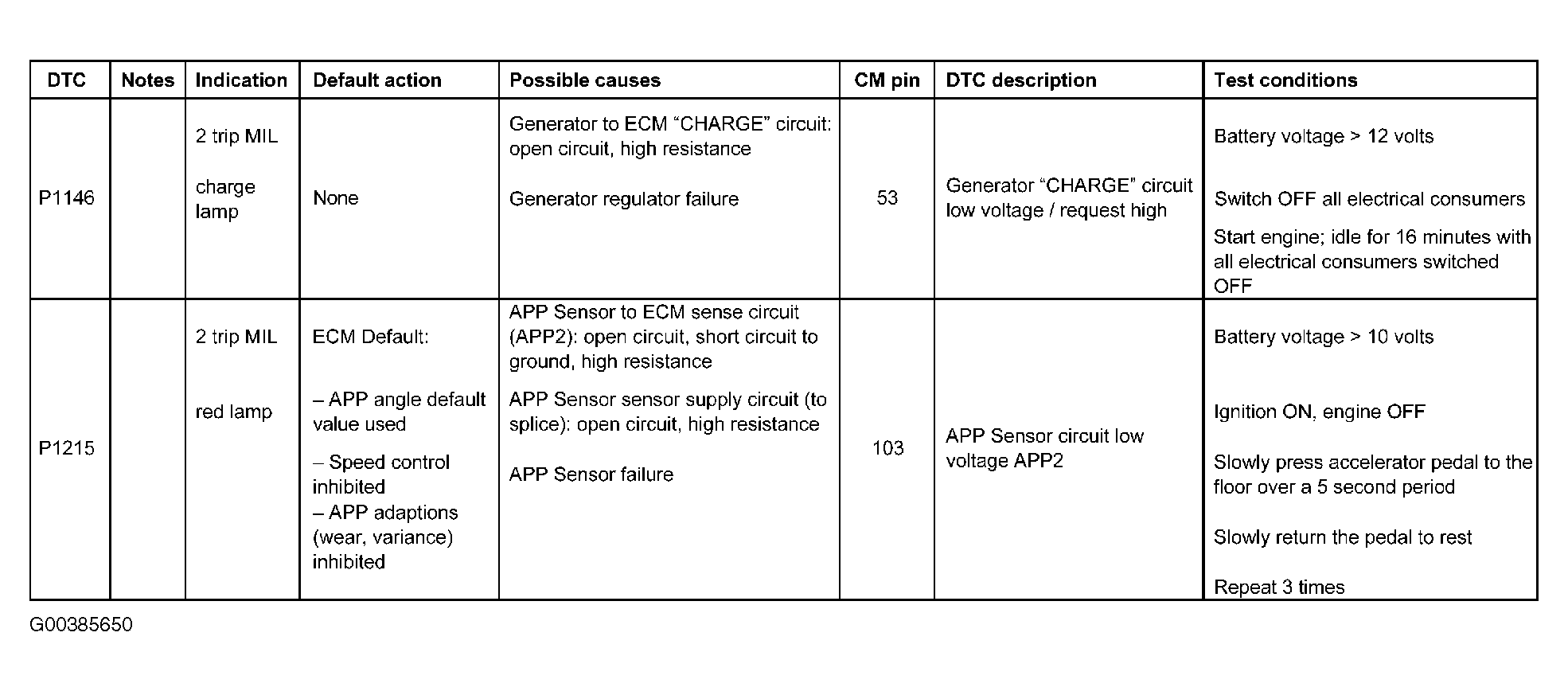

Fig 52: DTC P1146 & P1215 Possible Causes & Conditions

G00385650

Courtesy of JAGUAR CARS, INC.

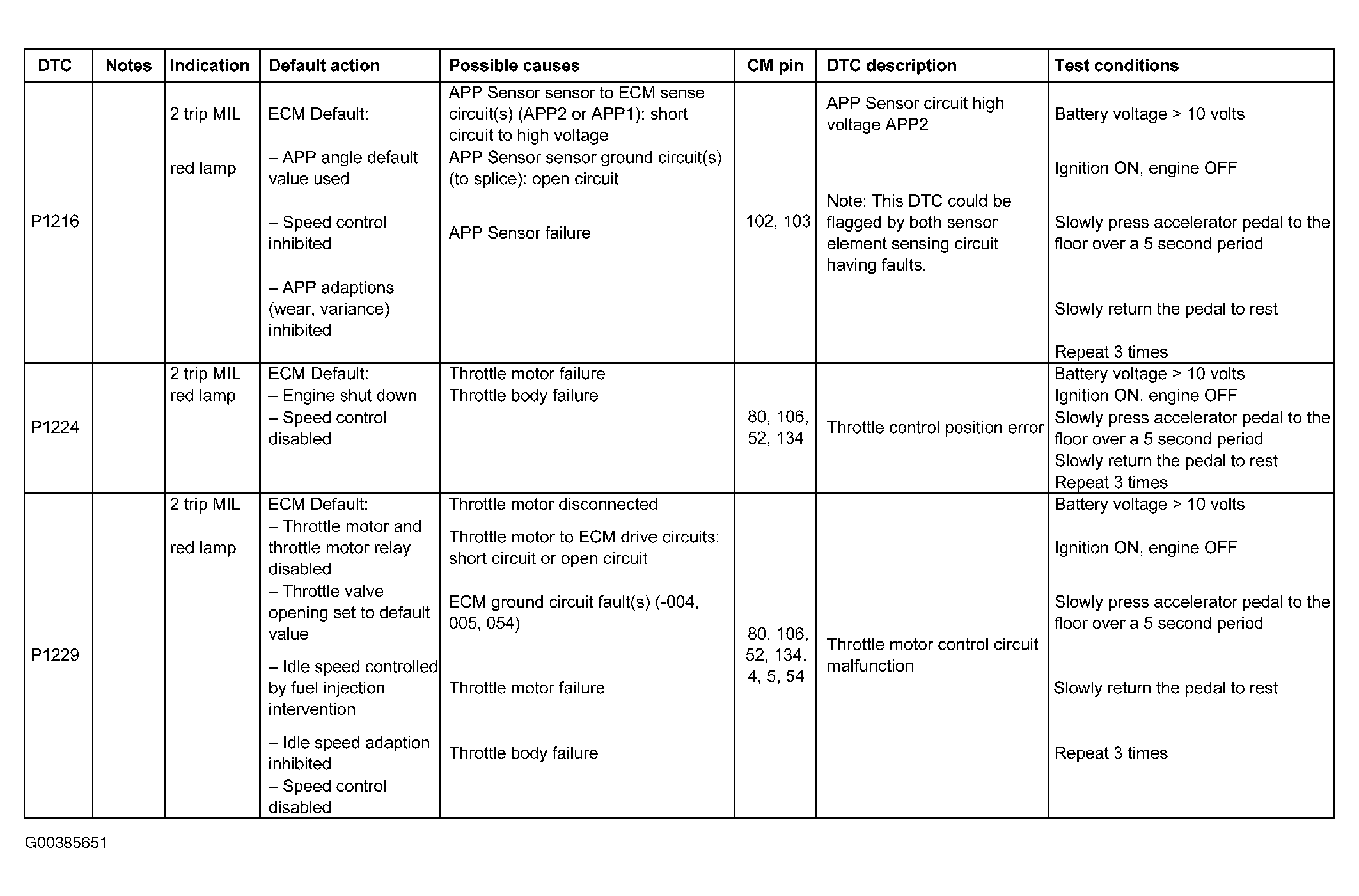

Fig 53: DTC P1216, P1224 & P1229 Possible Causes & Conditions

G00385651

Courtesy of JAGUAR CARS, INC.

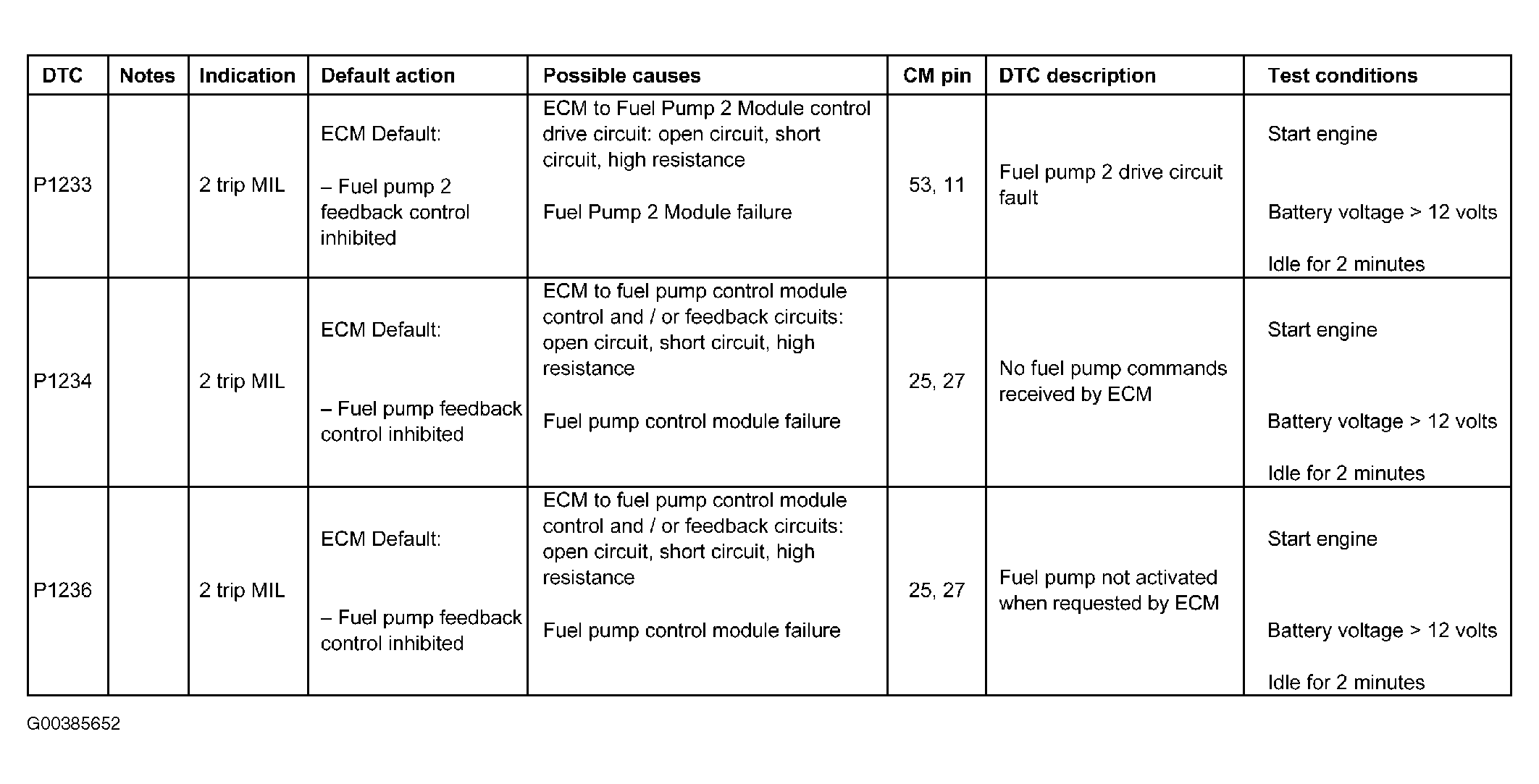

Fig 54: DTC P1233, P1234 & P1236 Possible Causes & Conditions

G00385652

Courtesy of JAGUAR CARS, INC.

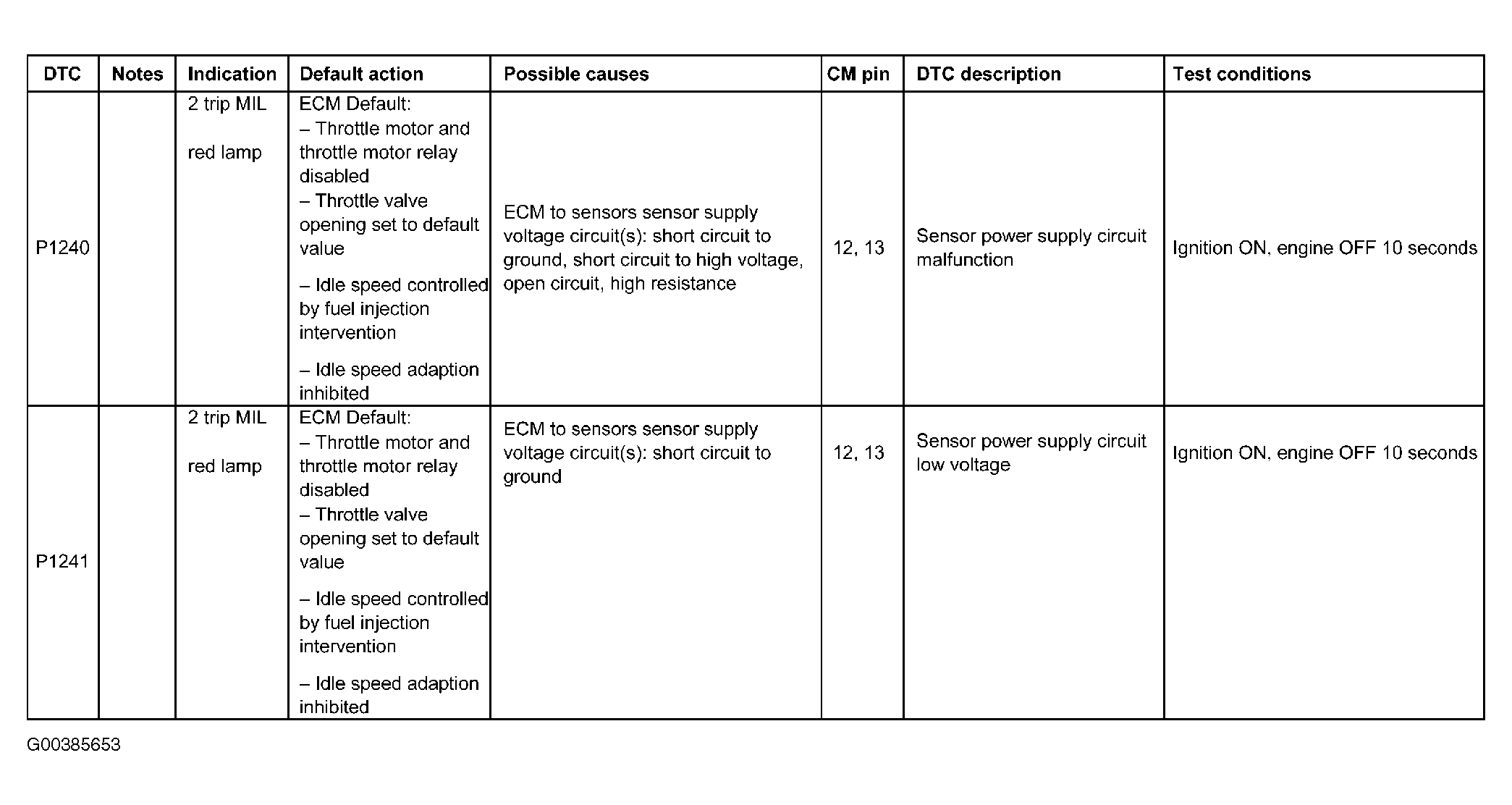

Fig 55: DTC P1240 & P1241 Possible Causes & Conditions

G00385653

Courtesy of JAGUAR CARS, INC.

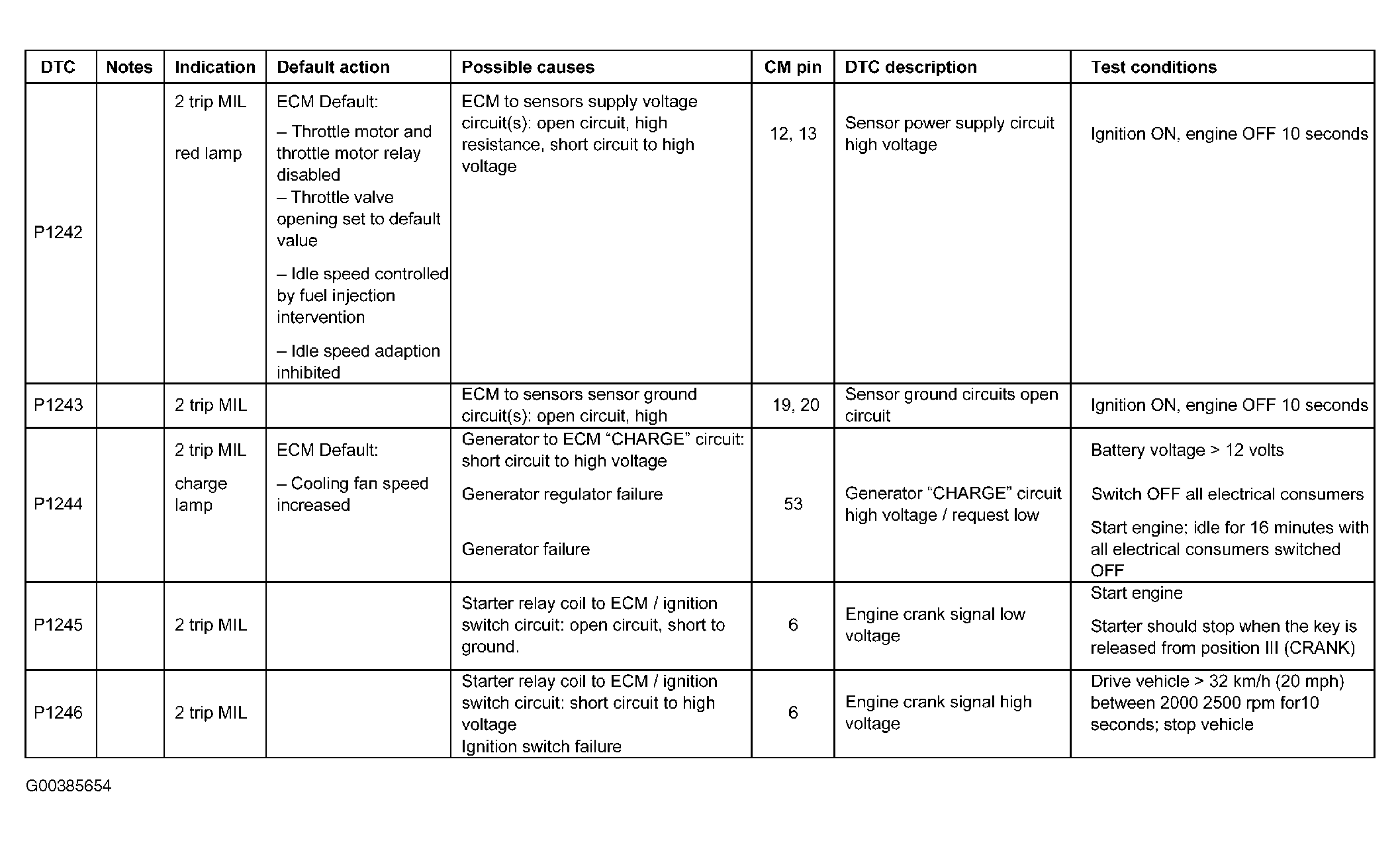

Fig 56: DTC P1242, P1243, P1244, P1245 & P1246 Possible Causes & Conditions

G00385654

Courtesy of JAGUAR CARS, INC.

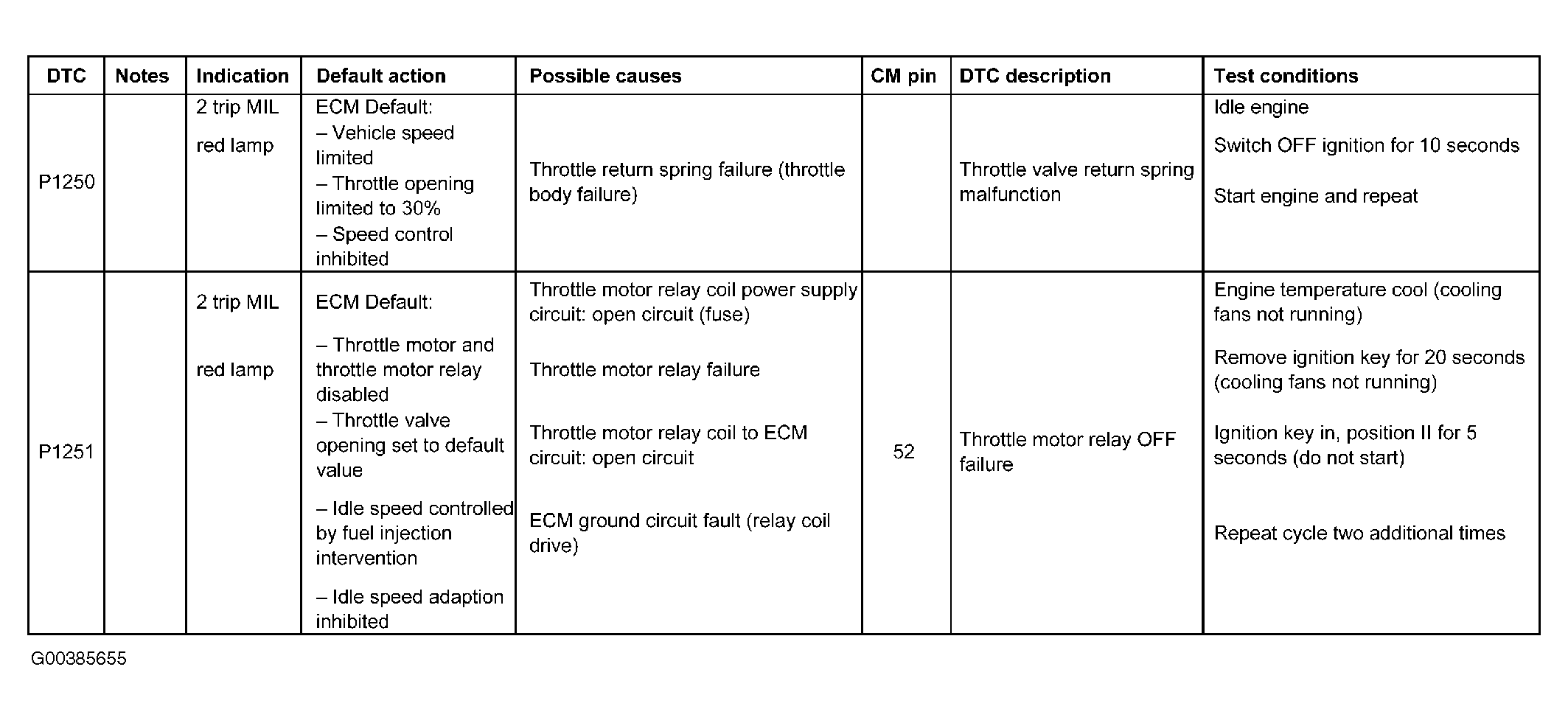

Fig 57: DTC P1250 & P1251 Possible Causes & Conditions

G00385655

Courtesy of JAGUAR CARS, INC.

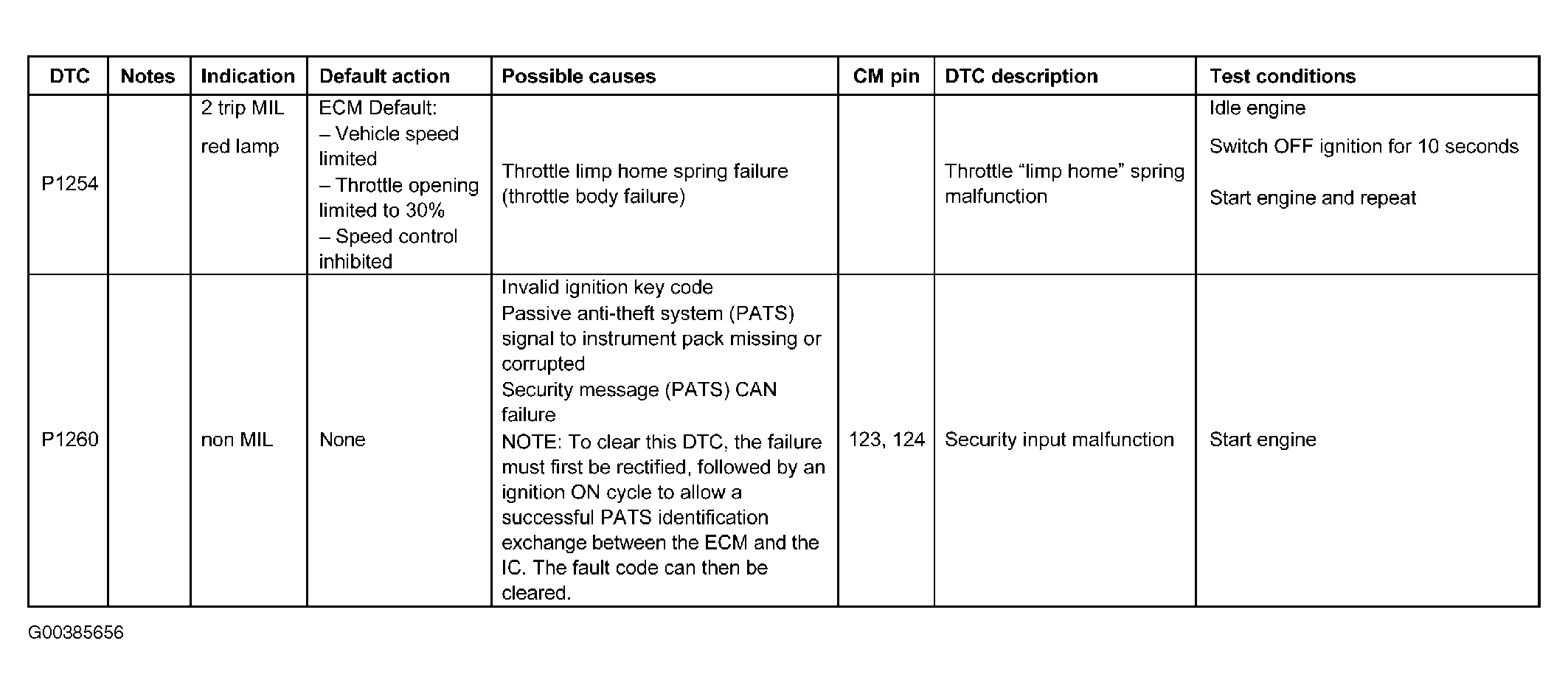

Fig 58: DTC P1254 & P1260 Possible Causes & Conditions

G00385656

Courtesy of JAGUAR CARS, INC.

Fig 59: DTC P1313 Possible Causes & Conditions

G00385657

Courtesy of JAGUAR CARS, INC.

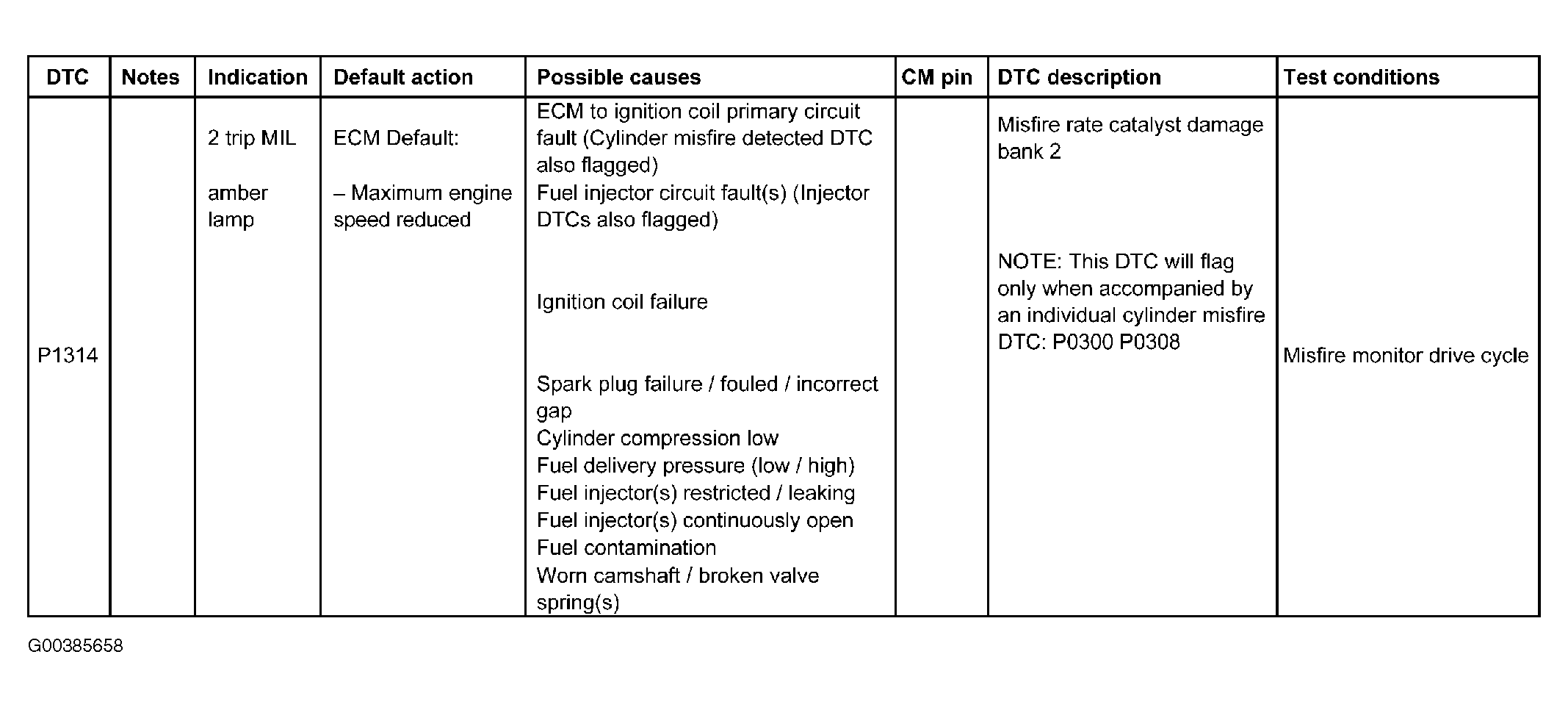

Fig 60: DTC P1314 Possible Causes & Conditions

G00385658

Courtesy of JAGUAR CARS, INC.

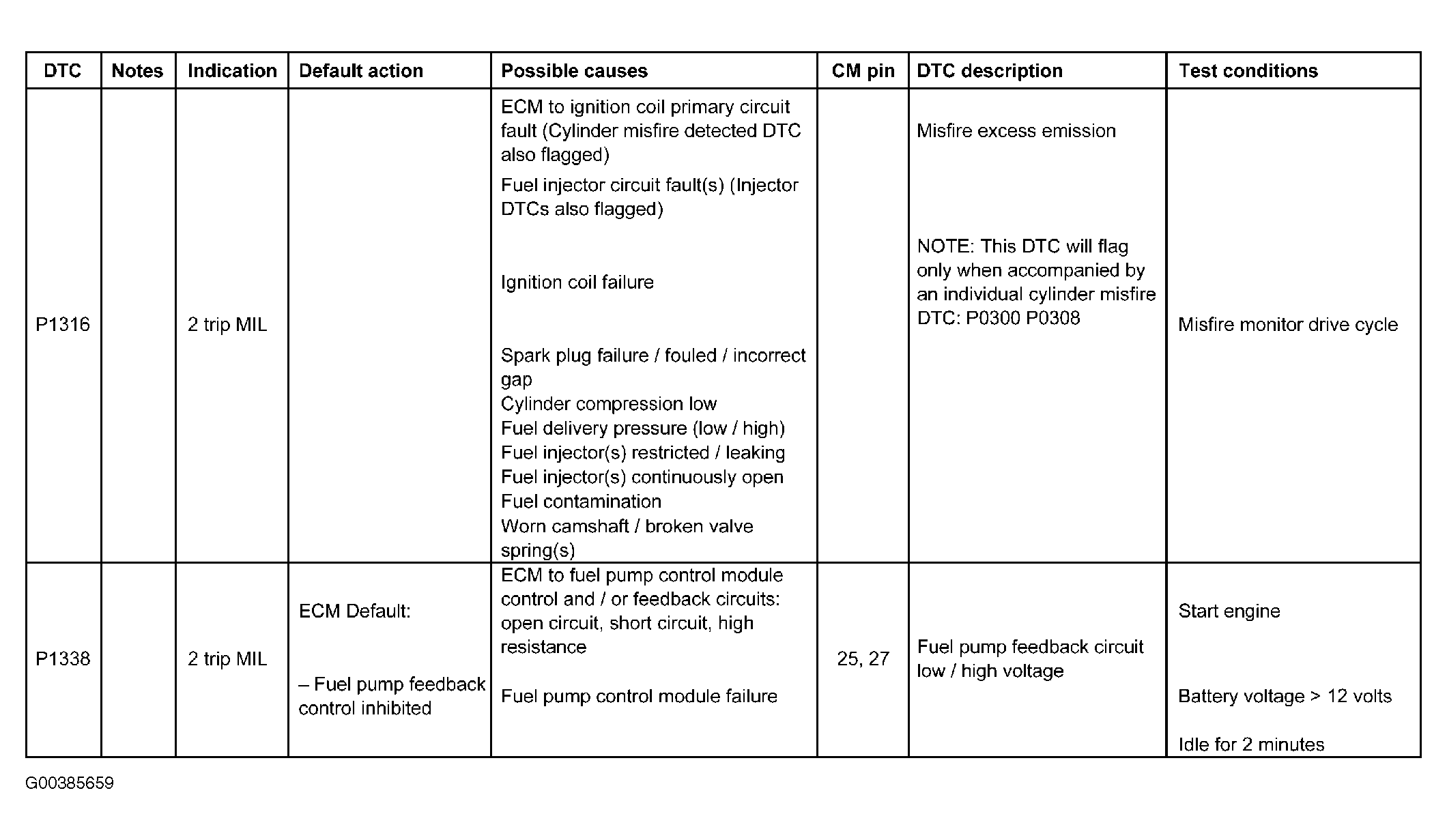

Fig 61: DTC P1316 & P1338 Possible Causes & Conditions

G00385659

Courtesy of JAGUAR CARS, INC.

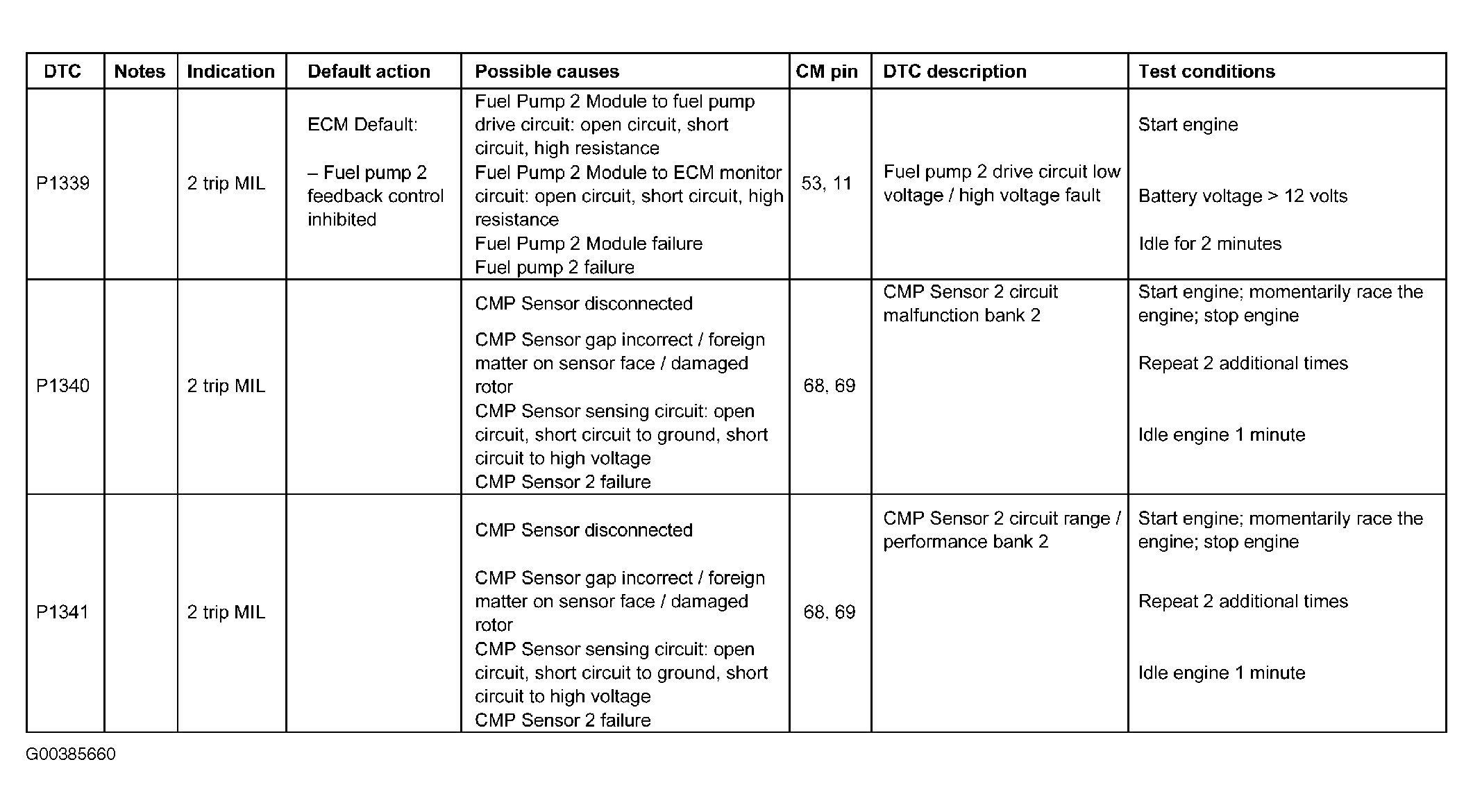

Fig 62: DTC P1339, P1340 & P1341 Possible Causes & Conditions

G00385660

Courtesy of JAGUAR CARS, INC.

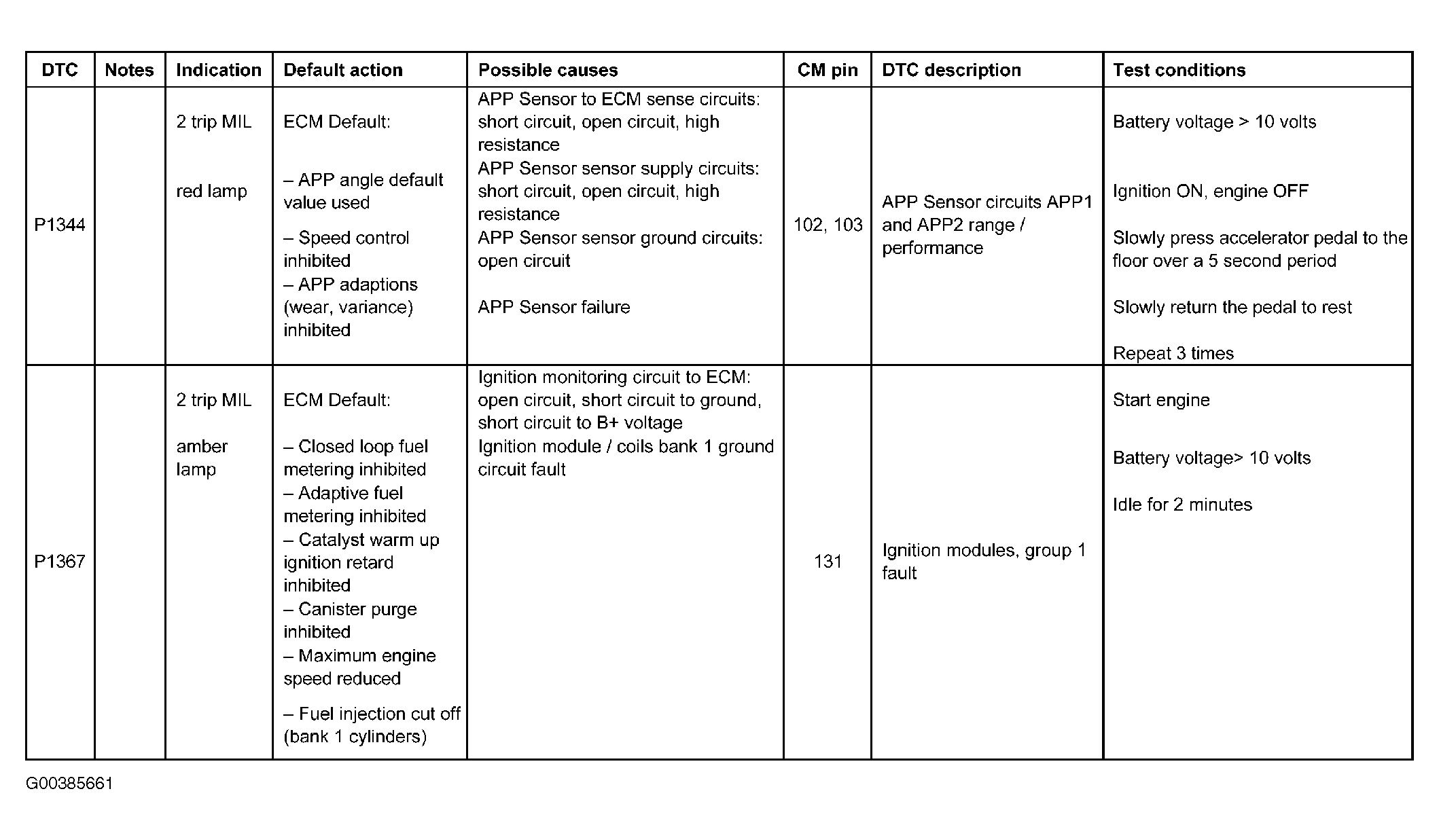

Fig 63: DTC P1344 & P1367 Possible Causes & Conditions

G00385661

Courtesy of JAGUAR CARS, INC.

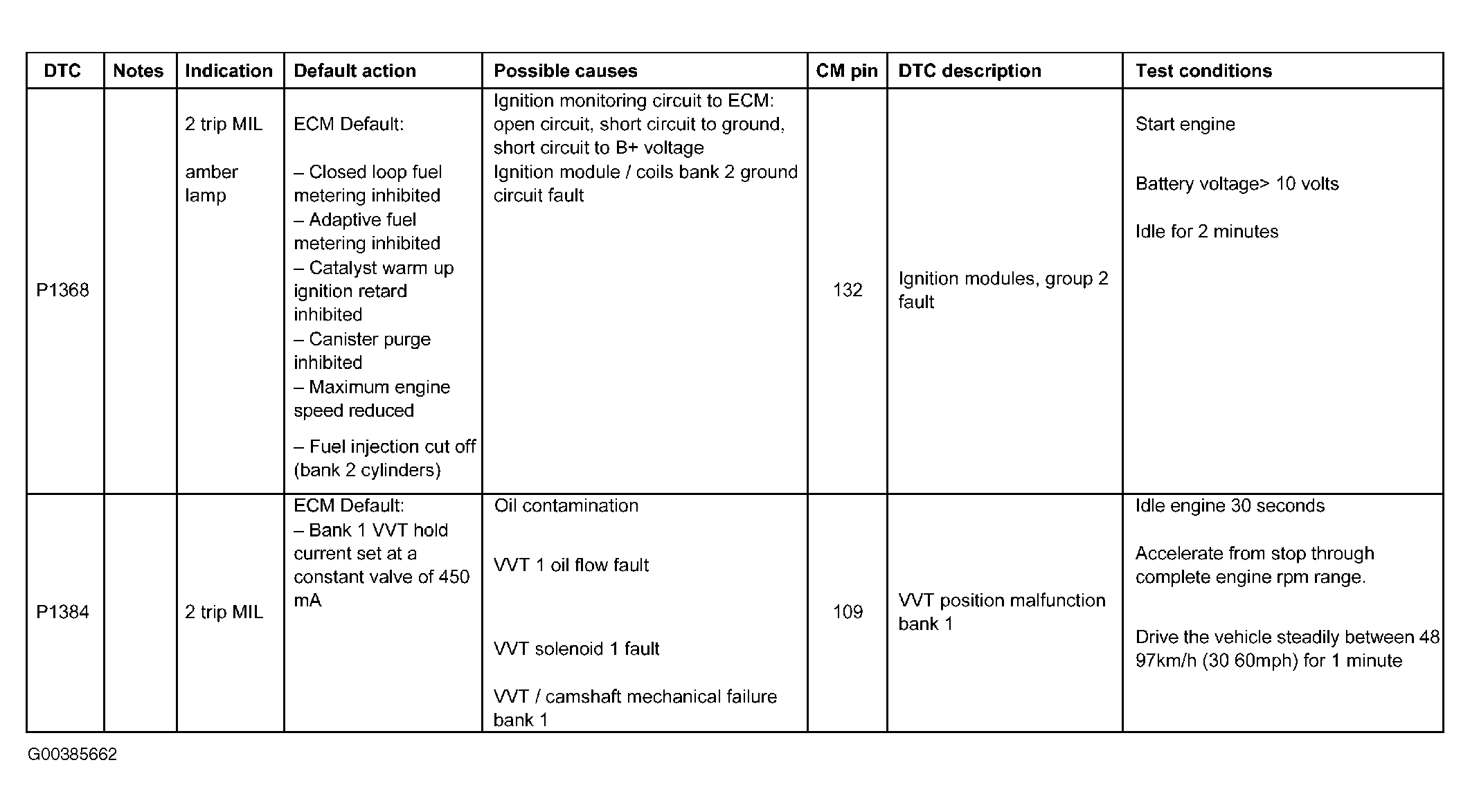

Fig 64: DTC P1368 & P1384 Possible Causes & Conditions

G00385662

Courtesy of JAGUAR CARS, INC.

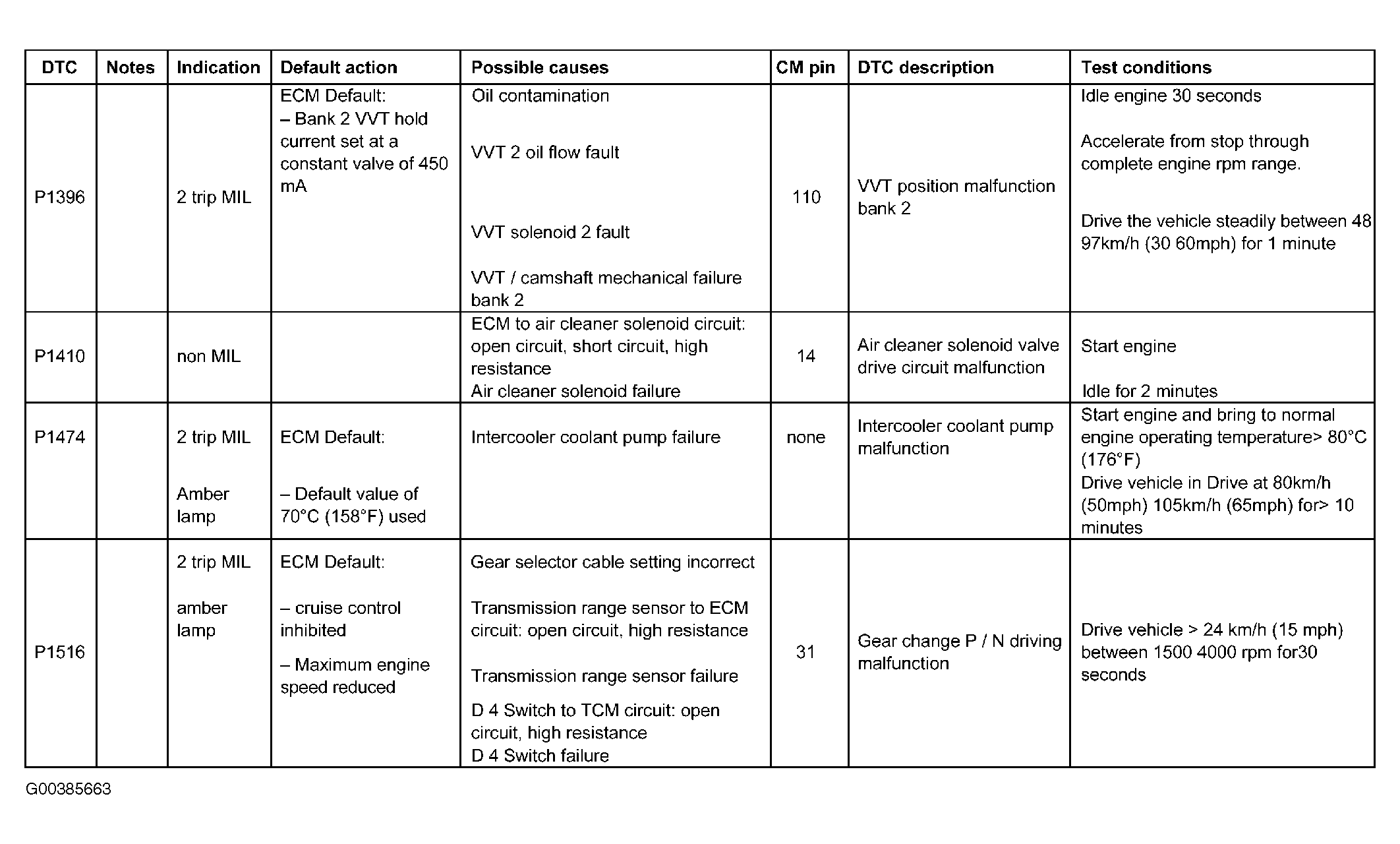

Fig 65: DTC P1396, P1410, P1474 & P1516 Possible Causes & Conditions

G00385663

Courtesy of JAGUAR CARS, INC.

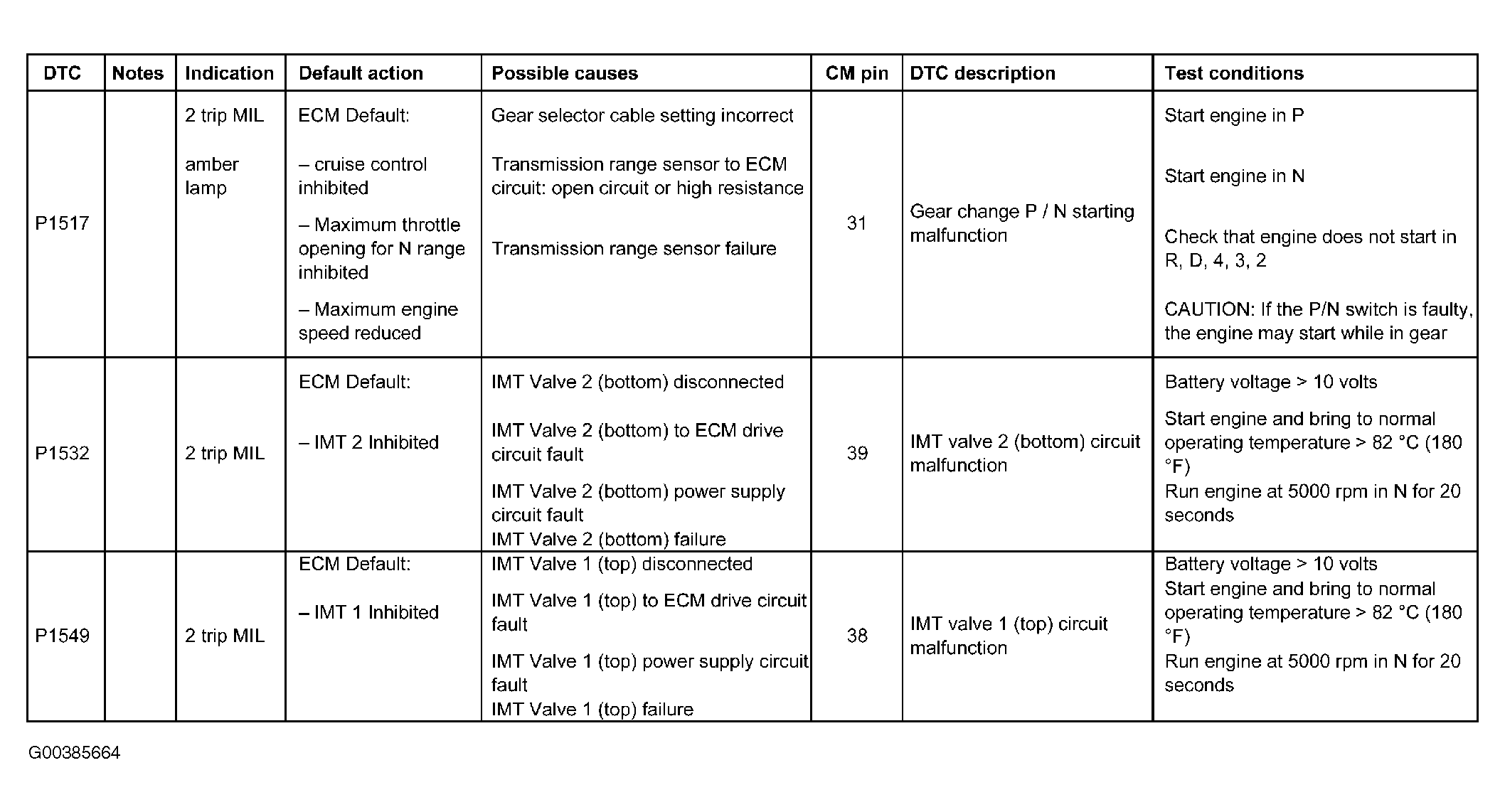

Fig 66: DTC P1517, P1532 & P1549 Possible Causes & Conditions

G00385664

Courtesy of JAGUAR CARS, INC.

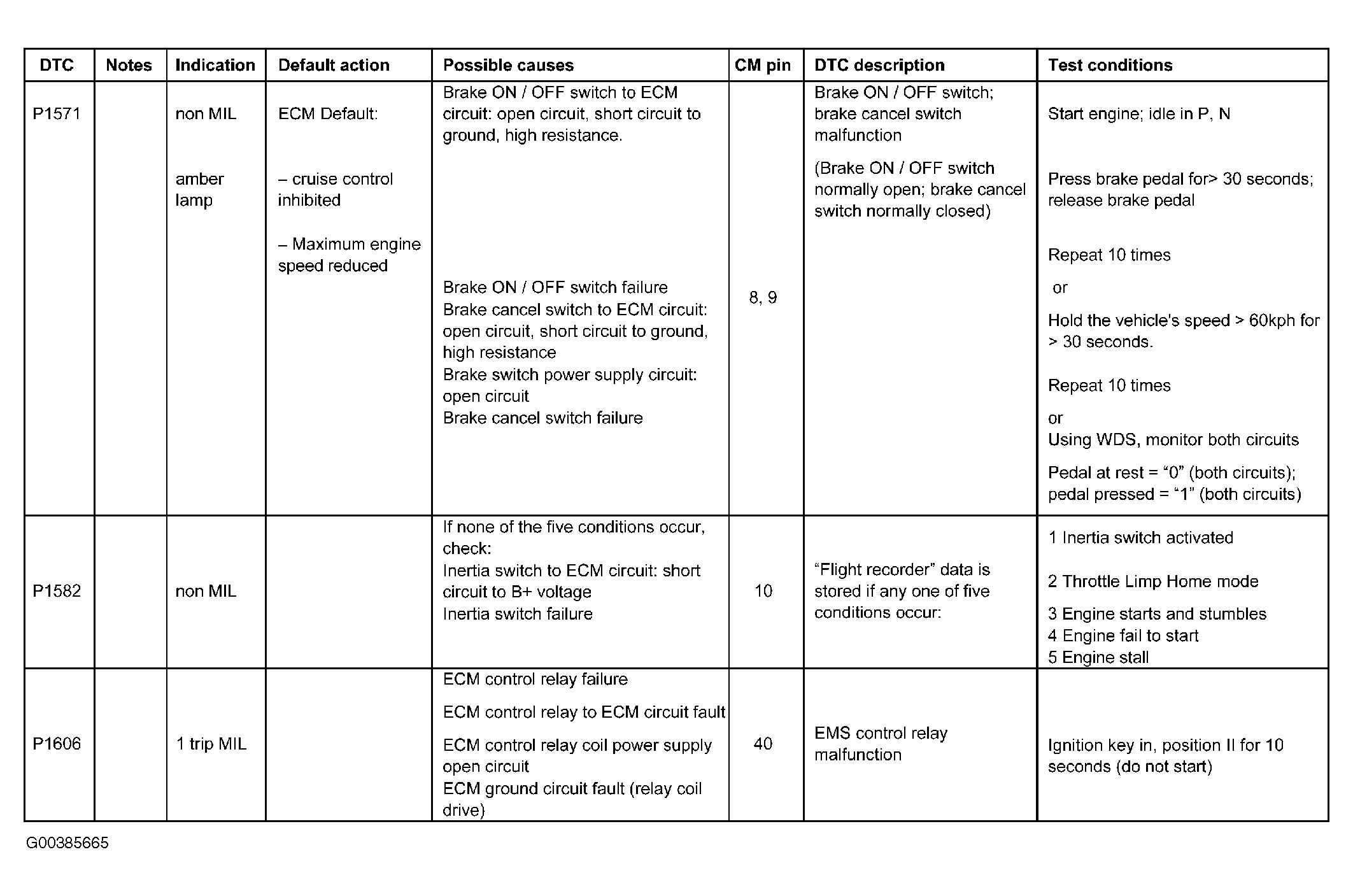

Fig 67: DTC P1571, P1582 & 1606 Possible Causes & Conditions

G00385665

Courtesy of JAGUAR CARS, INC.

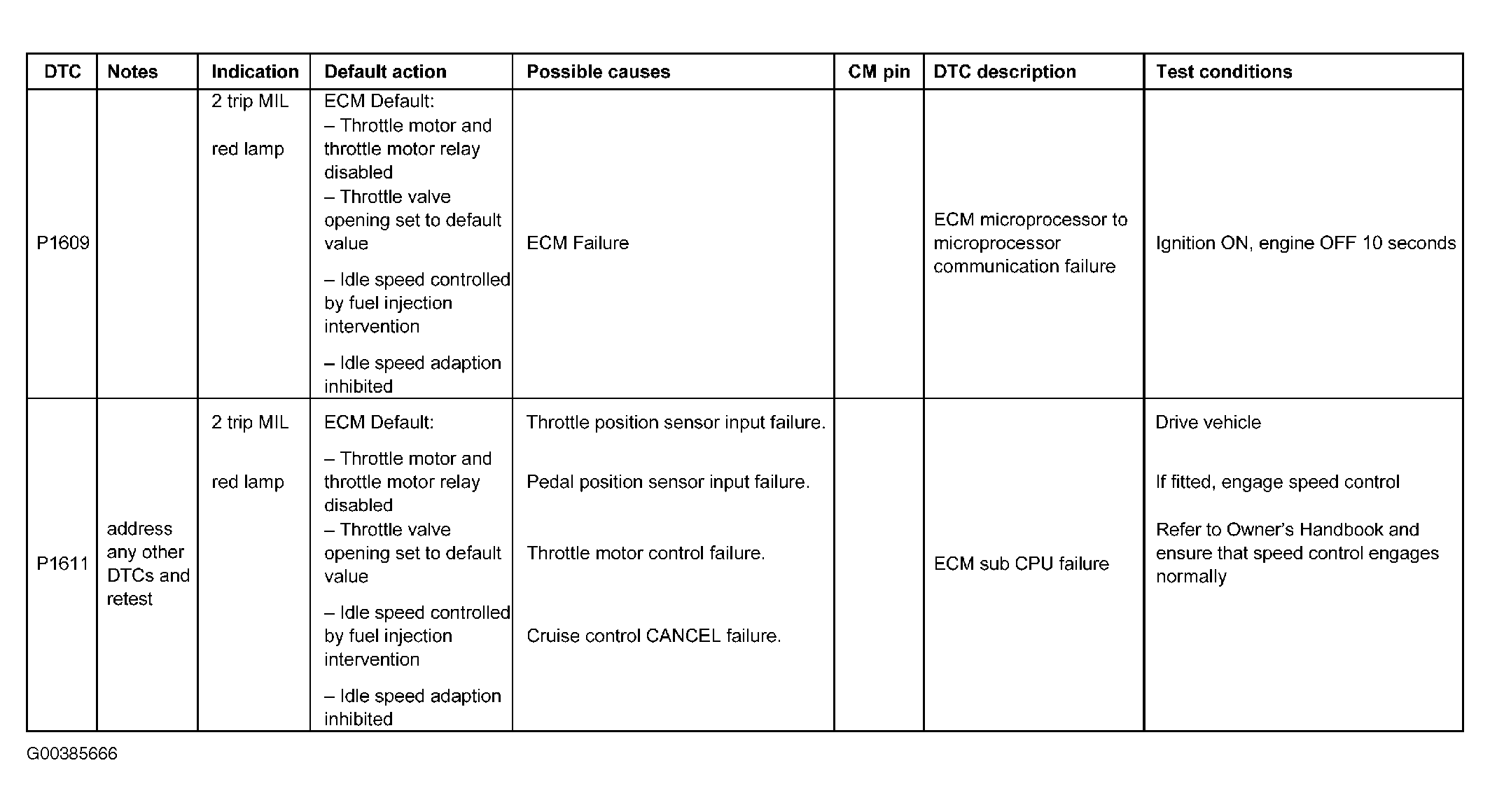

Fig 68: DTC P1609 & P1611 Possible Causes & Conditions

G00385666

Courtesy of JAGUAR CARS, INC.

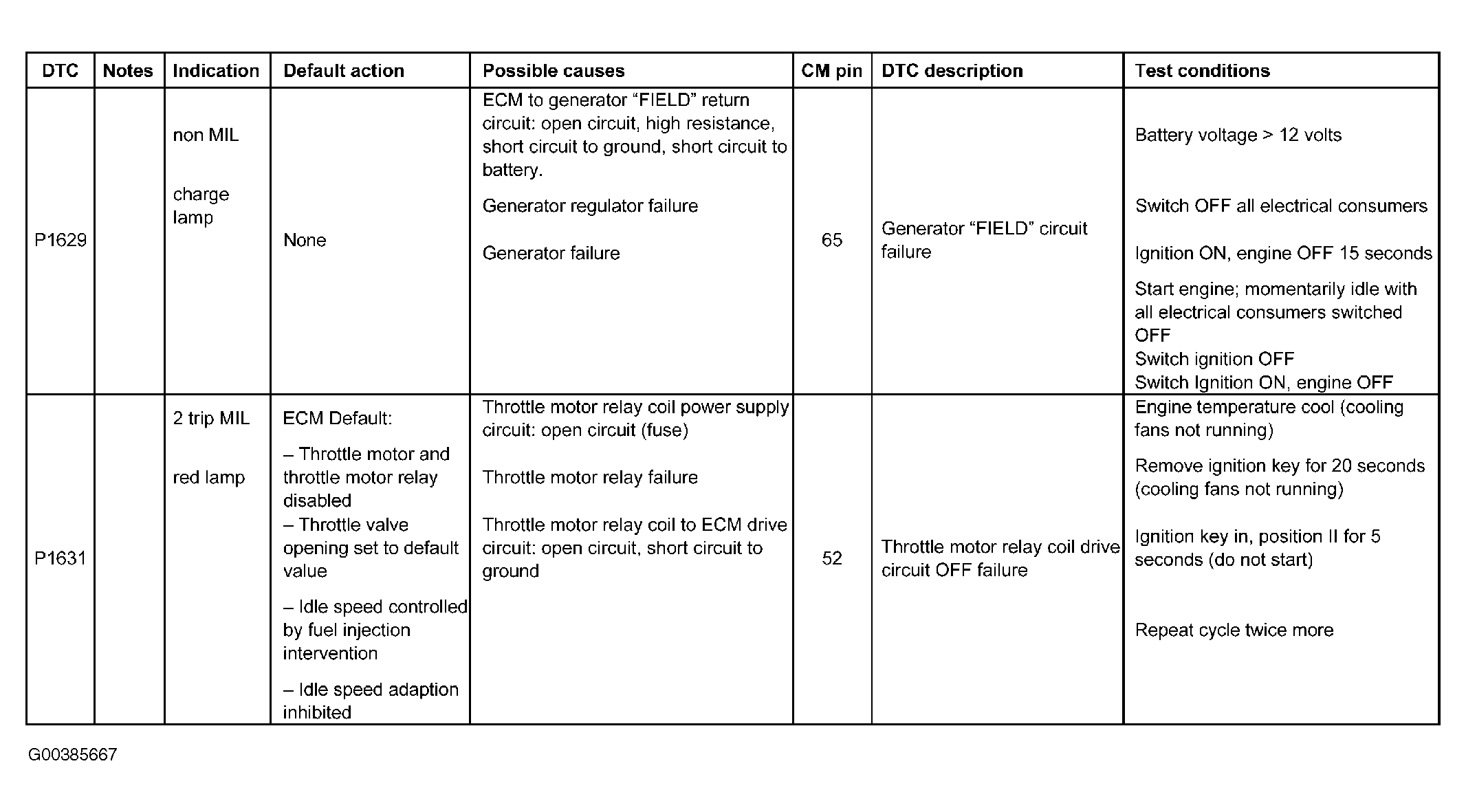

Fig 69: DTC P1629 & P1631 Possible Causes & Conditions

G00385667

Courtesy of JAGUAR CARS, INC.

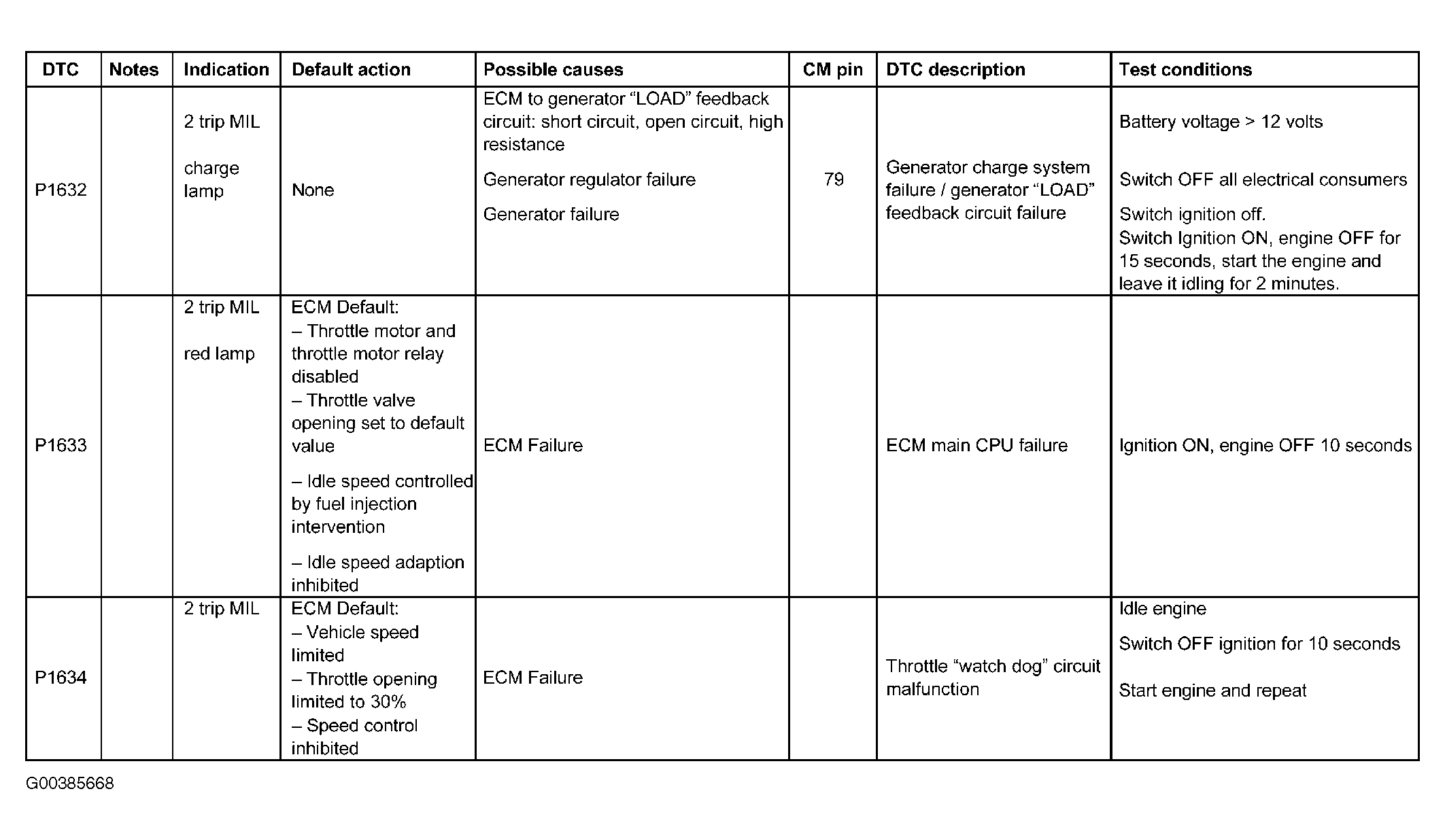

Fig 70: DTC P1632, 1633 & P1634 Possible Causes & Conditions

G00385668

Courtesy of JAGUAR CARS, INC.

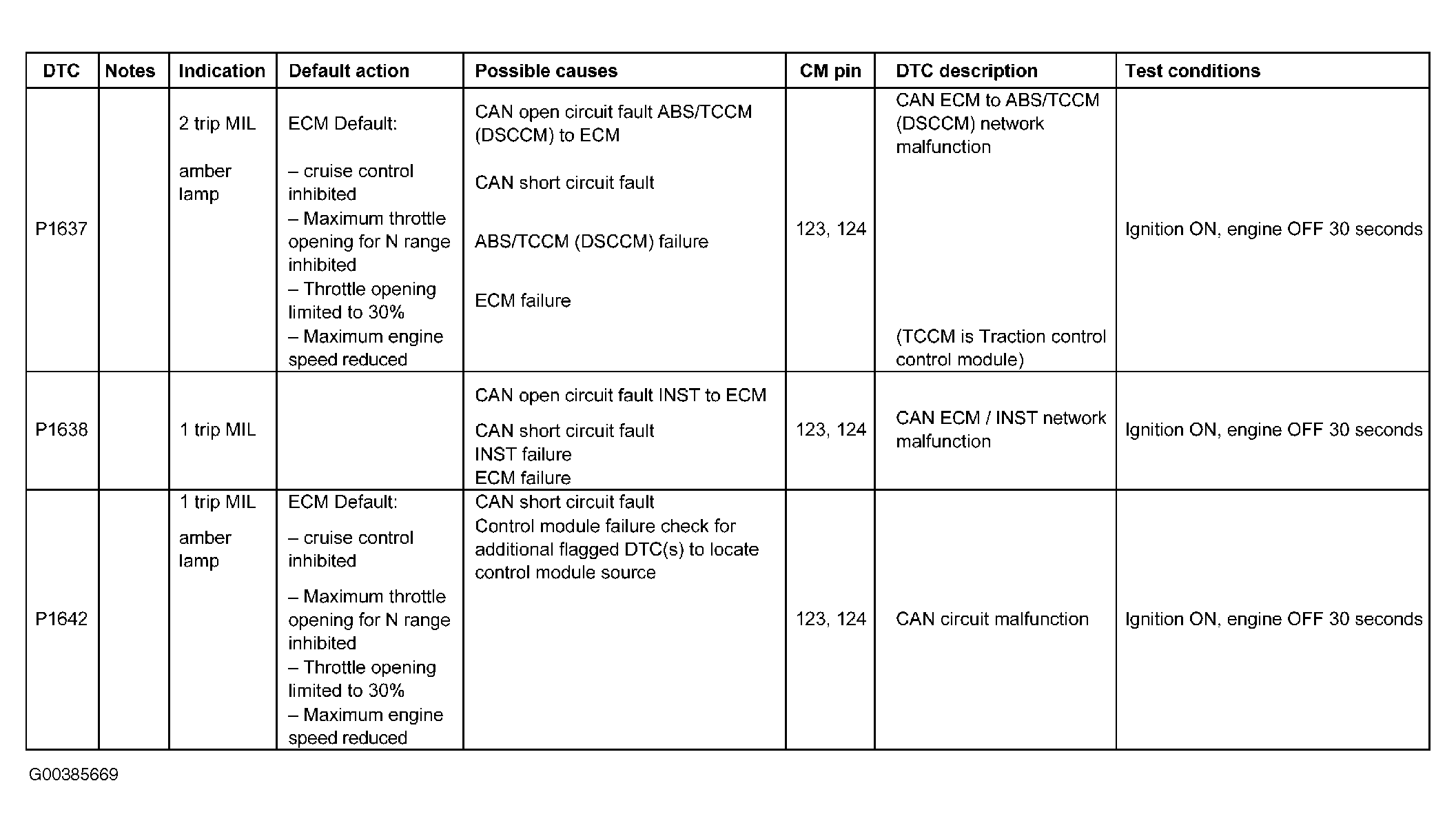

Fig 71: DTC P1637, P1638 & P1642 Possible Causes & Conditions

G00385669

Courtesy of JAGUAR CARS, INC.

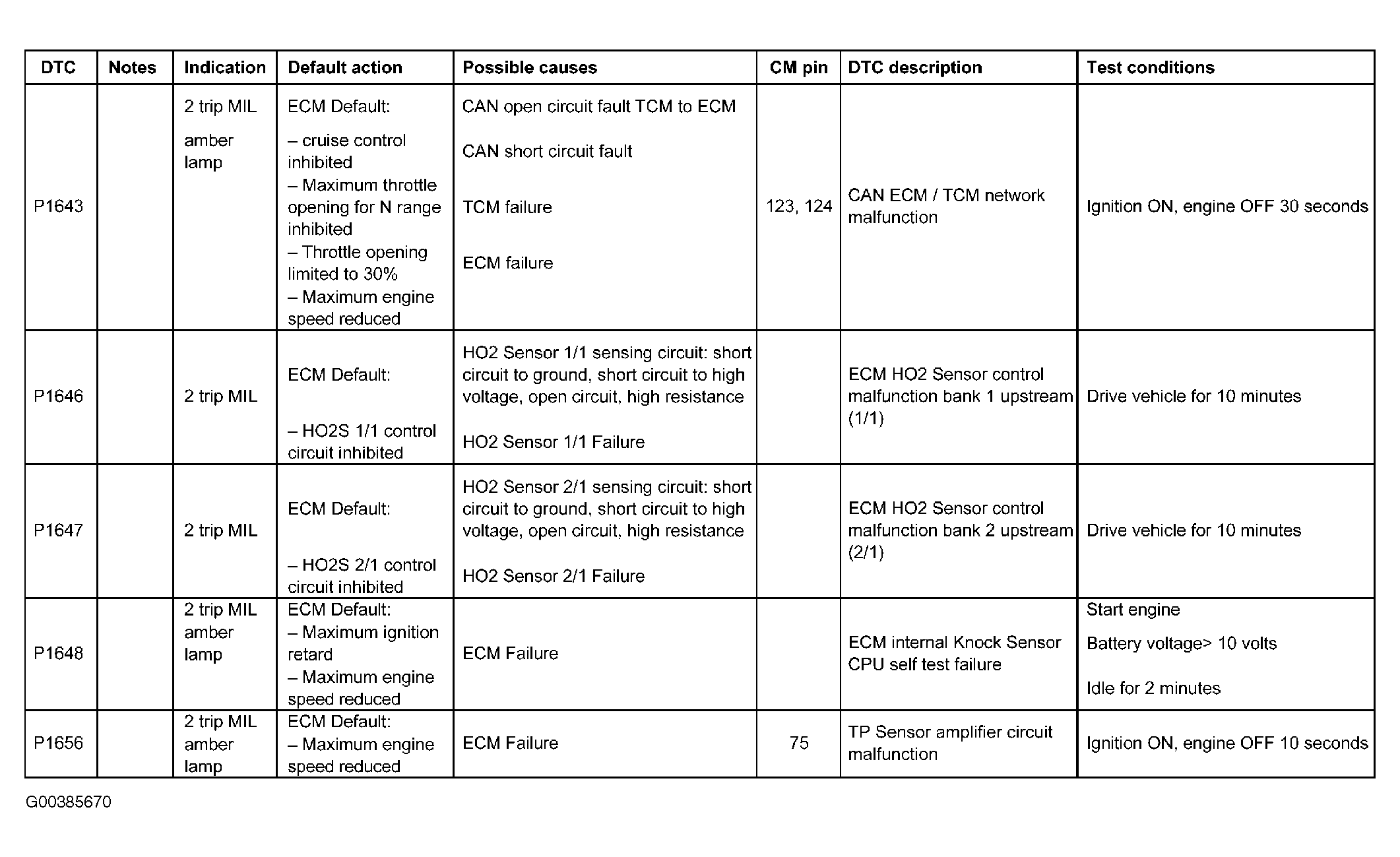

Fig 72: DTC P1643, P1646, P1647, P1648 & 1656 Possible Causes & Conditions

G00385670

Courtesy of JAGUAR CARS, INC.

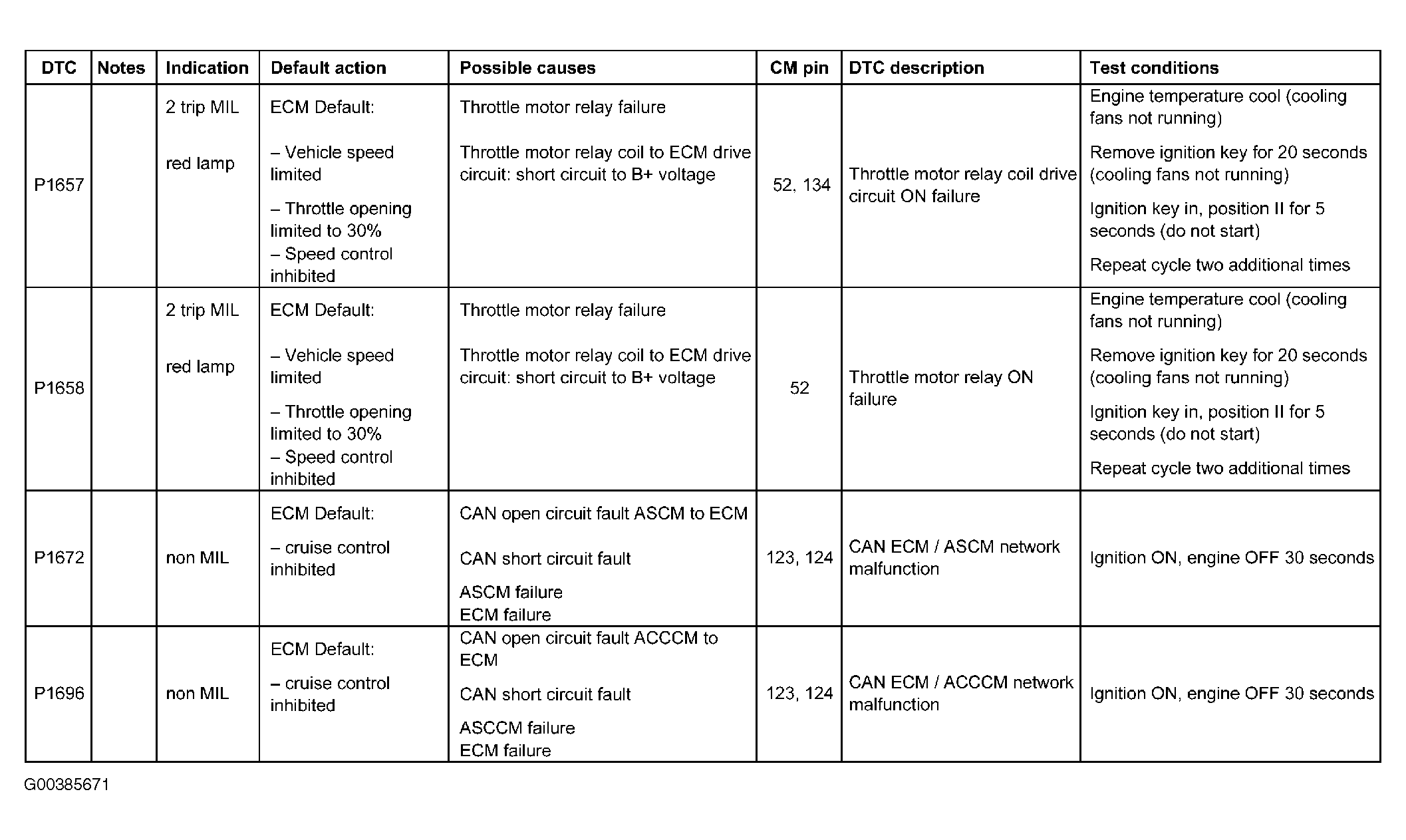

Fig 73: DTC P1657, P1658, P1672 & P1696 Possible Causes & Conditions

G00385671

Courtesy of JAGUAR CARS, INC.

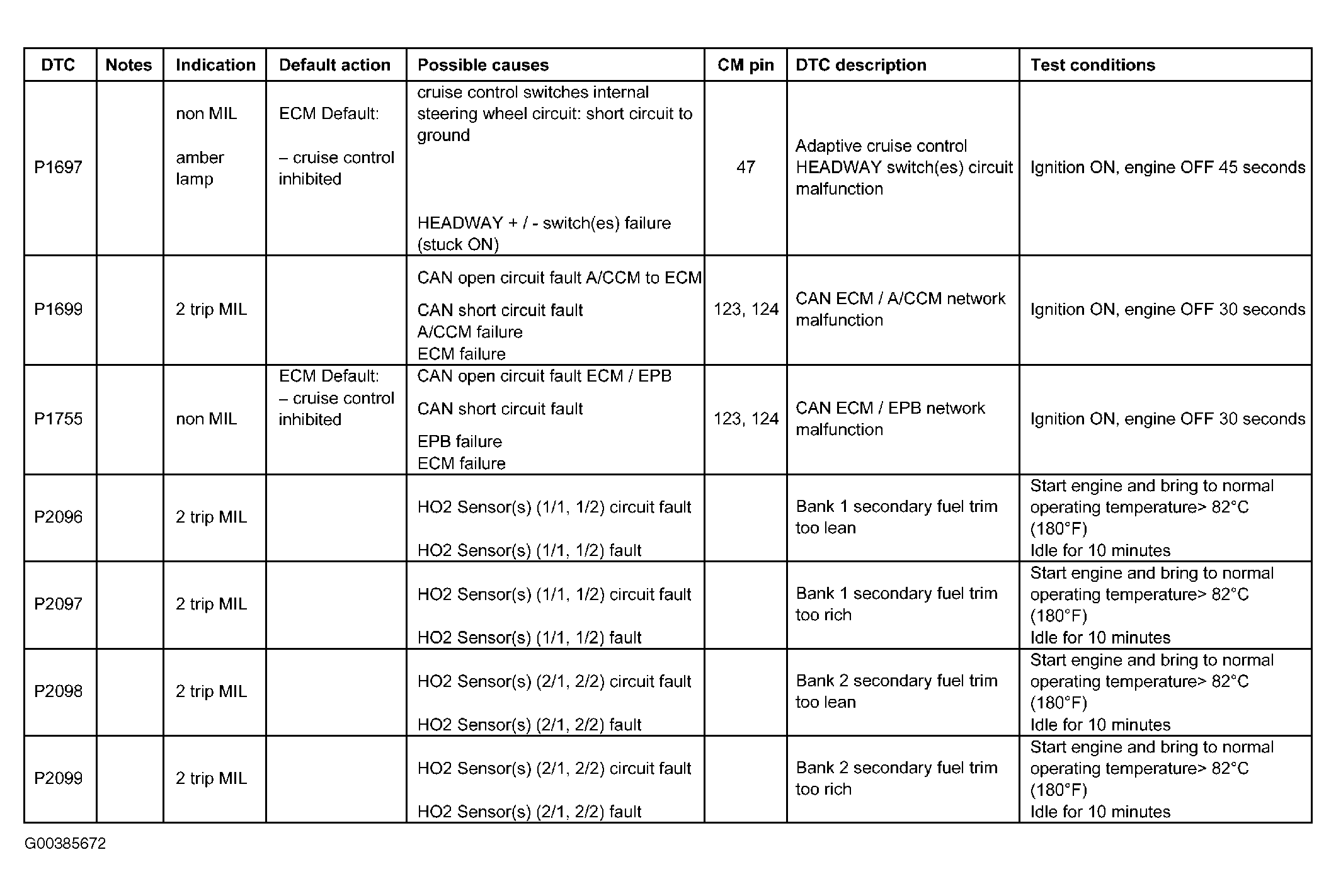

Fig 74: DTC P1697, P1699, P1755, P2096, P2097, P2098 & P2099 Possible Causes & Conditions

G00385672

Courtesy of JAGUAR CARS, INC.

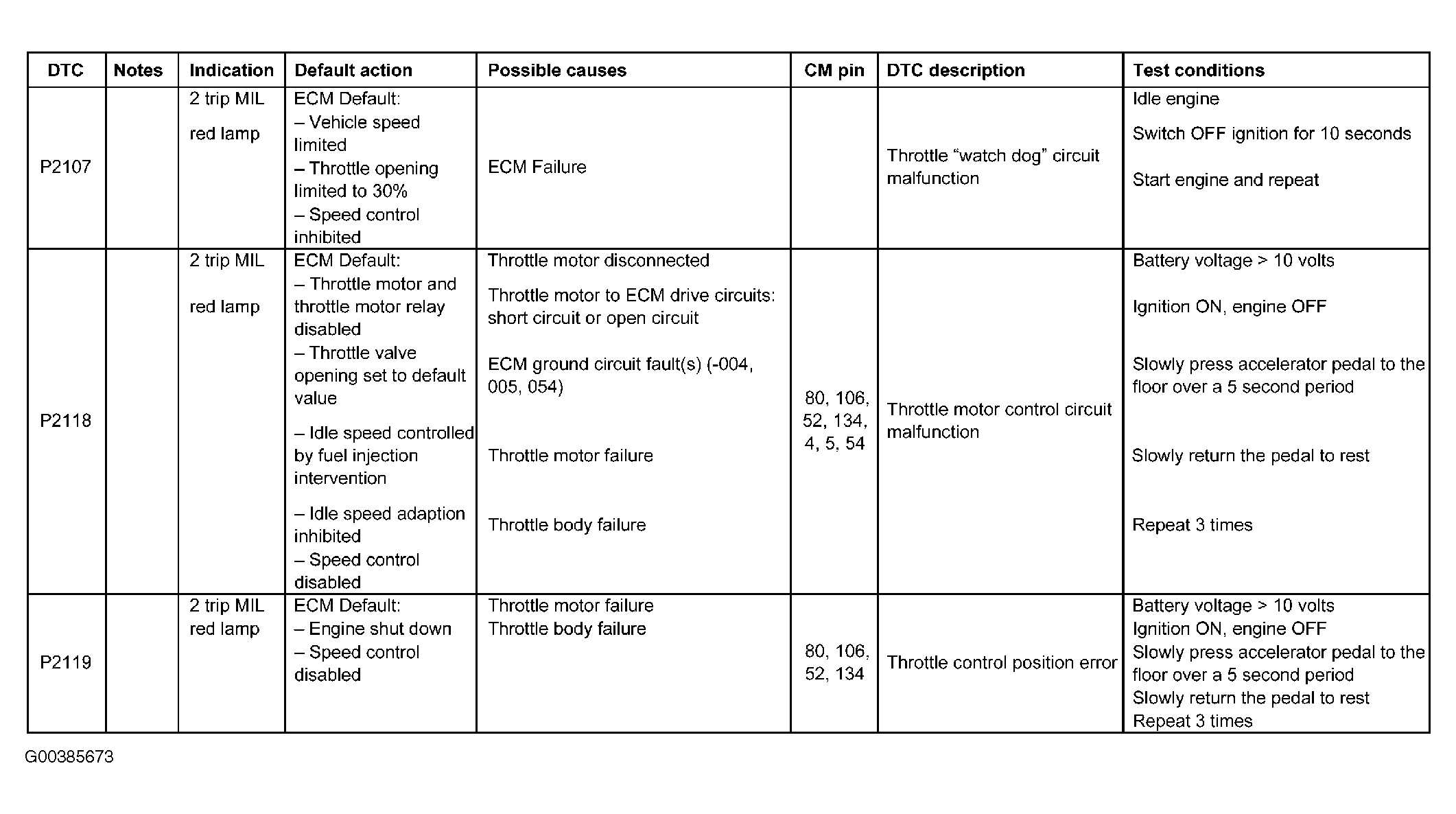

Fig 75: DTC P2107, P2118 & P2119 Possible Causes & Conditions

G00385673

Courtesy of JAGUAR CARS, INC.

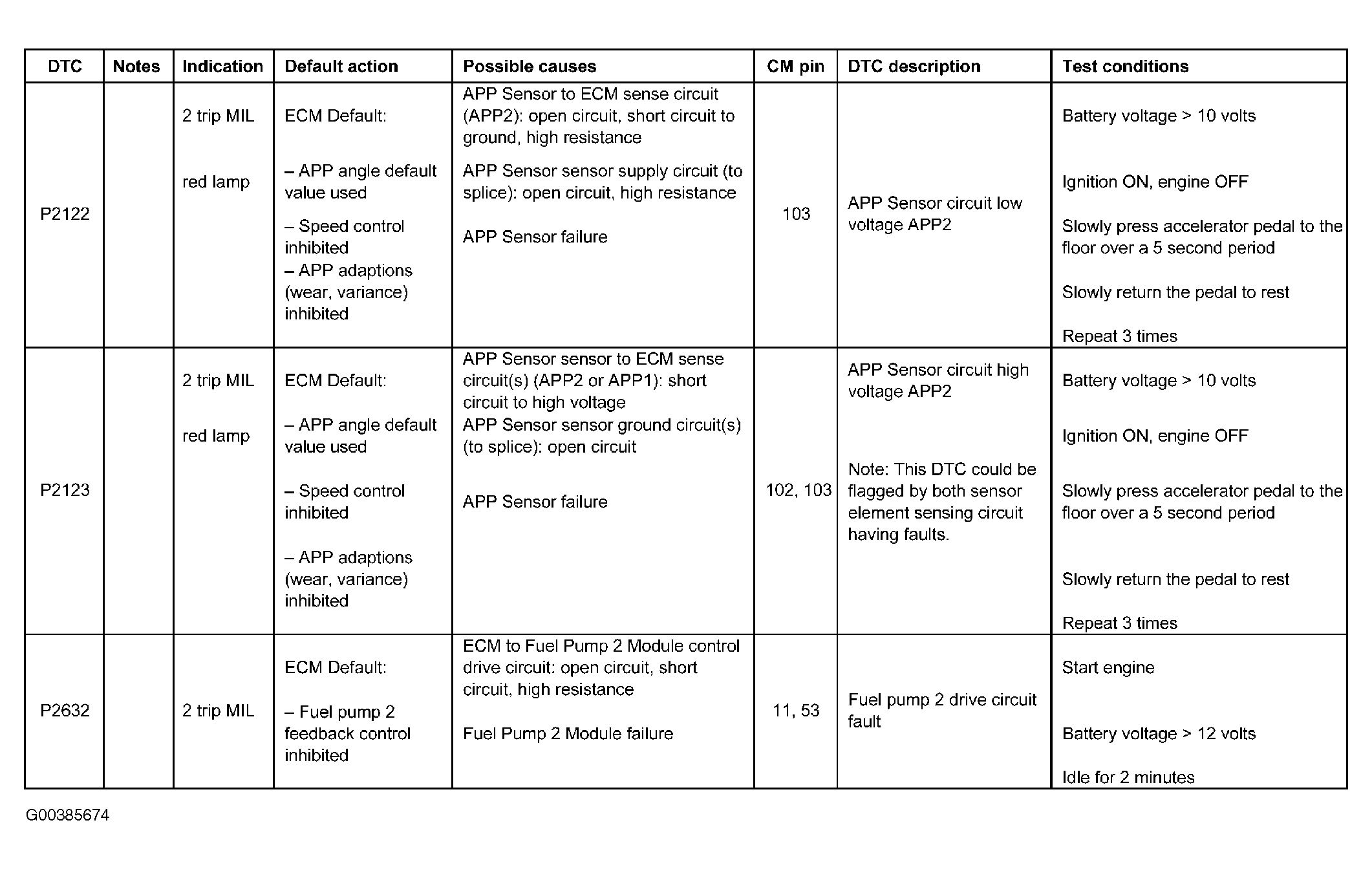

Fig 76: DTC P2122, P2123 & P2632 Possible Causes & Conditions

G00385674

Courtesy of JAGUAR CARS, INC.

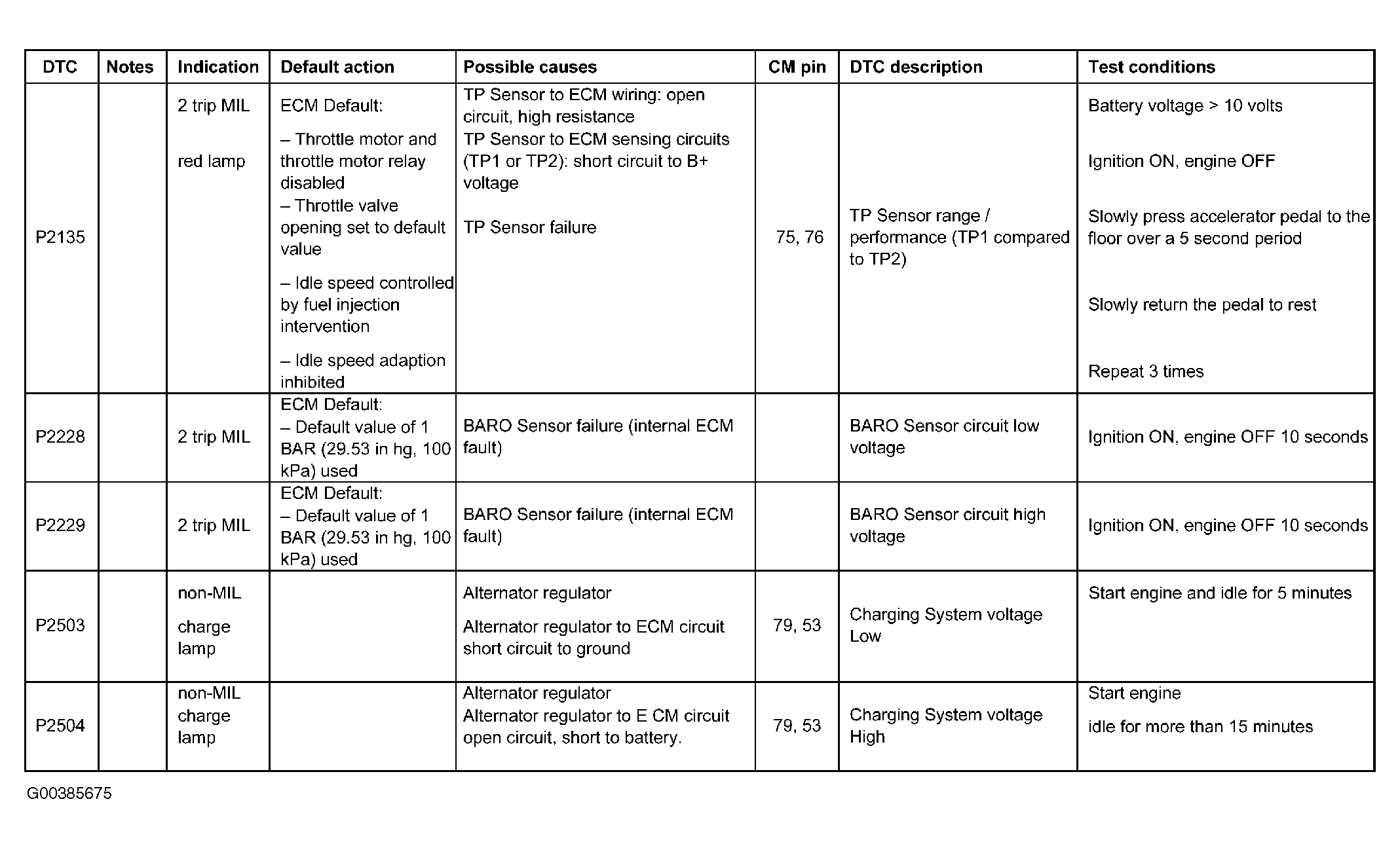

Fig 77: DTC P2135, P2228, P2229, P2503 & P2504 Possible Causes & Conditions

G00385675

Courtesy of JAGUAR CARS, INC.

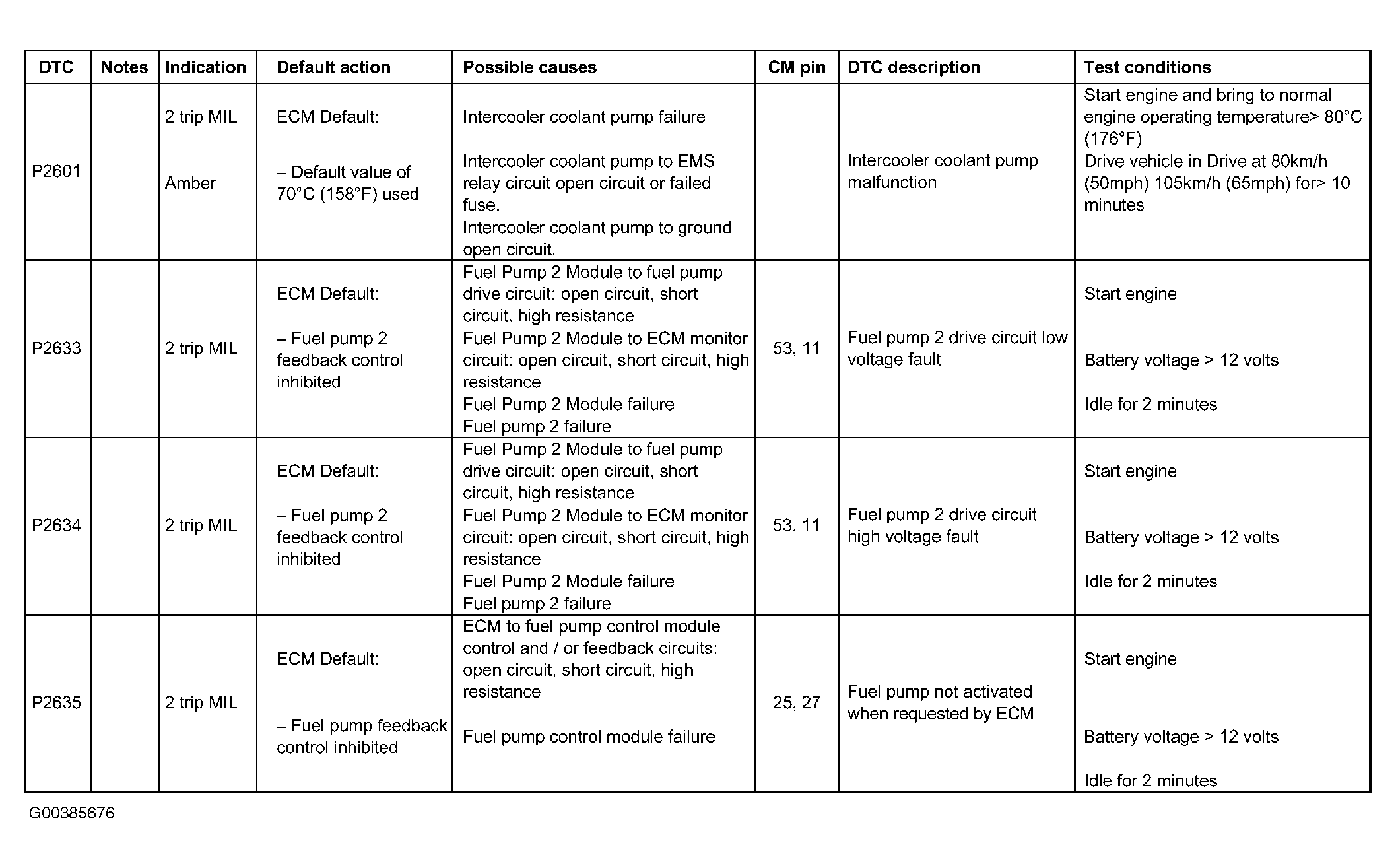

Fig 78: DTC P2601, P2633, P2634 & P2635 Possible Causes & Conditions

G00385676

Courtesy of JAGUAR CARS, INC.

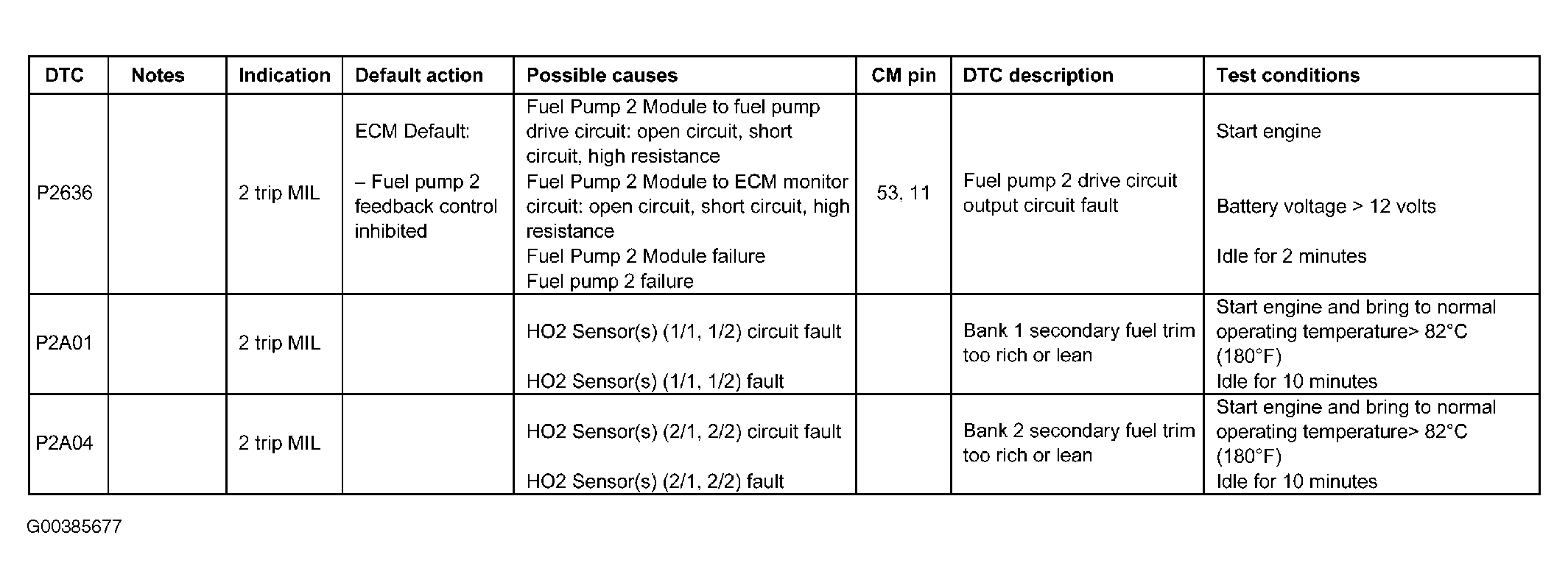

Fig 79: DTC P2636, P2A01 & P2A04 Possible Causes & Conditions

G00385677

Courtesy of JAGUAR CARS, INC.

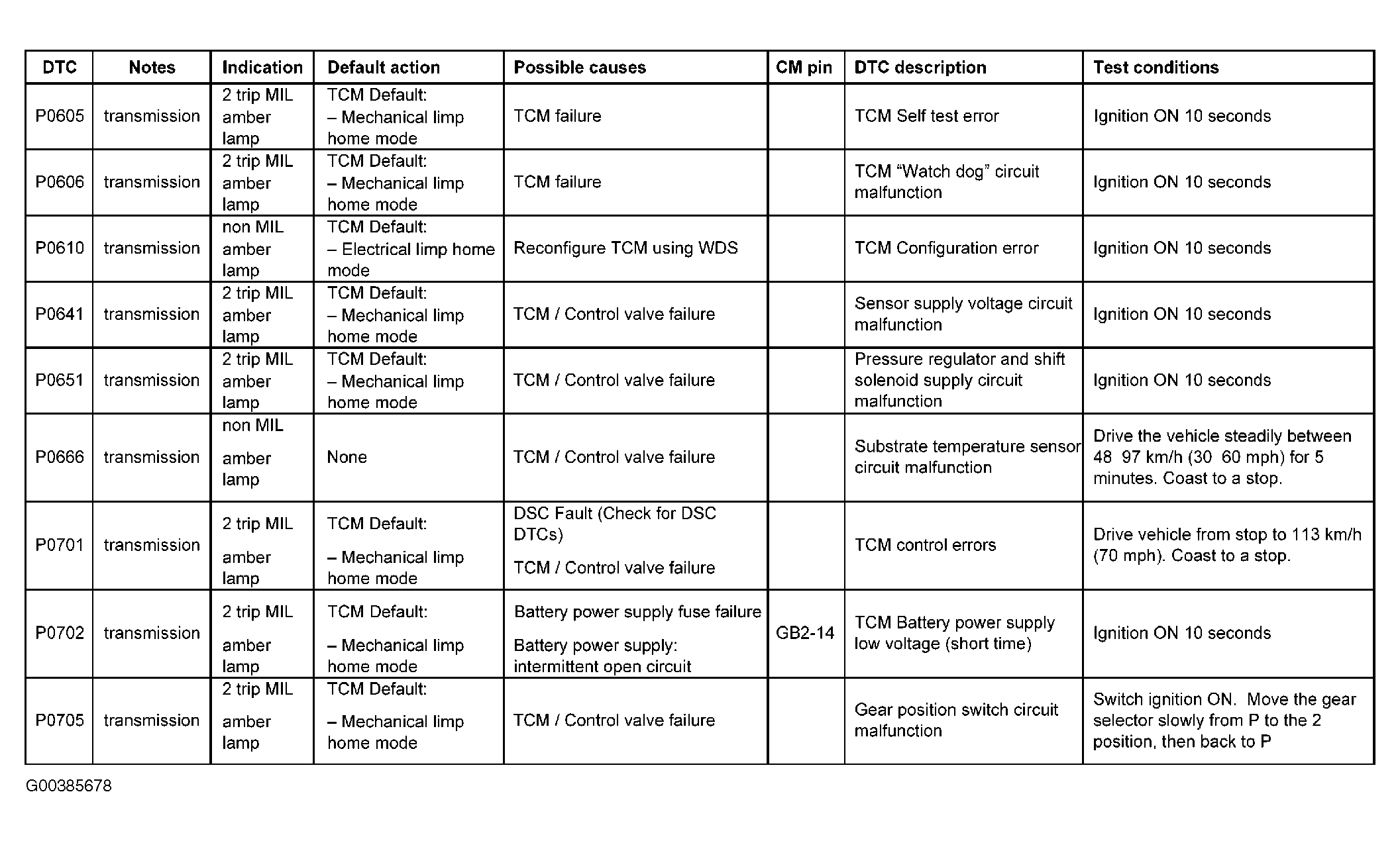

Fig 80: DTC P0605, P0606, P0610, P0641, P0651, P0666, P0701, P0702 & P0705 Possible Causes & Conditions

G00385678

Courtesy of JAGUAR CARS, INC.

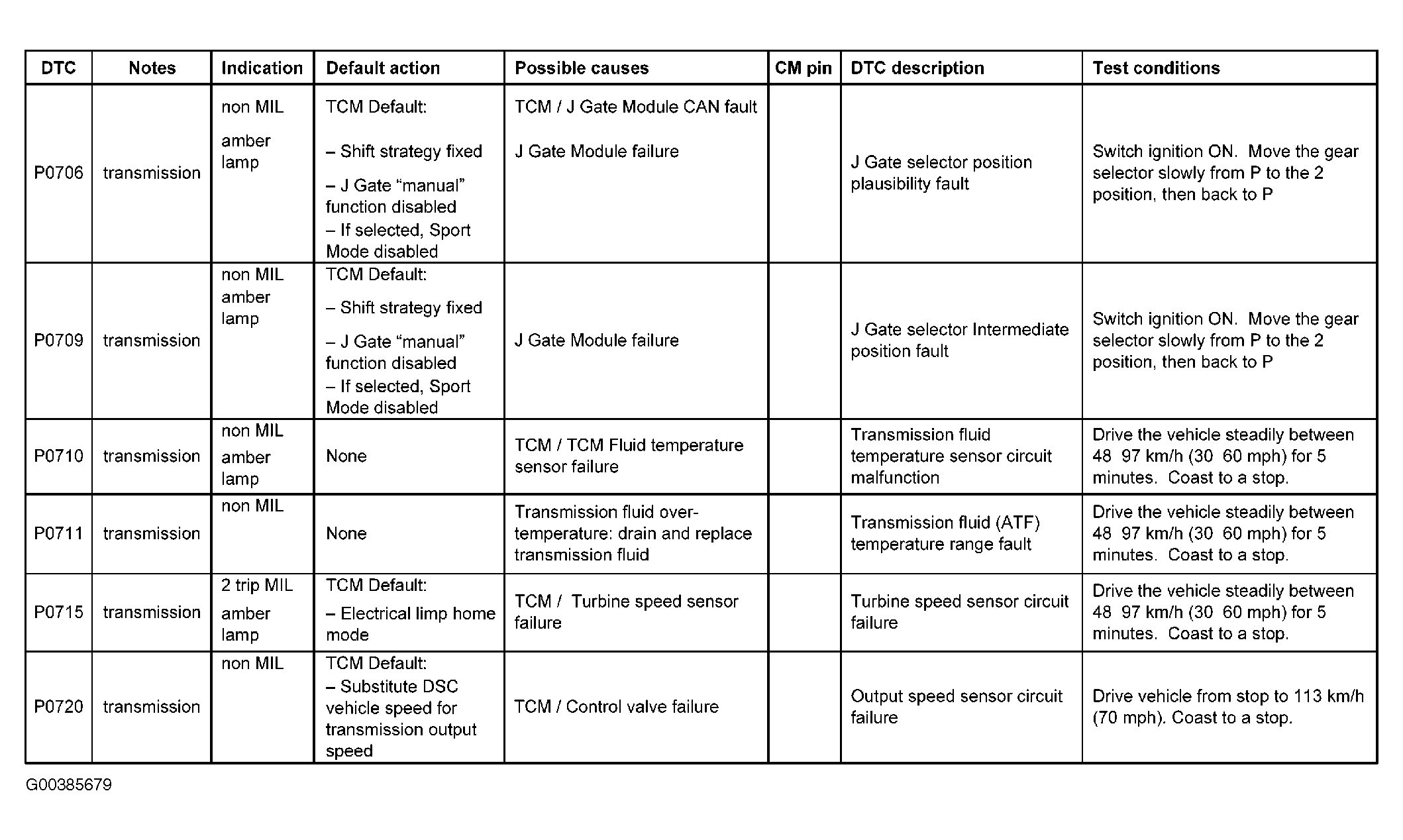

Fig 81: DTC P0706, P0709, P0710, P0711, P0715 & P0720 Possible Causes & Conditions

G00385679

Courtesy of JAGUAR CARS, INC.

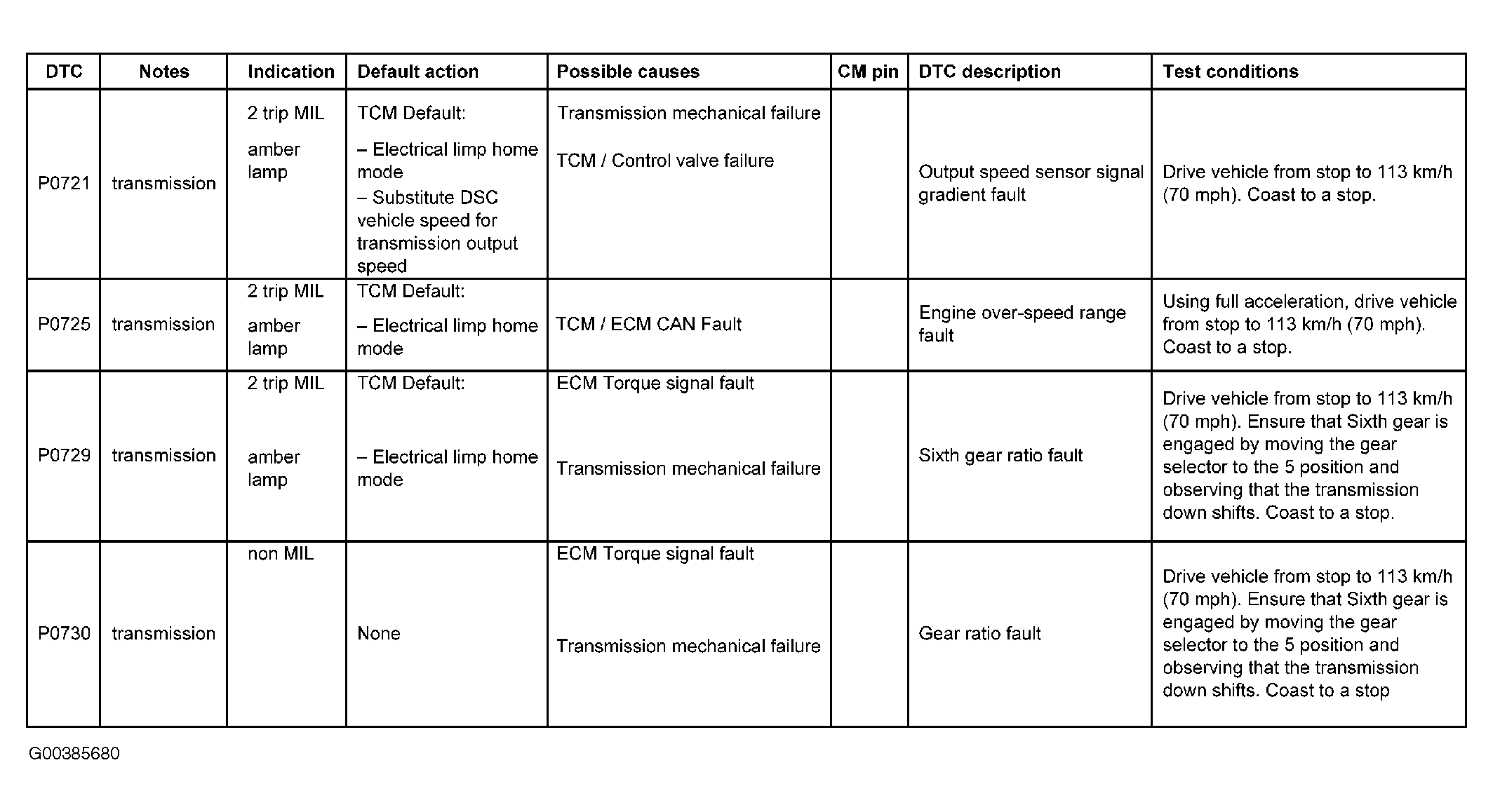

Fig 82: DTC P0721, P0725, P0729 & P0730 Possible Causes & Conditions

G00385680

Courtesy of JAGUAR CARS, INC.

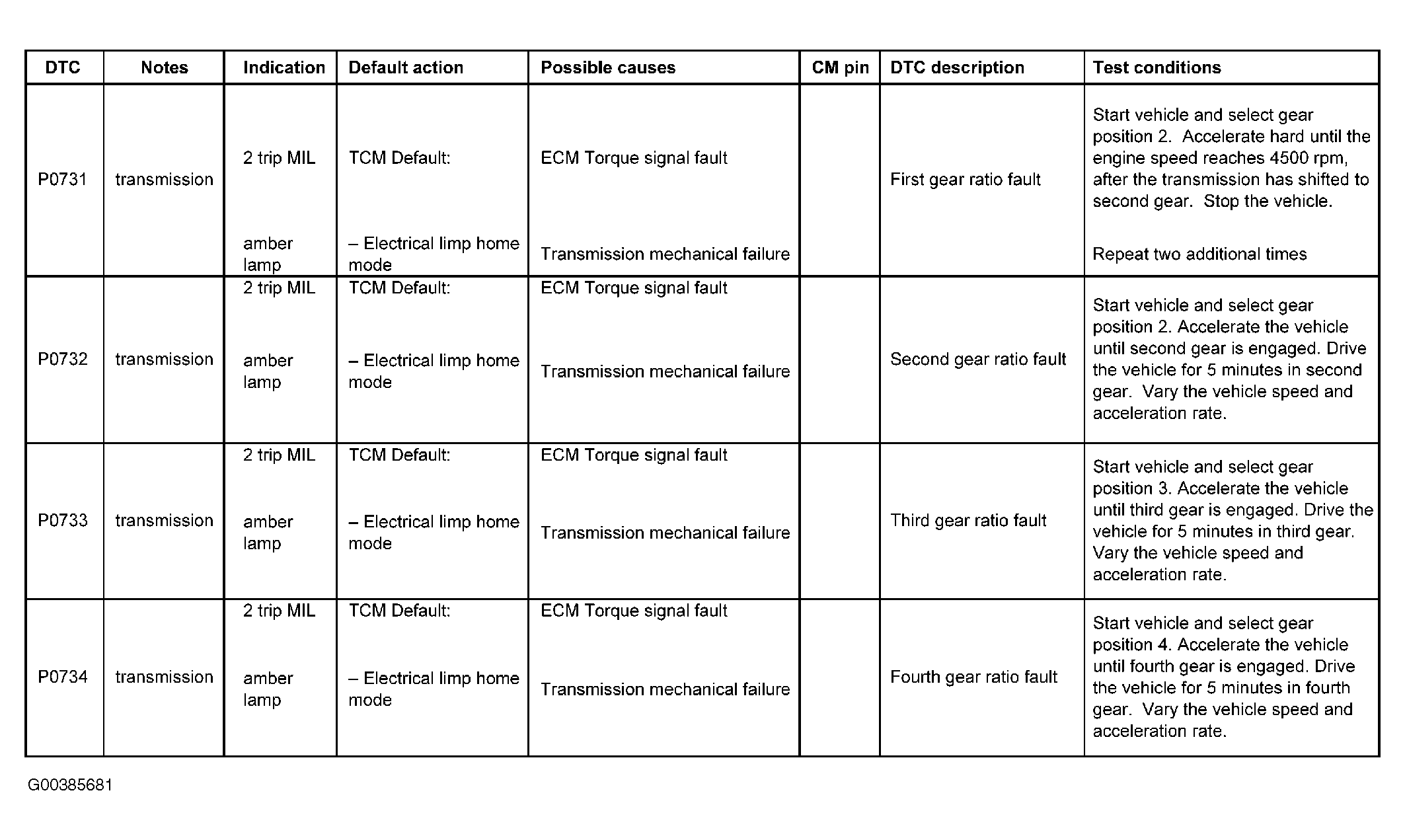

Fig 83: DTC P0731, P0732, P0733 & P0734 Possible Causes & Conditions

G00385681

Courtesy of JAGUAR CARS, INC.

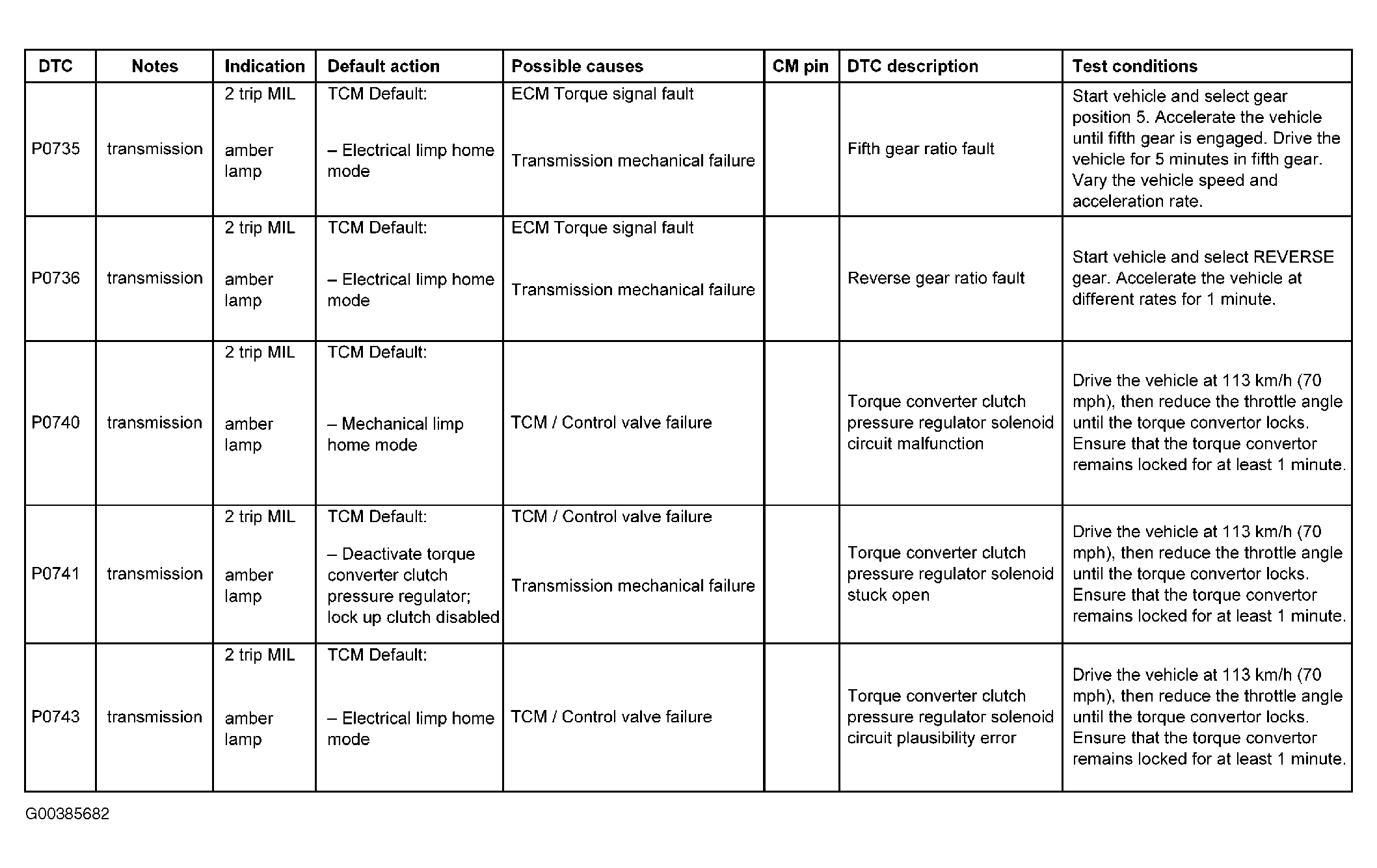

Fig 84: DTC P0735, P0736, P0740, P0741 & P0743 Possible Causes & Conditions

G00385682

Courtesy of JAGUAR CARS, INC.

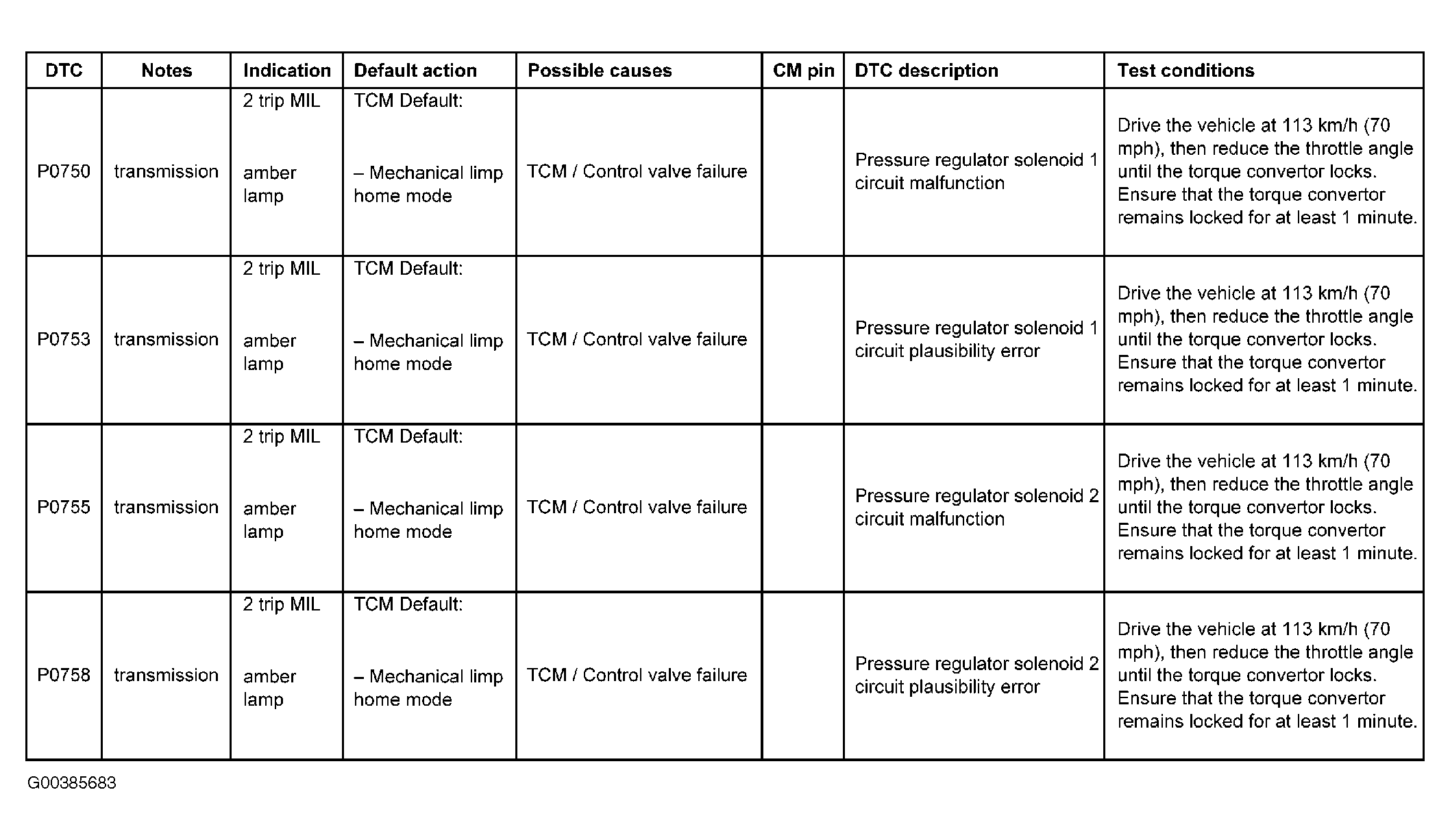

Fig 85: DTC P0750, P0753, P0755 & P0758 Possible Causes & Conditions

G00385683

Courtesy of JAGUAR CARS, INC.

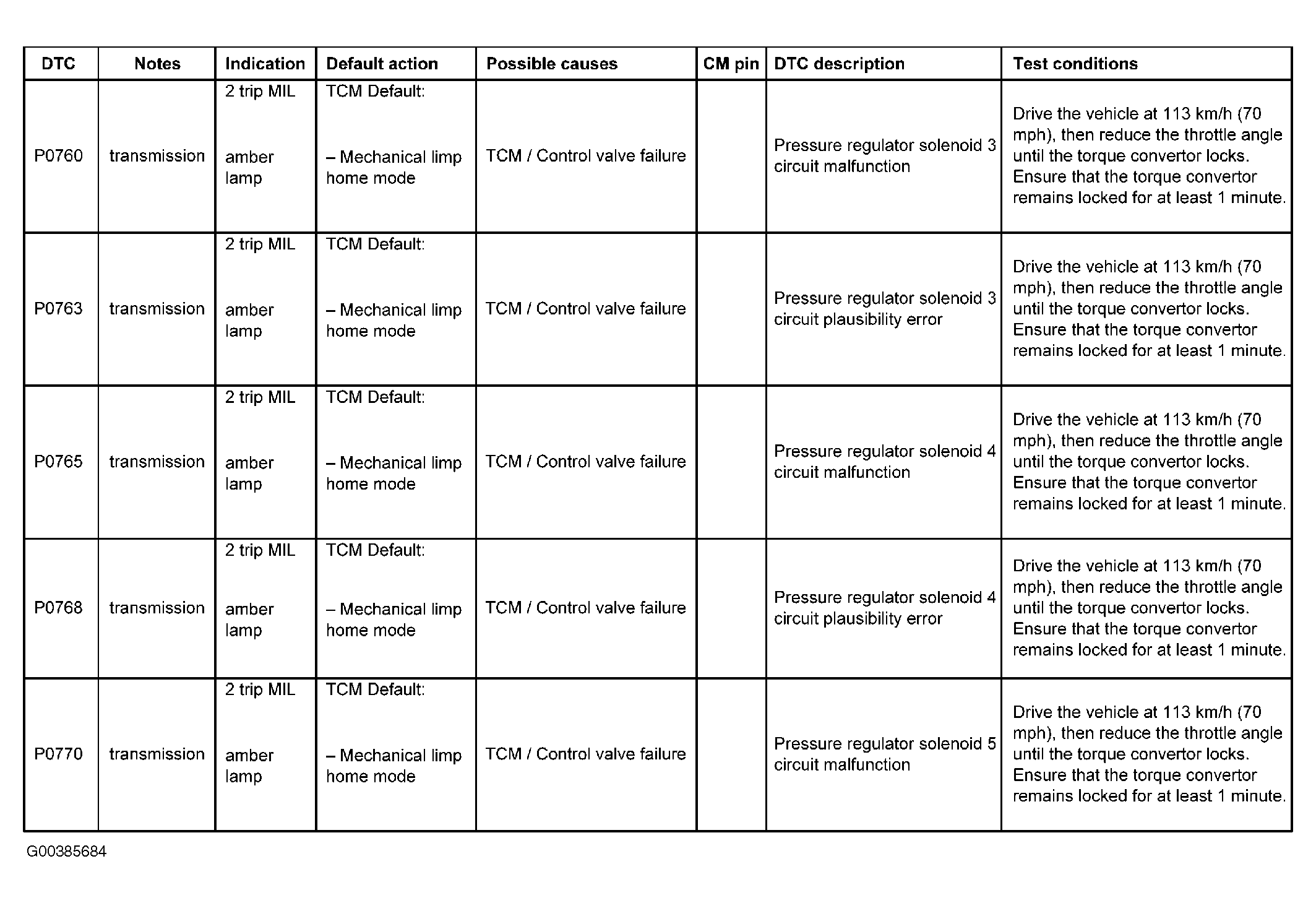

Fig 86: DTC P0760, P0763, P0765, P0768 & P0770 Possible Causes & Conditions

G00385684

Courtesy of JAGUAR CARS, INC.

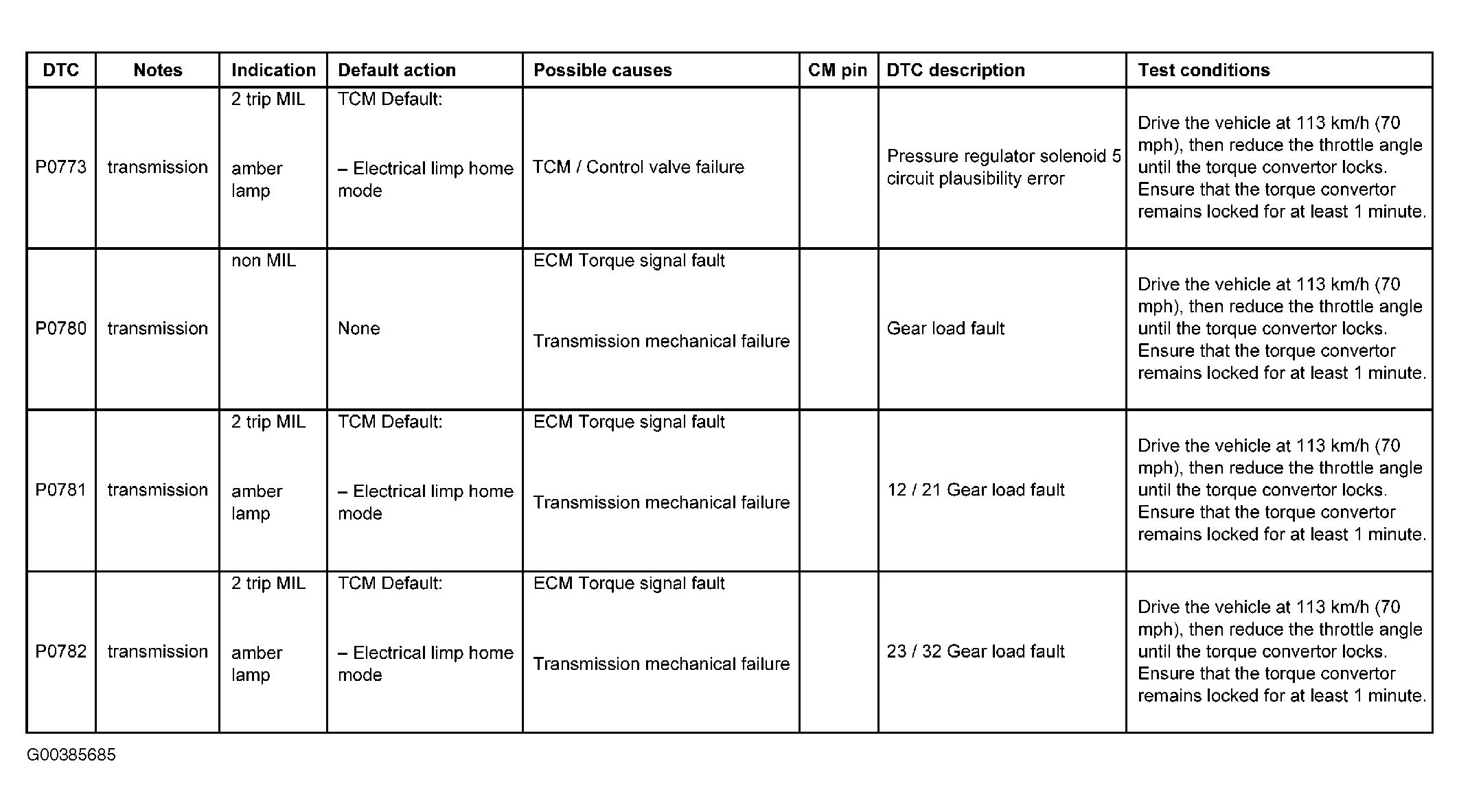

Fig 87: DTC P0773, P0780, P781 & P0782 Possible Causes & Conditions

G00385685

Courtesy of JAGUAR CARS, INC.

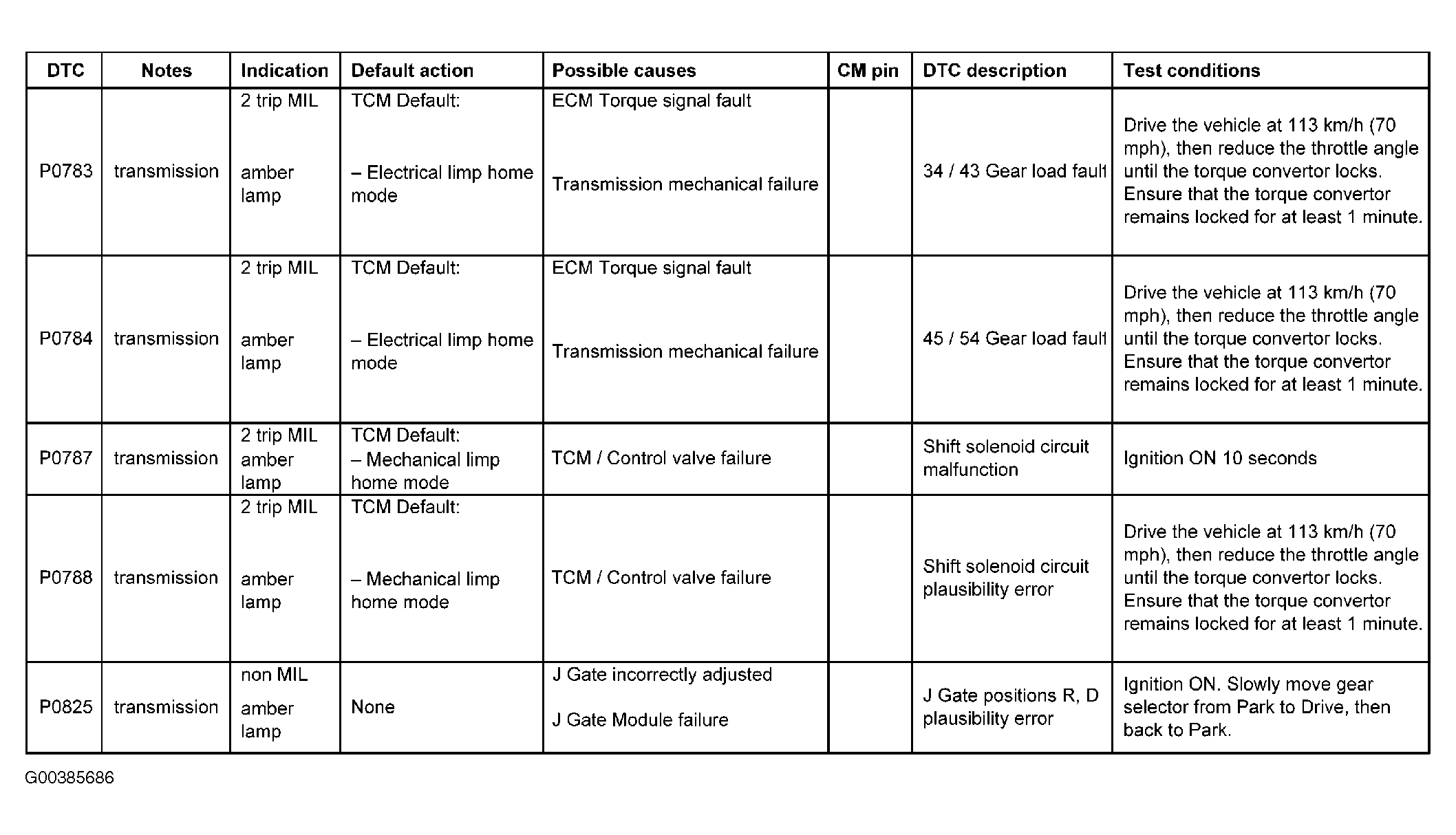

Fig 88: DTC P0783, P0784, P0787, P0788 & P0825 Possible Causes & Conditions

G00385686

Courtesy of JAGUAR CARS, INC.

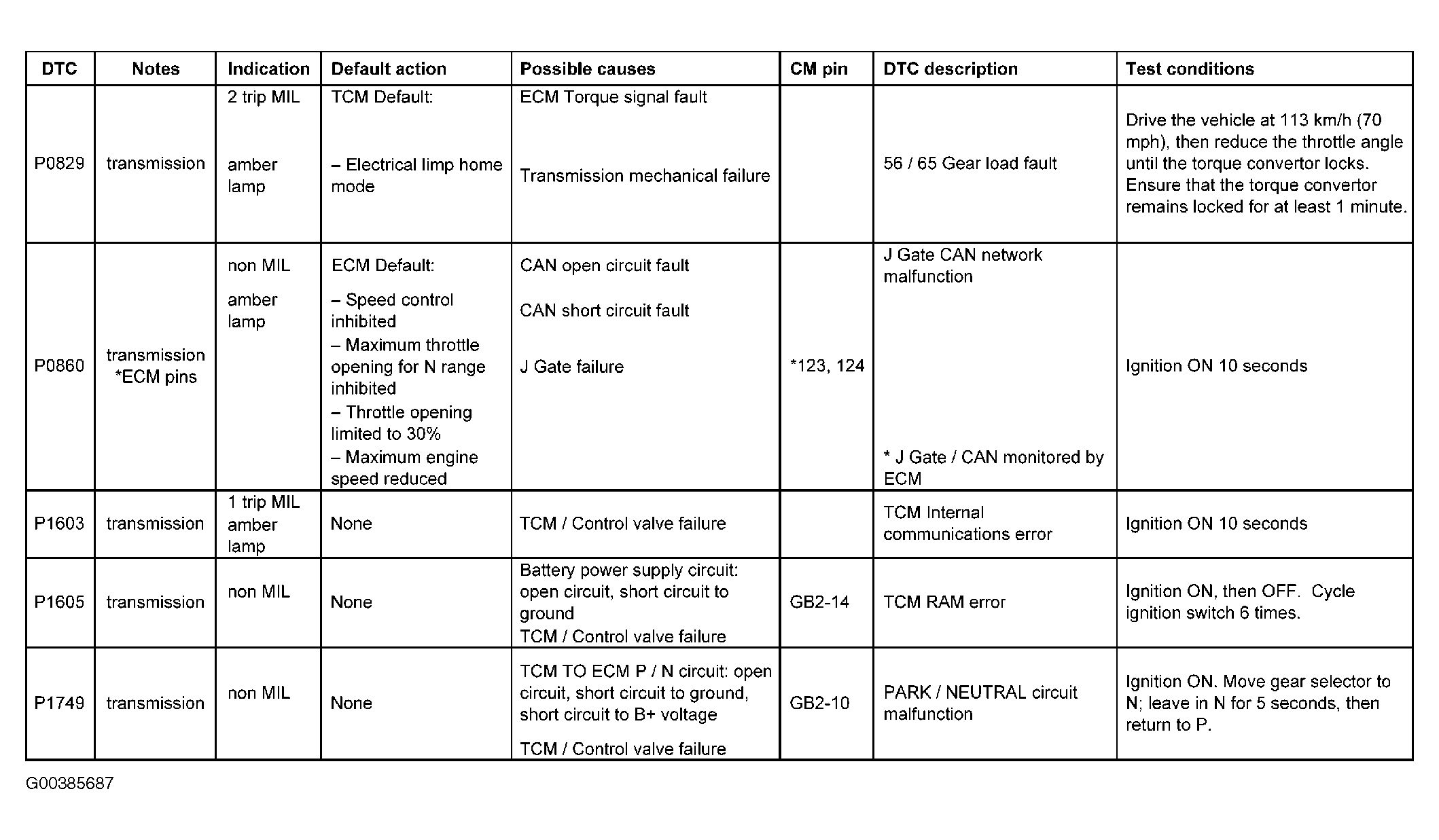

Fig 89: DTC P0789, P0860, P1603, P1605 & P1749 Possible Causes & Conditions

G00385687

Courtesy of JAGUAR CARS, INC.

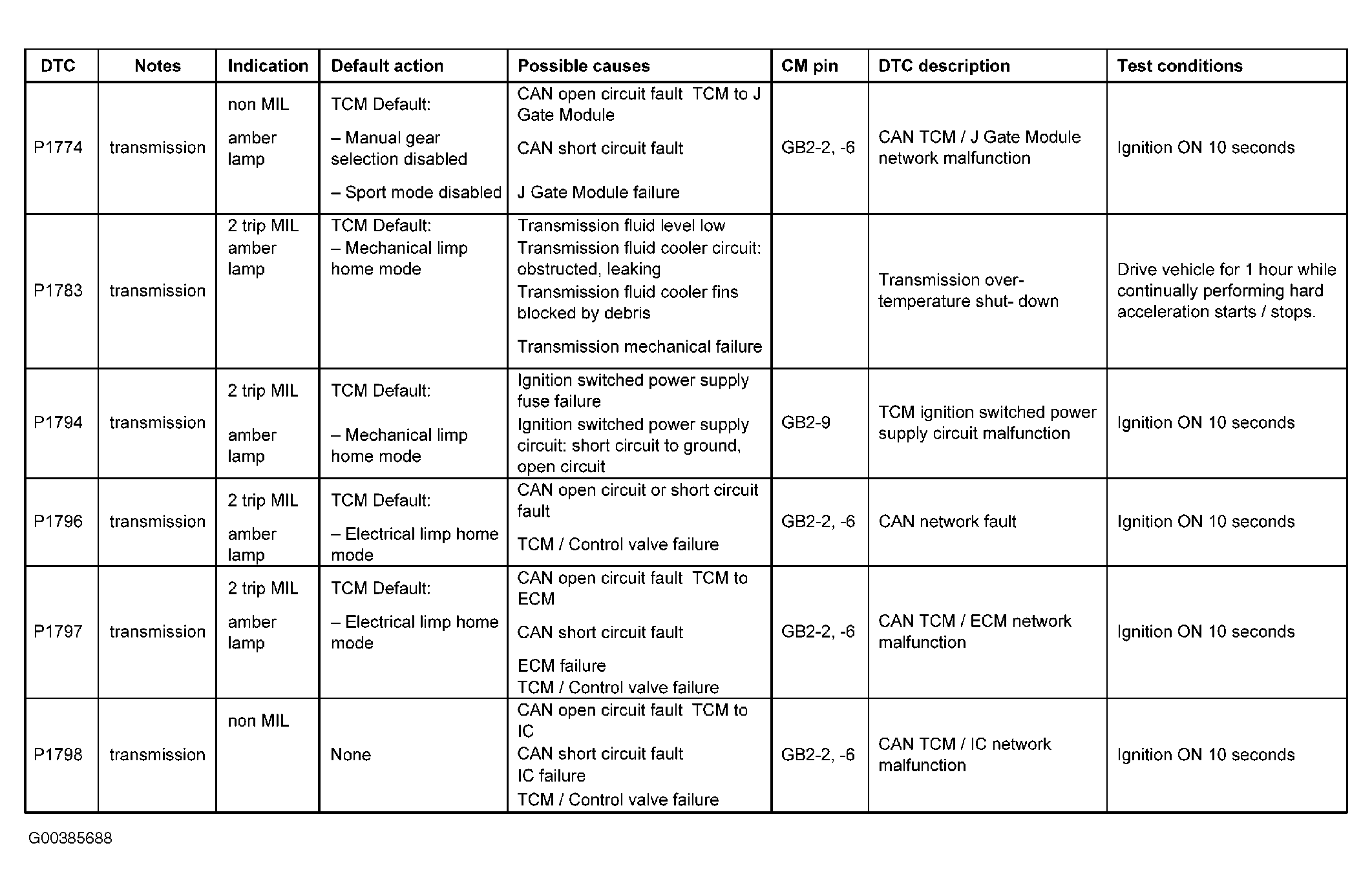

Fig 90: DTC P1774, P1783, P1794, P1796, P1797 & P1798 Possible Causes & Conditions

G00385688

Courtesy of JAGUAR CARS, INC.

Fig 91: DTC P1799 & P0860 Possible Causes & Conditions

G00385689

Courtesy of JAGUAR CARS, INC.
