Transmission Selector Lever: Installation
- Attach the ignition switch interlock cable.
- Connect the ignition switch interlock cable.
- Attach the ignition switch interlock cable.

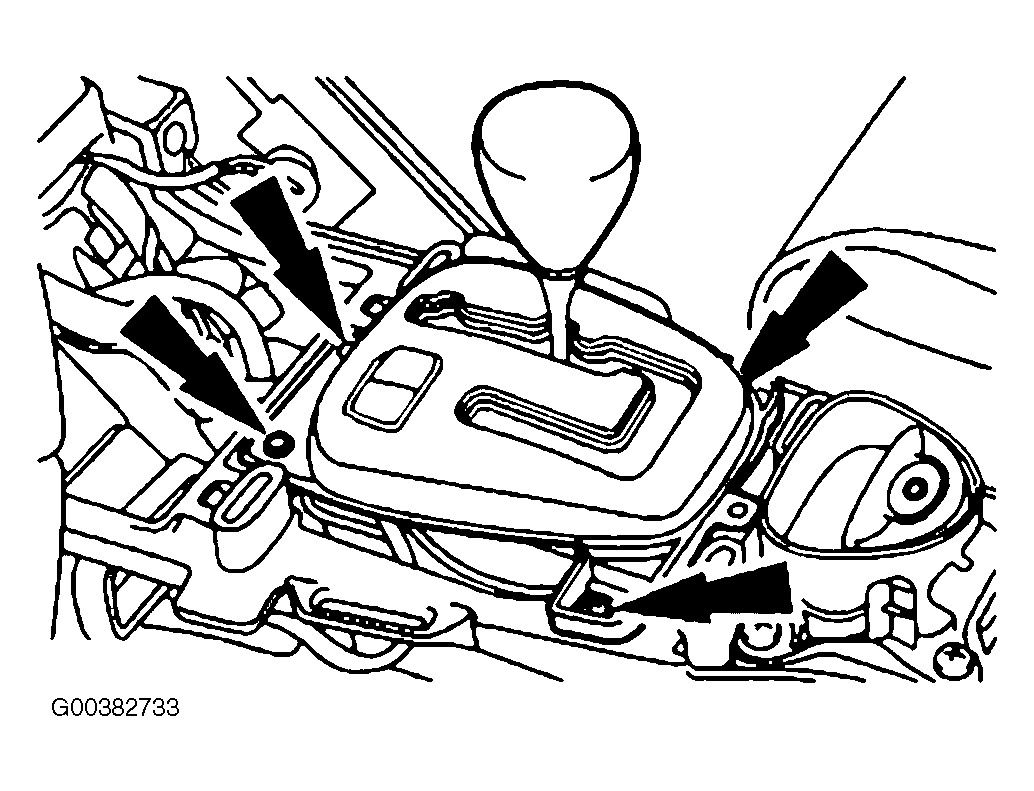

- Attach the transmission selector lever.
- Tighten to 11 Nm.
See Figure.

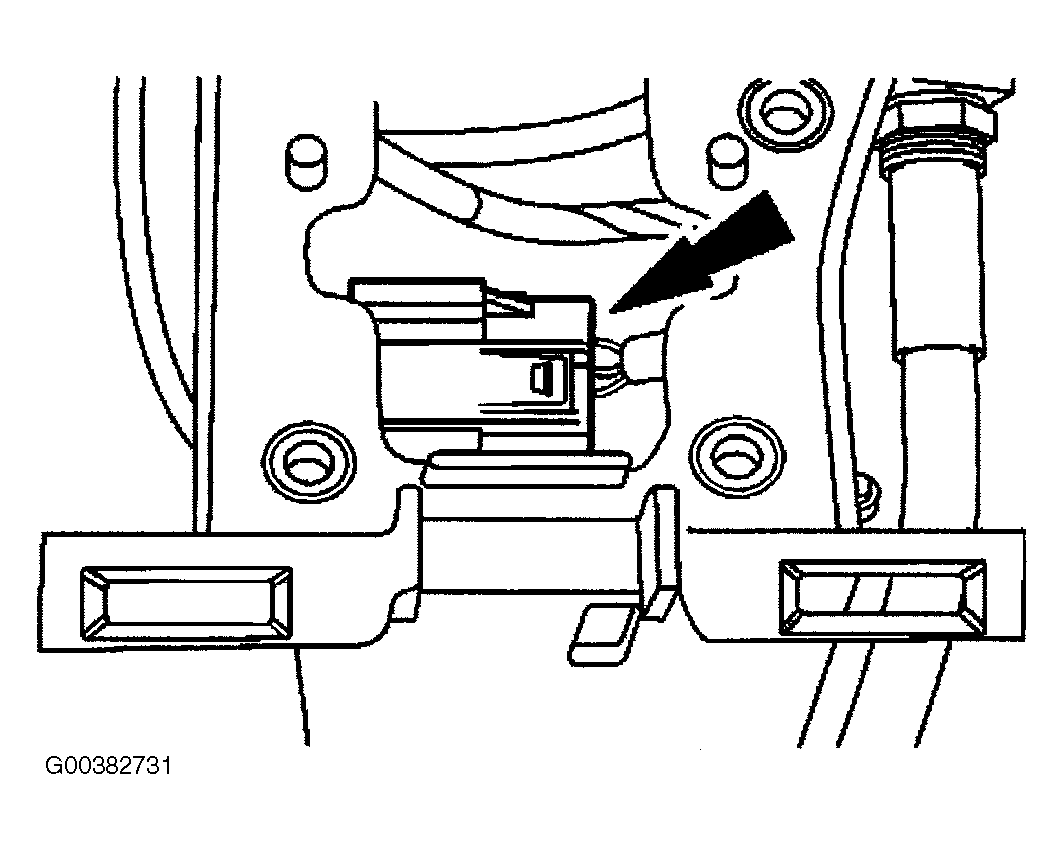

- Connect the electrical connector. See Figure.
- Make sure the selector lever cable is in the "R" position.
- Make sure the transmission selector lever is in the "R" position.
- Attach the selector lever cable. See Figure.

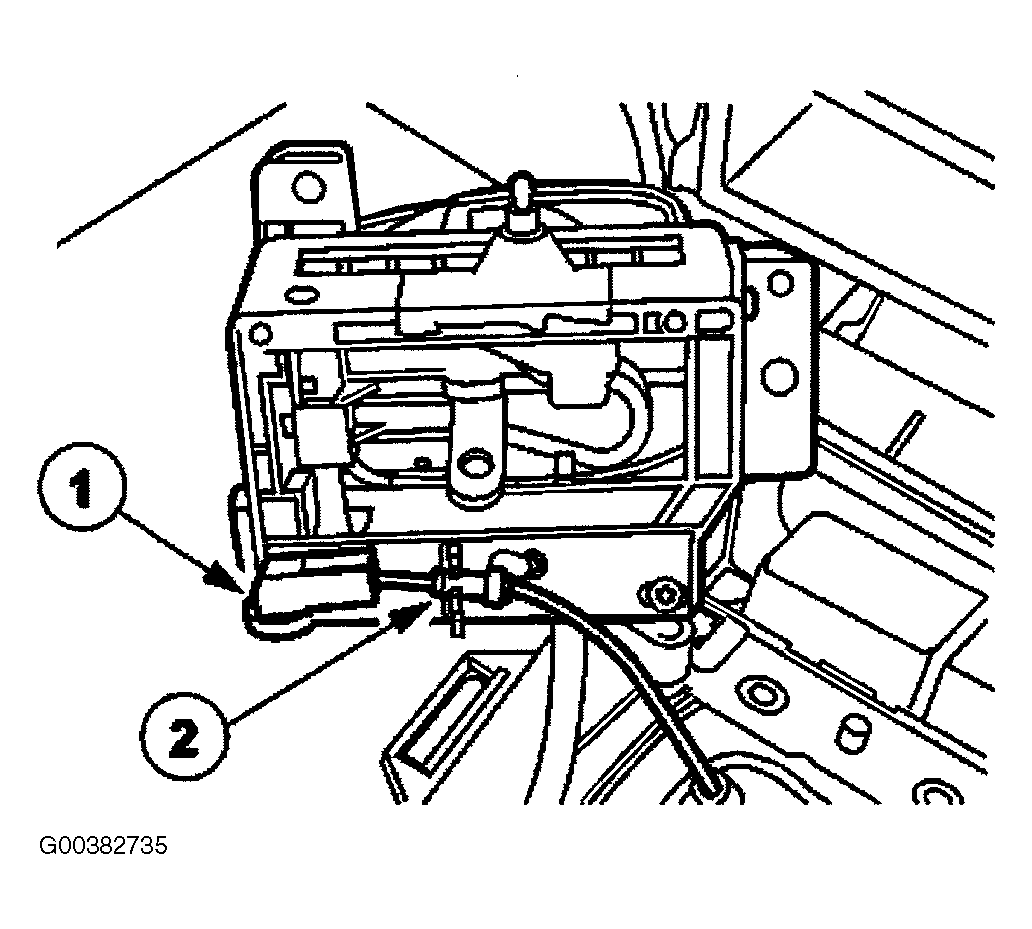

- Loosen the selector lever cable lock nuts. See Figure.
- Adjust the selector lever cable lock nuts to lock against the retaining bracket without moving the set position of either the shift lever or the selector lever cable.
- Do not fully tighten the selector lever cable lock nuts.
See Figure
- Move the transmission selector lever to all positions.
- Tighten the selector lever cable lock nuts.
- Tighten to 20 Nm.
See Figure
- Attach the wiring harness bracket. See Figure.

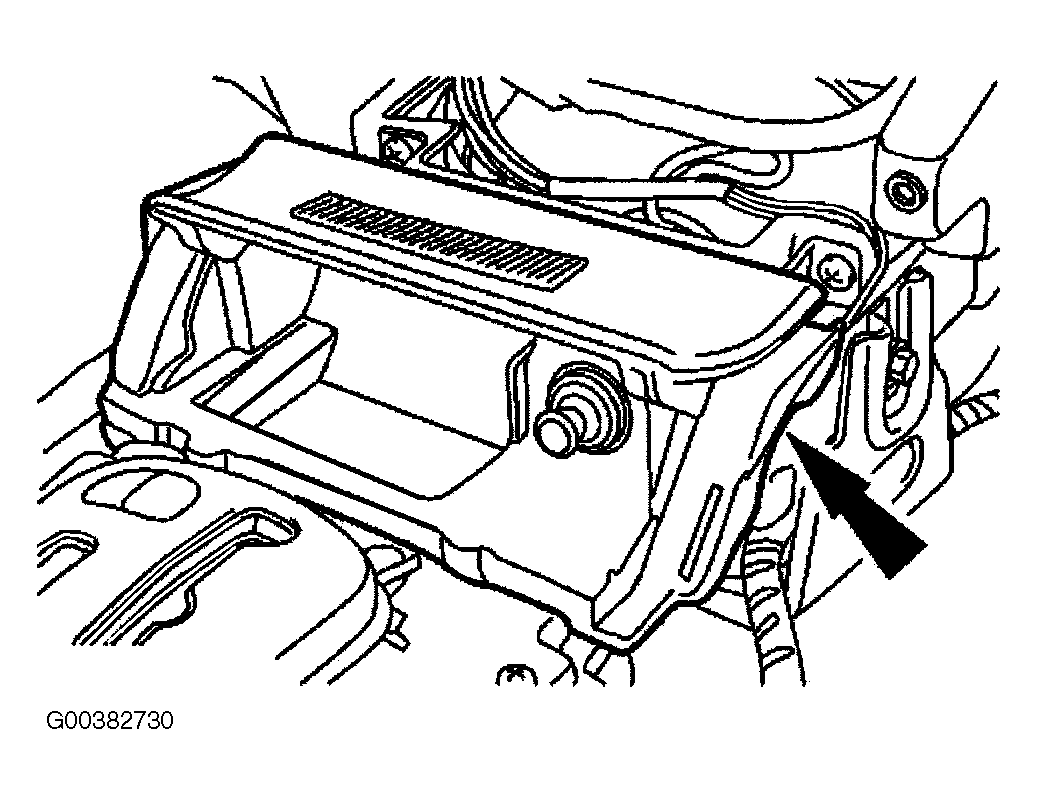

- Attach the ash tray. See Figure.

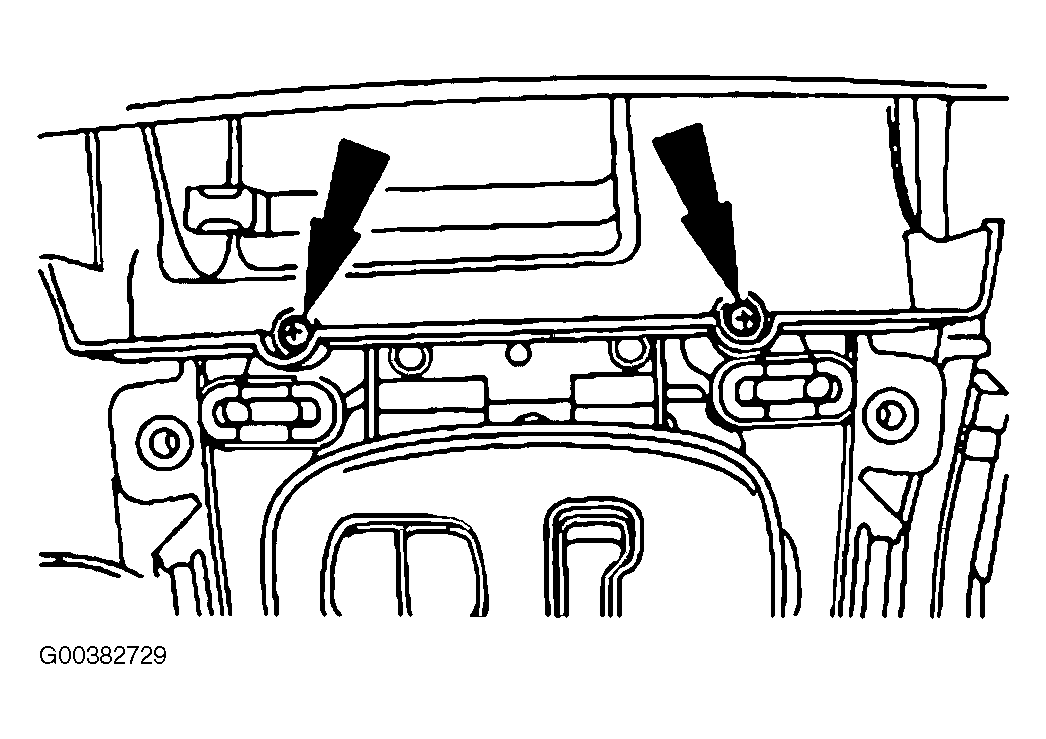

- Install the ash tray retaining screws. See Figure.
- Install the INSTRUMENT PANEL CONSOLE .
NOTE:
Shown with the electric parking brake switch removed for clarity.
NOTE:
Fully extend the selector cable, then retract the selector cable one detent.
NOTE:
Make sure all transmission selector lever positions select the relevant automatic transmission states.
NOTE:
When tightening the selector lever cable lock nuts, make sure both lock nuts are tightened to the specified torque simultaneously.
