Transmission Control Switch - Removal and Installation: Removal

  1. Remove the transmission selector lever. Refer to Transmission Selector Lever - Removal and Installation .

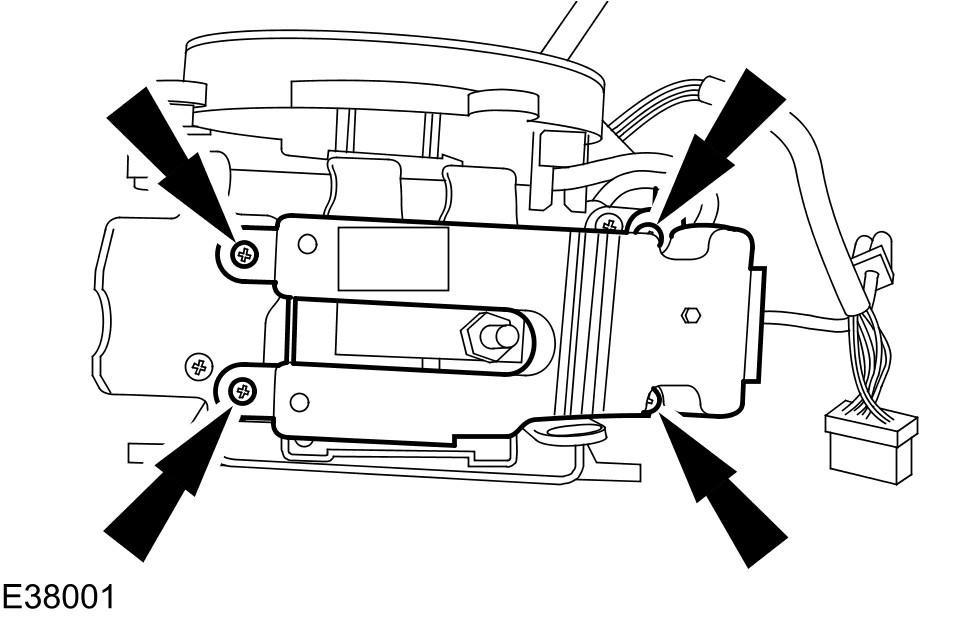

    GJ0002467Courtesy of JAGUAR CARS, INC.
  2. Remove the transmission control switch.
