Mode 6 Data - V6 And V8 Engine MGT System
>>
Mode 6
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Mode 6

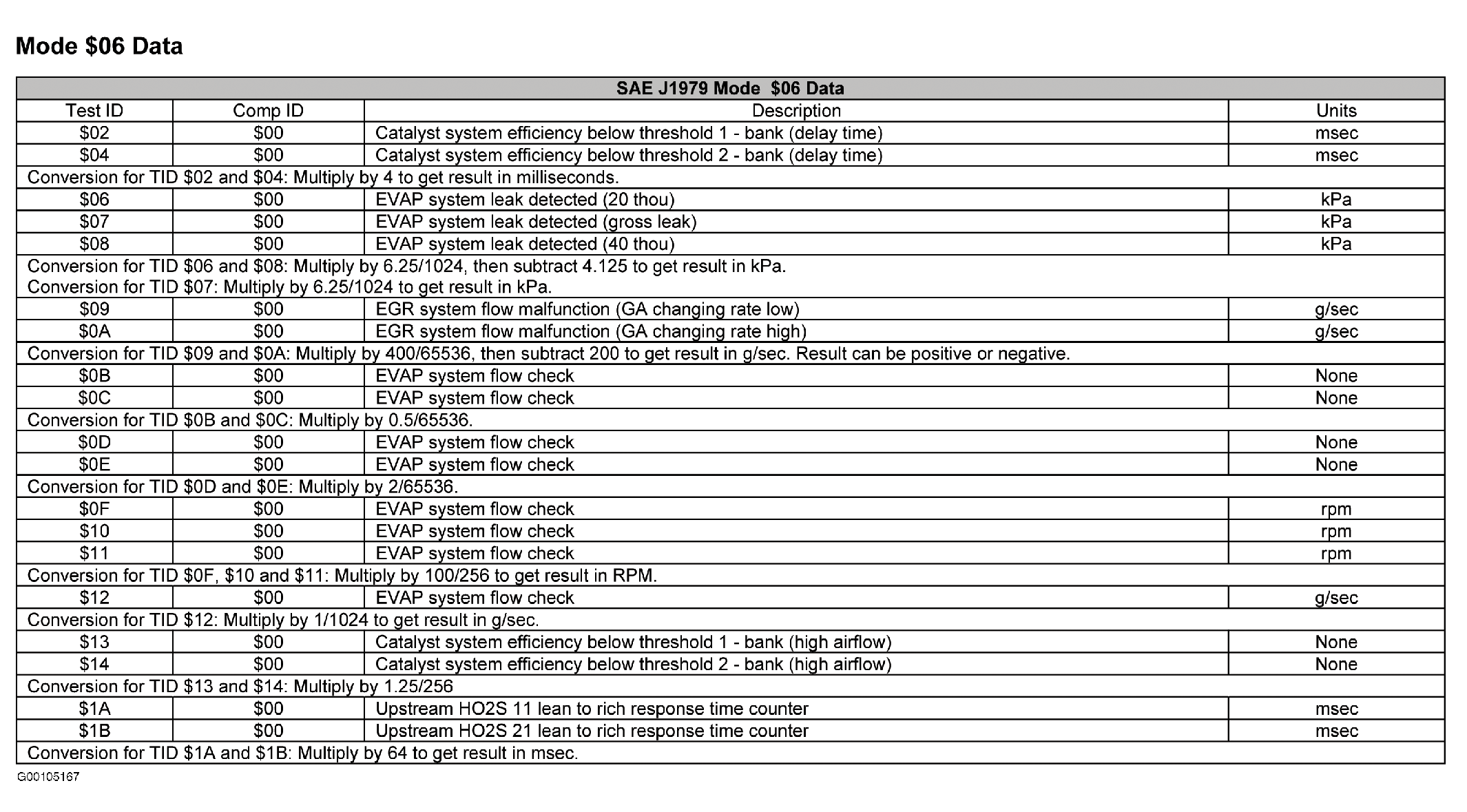

Fig 1: Mode 6 Data (1 Of 2)
Courtesy of JAGUAR CARS, INC.

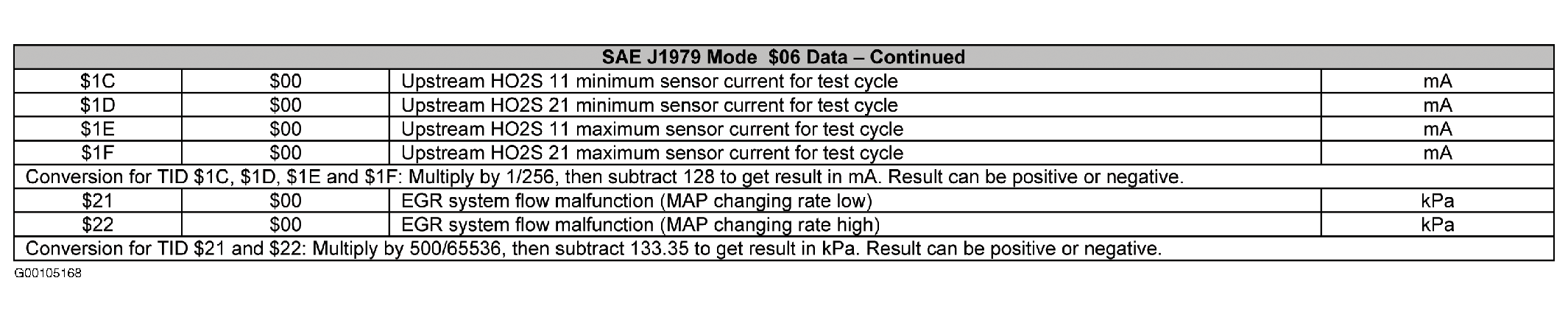

Fig 2: Mode 6 Data (2 Of 2)
Courtesy of JAGUAR CARS, INC.
Courtesy of JAGUAR CARS, INC.
Courtesy of JAGUAR CARS, INC.
