Transmission Control Switch Adjustment - General Procedures

Remove the floor console. Refer to Instrument Panel and Console article.
Turn the ignition switch to the ON position
Move the transmission selector lever to the "R" position.

Courtesy of JAGUAR CARS, INC.

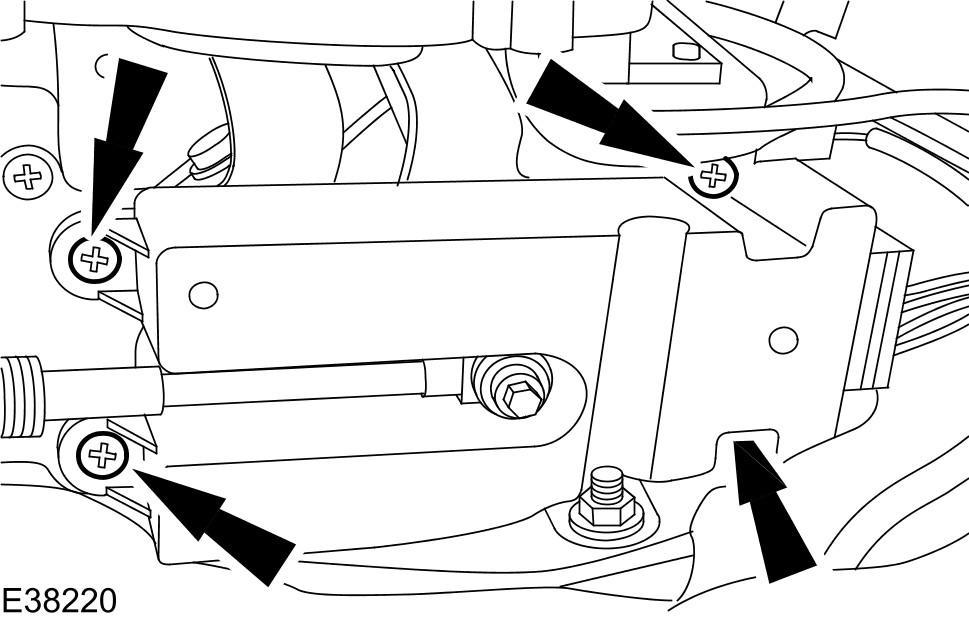

Loosen the transmission control switch retaining screws.

Courtesy of JAGUAR CARS, INC.

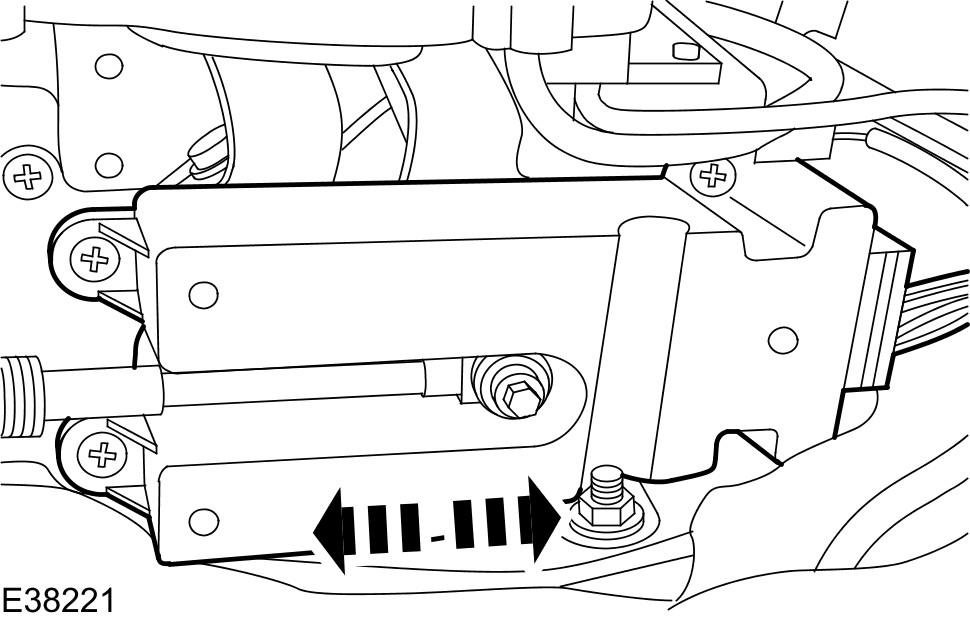

Adjust the transmission control switch until the "R" position of the selector lever indicator is illuminated.

Courtesy of JAGUAR CARS, INC.
Tighten the transmission control switch retaining screws.
Make sure all transmission selector lever positions illuminate the relevant transmission selector lever indicator positions.
Make sure the engine starts when the transmission selector lever is in the "P" and "N" positions.
Install the floor console. Refer to Instrument Panel and Console article.
