Navigation System Display Module - Removal and Installation: Installation

Courtesy of JAGUAR CARS, INC.

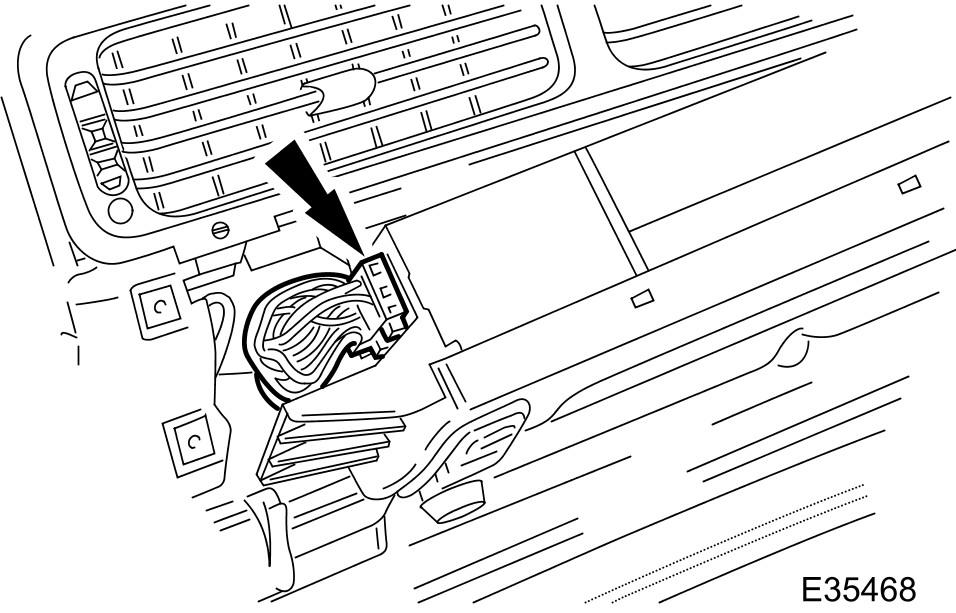

1. Position panel at facial and connect harness connectors.

   Courtesy of JAGUAR CARS, INC.

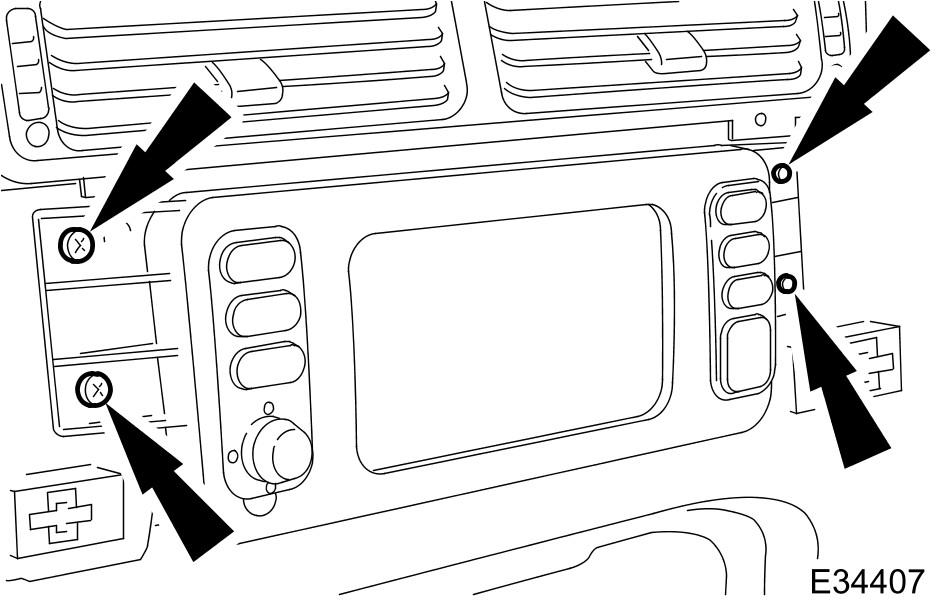

2. Fully seat panel in facial and install screws.

   Courtesy of JAGUAR CARS, INC.

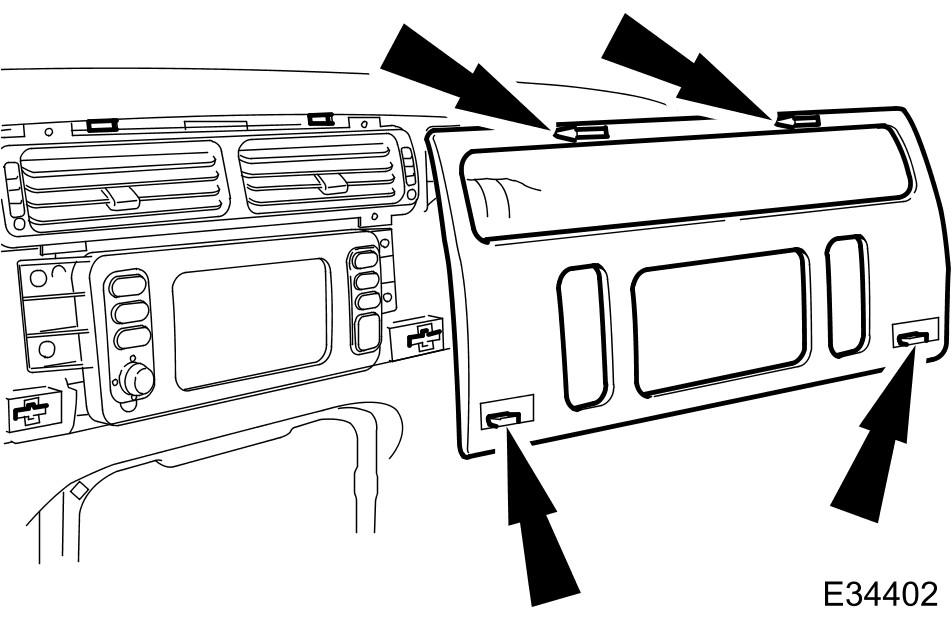

3. Position and fully seat veneer panel ensuring all securing clips are engaged.
4. Remove protective tape from adjacent veneers.
5. Connect ground cable to battery terminal and install battery cover. Refer to BATTERY CONNECT - GENERAL PROCEDURES .
