Control Module HVAC

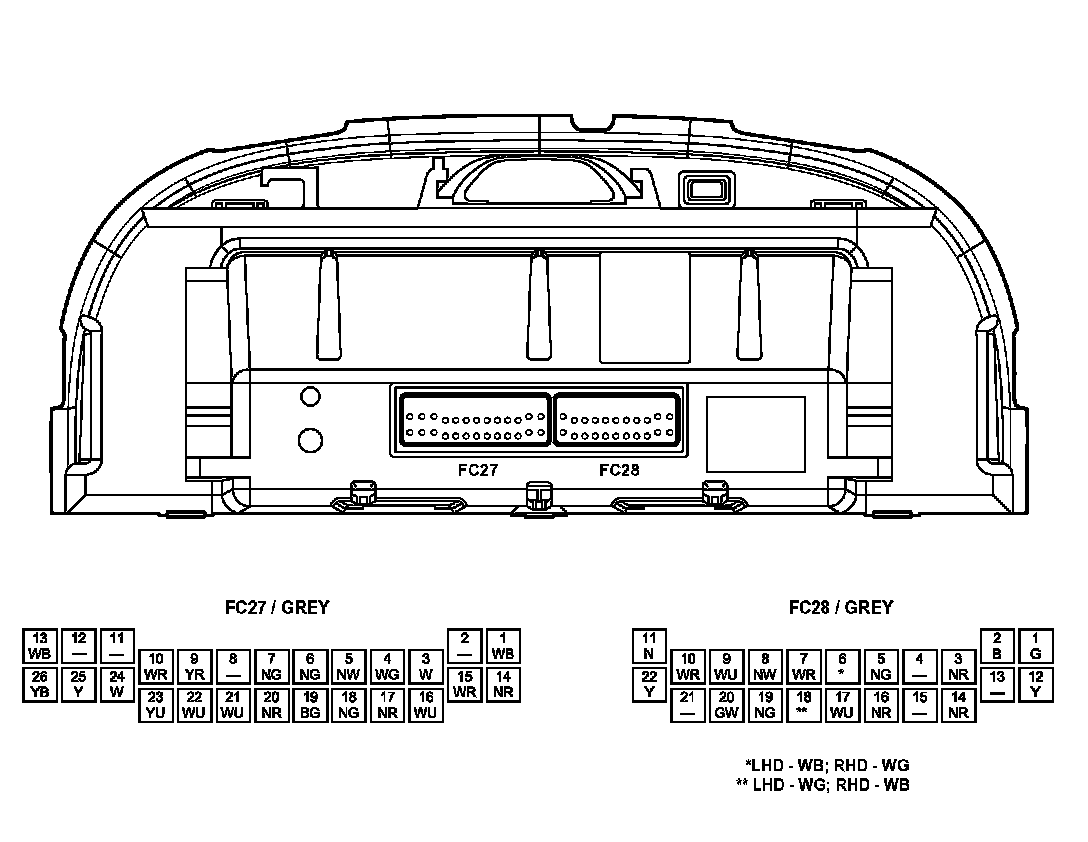

Air Conditioning Control Module - Panel:

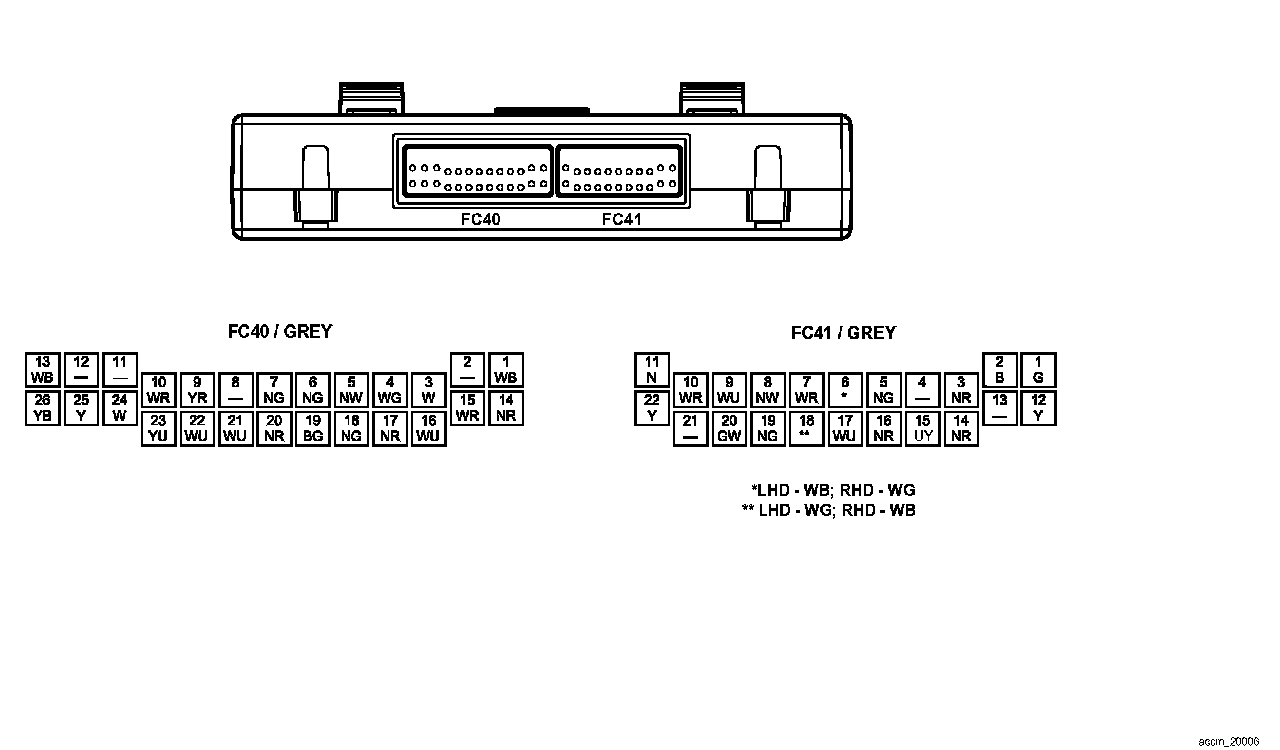

Air Contitioning Control Module - Remote:
