Climate Control Module Connector End View

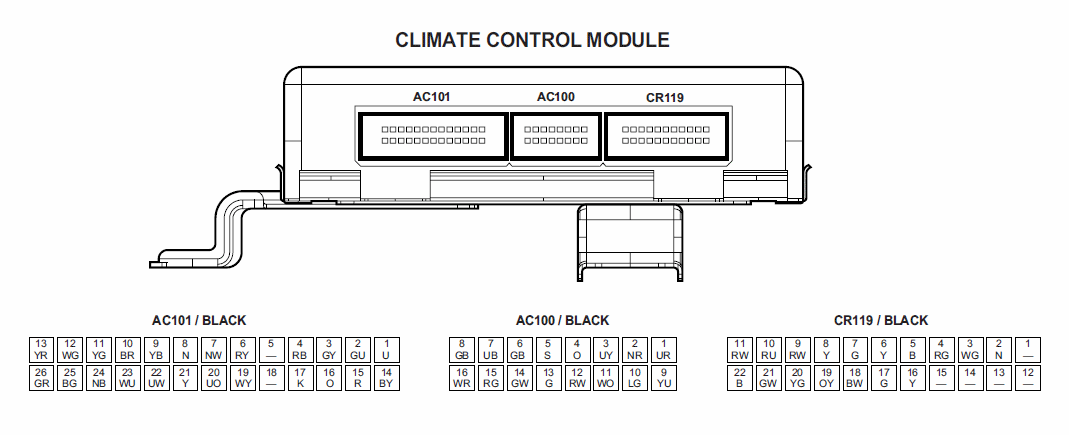

Fig 1: Climate Control Module Connector End View
G00558682Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
