Engine Control Module (ECM) (18.30.01): Removal

Disconnect the battery ground cable. BATTERY
Remove the cowl vent screen. FRONT END BODY PANELS (2003.5-09)
Remove the cabin air filter.
- Detach the cabin air filter.
- Remove the cabin air filter.

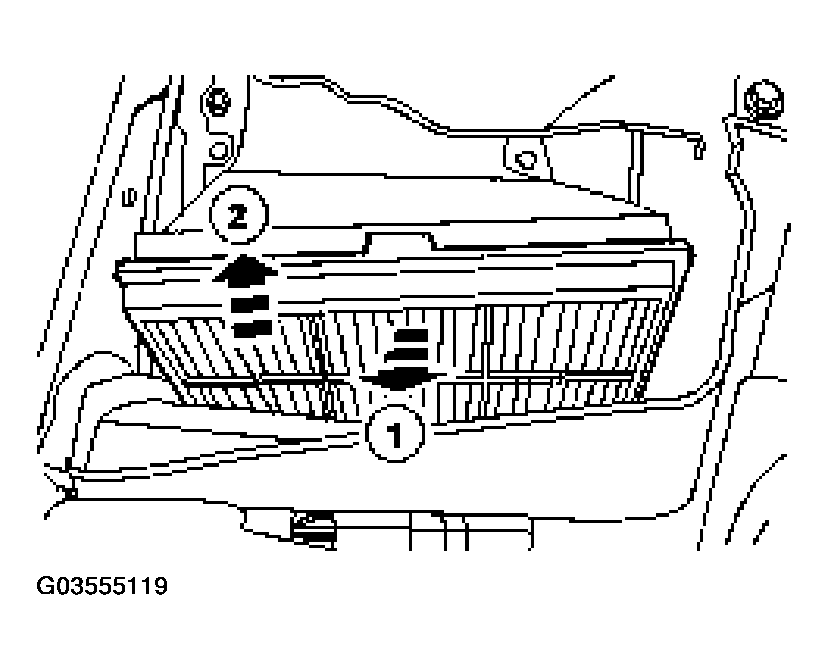

  Fig 1: Removing Cabin Air Filter
  Courtesy of JAGUAR CARS, INC.
Remove the cabin air filter housing.

Fig 2: Removing Cabin Air Filter Housing
Courtesy of JAGUAR CARS, INC.
Remove the engine compartment panel.
Remove the engine compartment panel retaining bolt.
- Remove the engine compartment panel.

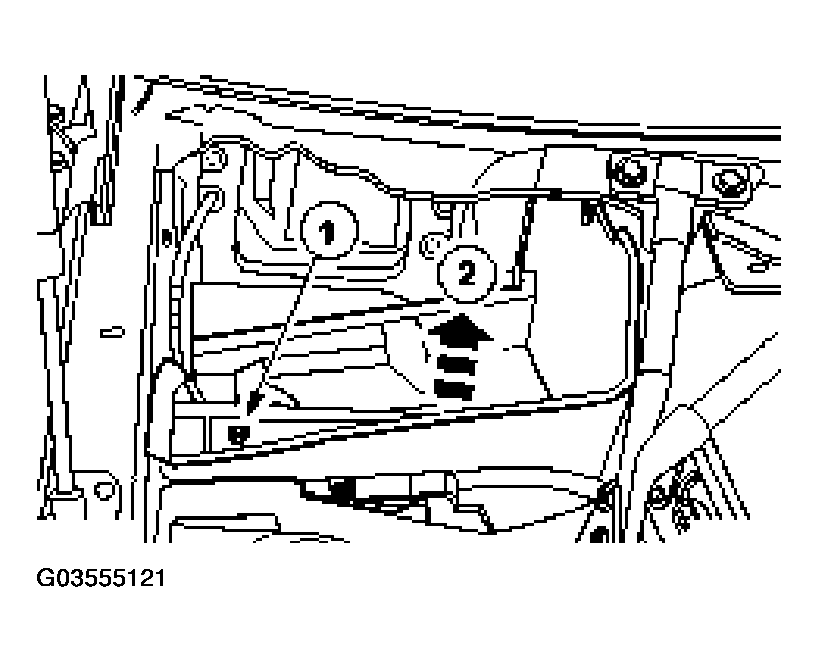

  Fig 3: Removing Engine Compartment Panel
  Courtesy of JAGUAR CARS, INC.

NOTE: The engine control module (ECM) electrical connector retaining bolt remains captive in the electrical connector.

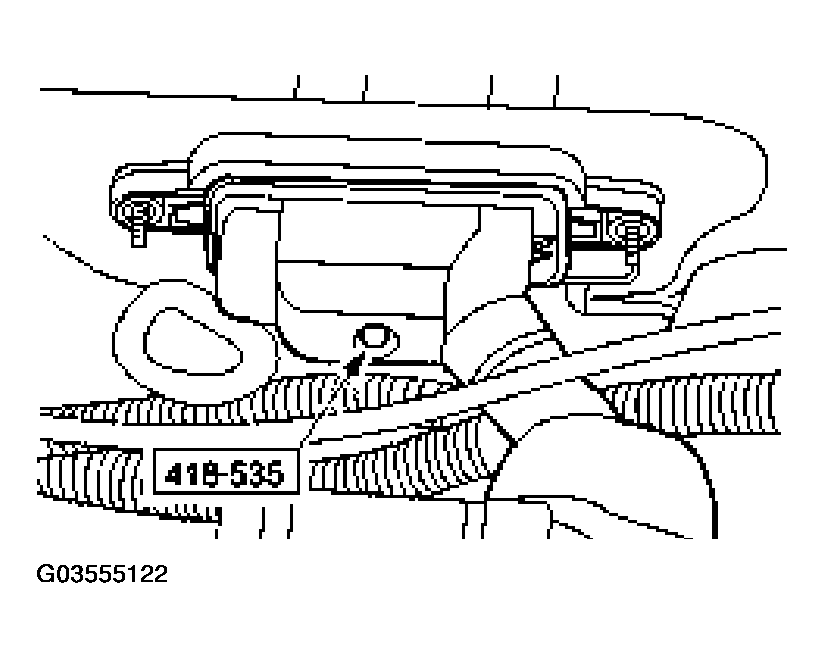

Fig 4: loosening ECM Electrical Connector Retaining Bolt

Courtesy of JAGUAR CARS, INC.

Using the special tool, loosen the ECM electrical connector retaining bolt.
Disconnect the ECM electrical connector.

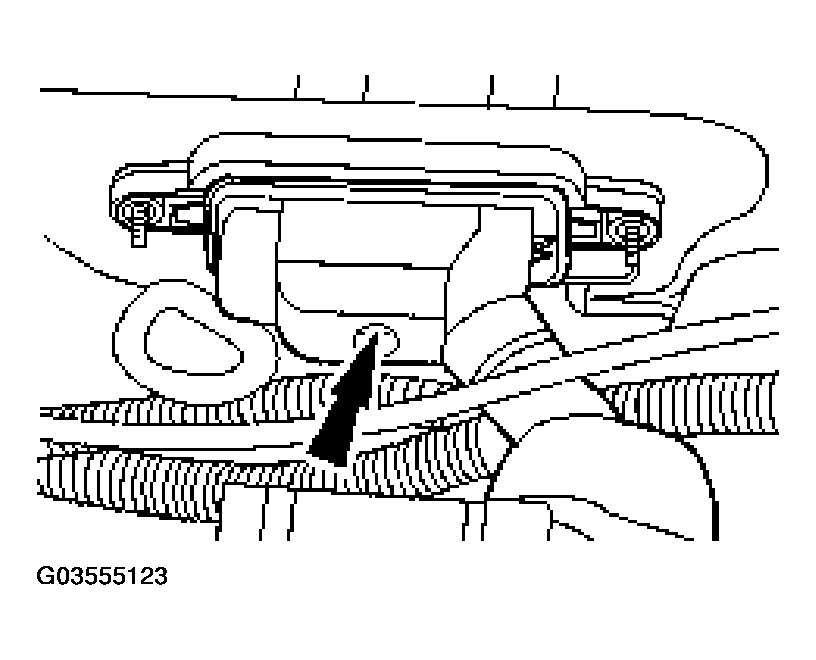

Fig 5: Disconnecting ECM Electrical Connector
Courtesy of JAGUAR CARS, INC.
Remove the instrument panel lower trim panel.
- Remove the retaining clips.
- Remove the instrument panel lower trim panel.

  Fig 6: Removing Instrument Panel Lower Trim Panel
  Courtesy of JAGUAR CARS, INC.
Remove the ECM retaining bracket.

Fig 7: Removing ECM Retaining Bracket
Courtesy of JAGUAR CARS, INC.
Remove the ECM.
- Detach the retaining clips.
- Remove the ECM.

  Fig 8: Removing Retaining Clips
  Courtesy of JAGUAR CARS, INC.
