Speed Control Sensor Adjustment - General Procedures

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2009 Jaguar XKR, 2009 Jaguar XK8, 2008 Jaguar XKR, 2008 Jaguar XK8, and 2007 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools

Tool Illustration	Tool Name	Tool Number
Courtesy of JAGUAR CARS, INC.	Inclinometer	501-F007

WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

Raise and support the vehicle.
Remove the front bumper cover. Refer to Front Bumper Cover .

CAUTION: Drive the vehicle on to a flat, level surface.

Position the vehicle on a smooth level surface and settle the suspension.

Courtesy of JAGUAR CARS, INC.

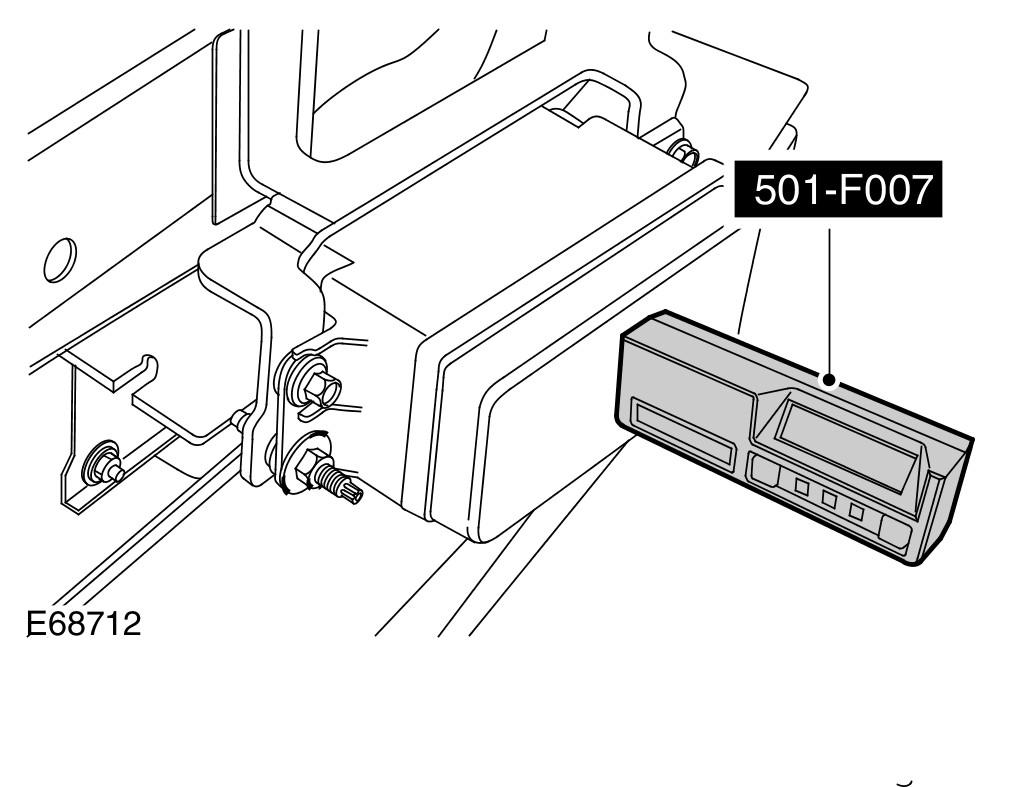

Using the special tool, check the speed sensor is level, (+/- 0.5 degree).

Courtesy of JAGUAR CARS, INC.

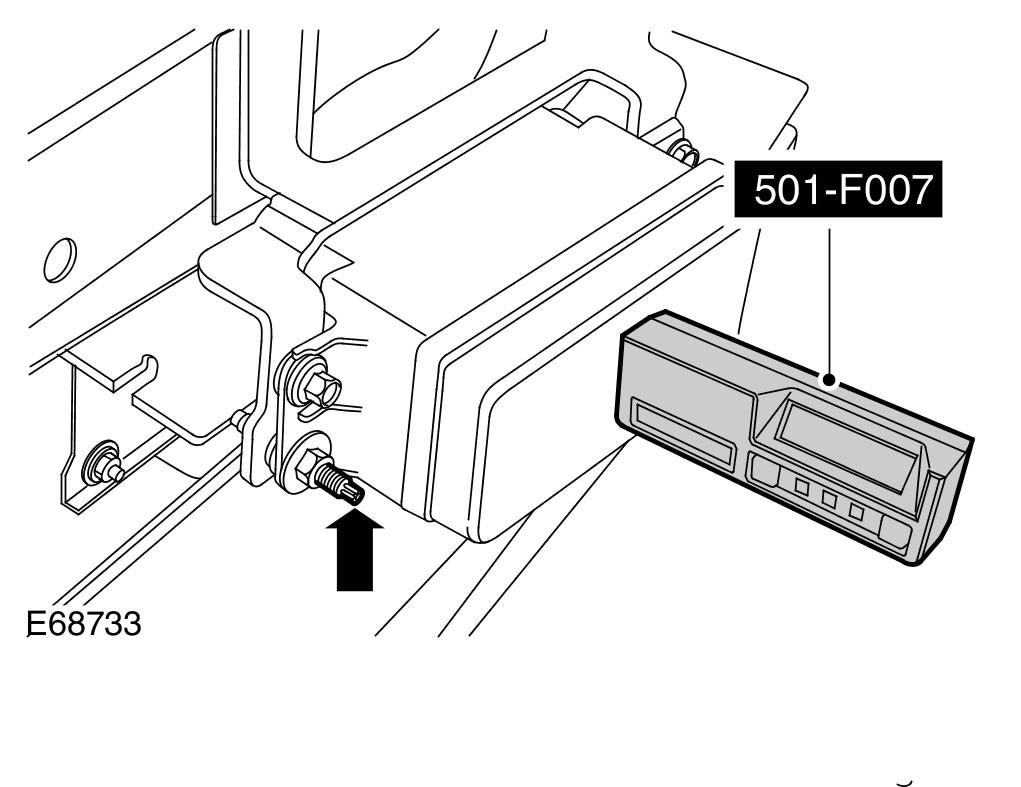

NOTE: The speed sensor has no mechanical horizontal adjustment.

NOTE: Do not release the lock nut.

Using the special tool, set the speed control sensor.
- Rotate the vertical adjuster.
- Adjust using an internal Torx Bit.
Install the front bumper cover. Refer to Front Bumper Cover .
