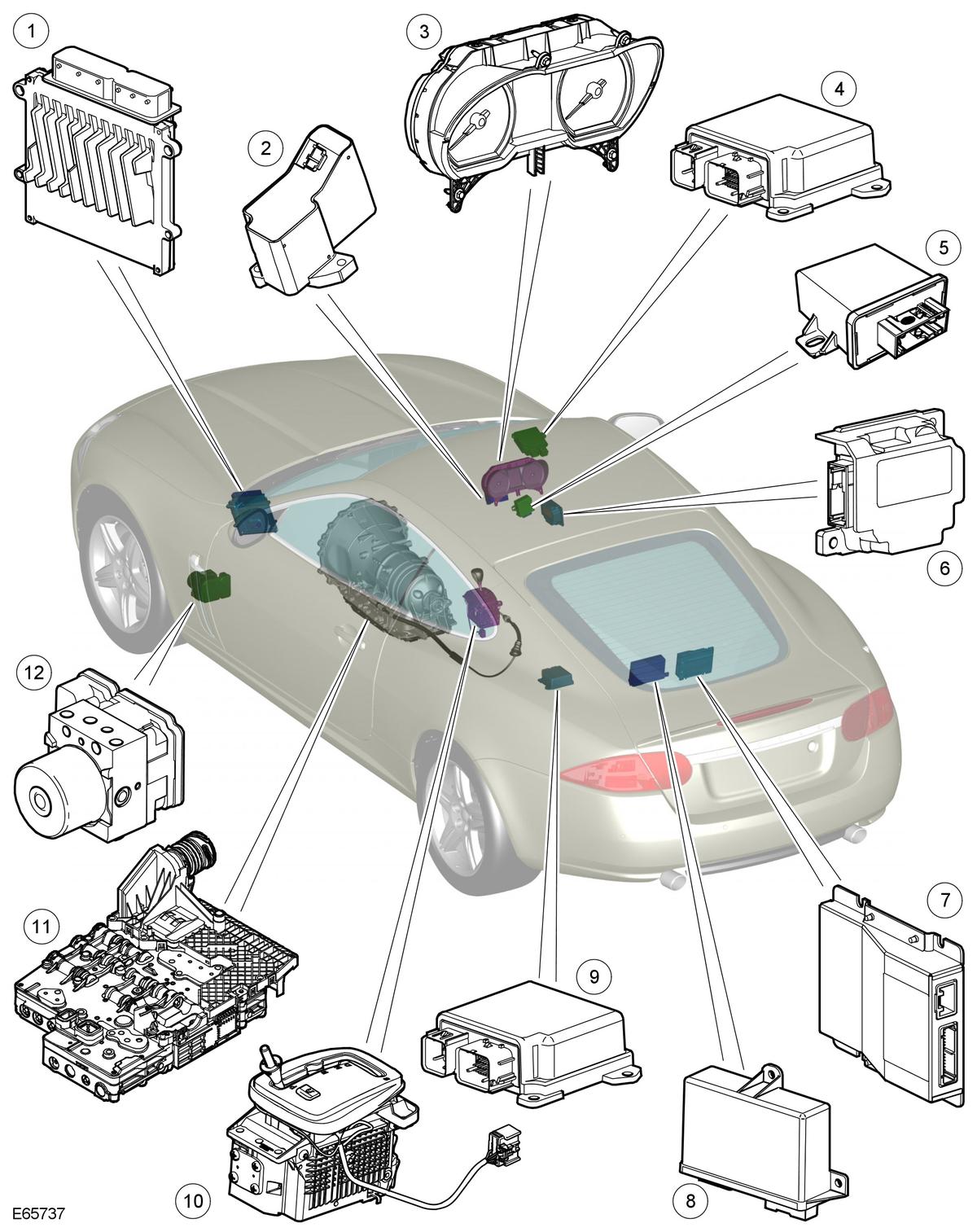

Component Location-High Speed Can
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2009 Jaguar XKR, 2009 Jaguar XK8, 2008 Jaguar XKR, 2008 Jaguar XK8, and 2007 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.
| Item Number | Description |
|---|---|
| 1 | ECM |
| 2 | Steering column lock |
| 3 | Instrument cluster |
| 4 | Pedestrian Protection System module |
| 5 | Headlamp leveling/adaptive front lighting module |
| 6 | Adaptive speed control module |
| 7 | Active Damping Control Module (ADCM) |
| 8 | Electric park brake module |
| 9 | RCM |
| 10 | L Gate |
| 11 | TCM |
| 12 | ABS control module |
