Pedestrian Protection Module - Removal and Installation: Removal
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2009 Jaguar XKR, 2009 Jaguar XK8, 2008 Jaguar XKR, 2008 Jaguar XK8, and 2007 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
The pedestrian protection module must be renewed if the system has deployed on 3 occasions.
- Make the pedestrian protection system safe.
- Remove the front LH fender splash shield. Refer to Fender Splash Shield
article.

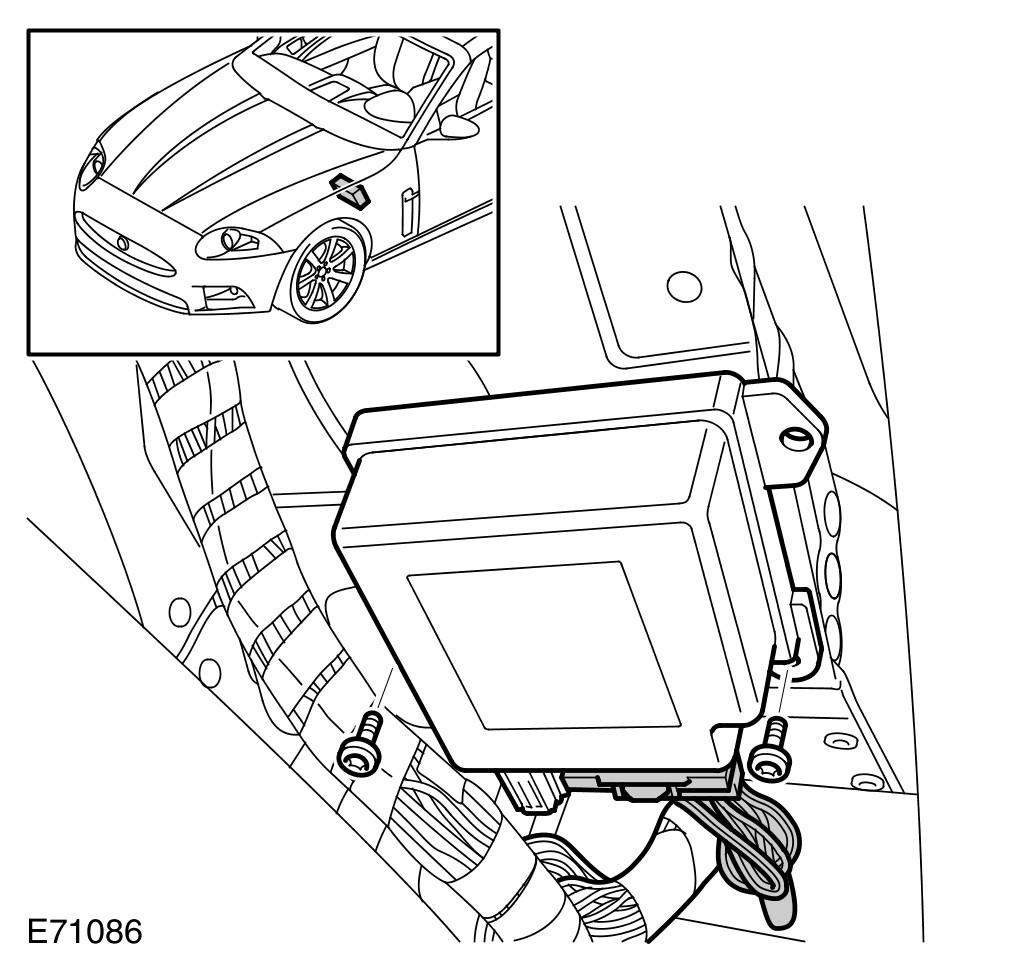

- Remove the pedestrian protection module.
- Remove and discard the 2 Torx bolts.
- Disconnect the electrical connector.
