Component Location

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2009 Jaguar XKR, 2009 Jaguar XK8, 2008 Jaguar XKR, 2008 Jaguar XK8, and 2007 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.

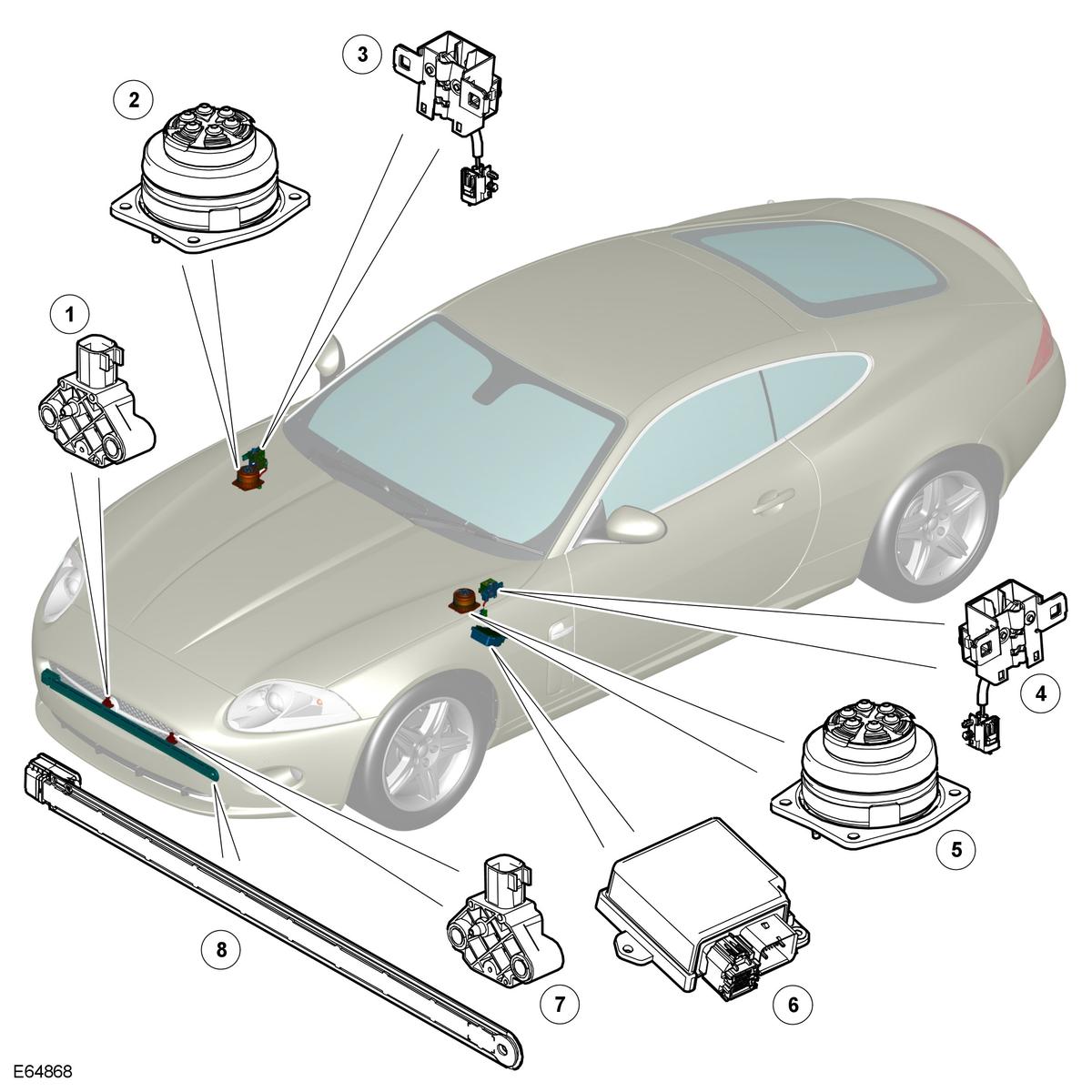

Fig 1: Pedestrian Protection System Component Location

Courtesy of JAGUAR CARS, INC.

Item Number	Description
1	RH accelerometer
2	RH hood actuator
3	RH hood latch
4	LH hood latch
5	LH hood actuator
6	Pedestrian protection system control module
7	LH accelerometer
8	Pedestrian Contact Sensor (PCS)
