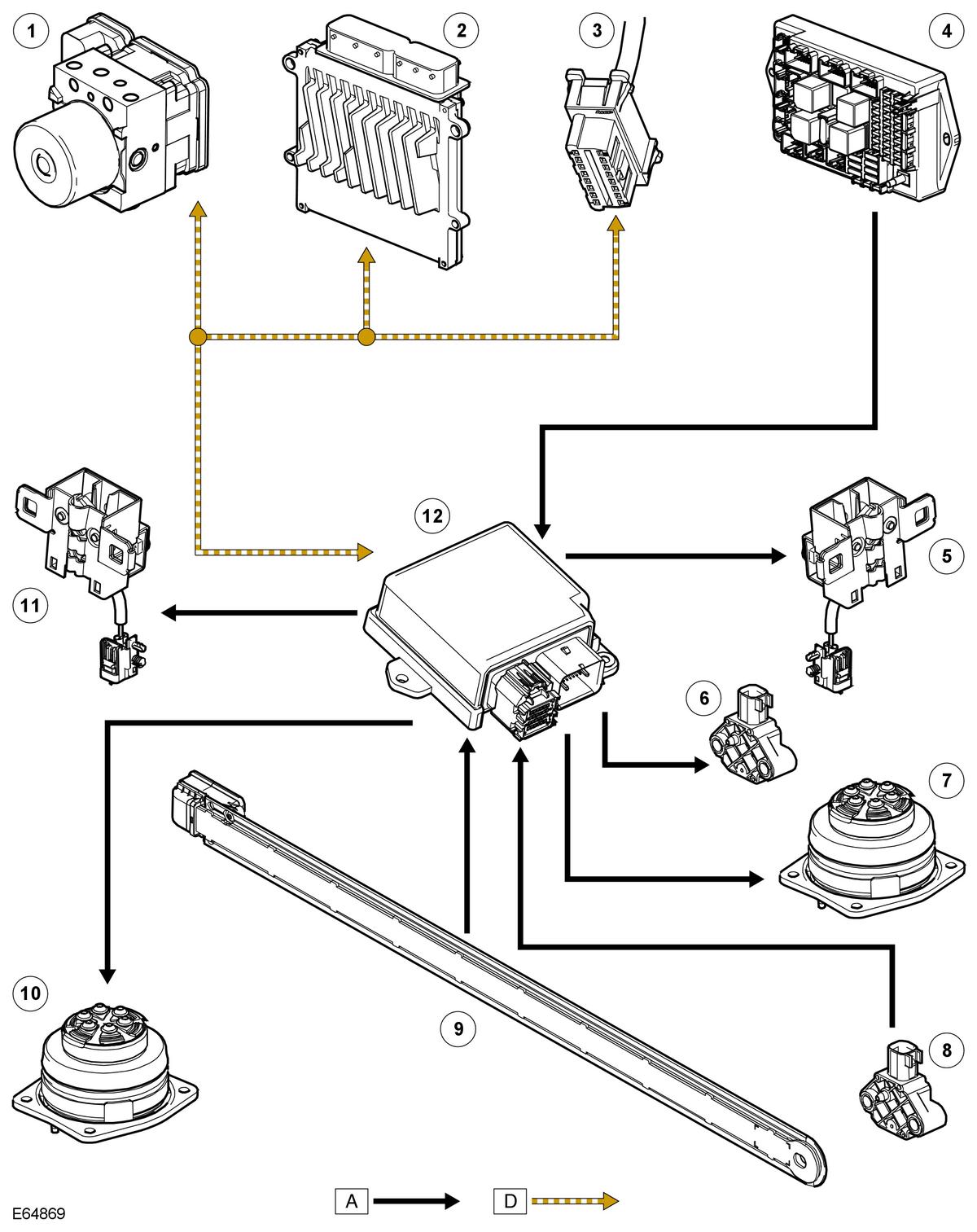

Control Diagram
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2009 Jaguar XKR, 2009 Jaguar XK8, 2008 Jaguar XKR, 2008 Jaguar XK8, and 2007 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
A = Hardwired connection; D = High speed CAN bus
| Item Number | Description |
|---|---|
| 1 | ABS control module |
| 2 | ECM |
| 3 | Diagnostic socket |
| 4 | CJB |
| 5 | Hood latch |
| 6 | Accelerometer |
| 7 | Hood actuator |
| 8 | Accelerometer |
| 9 | Pedestrian Contact Sensor (PCS) |
| 10 | Hood actuator |
| 11 | Hood latch |
| 12 | Pedestrian protection system control module |
