Cruise Control Module: Service and Repair

Speed Control Module - Vehicles With: Adaptive Speed Control (19.75.26)

Removal

NOTE: This component is mounted to the rear of the RH A-pillar.

1. Remove the RH cowl side trim panel.

NOTE: LH illustration shown, RH is similar.

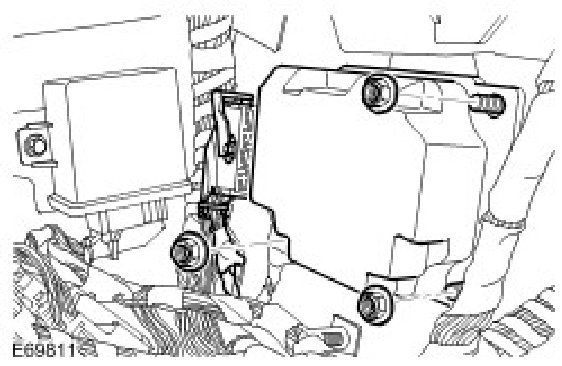

2. Remove the adaptive speed control module.







Installation
1. To install, reverse the removal procedure.
