Fuel Level Sensor: Service and Repair

Fuel Level Sender

Removal
1. Remove the cover and disconnect the battery ground cable.
2. Remove the fuel pump module.

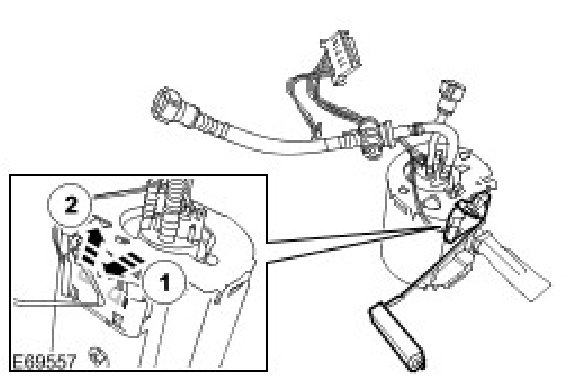

3. Remove the fuel level sender unit.
- Carefully release the 2 clips.







Installation
1. Install the fuel level sender unit.
2. Install the fuel pump module.
3. Connect the battery ground cable and install the cover.
