Oil Temperature Sensor For ECM: Service and Repair

Oil Temperature Sensor (18.31.01)

Removal
1. Remove the cover and disconnect the battery ground cable.
2. Raise and support the vehicle.

WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

3. Remove the engine undershield.

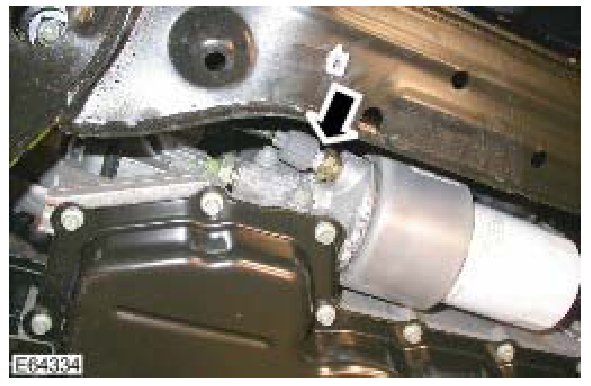

4. Remove the oil temperature sensor.
- Disconnect the electrical connector.







Installation
1. Install the oil temperature sensor.
- Clean the components.
- Apply sealant of the correct specification to the sensor thread.
- Tighten the sensor to 15 Nm (11 lb.ft).
- Connect the electrical connector.
2. Install the engine undershield.
3. Connect the battery ground cable and install the cover.
