Body Control Module: Service and Repair

Driver Seat Module (DSM) (86.75.28)

Removal
1. Remove the front seat.

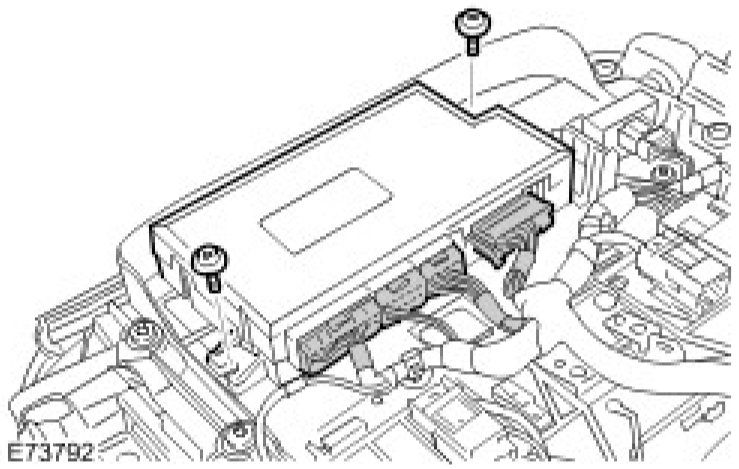

2. Remove the front seat control module.
- Disconnect the 4 electrical connectors.
- Remove the 2 Torx bolts.







Installation
1. Install the front seat control module.
- Connect the electrical connectors.
- Tighten the Torx bolts to 10 Nm (7 lb.ft).
2. Install the front seat.
