Engine Control Module: Locations

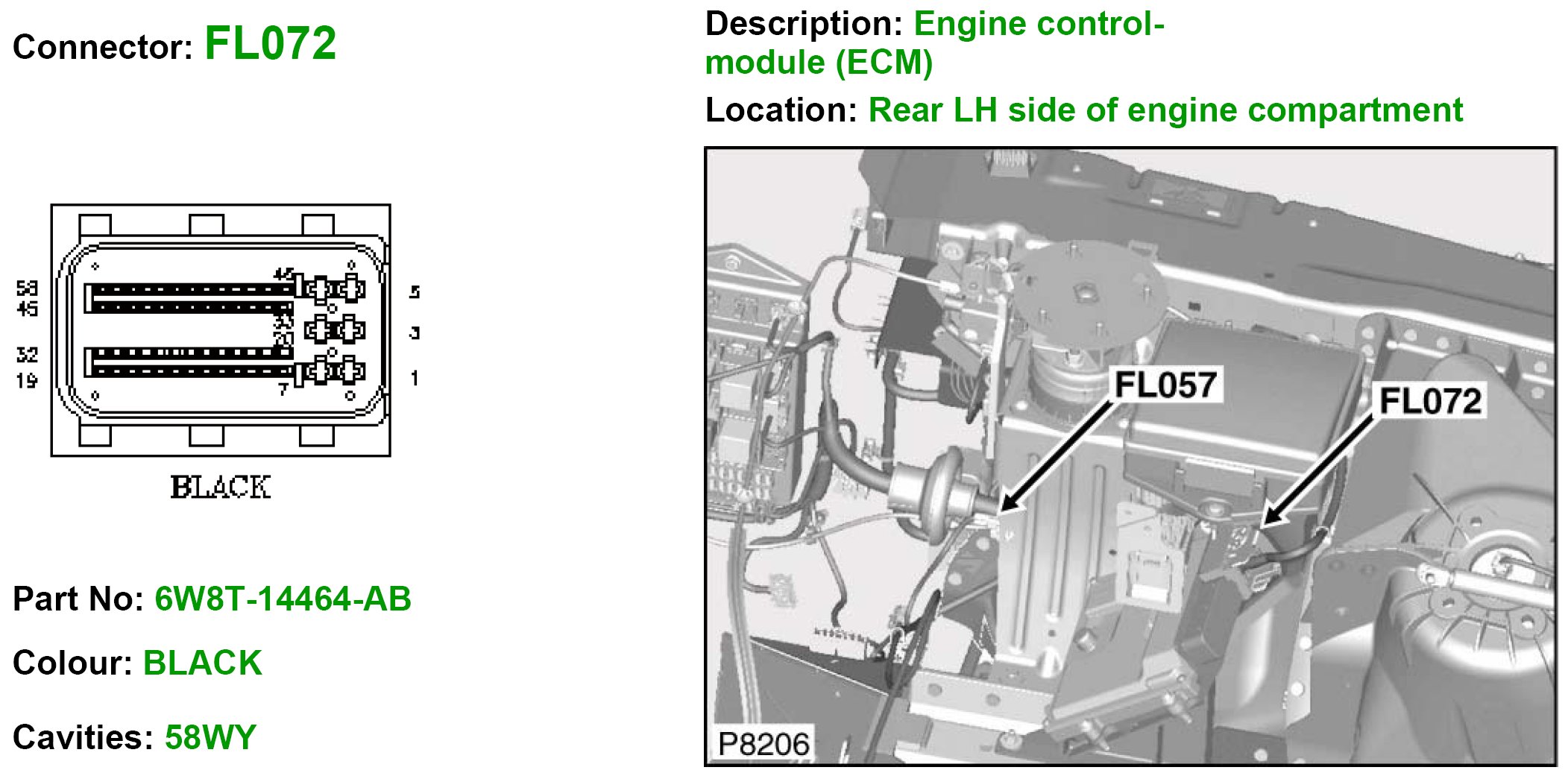

FL072 (Part 1):

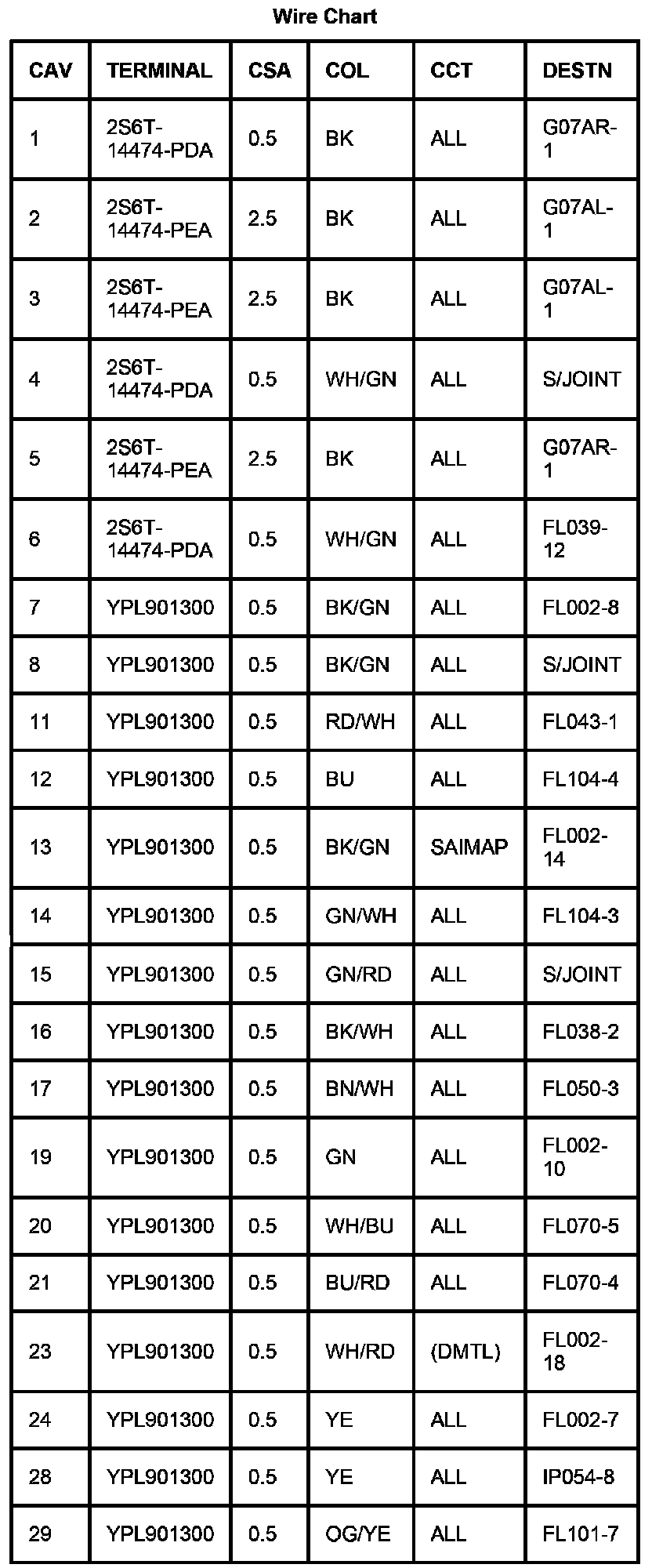

FL072 (Part 2):

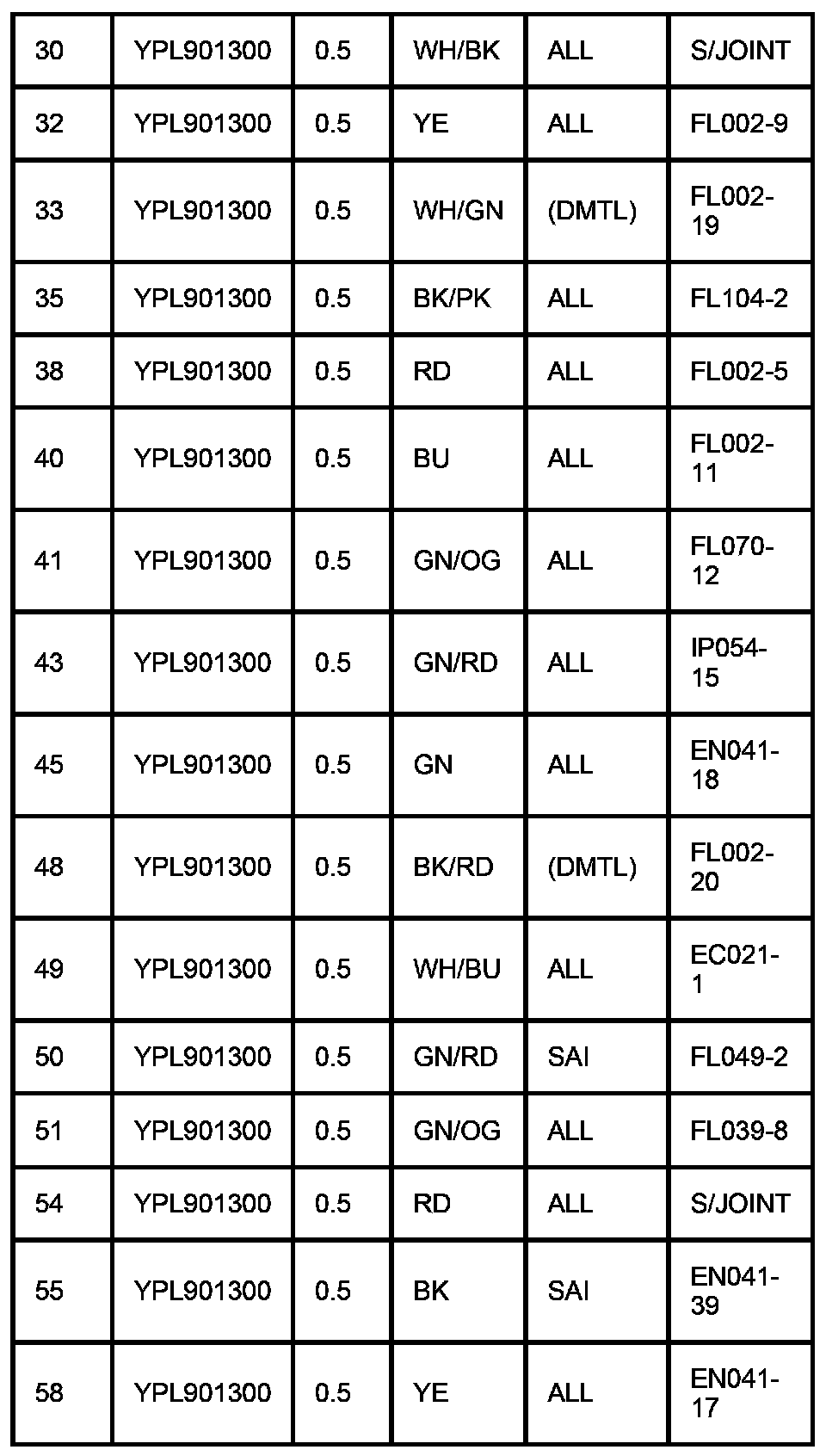

FL072 (Part 3):

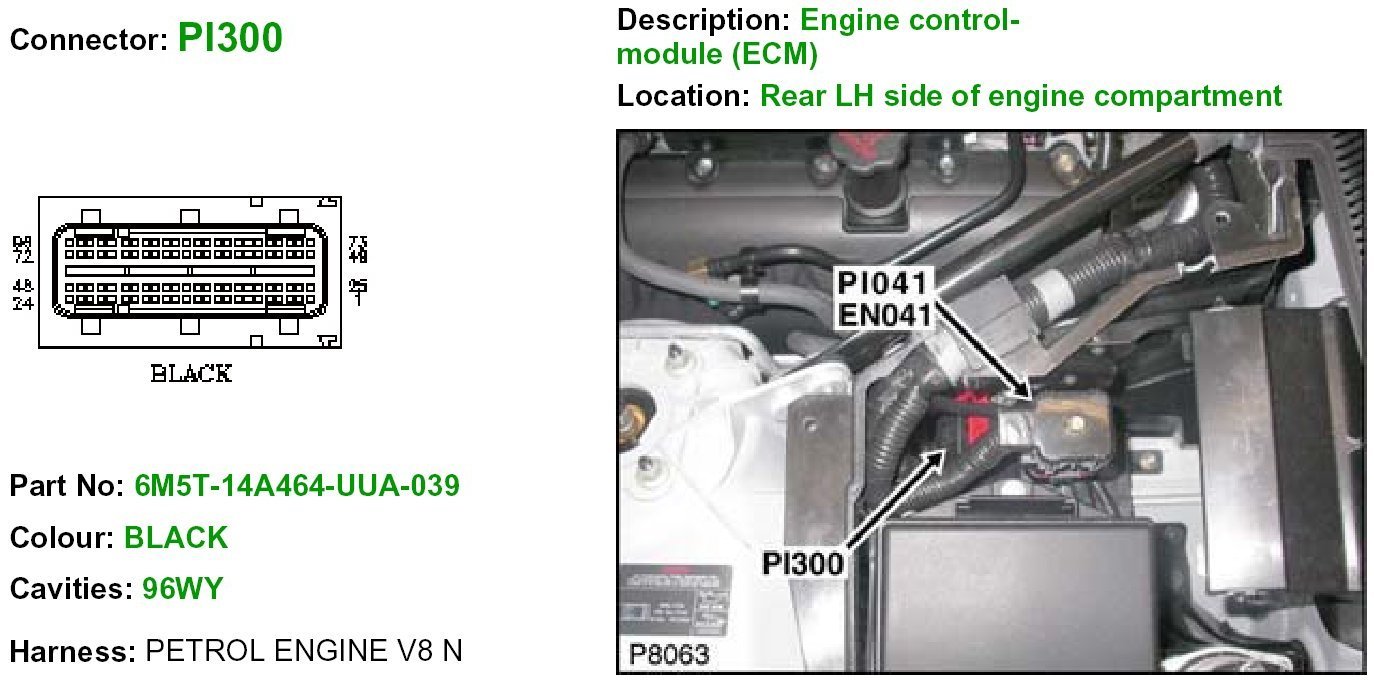

PI300 (Part 1):

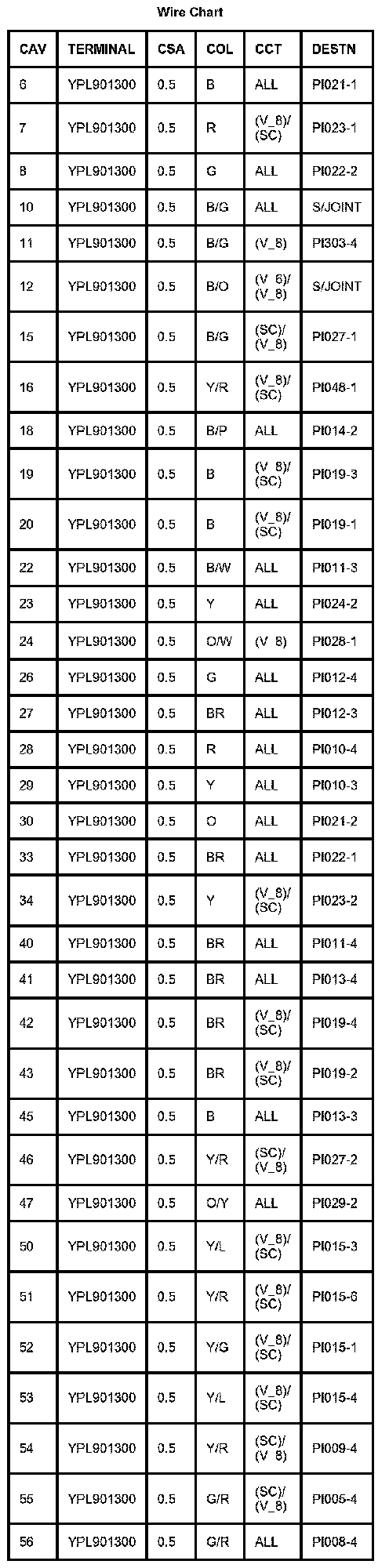

PI300 (Part 2):

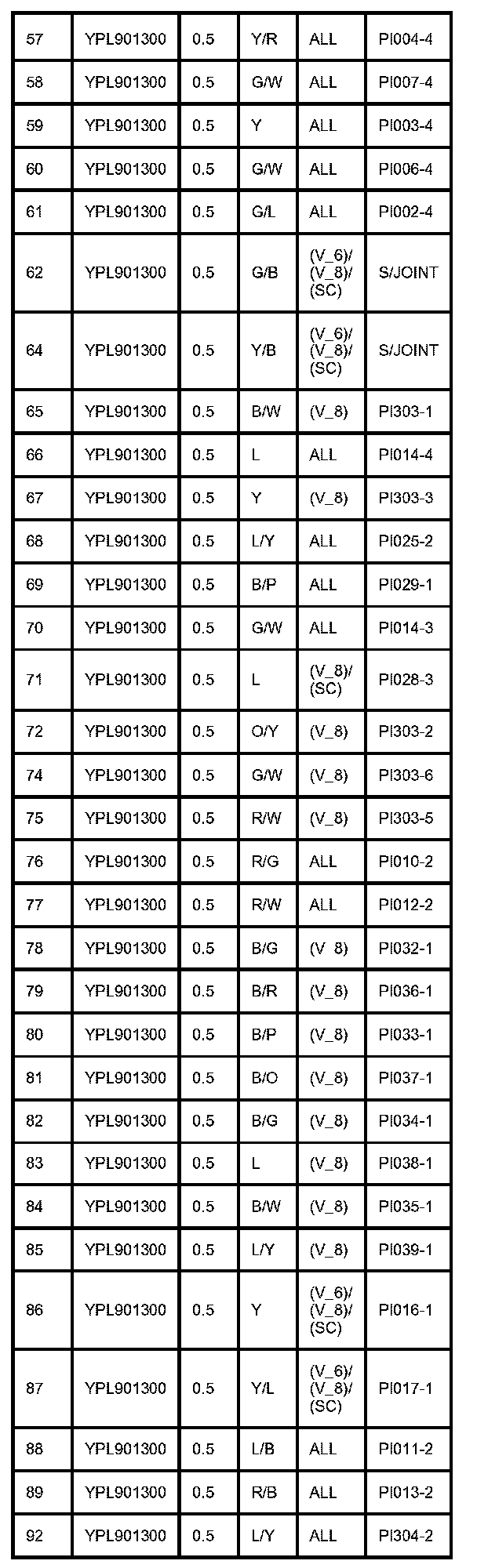

PI300 (Part 3):

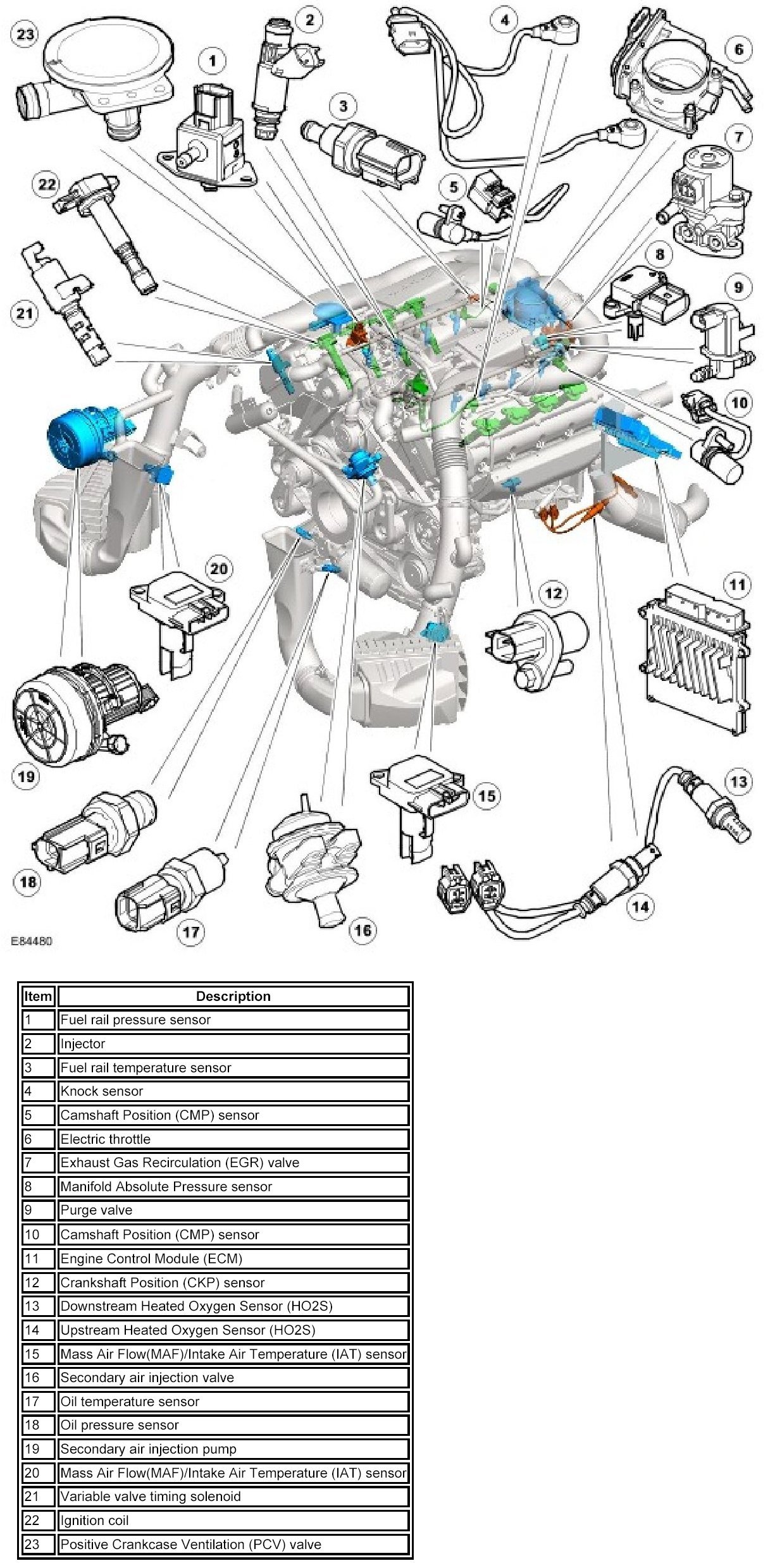

Electronic Engine Controls:

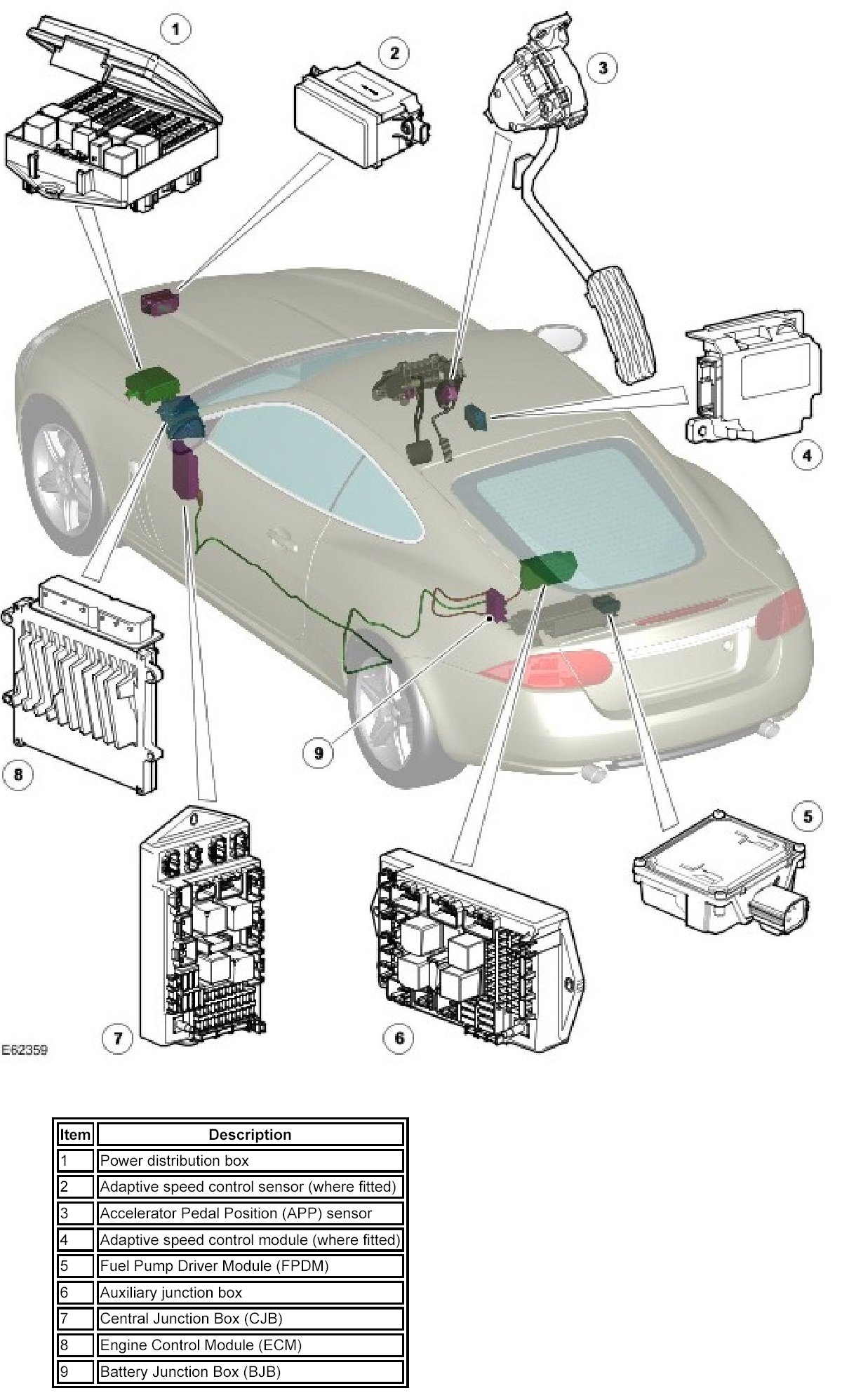

Electronic Engine Controls:

Engine Control Module (ECM):
