Home >> Jaguar >> 2009 >> XF (X250) V8-4.2L SC >> Repair and Diagnosis >> Accessories and Optional Equipment >> Entertainment Systems >> Entertainment System Control Module >> Locations
July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

Entertainment System Control Module: Locations



Information and Entertainment Control Module

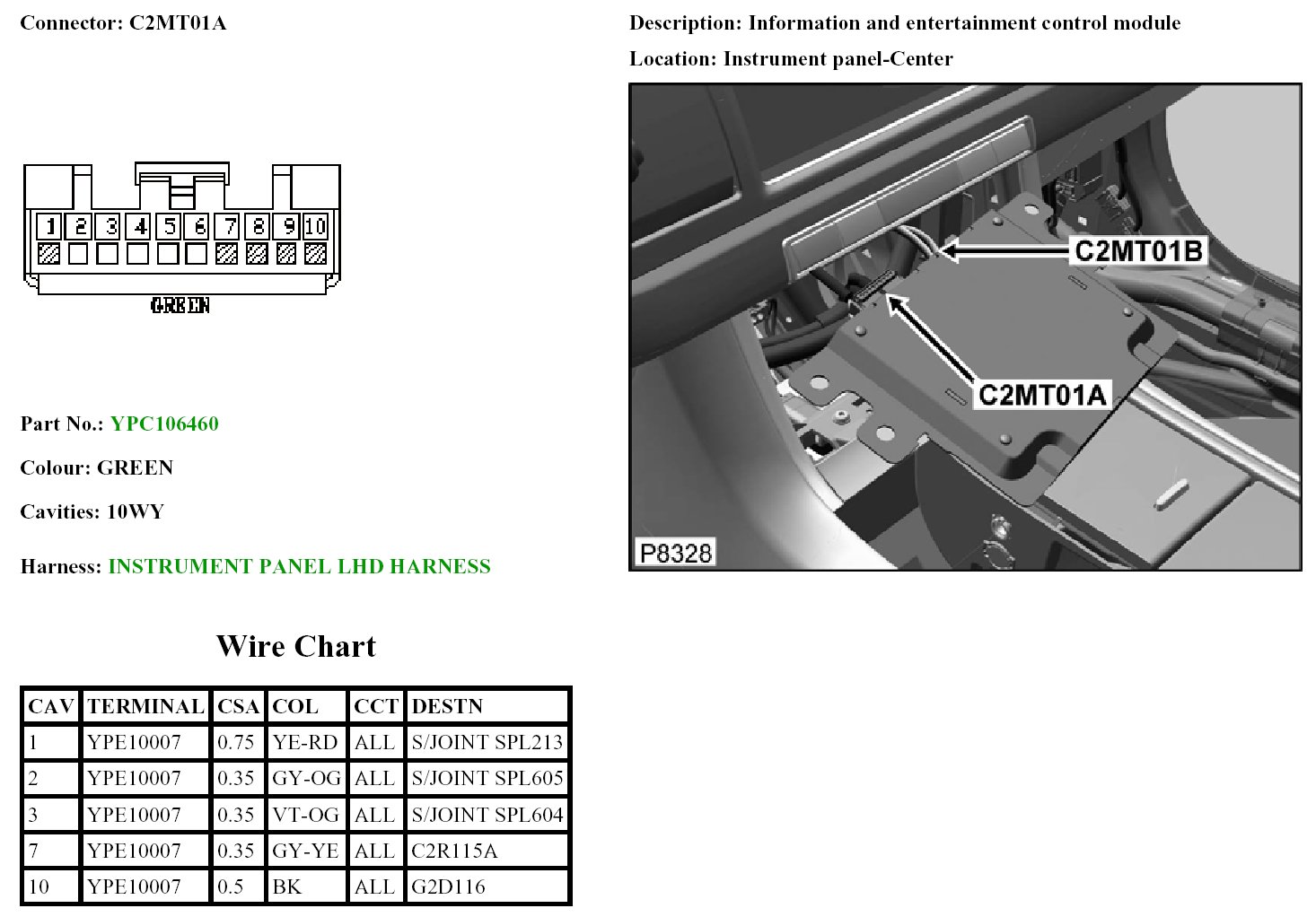

C2MT01A:

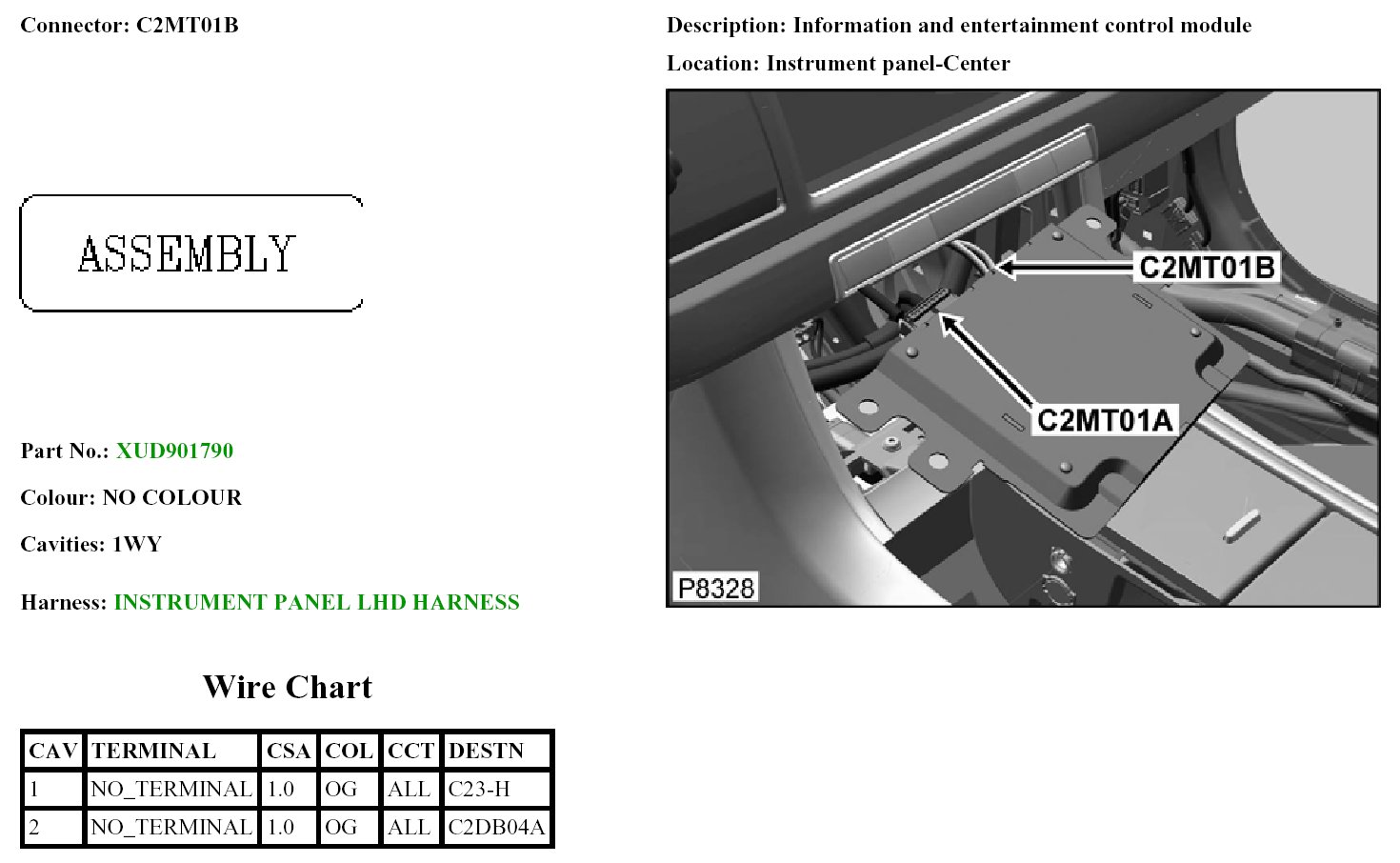

C2MT01B:
