Keyless Entry Module: Locations



Keyless vehicle module

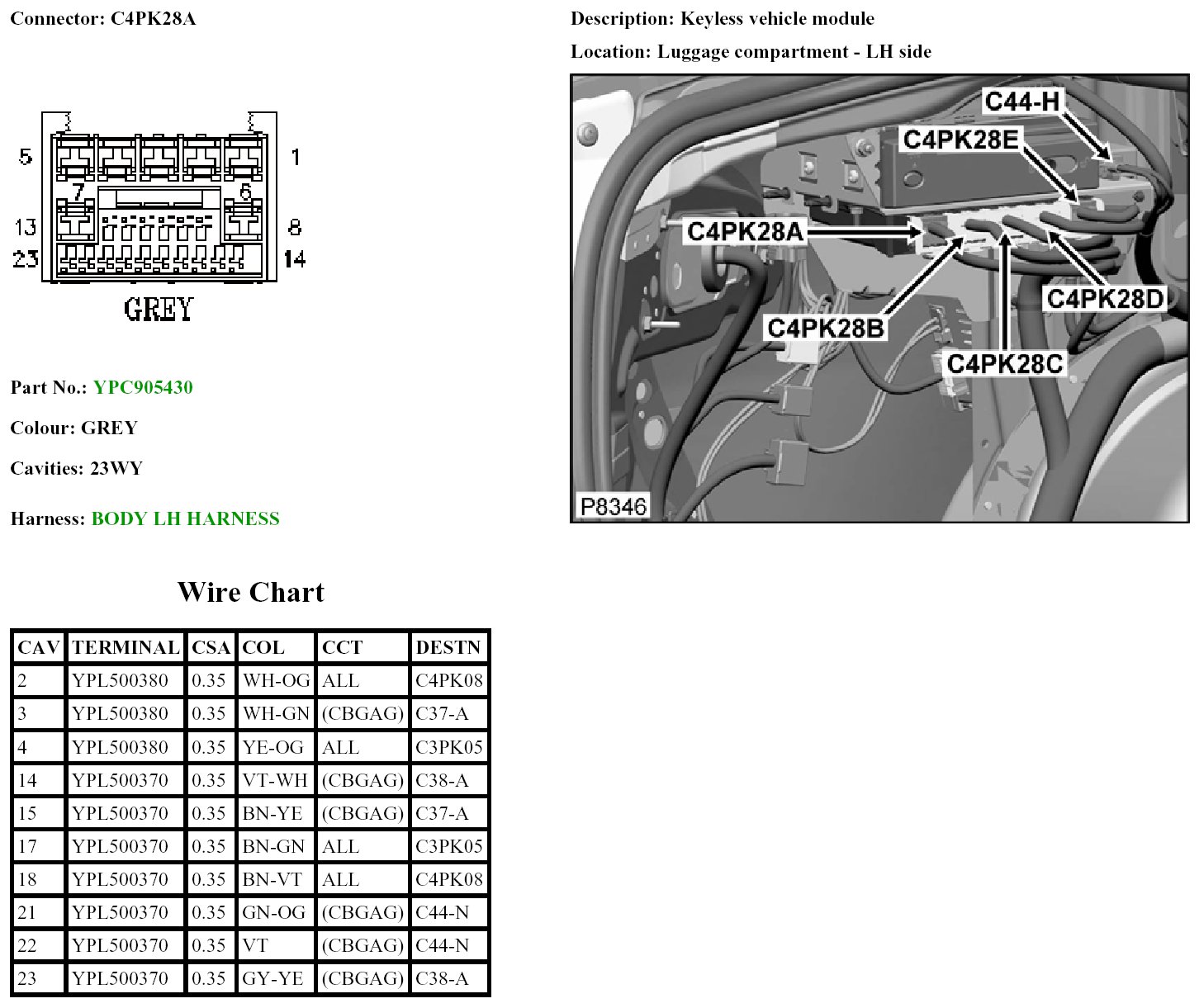

C4PK28A:

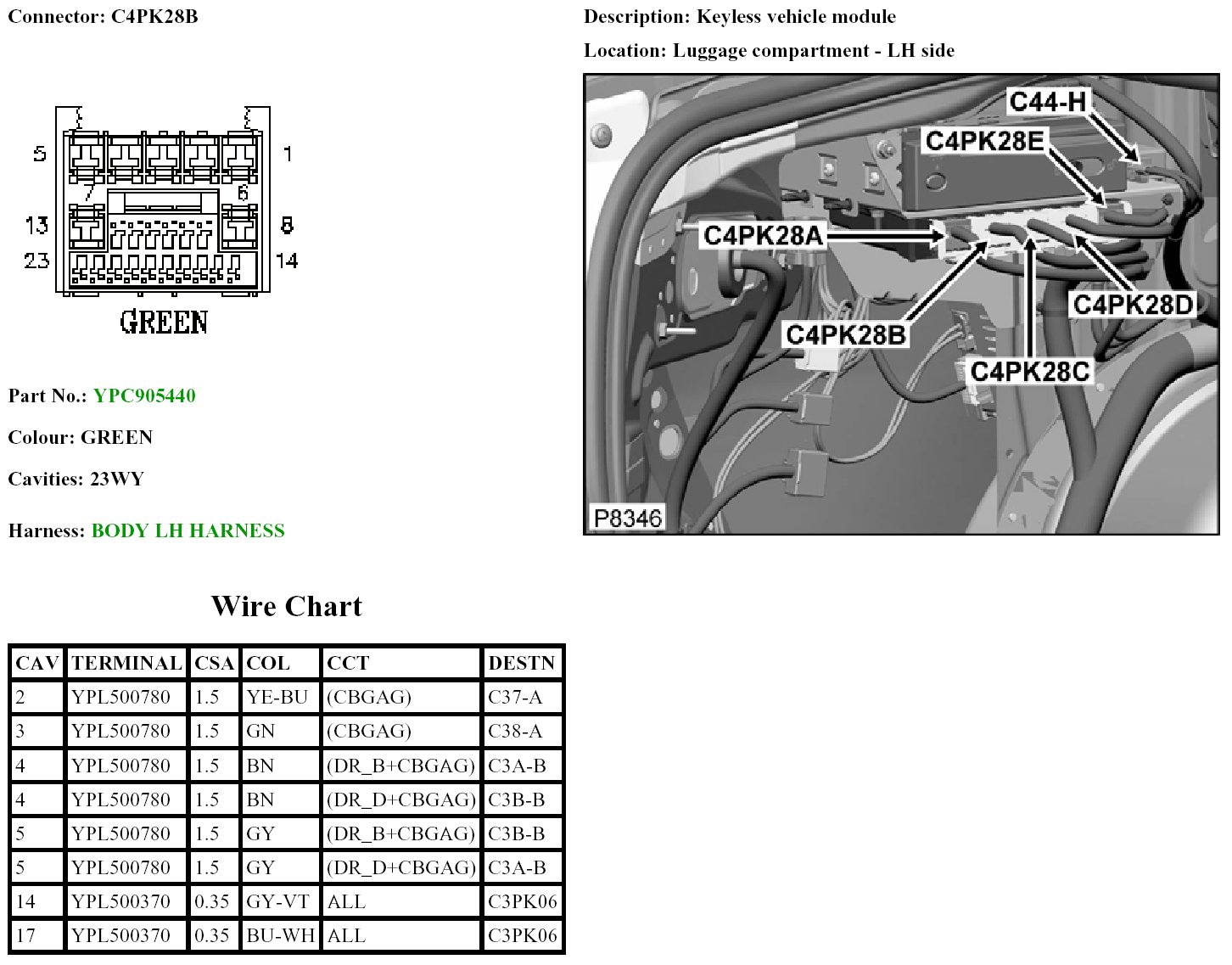

C4PK28B:

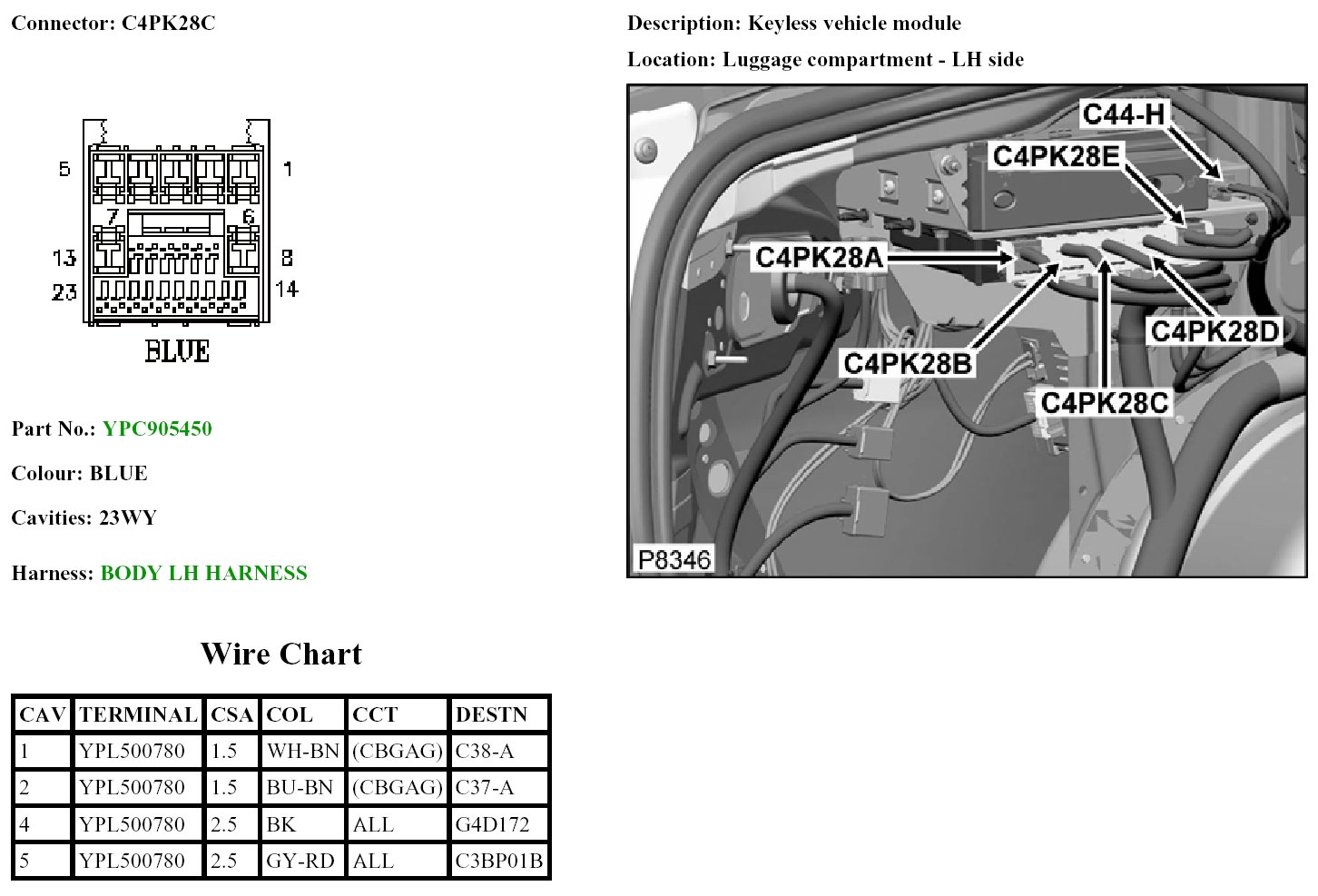

C4PK28C:

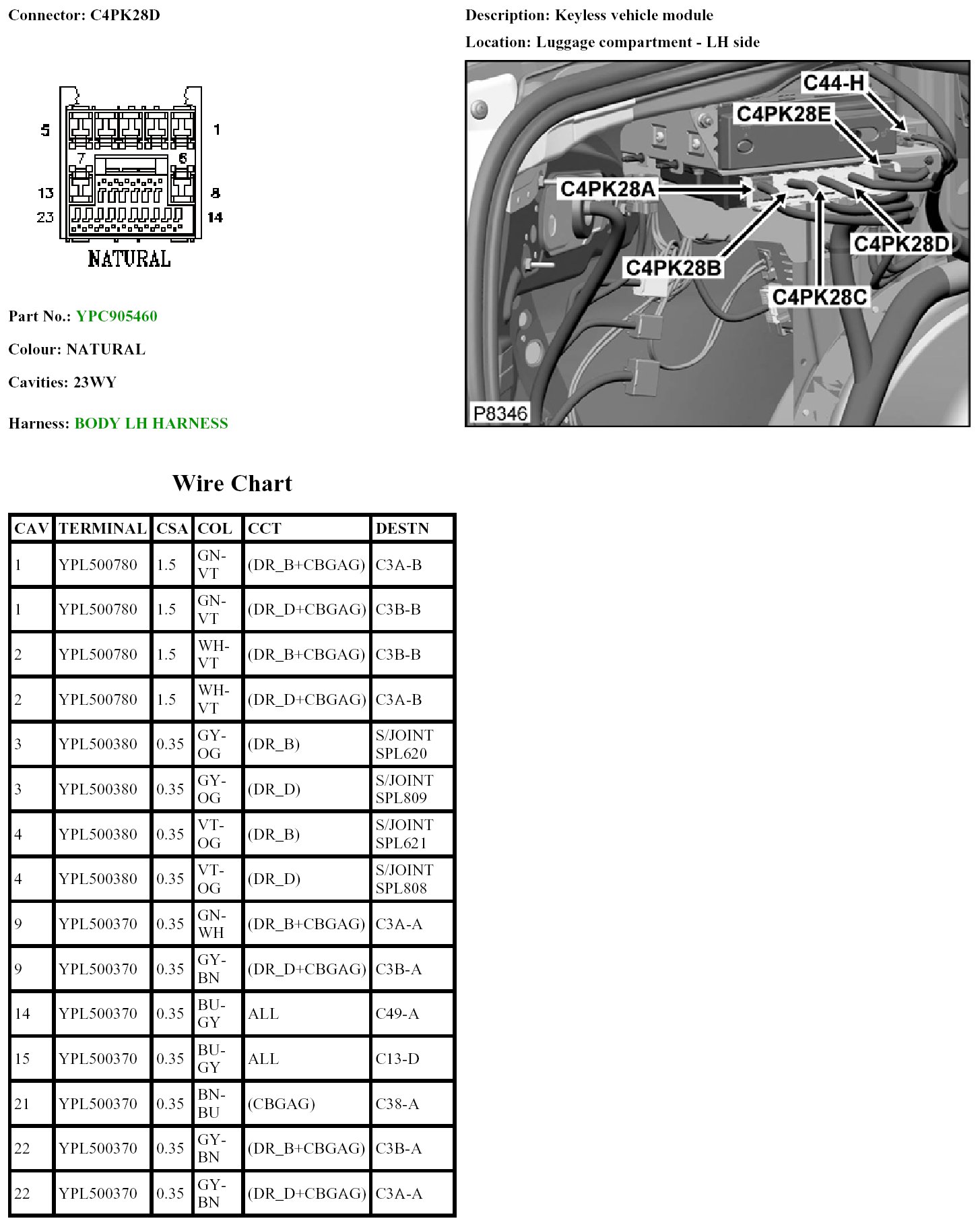

C4PK28D:

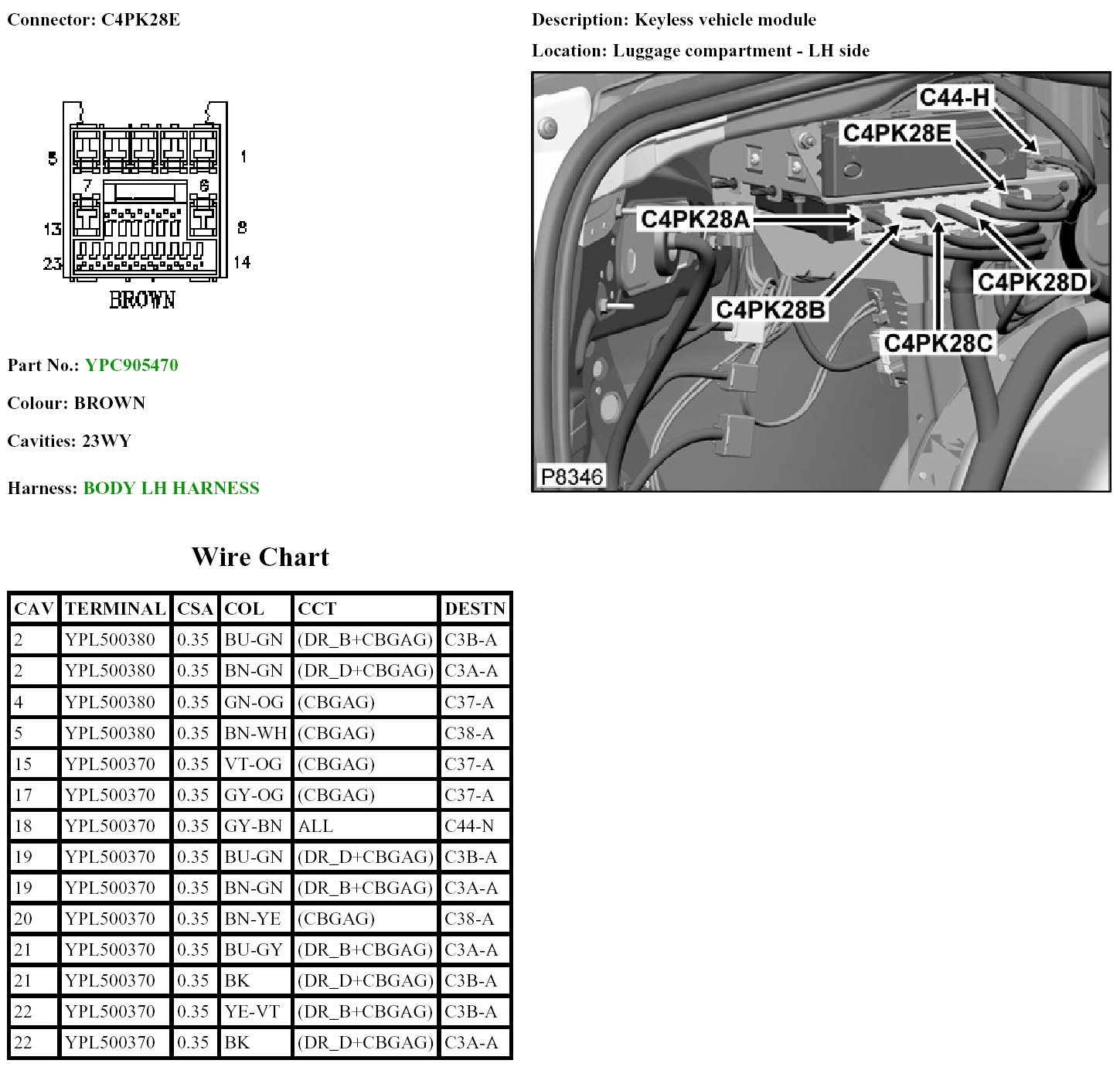

C4PK28E:
