Engine Control Module
Engine Control-Module (ECM) - PV8SC

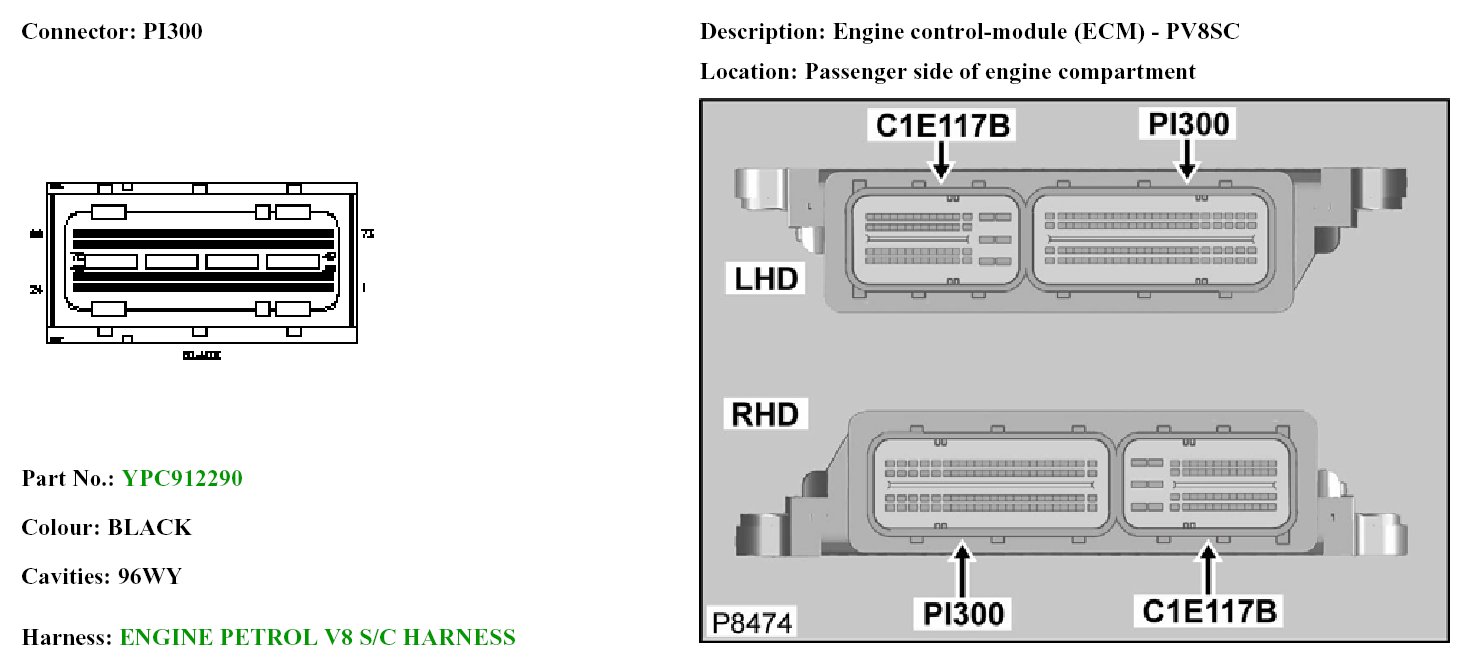

PI300 (Part 1):

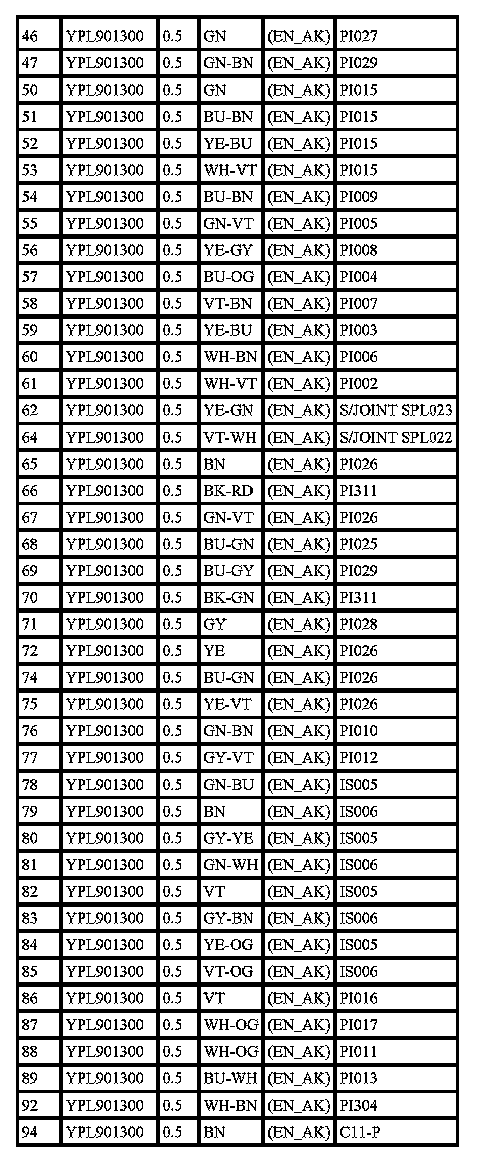

PI300 (Part 2):
PI300 (Part 3):
