XF (X250) V8-4.2L SC
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Control Module HVAC
>>
Locations
>>
Module-Climate Control
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Module-Climate Control
Module-Climate Control

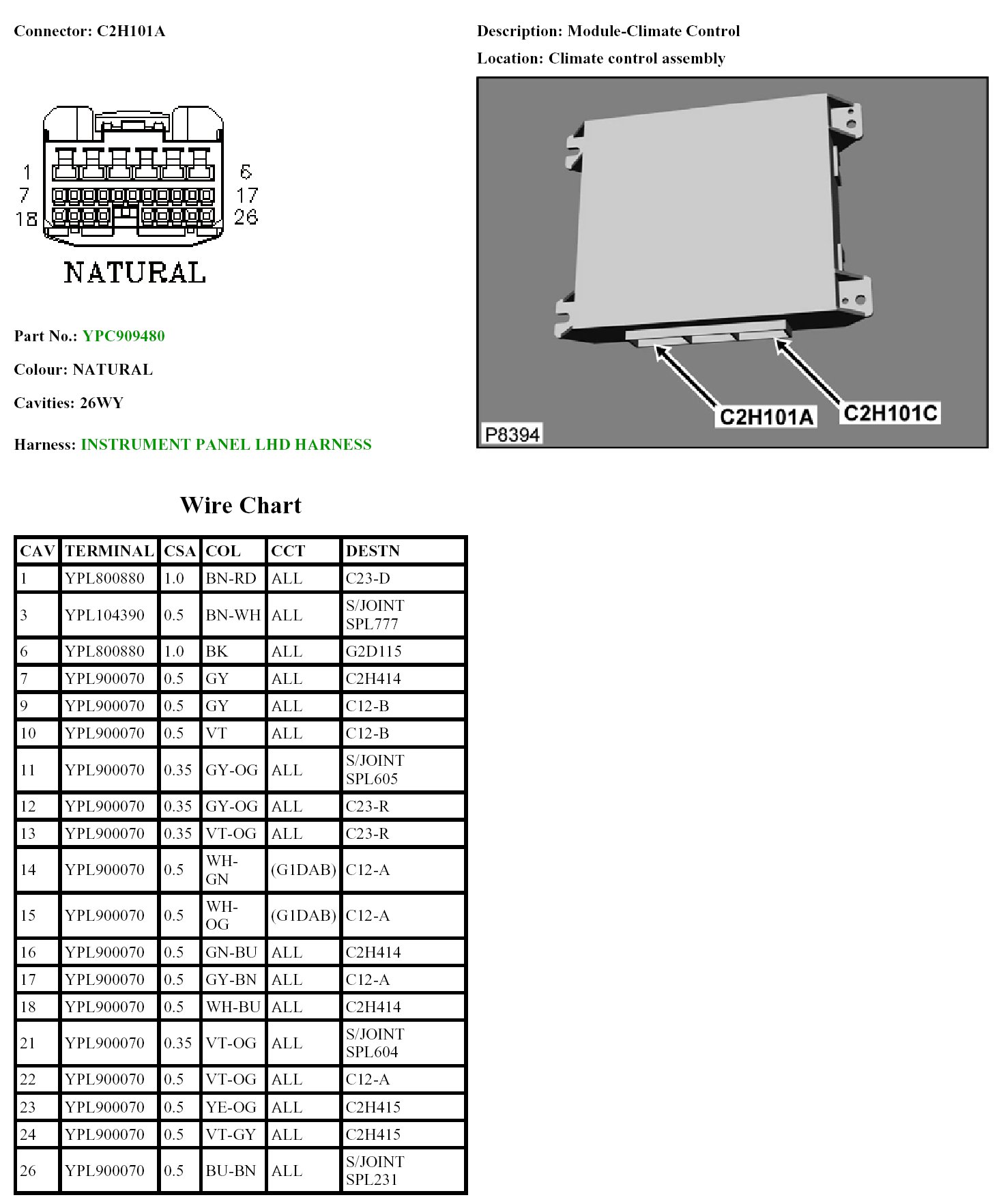

C2H101A:

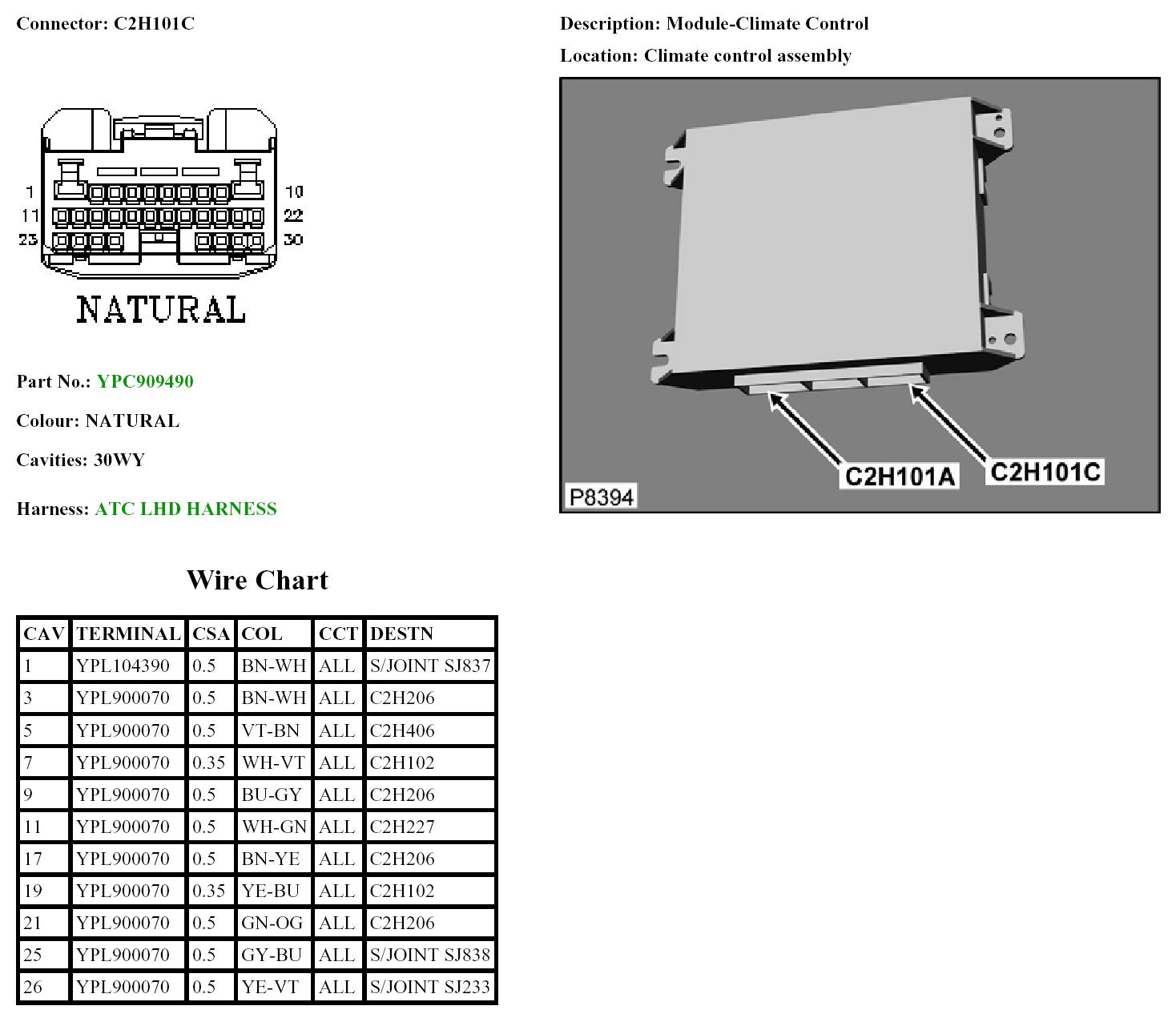

C2H101C:
