Air Injection Flow Sensor: Service and Repair

Secondary Air Injection Manifold Absolute Pressure Sensor

Removal

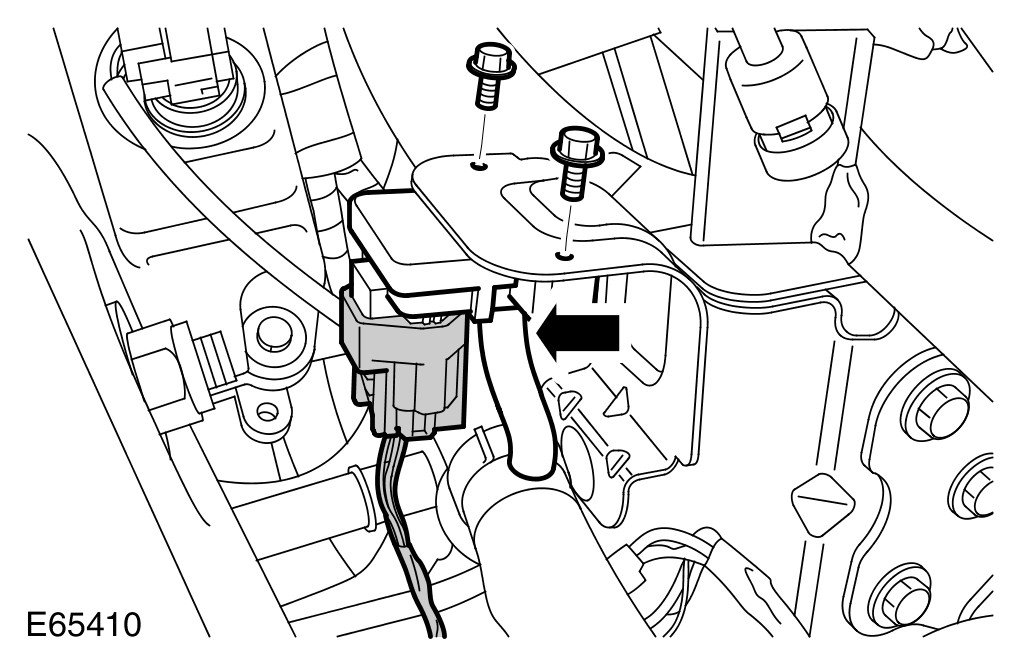

1 Remove the secondary air injection manifold absolute pressure sensor.
- Disconnect the electrical connector.
- Remove the 2 screws.
- Disconnect the hose.

Installation





1 To install, reverse the removal procedure.
- Tighten to 5 Nm.
2
NOTE:
For NAS vehicles only.
If required, carry out a short drive cycle.For additional information, refer to Powertrain Control Module (PCM) Short Drive Cycle Self-Test
