Oil Temperature Sensor For ECM: Service and Repair

Oil Temperature Sensor

Removal
1 Raise and support the vehicle.
2 Remove the air deflector. For additional information, refer to Air Deflector

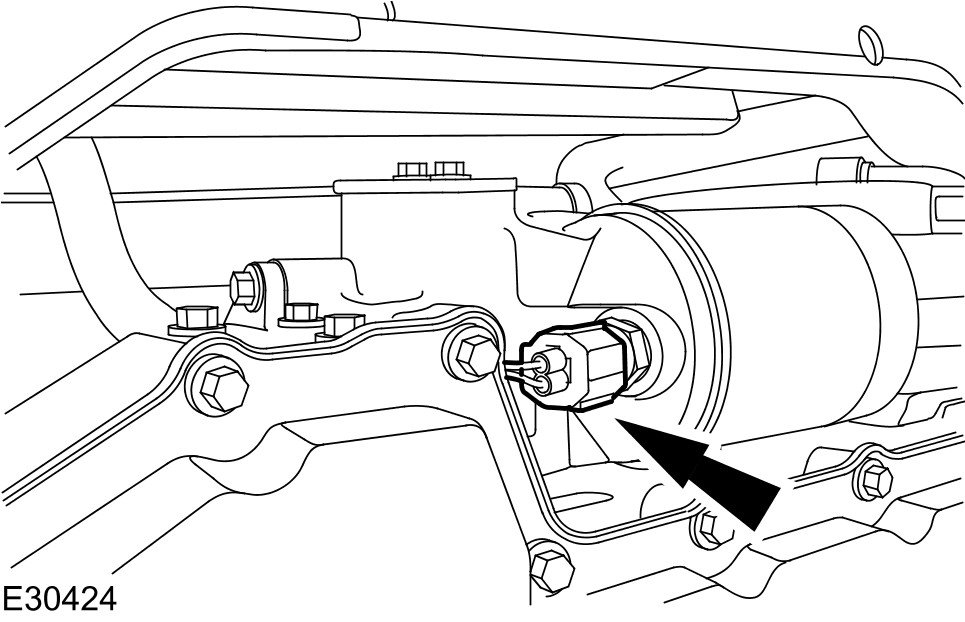

3 Disconnect the oil temperature sensor electrical connector.

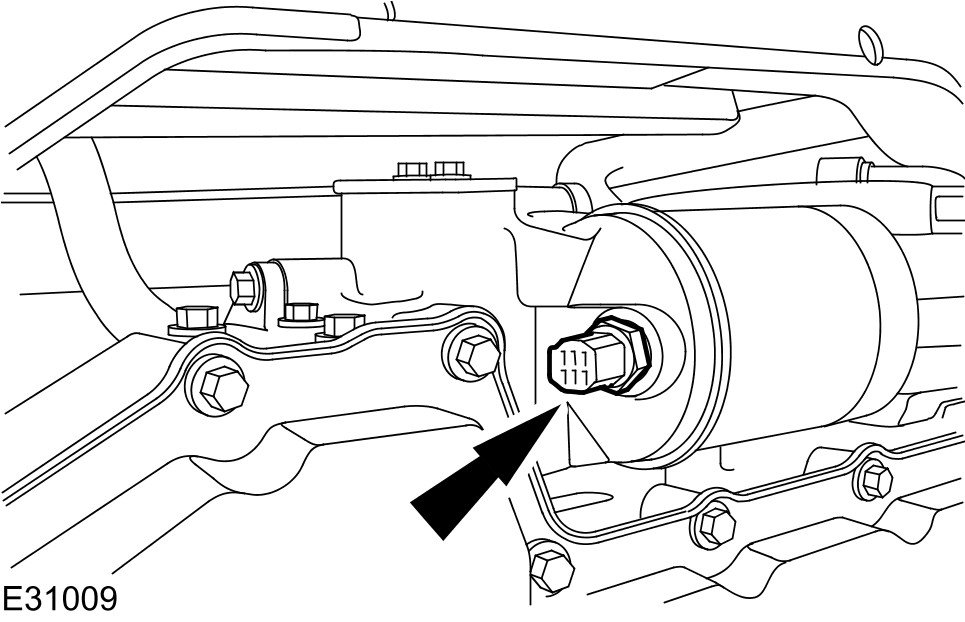

4 Remove the oil temperature sensor.

Installation





1
NOTE:
Apply a small bead of sealant meeting Jaguar specification on the first three threads of the oil temperature sensor.
To install, reverse the removal procedure.
- Tighten to 15 Nm.
