Catalyst Monitor Sensor

Catalyst Monitor Sensor

Equipment
Snap-on tool S6176

Removal
1 Raise and support the vehicle.

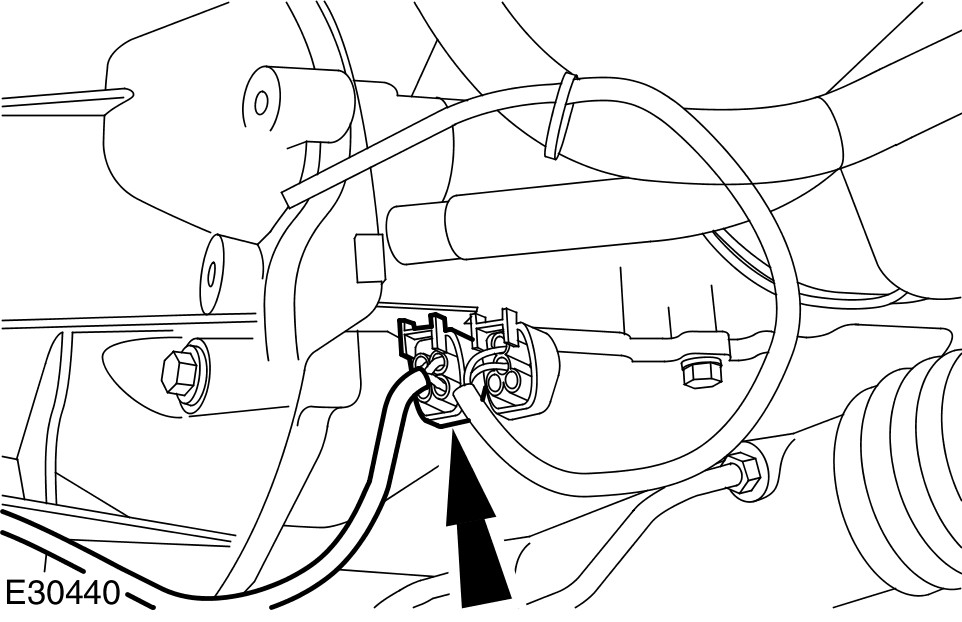

2 Disconnect the catalyst monitor sensor.




3
CAUTION: Make sure the wiring harness is not twisted or damaged on removal. Failure to follow this instruction may result in damage to the vehicle.

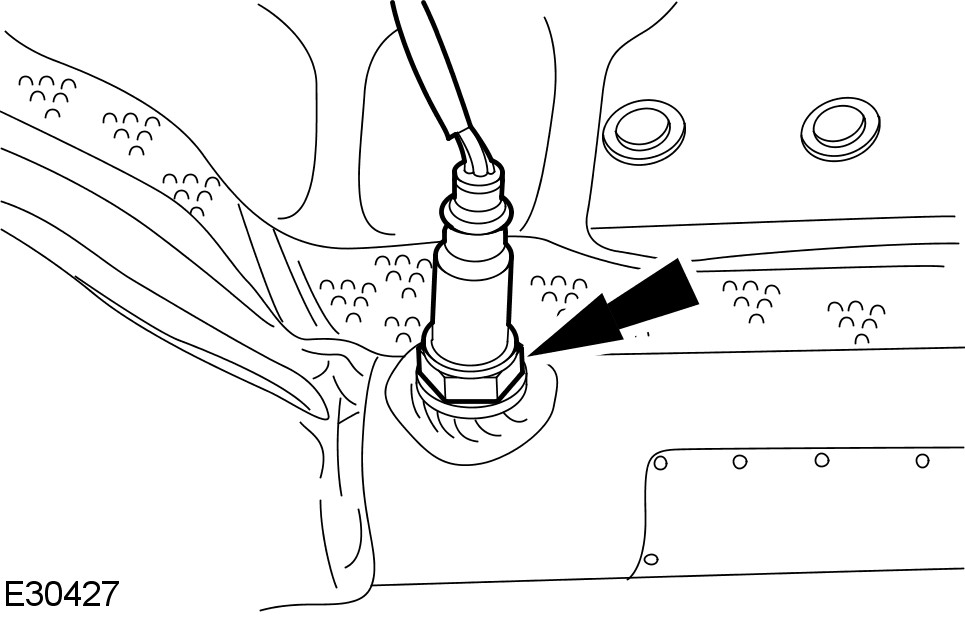

Using the Snap-on tool S6176, remove the catalyst monitor sensor.

Installation





1
CAUTION: Make sure the wiring harness is not twisted or damaged on installation. Failure to follow this instruction may result in damage to the vehicle.
To install, reverse the removal procedure.
- Tighten to 45 Nm.
