Powertrain Control Module (PCM)

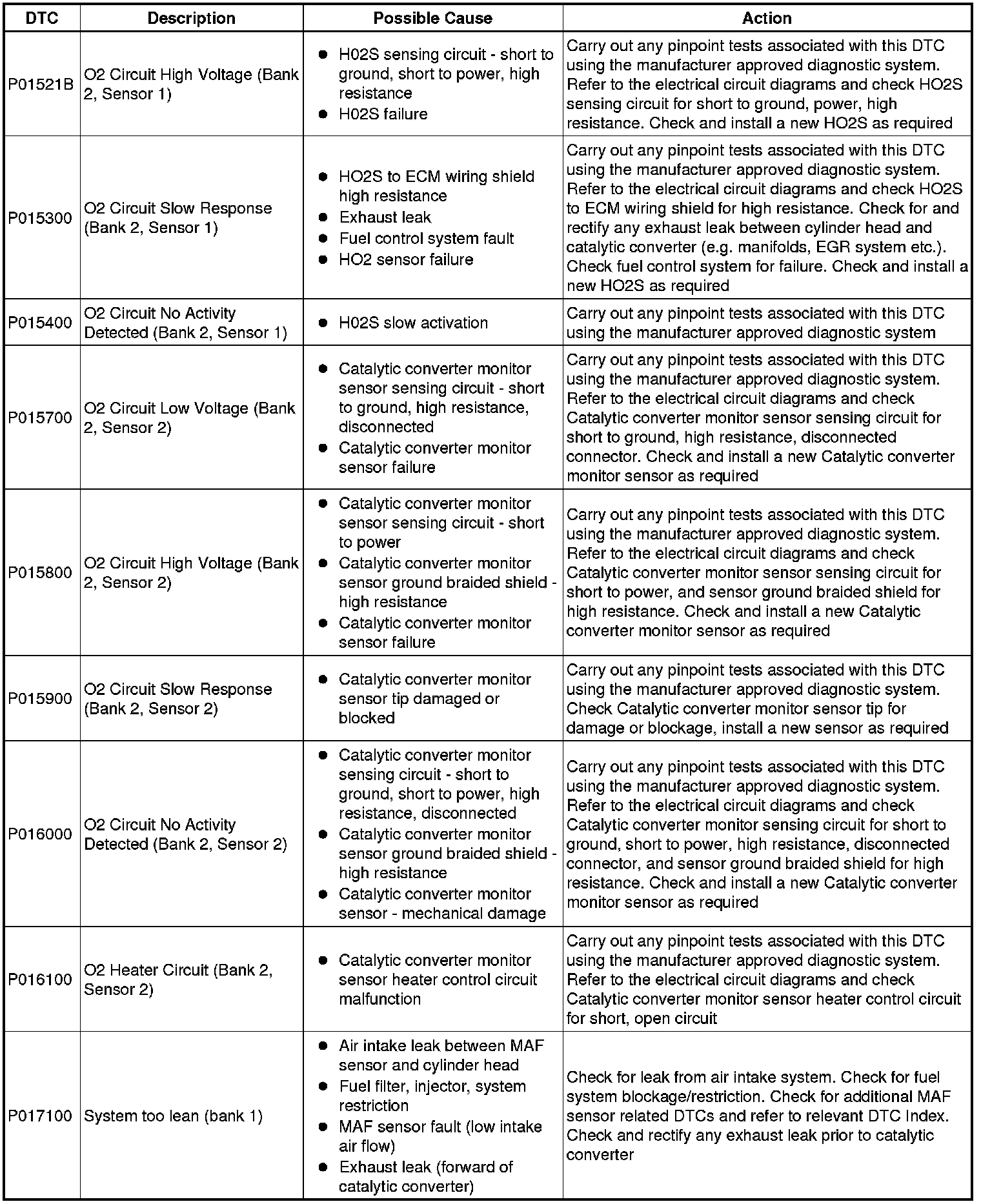

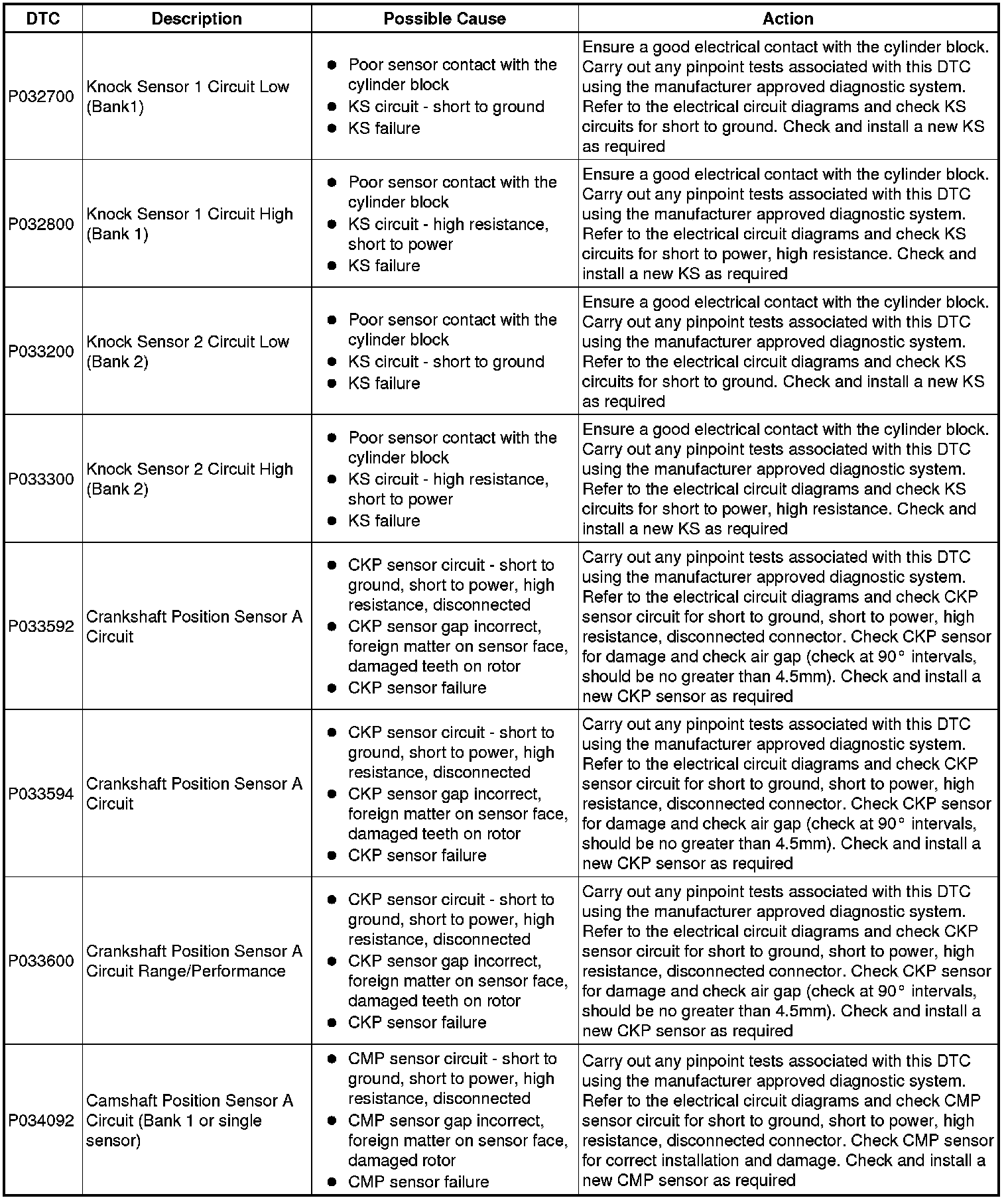

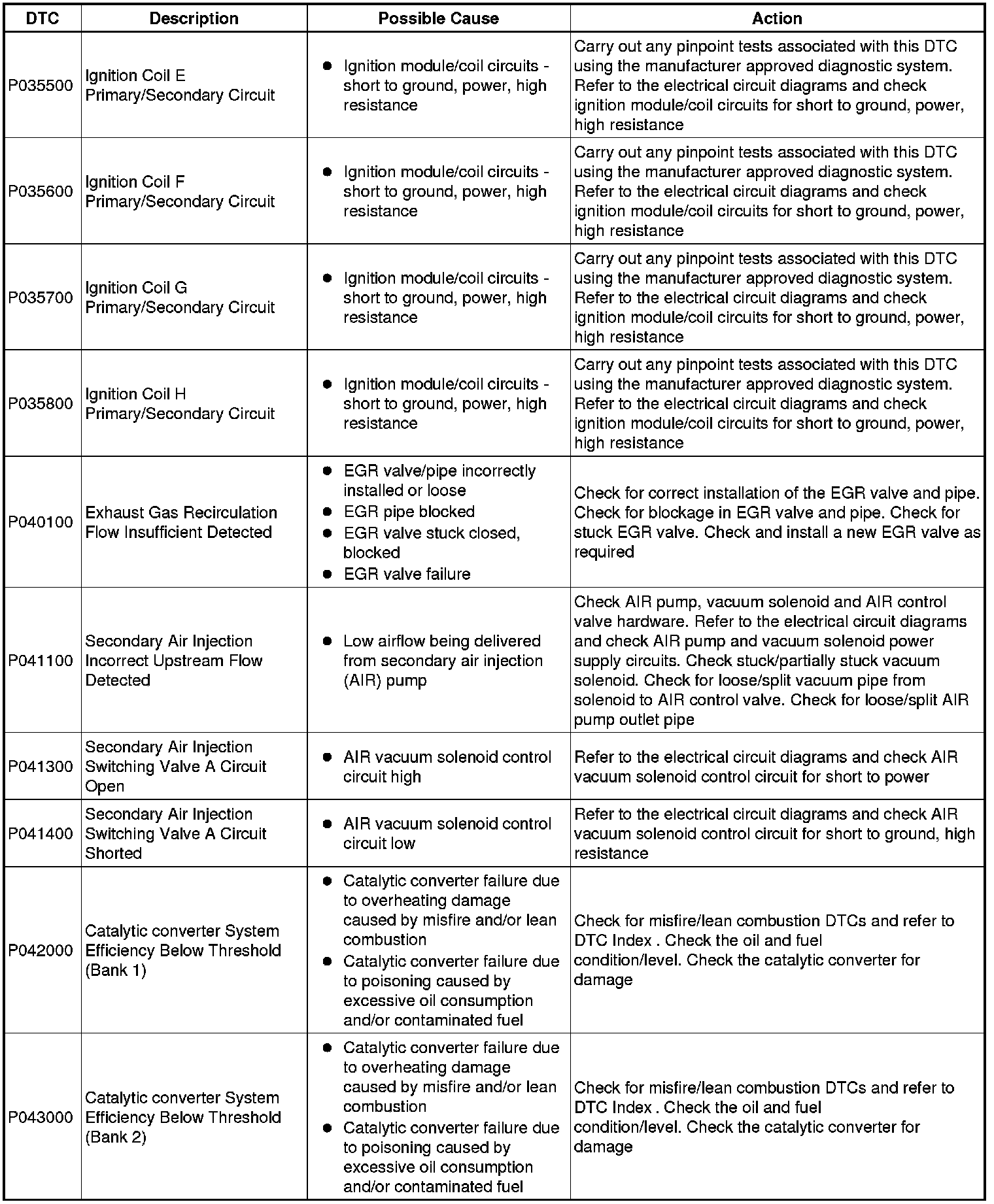

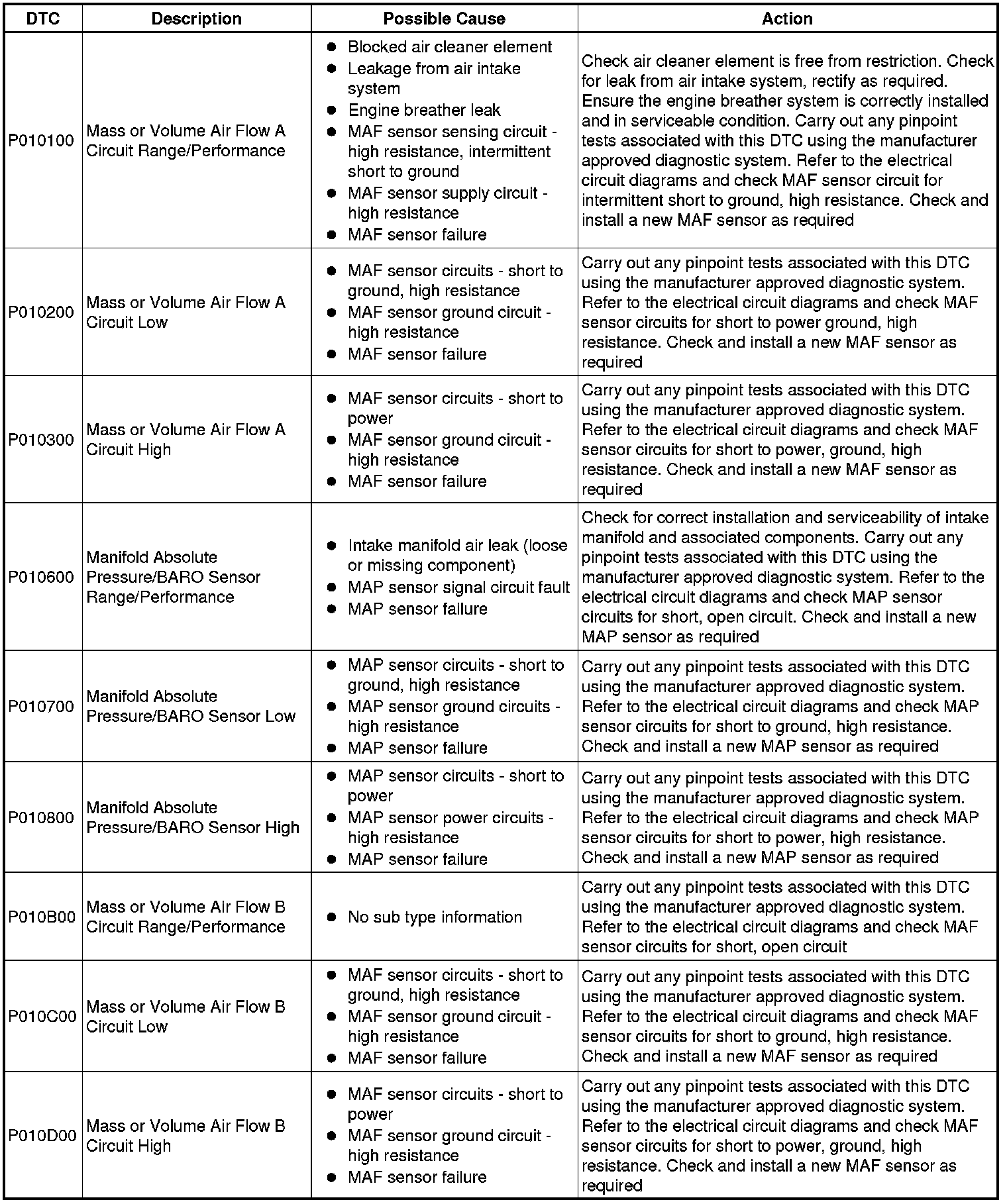

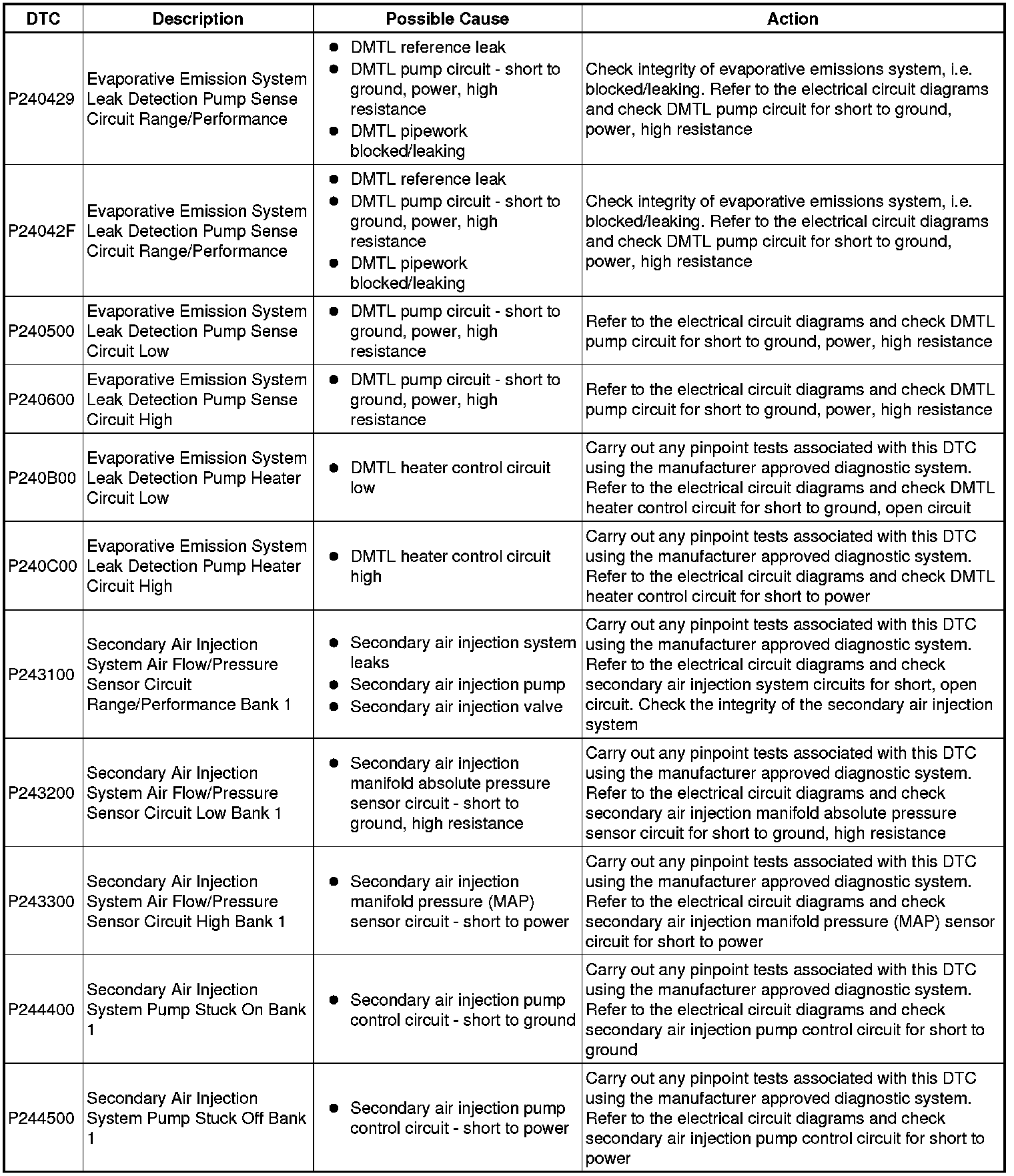

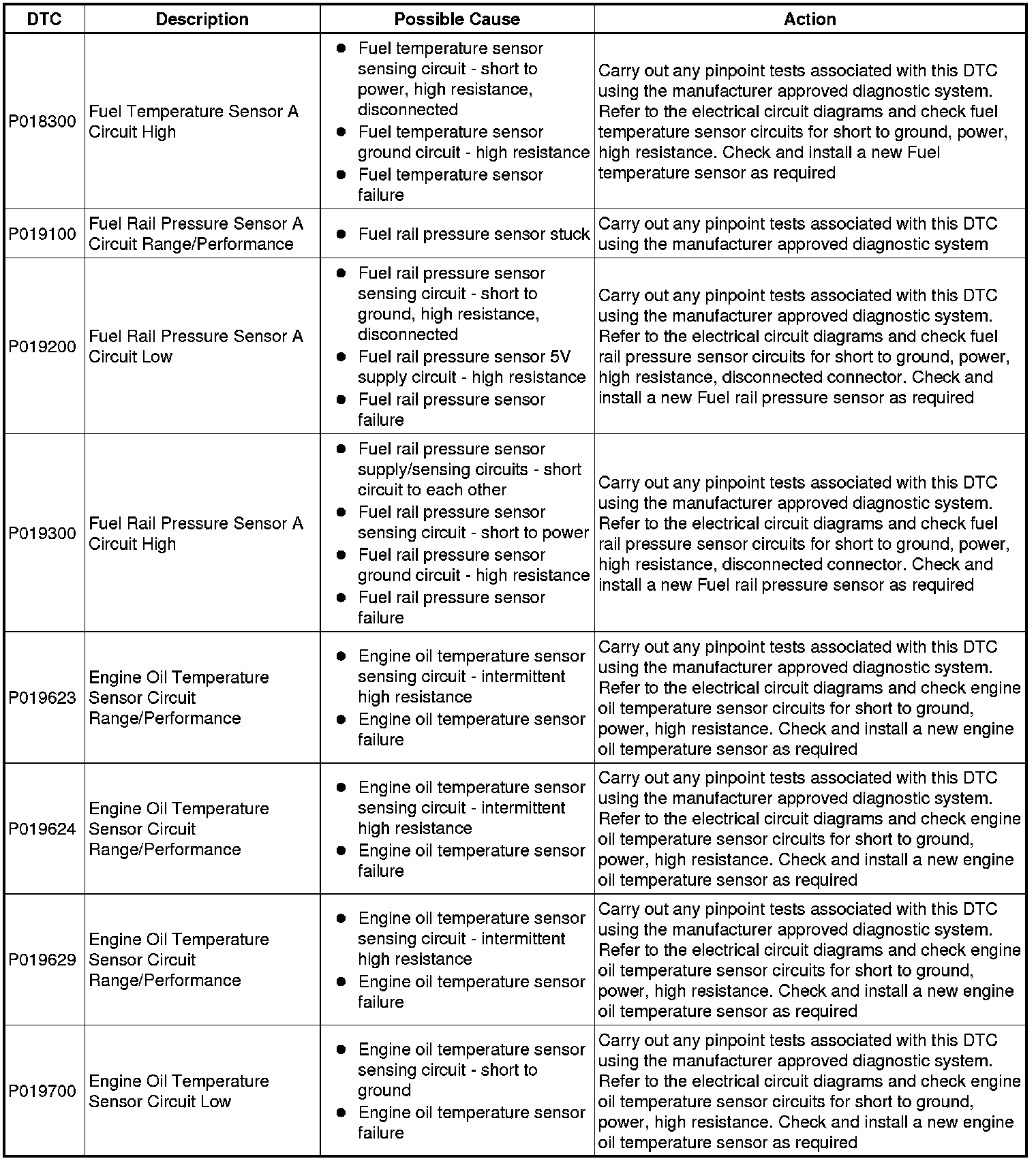

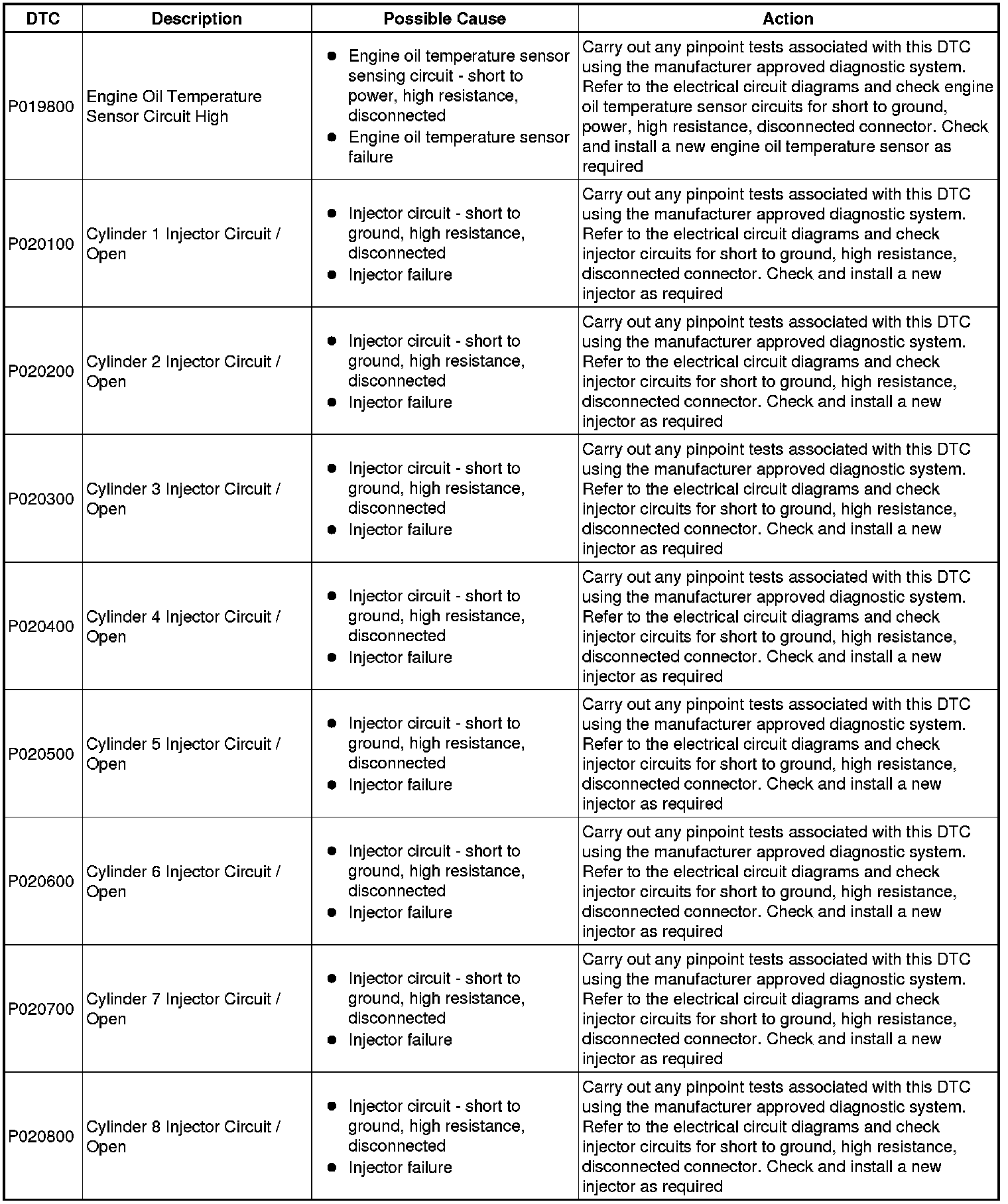

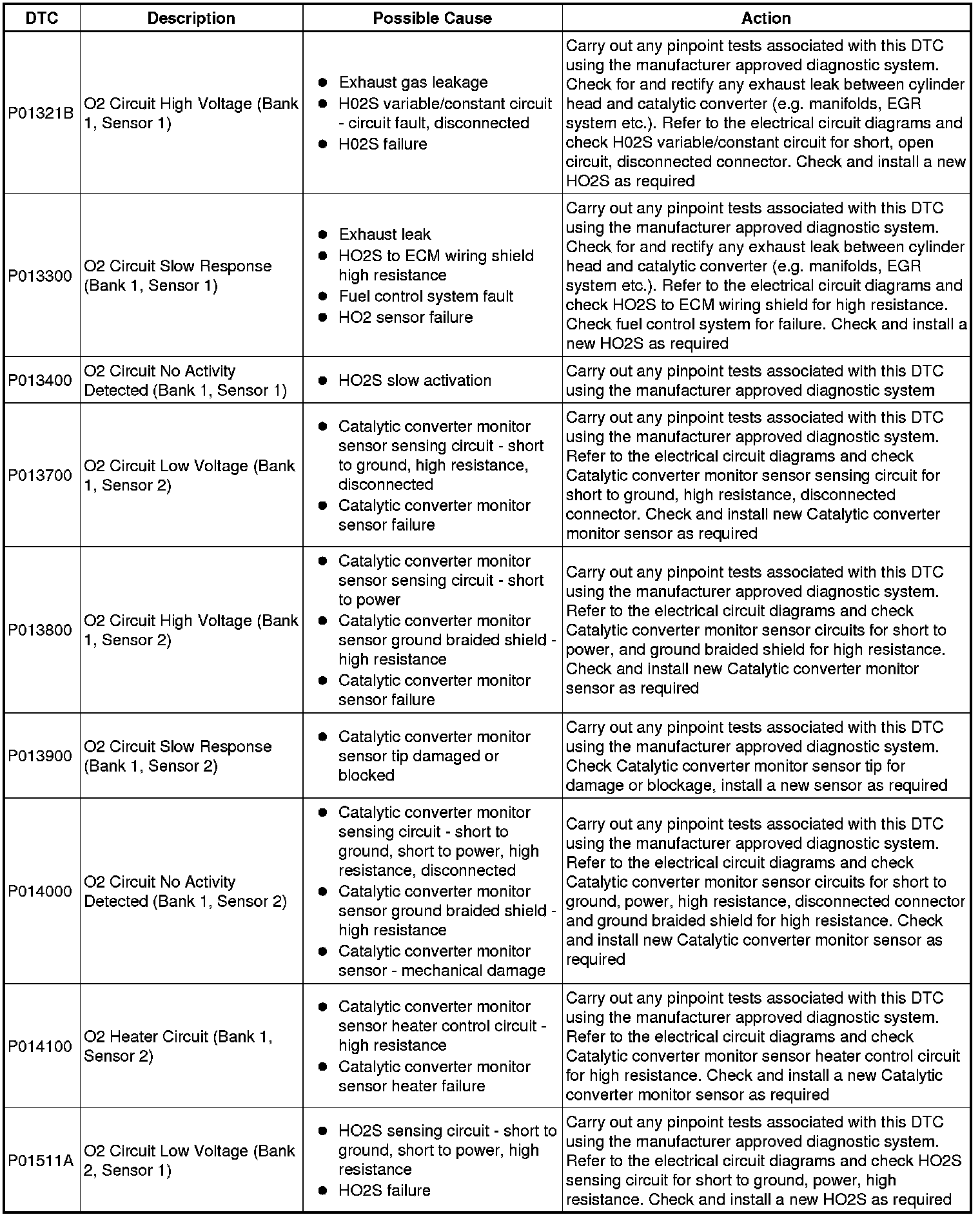

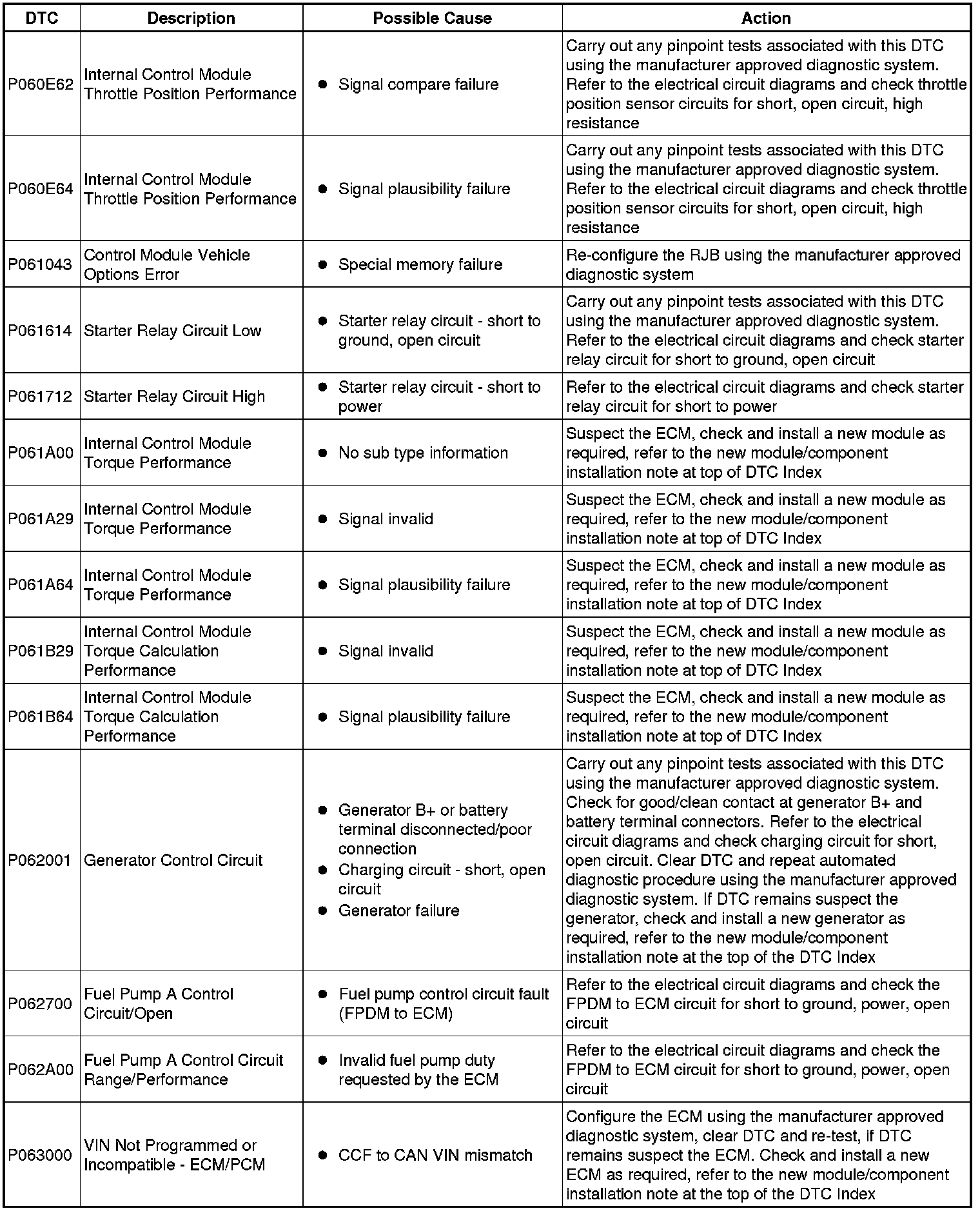

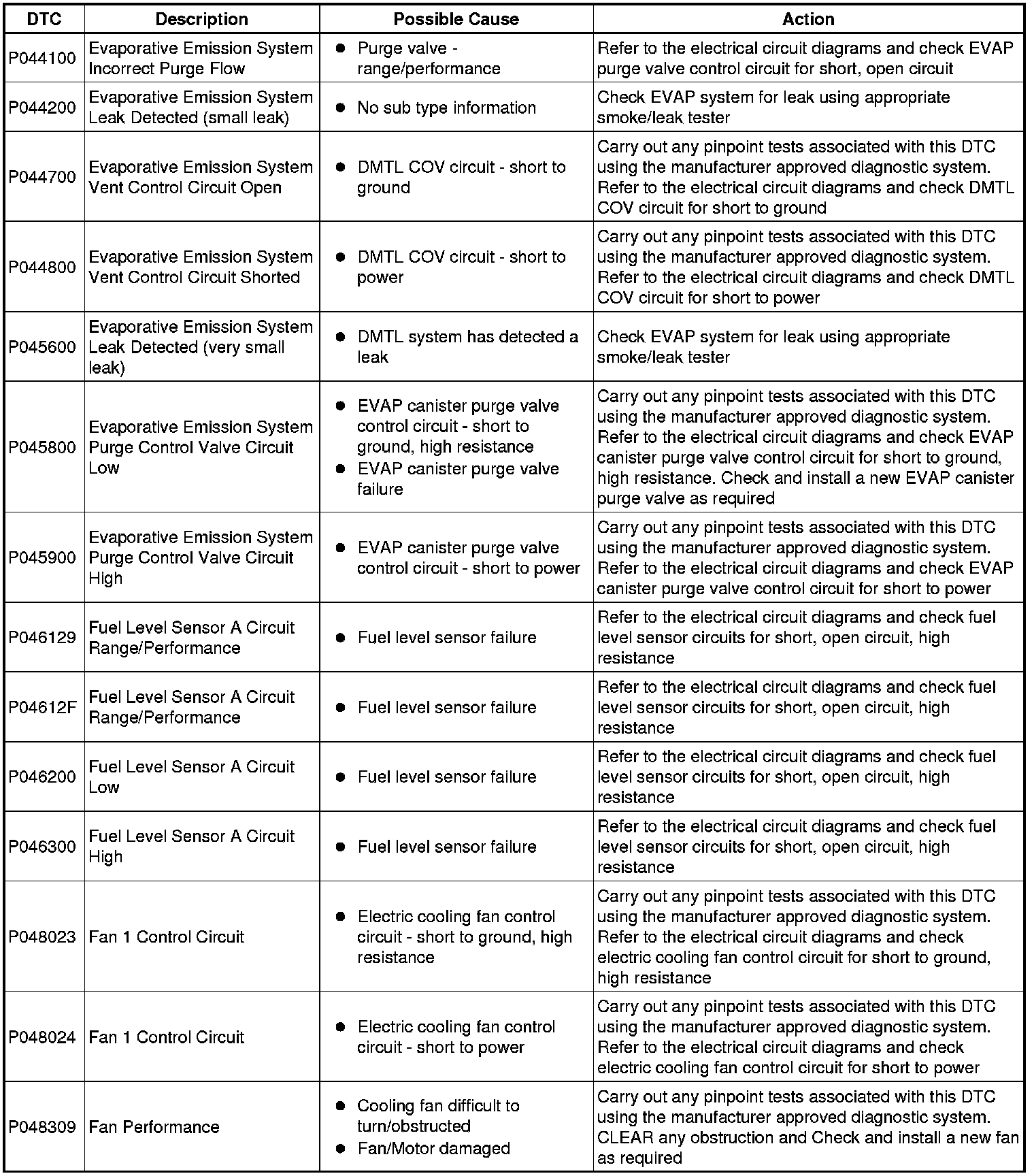

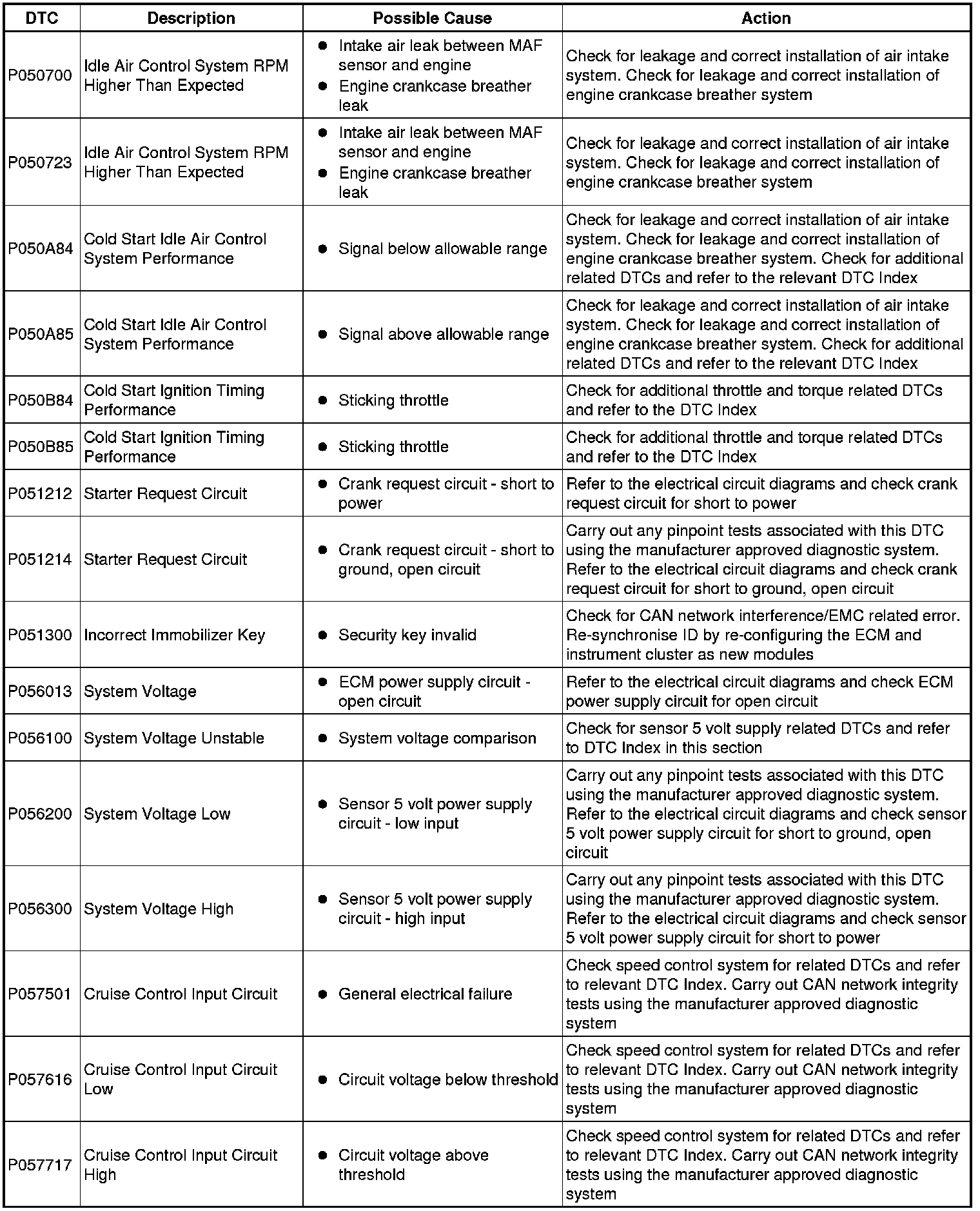

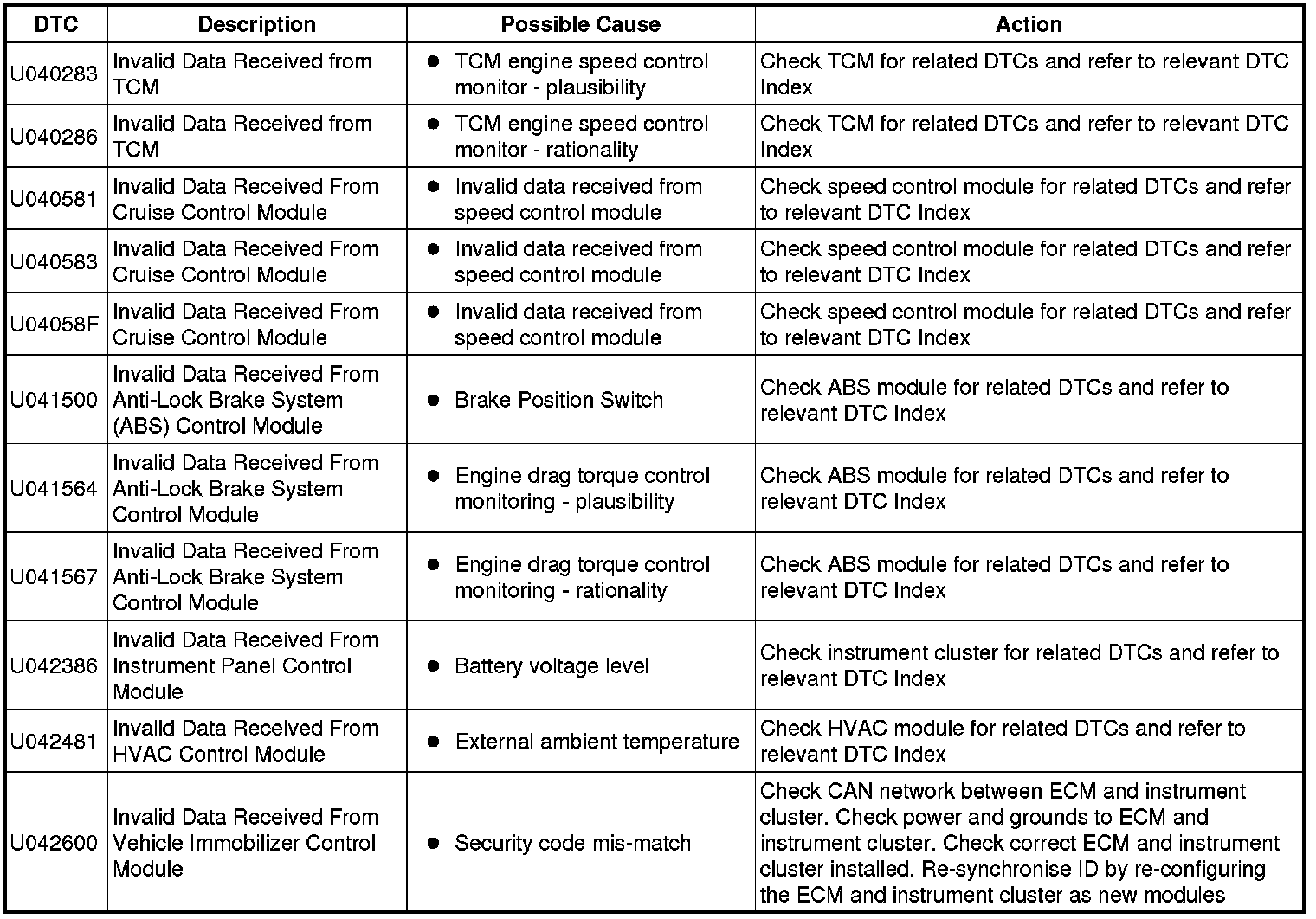

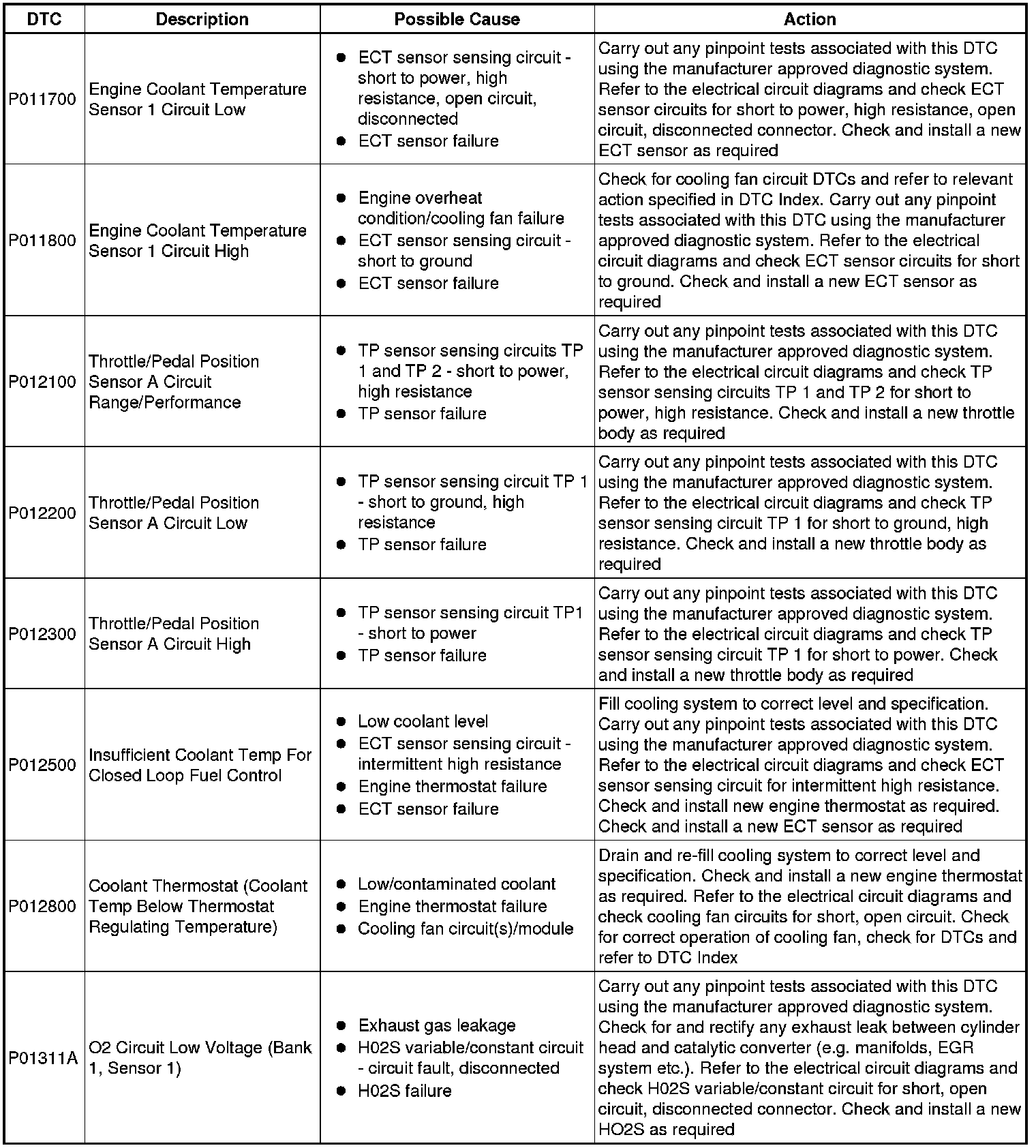

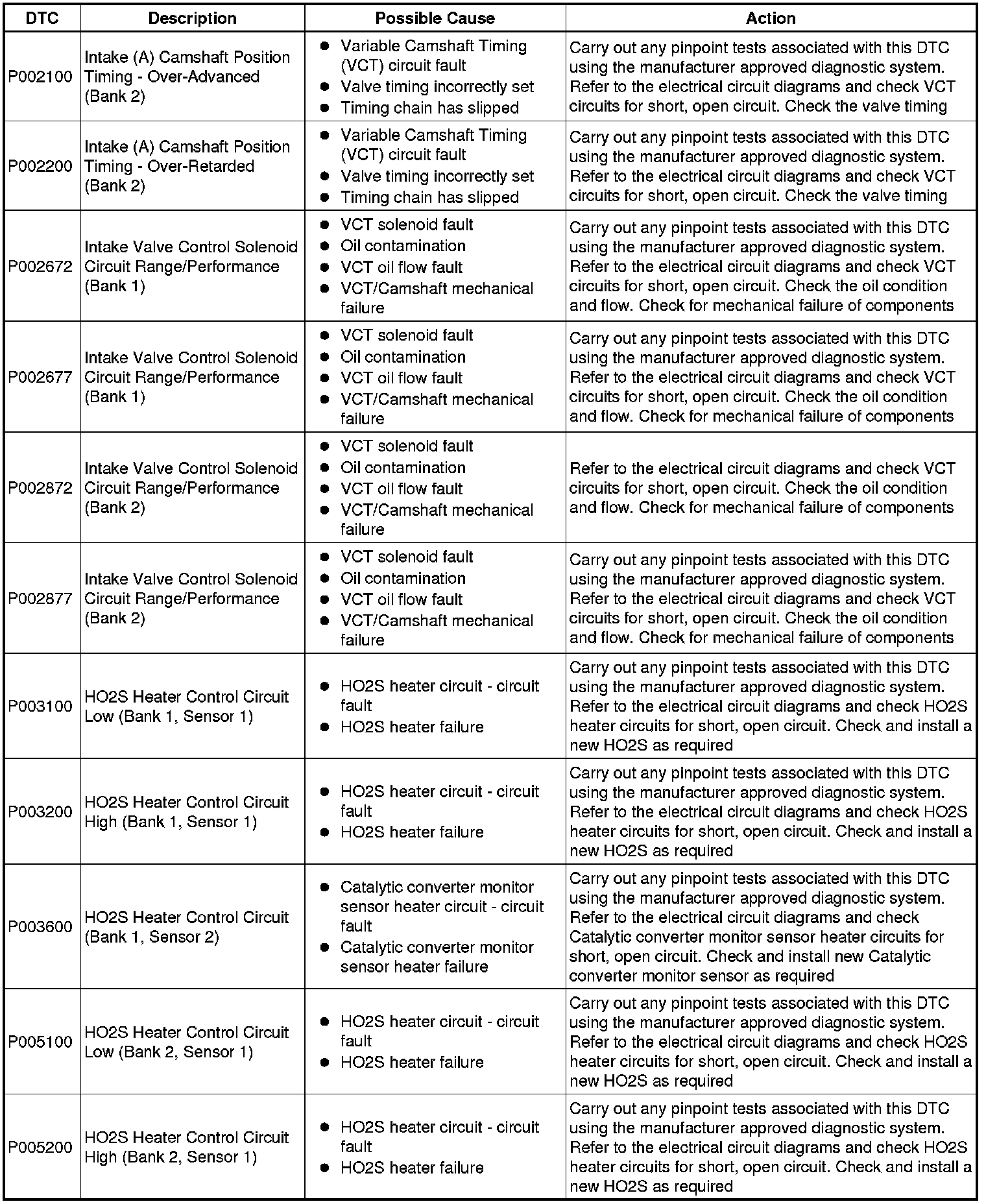

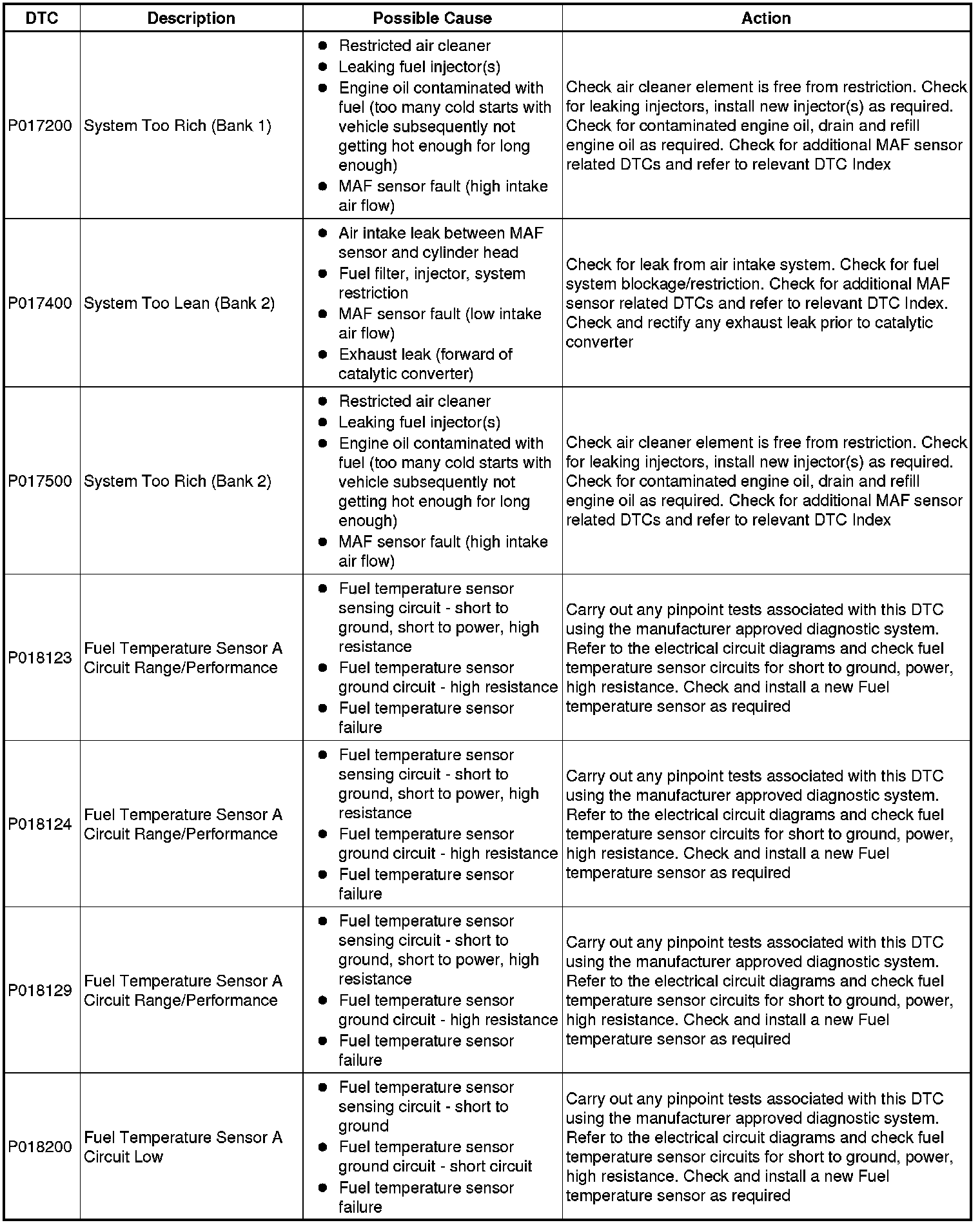

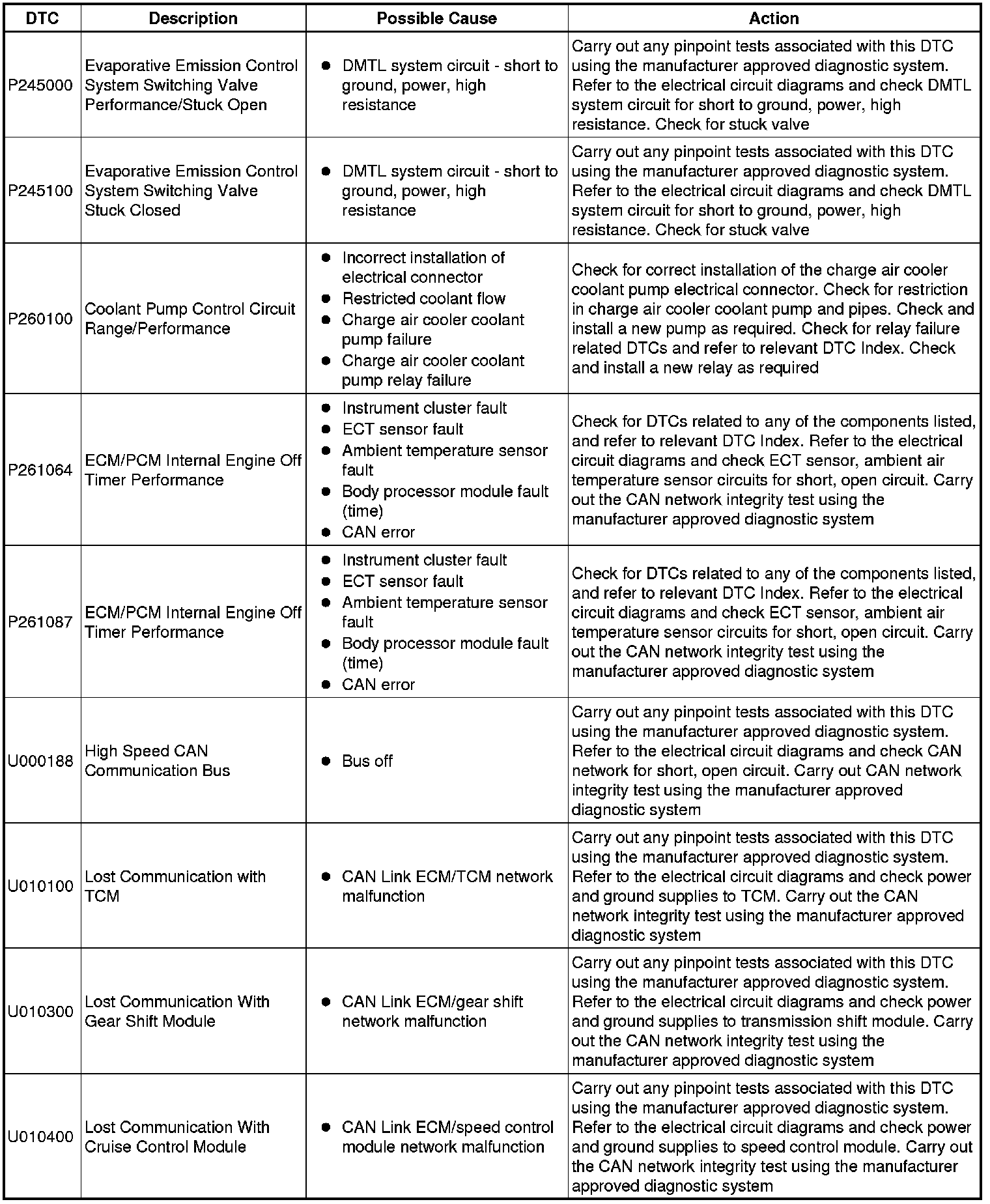

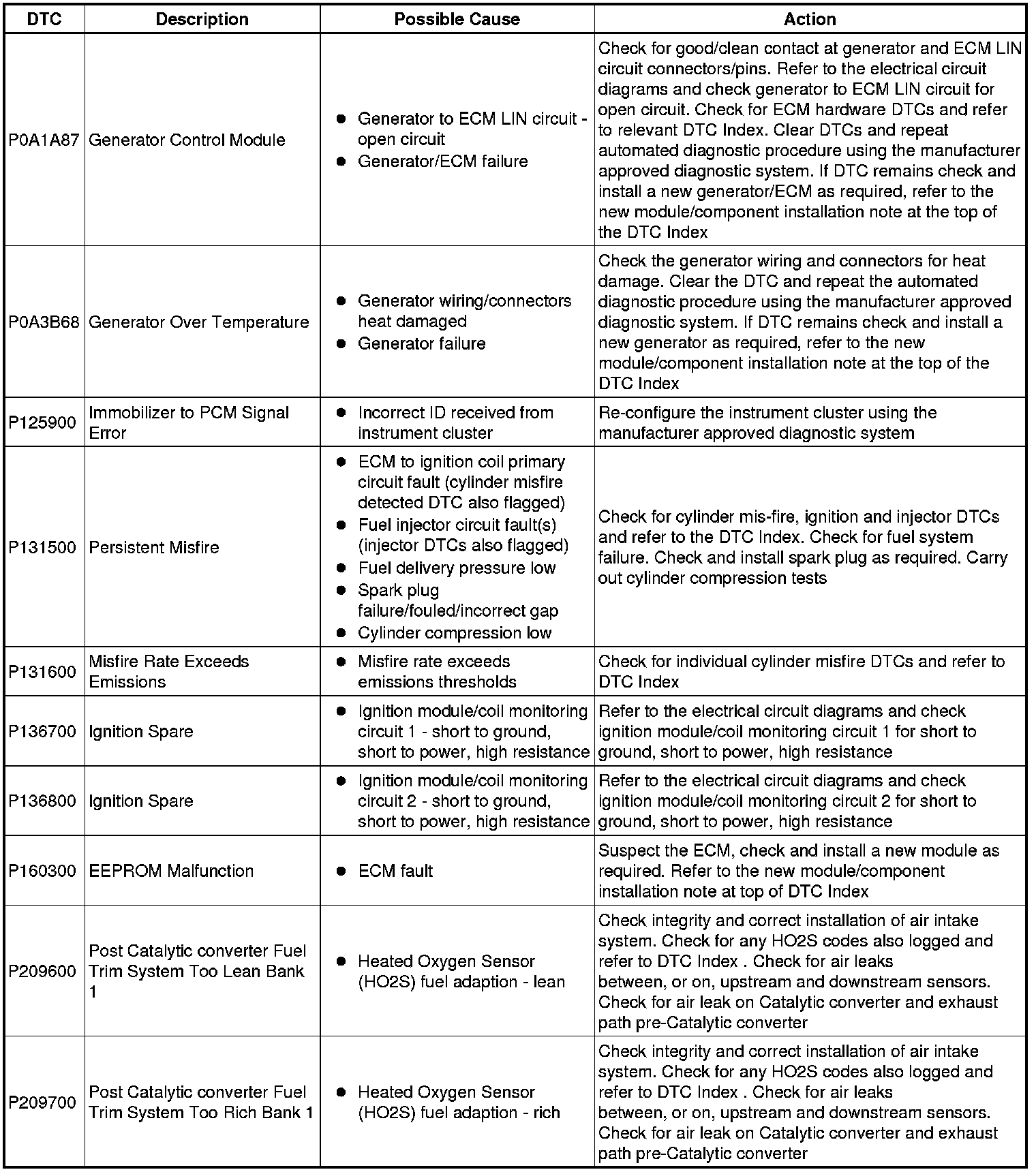

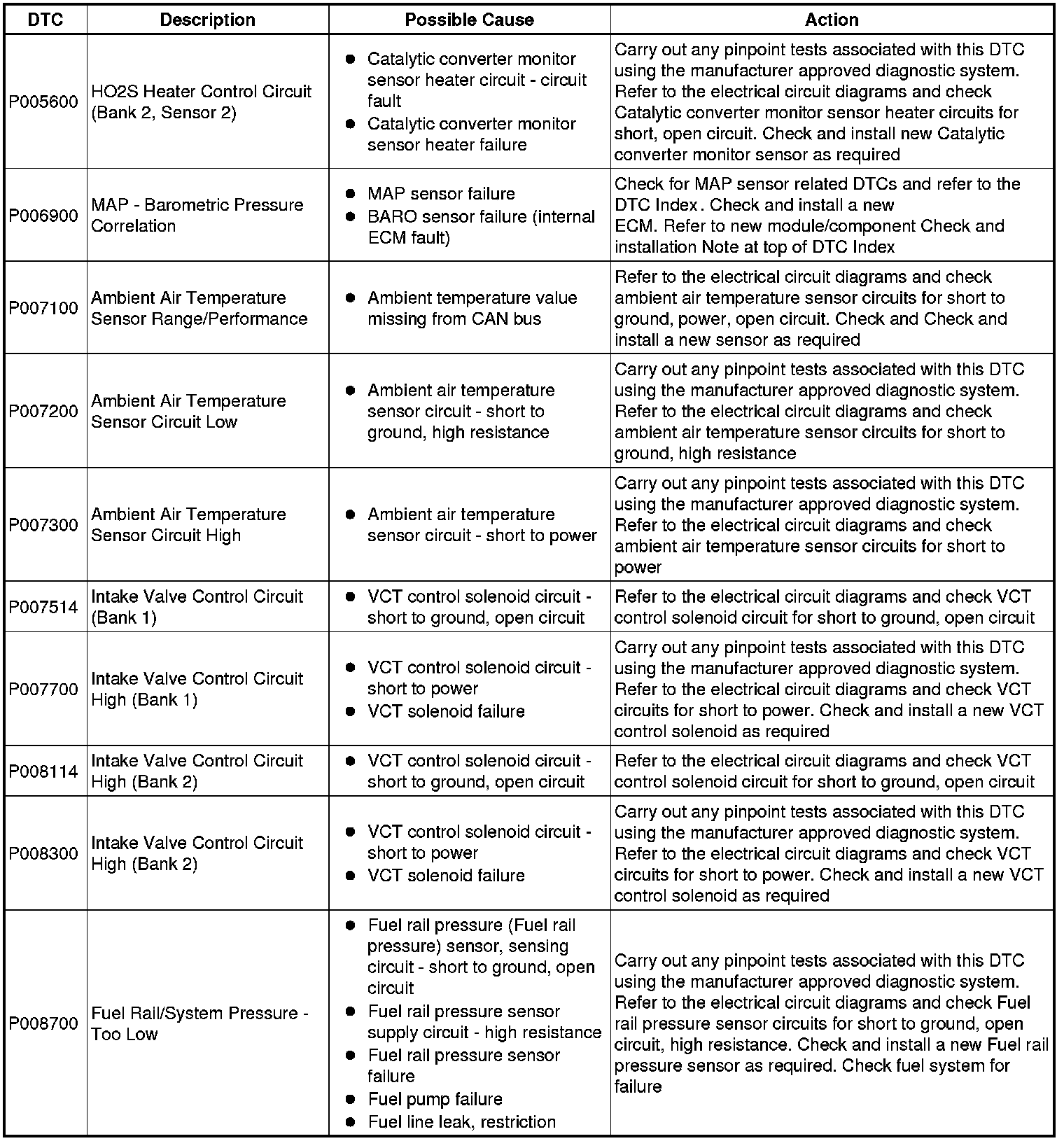

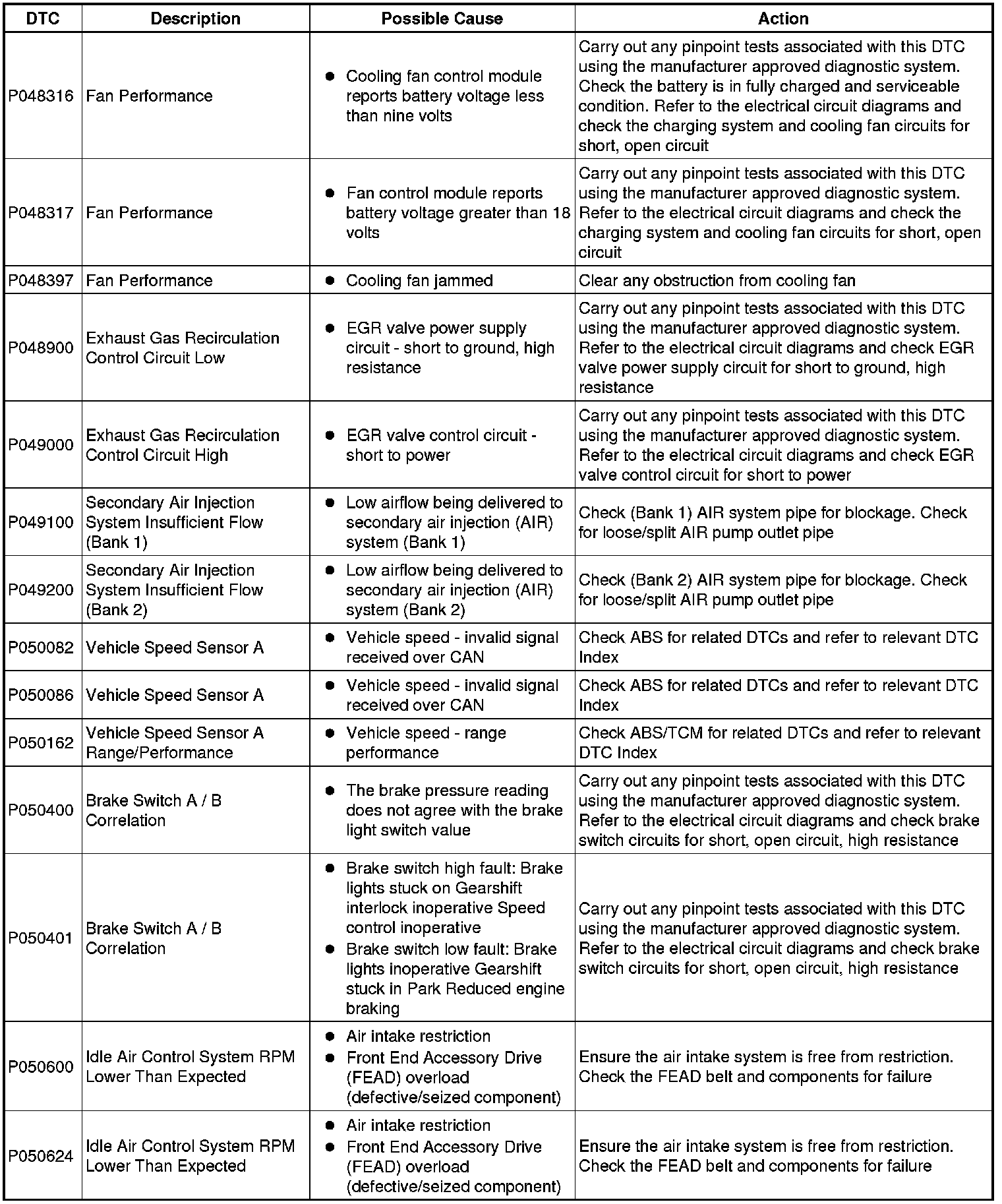

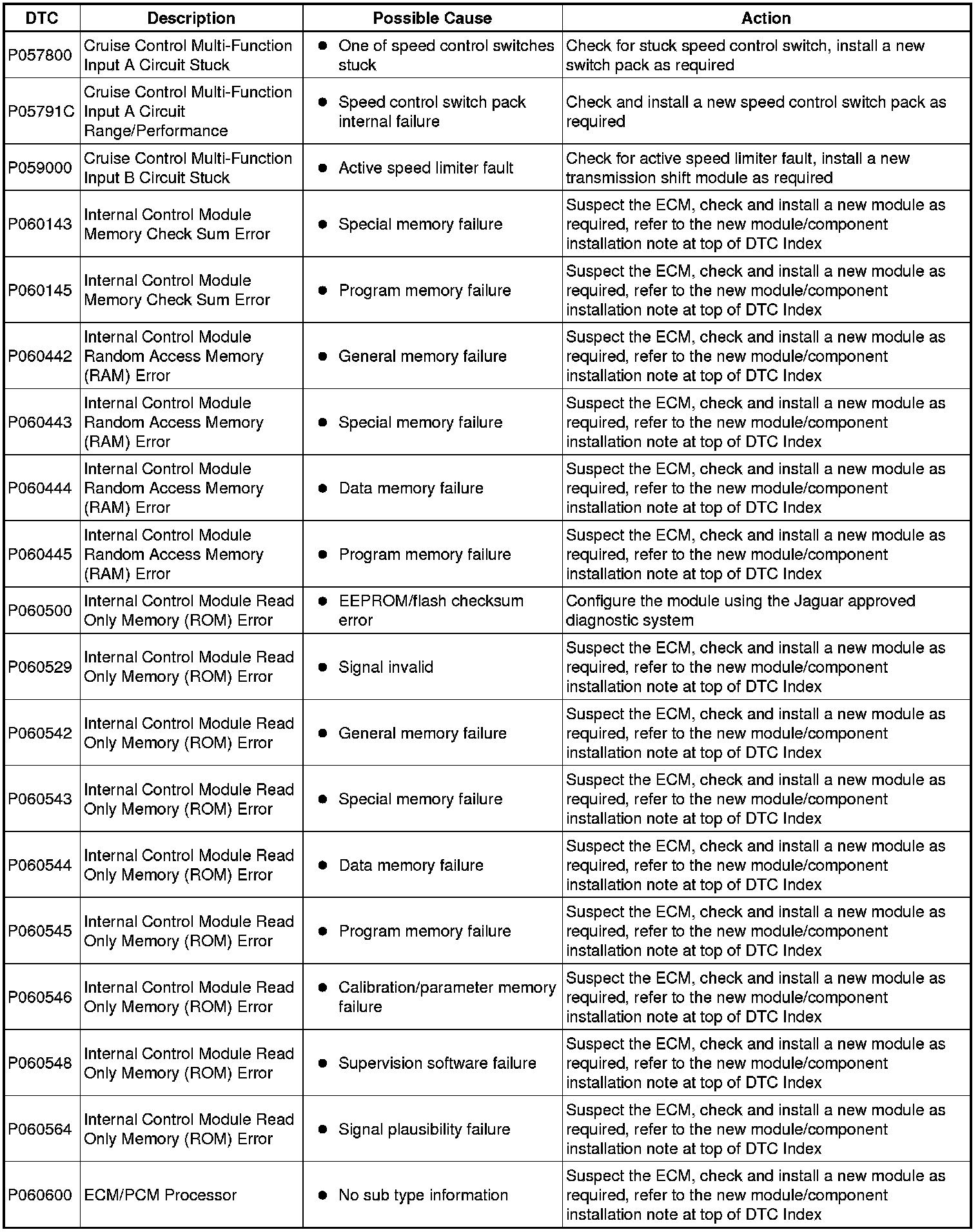

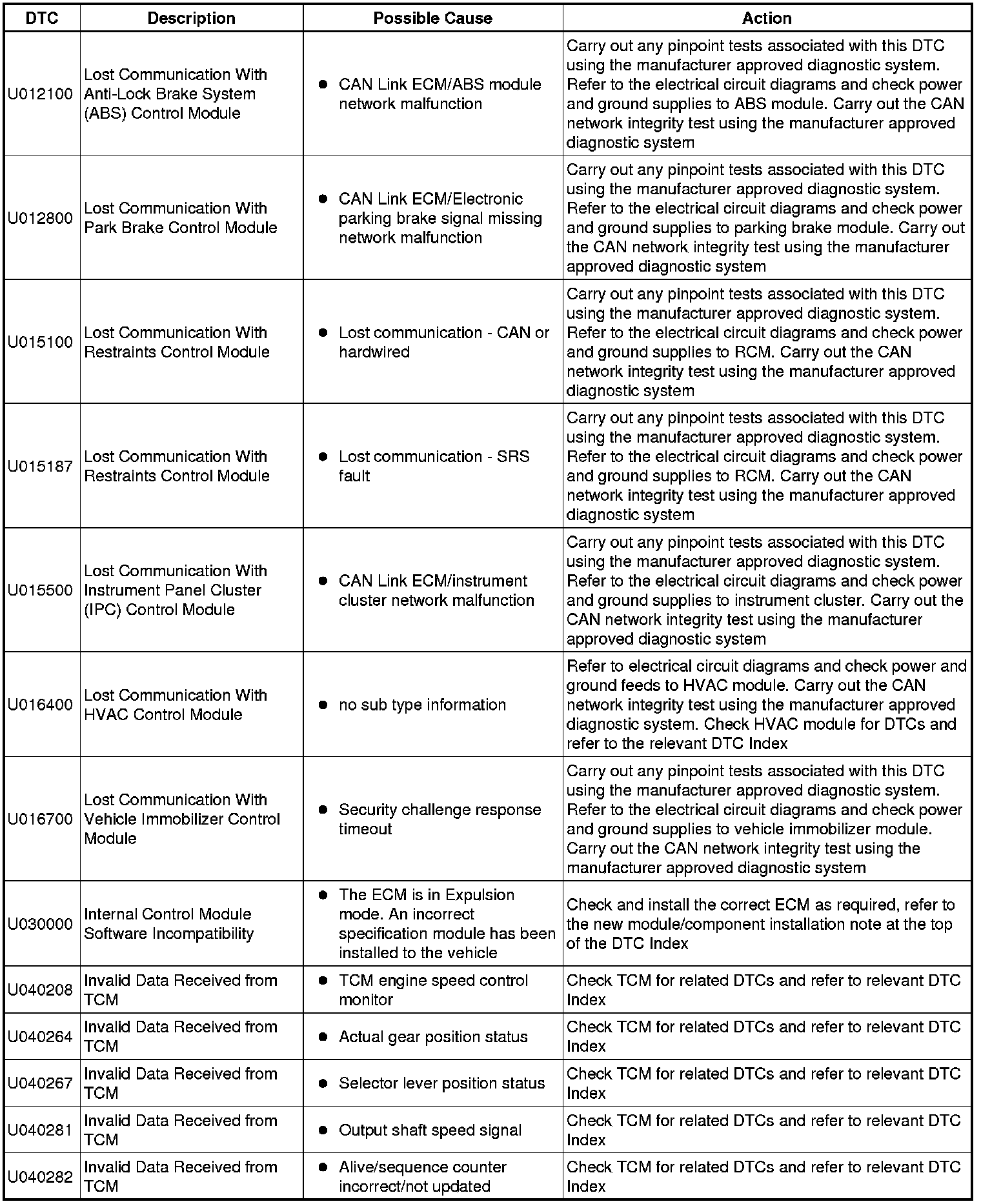

Diagnostic Trouble Code (DTC) Index

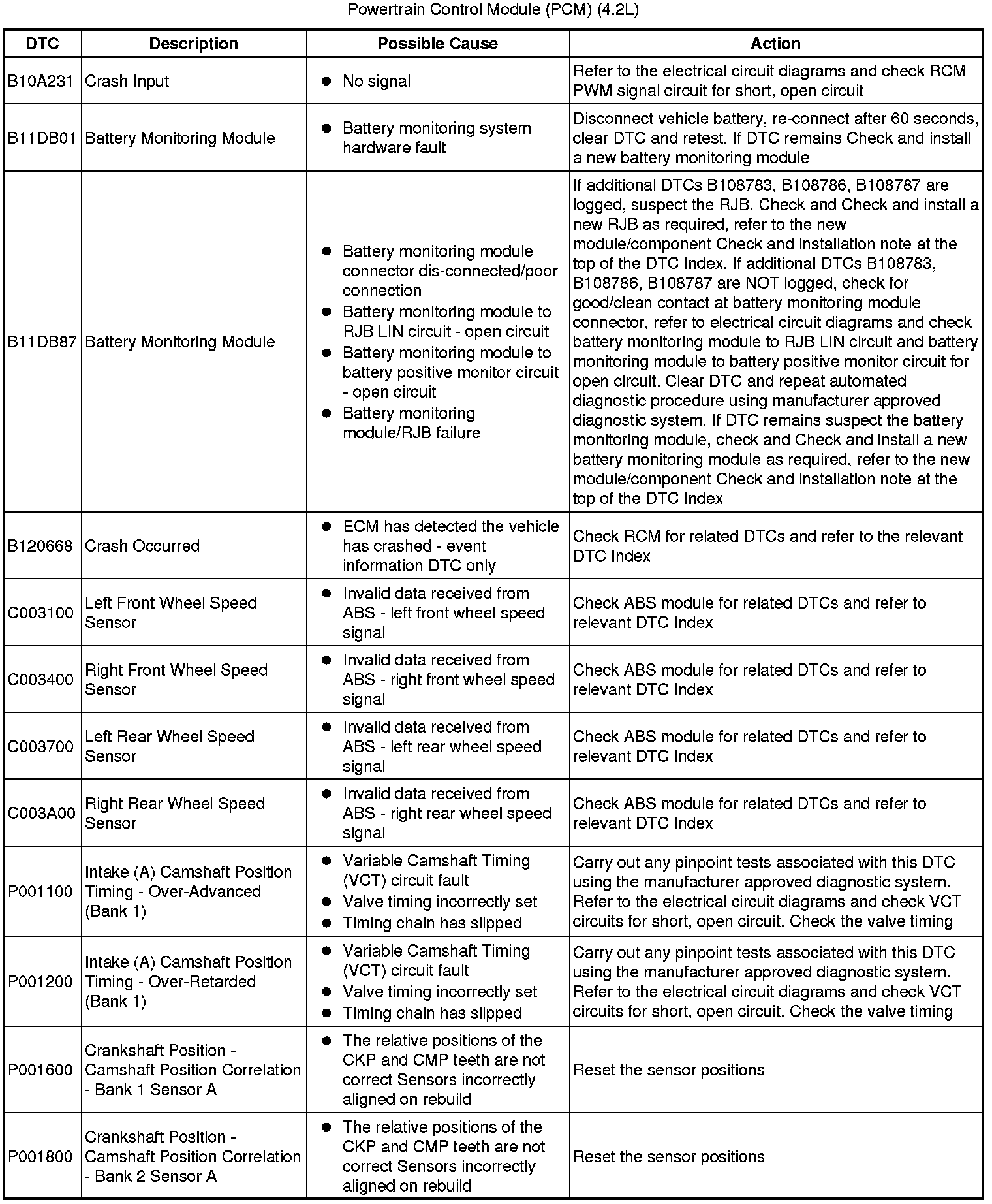

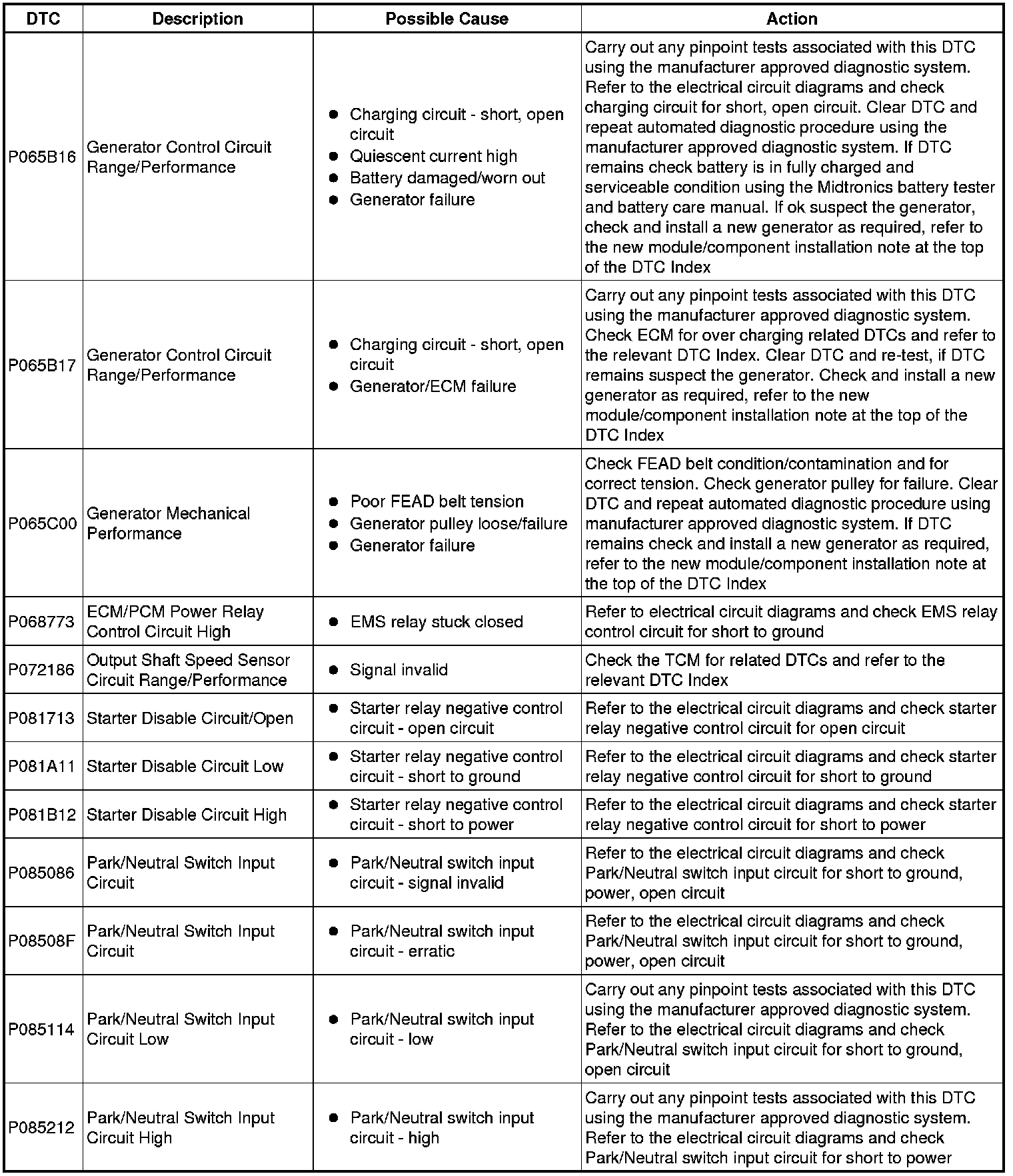

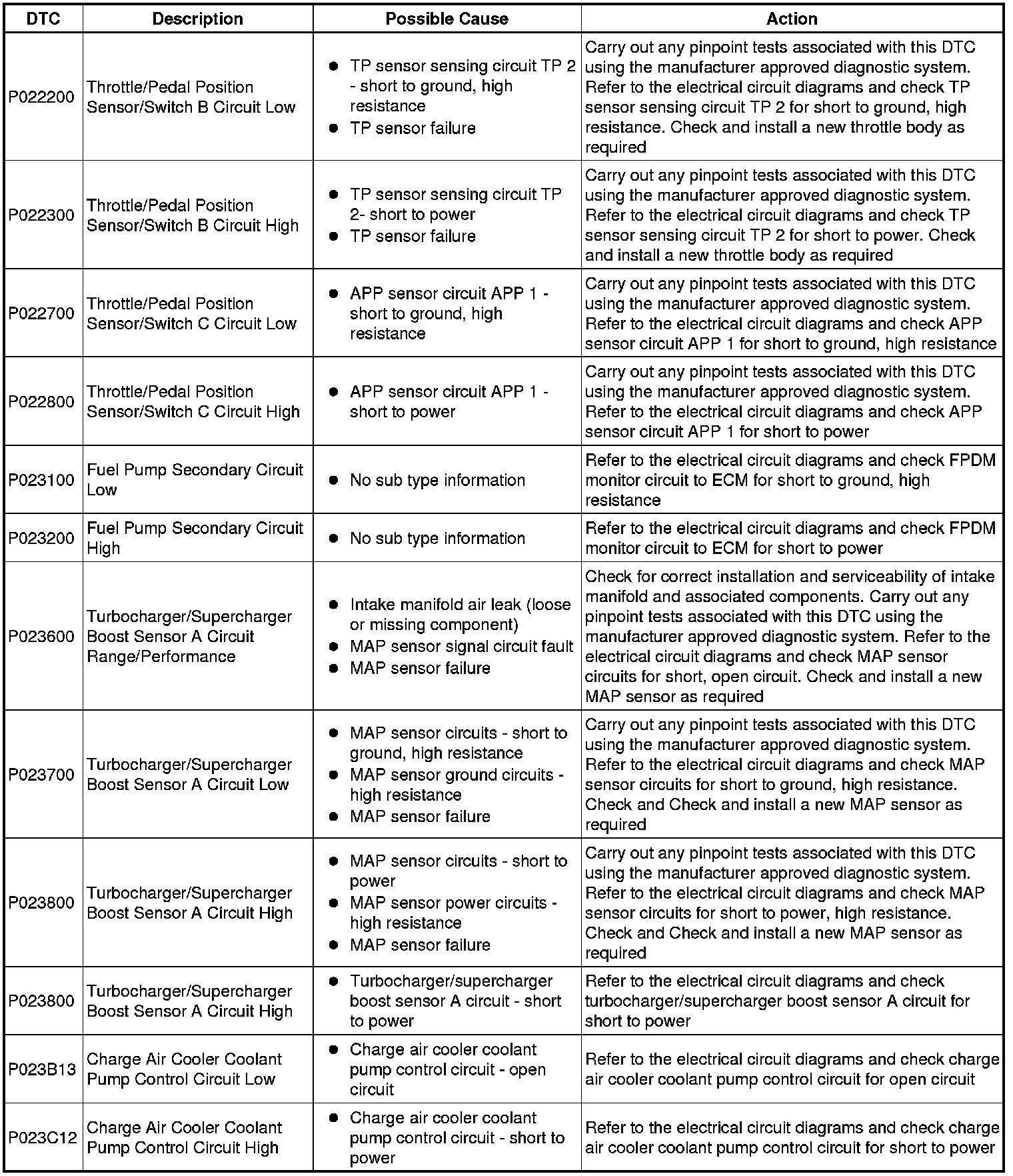

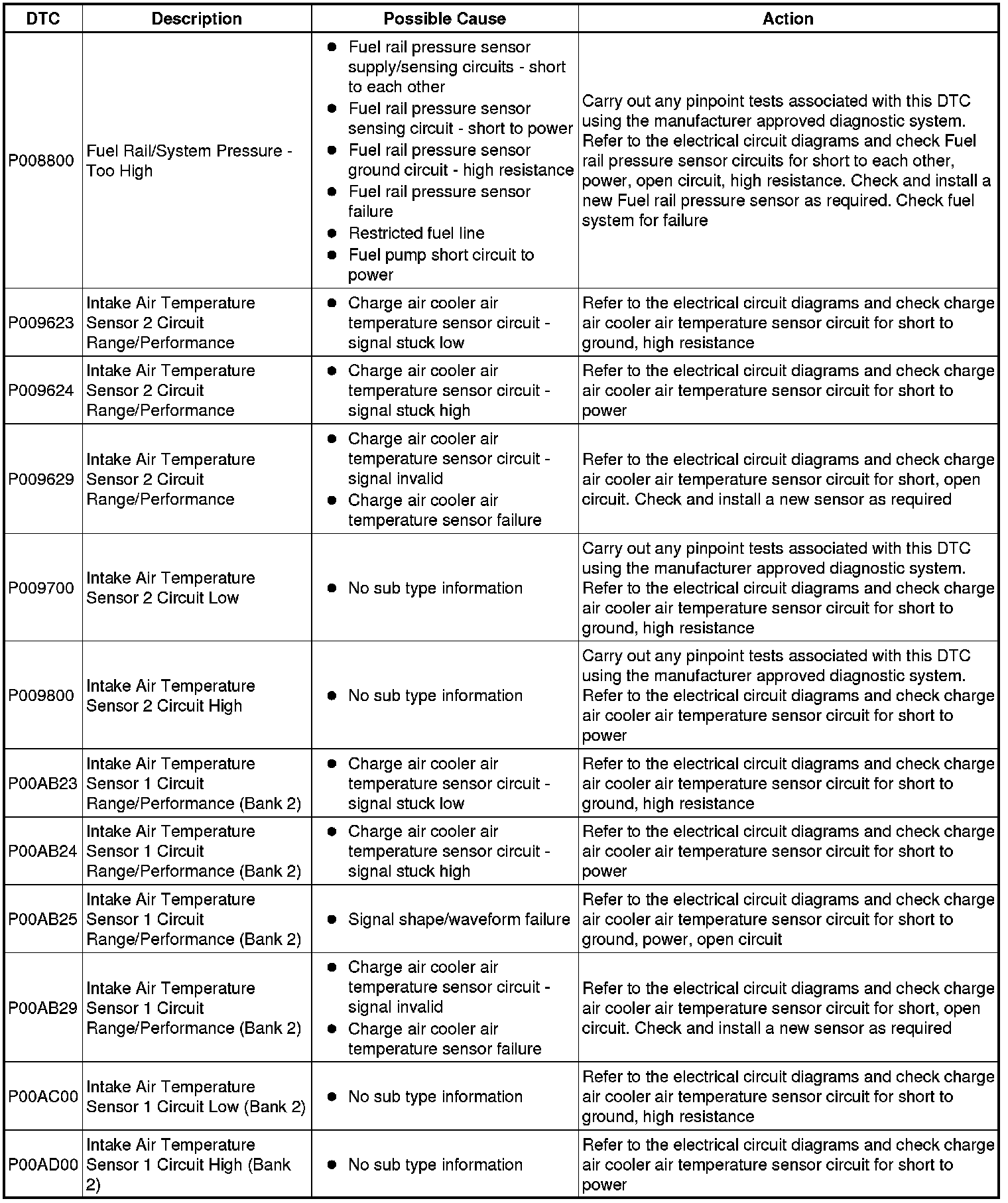

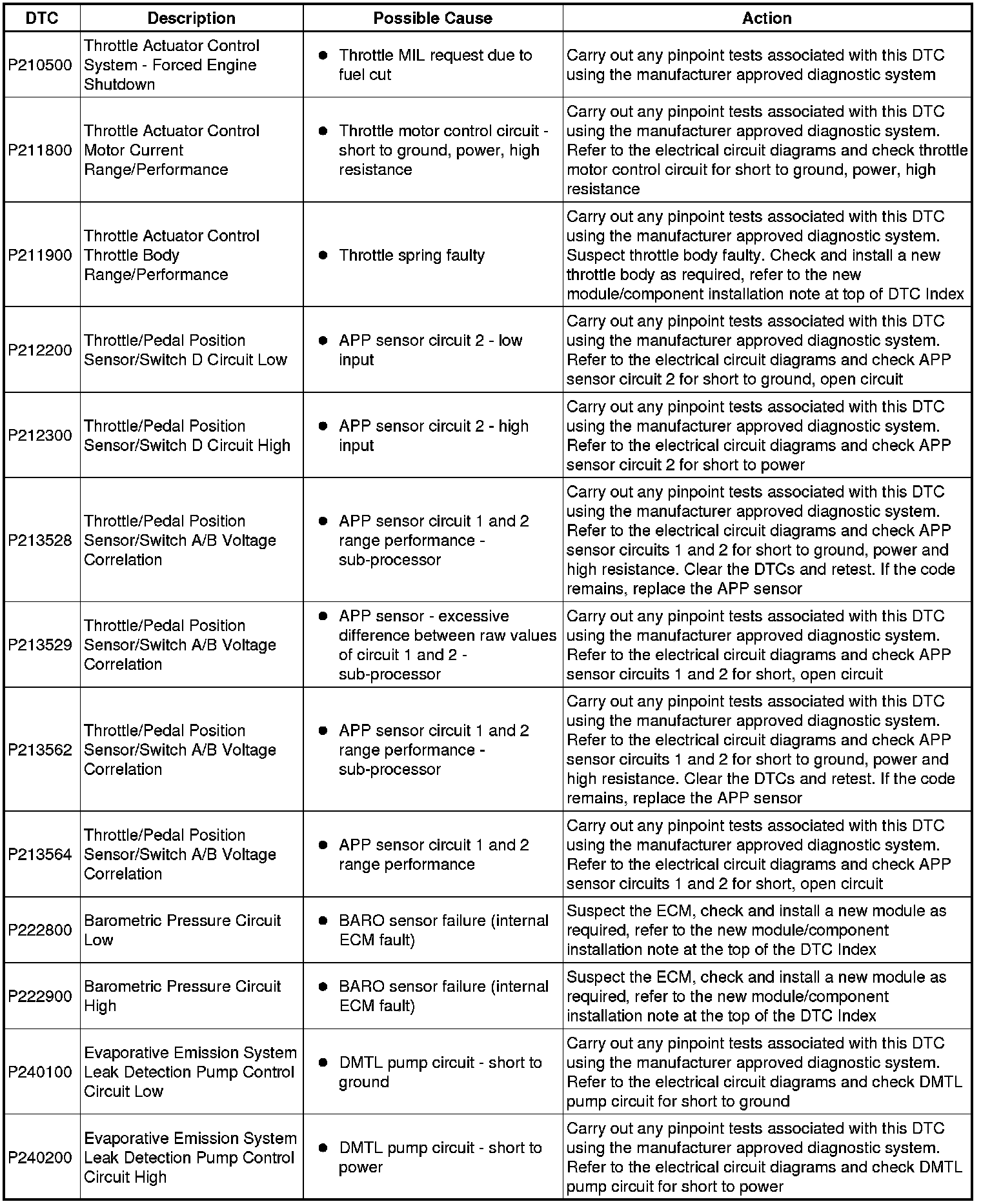

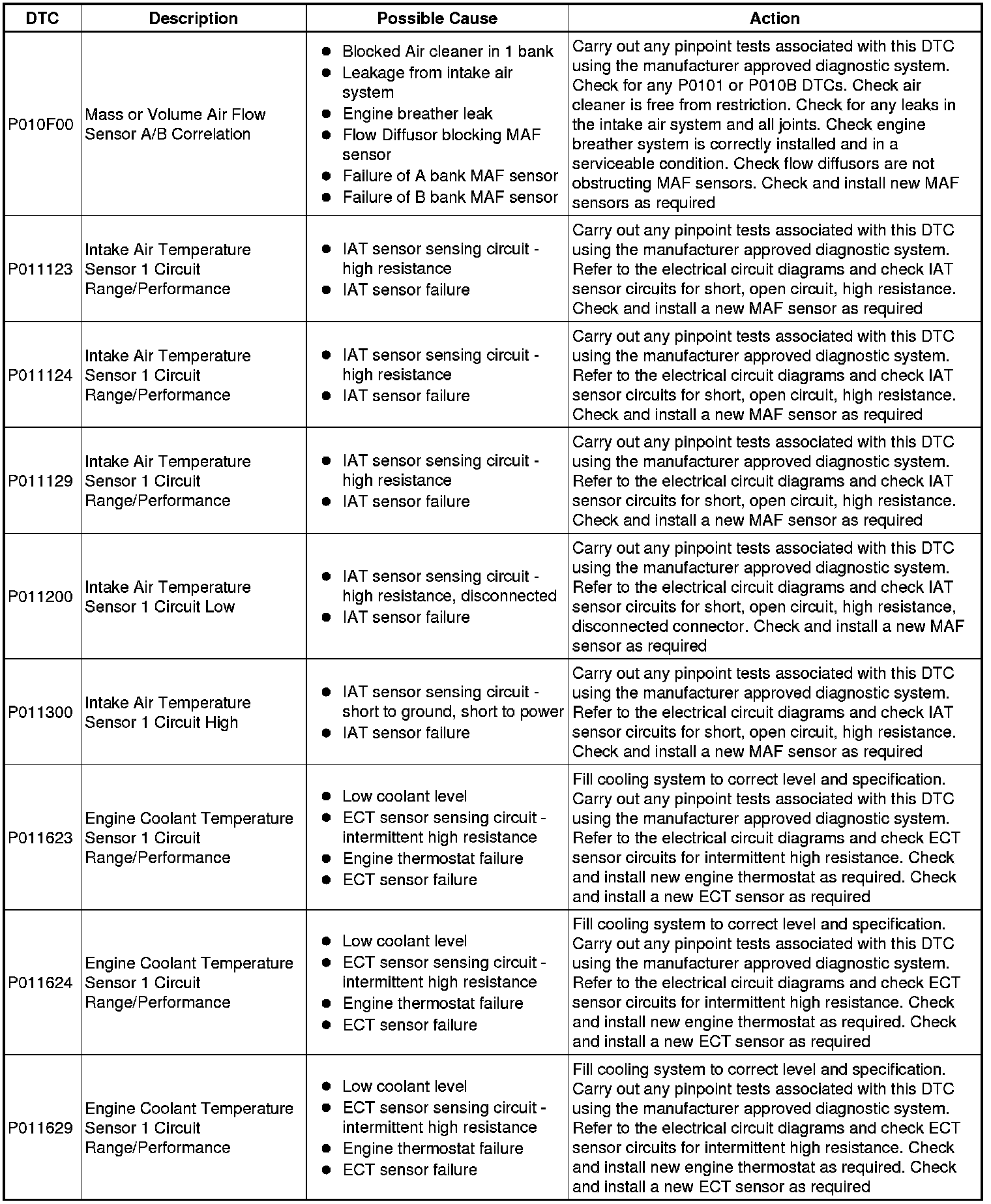

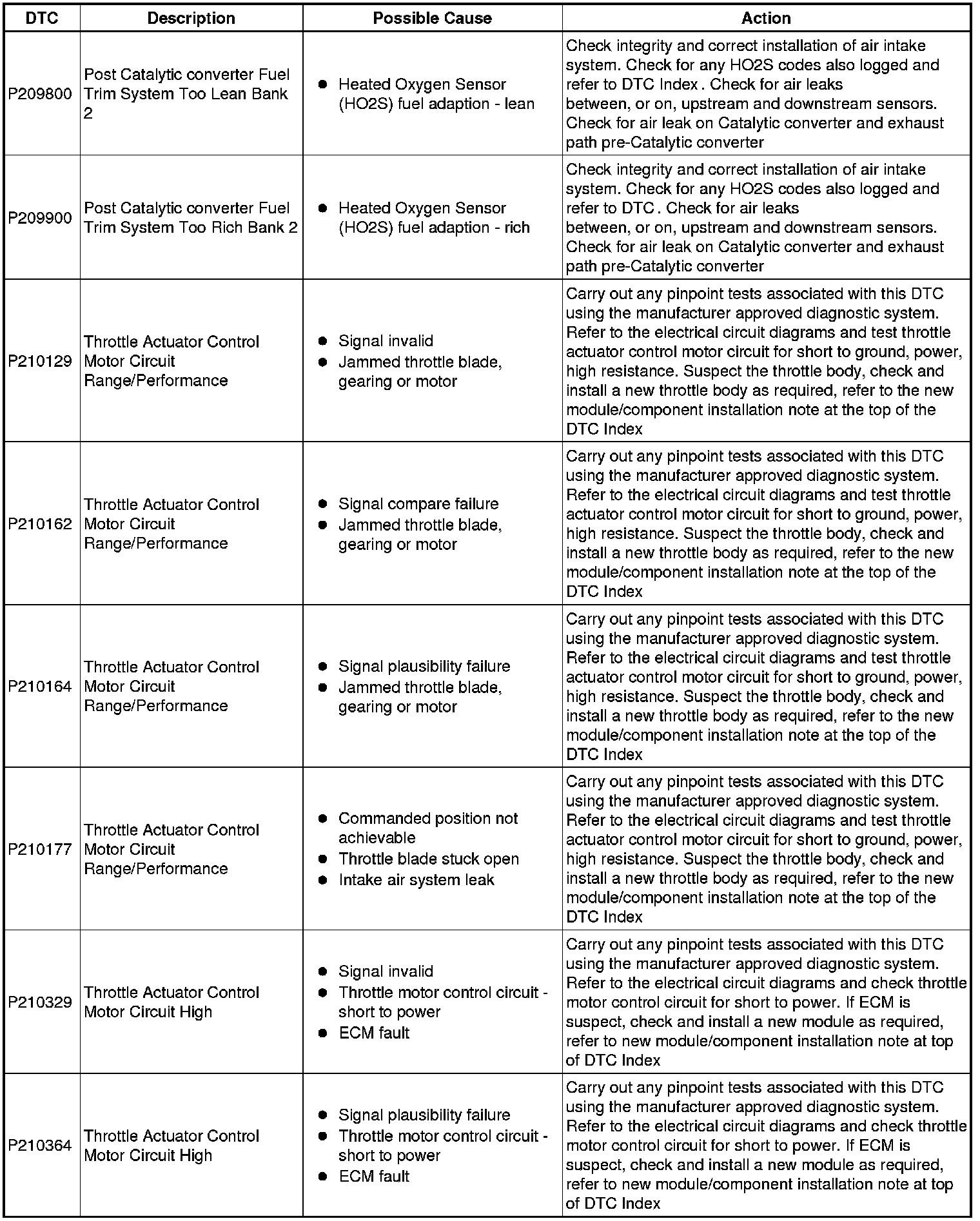

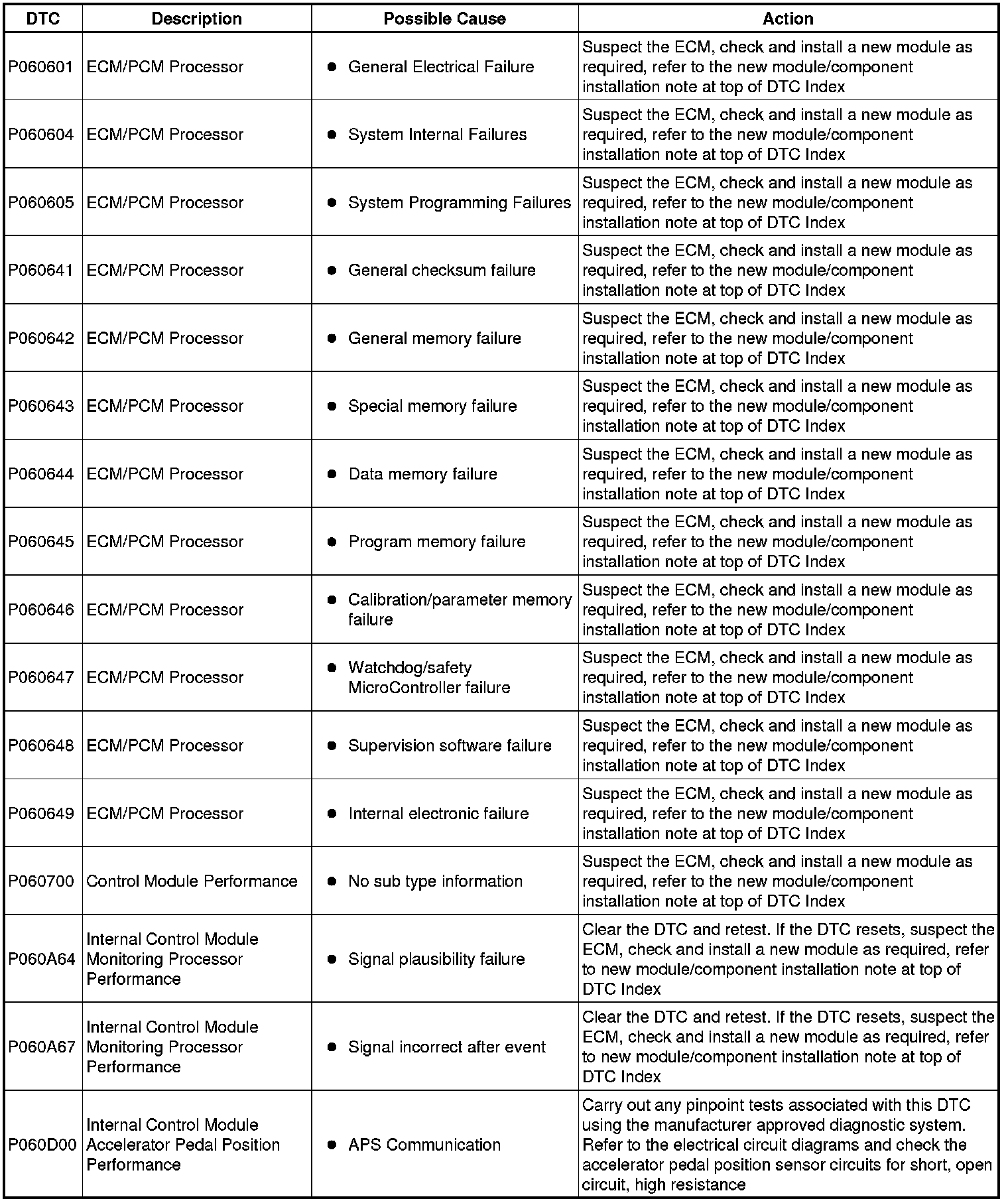

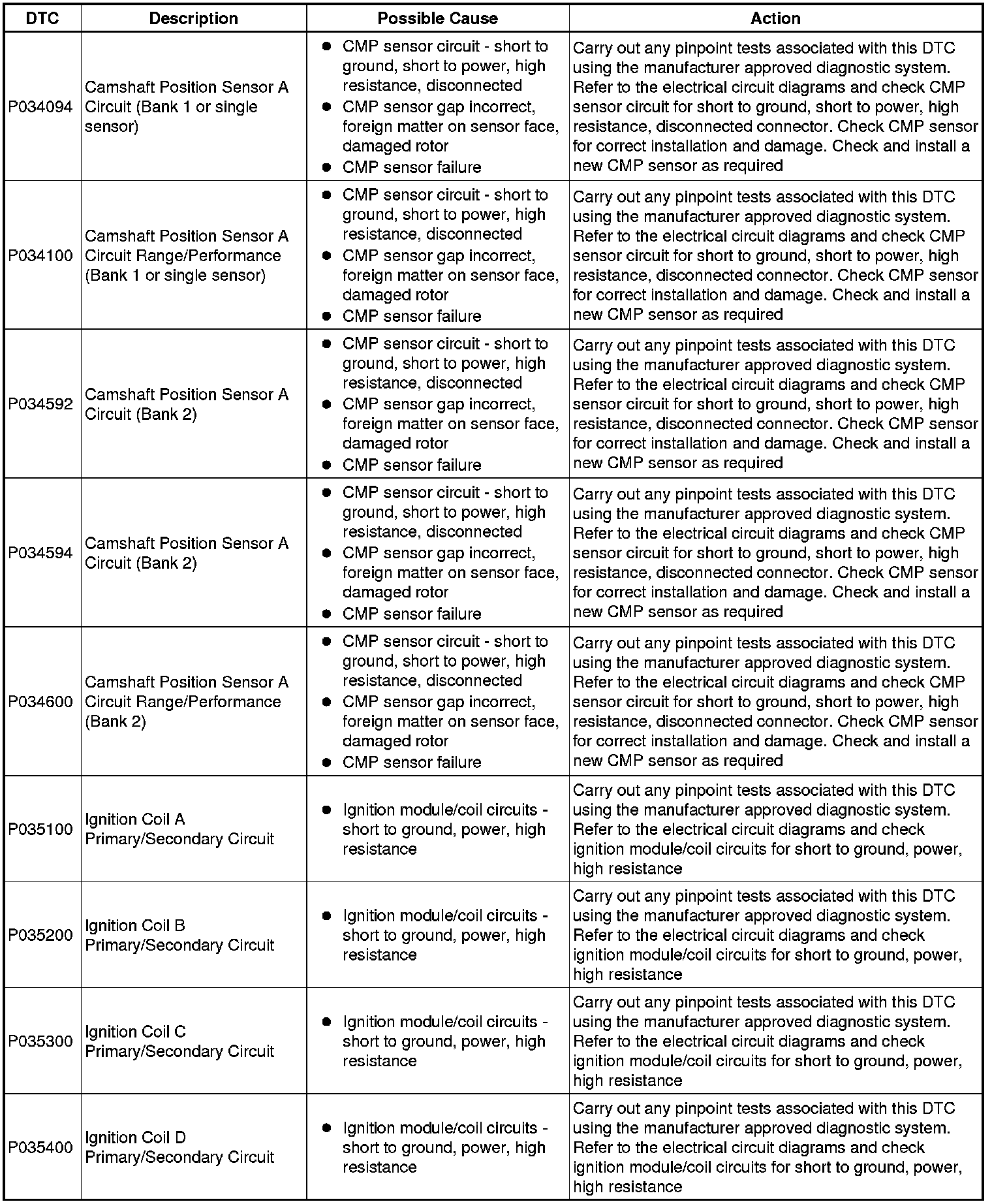

Powertrain Control Module (PCM) (4.2L)
