Alignment Specifications




Wheel Alignment Specifications

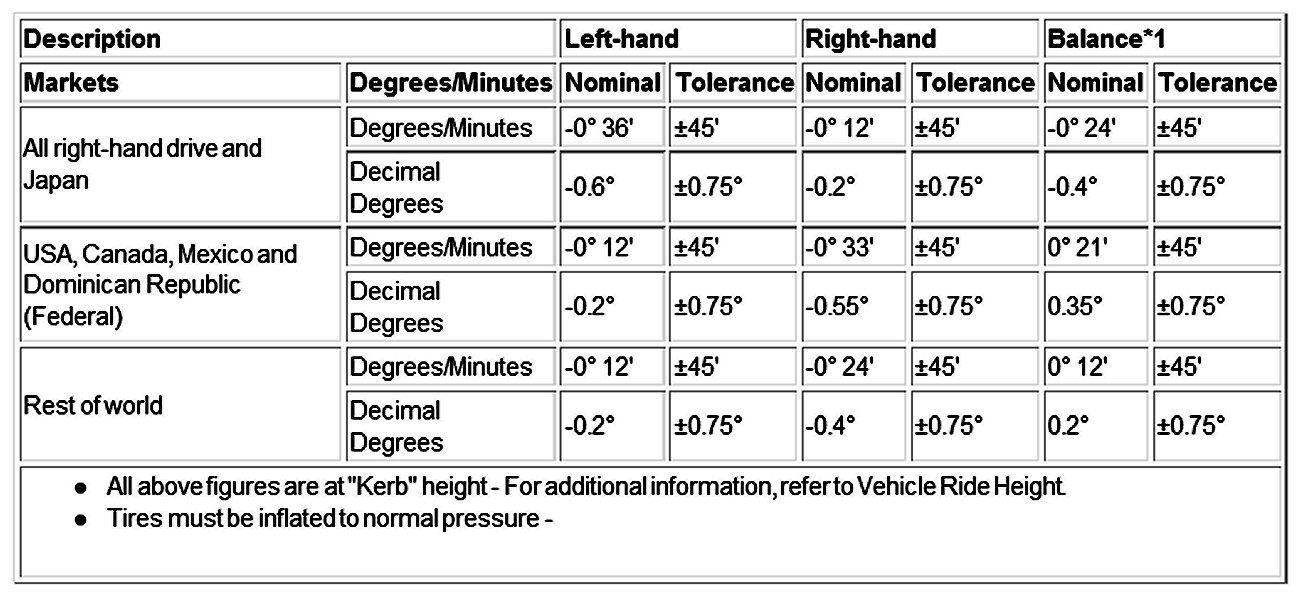

Front Camber

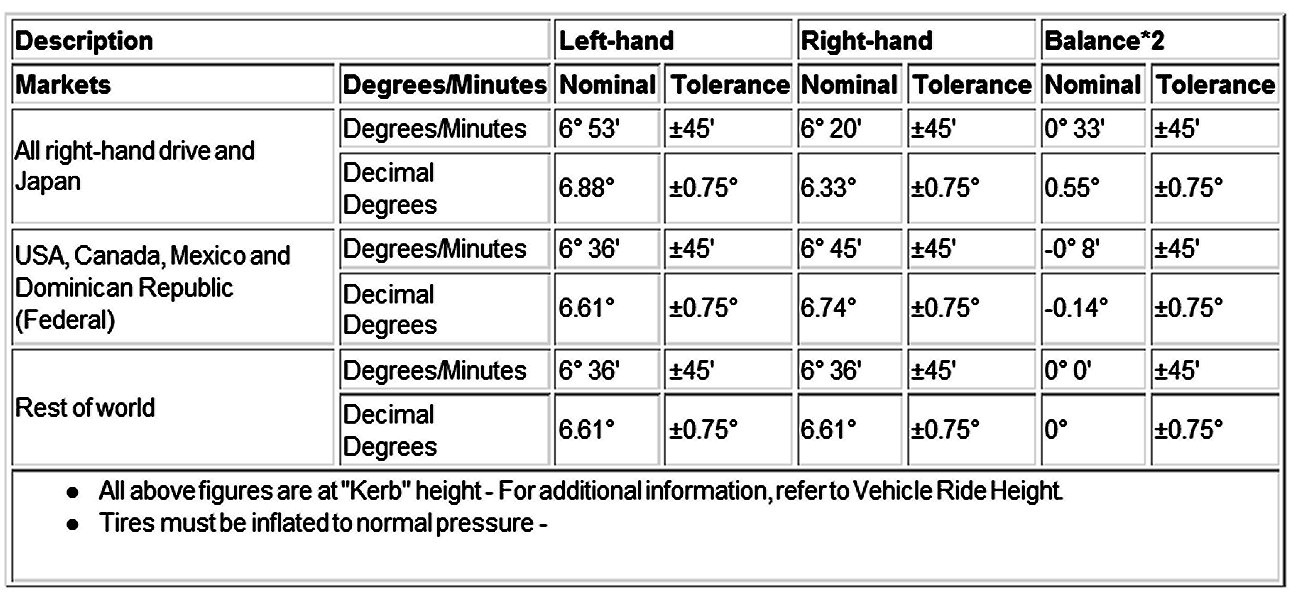

Front Caster

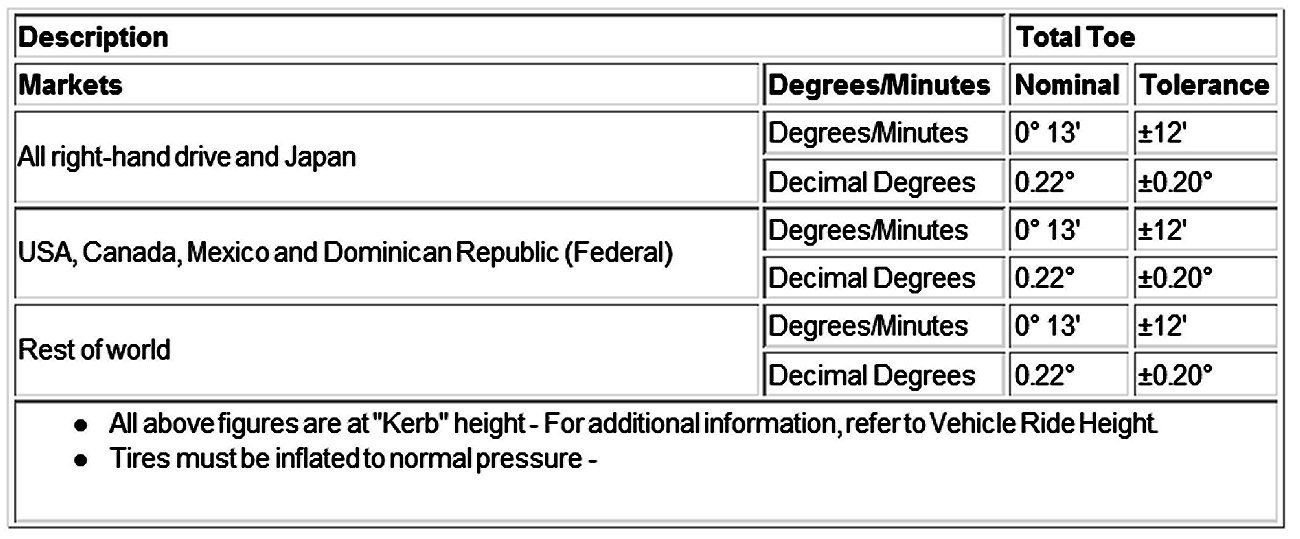

Front Toe

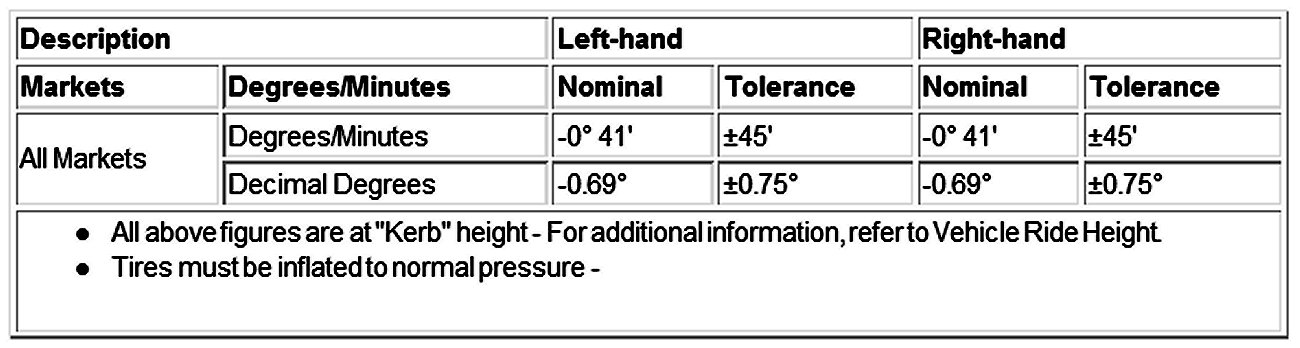

Rear Camber

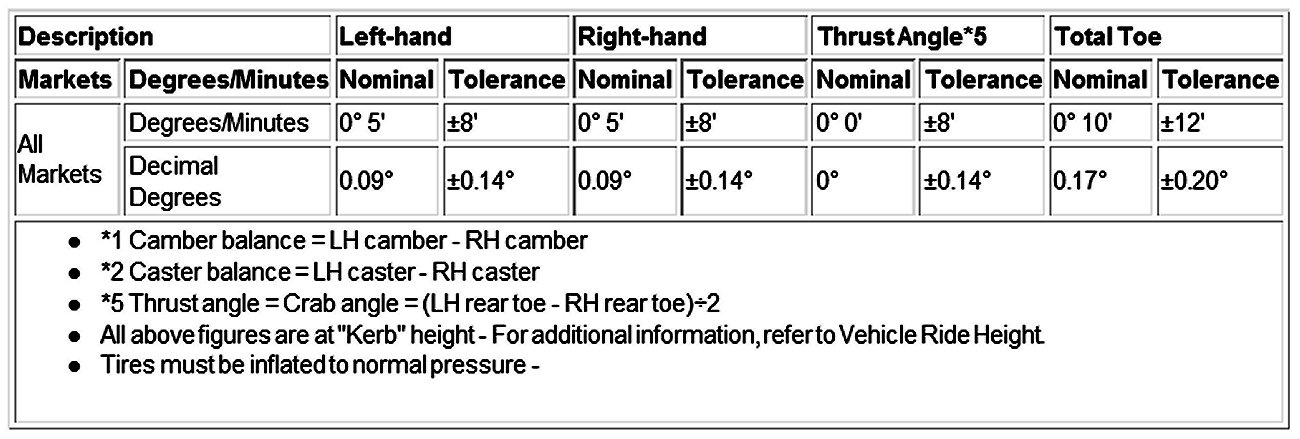

Rear Toe
