4.18.4 Monitoring Structure

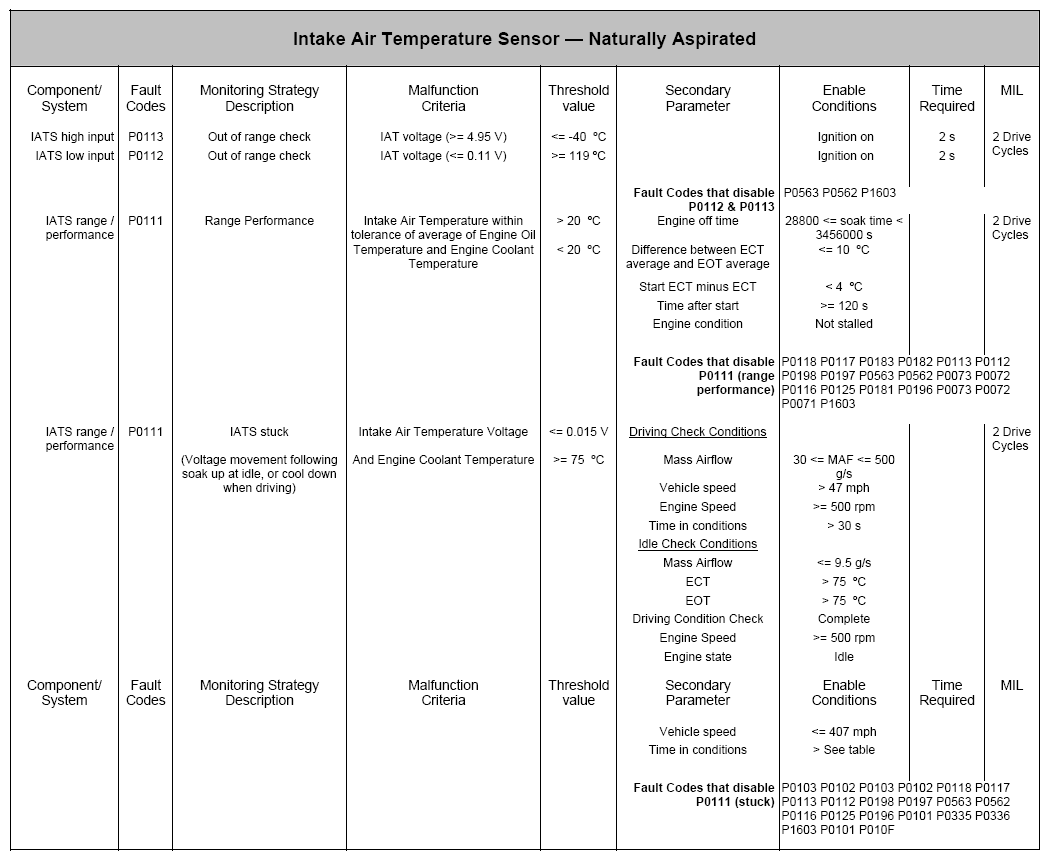

Fig 1: Intake Air Temperature Sensor - Naturally Aspirated (P0111, P0112, P0113)

Courtesy of JAGUAR CARS, INC.

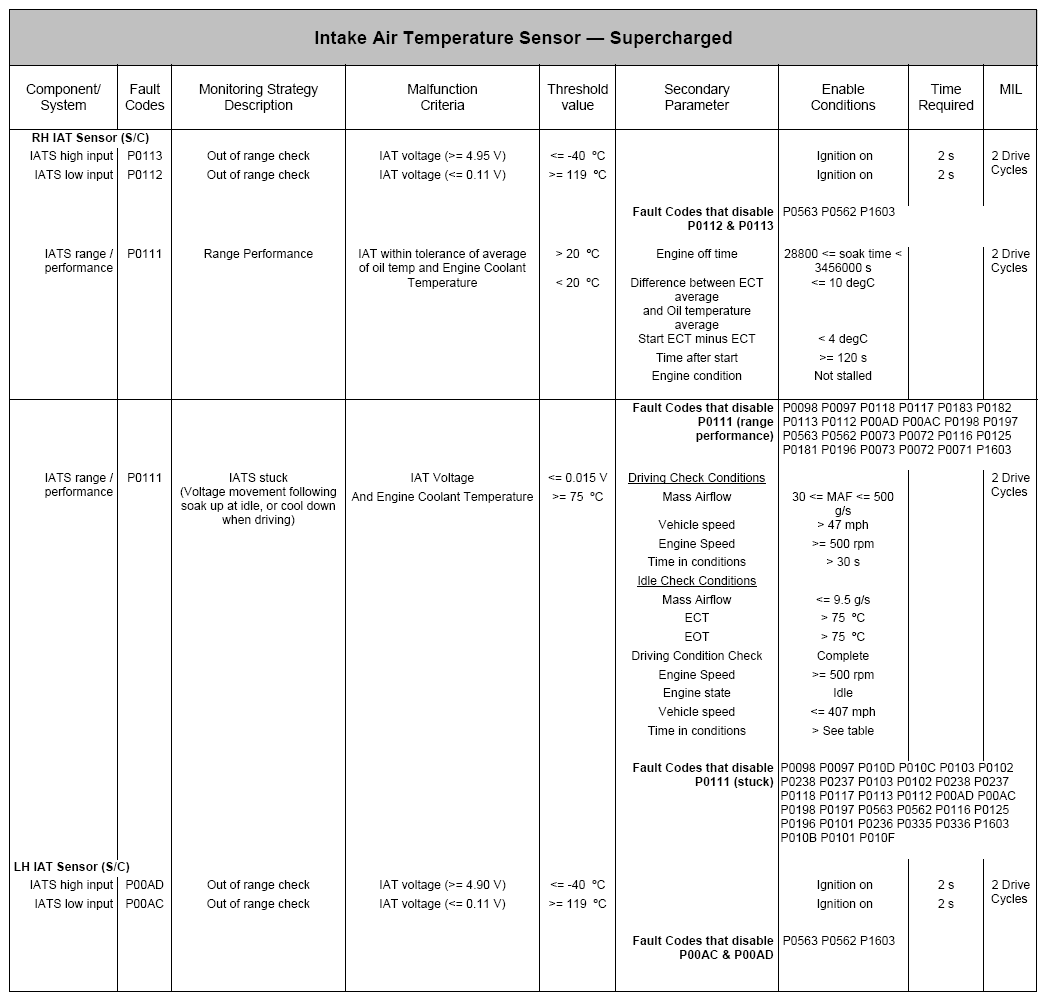

Fig 2: Intake Air Temperature Sensor - Supercharged (P00AC, P00AD, P0111, P0112, P0113) (1 Of 3)

Courtesy of JAGUAR CARS, INC.

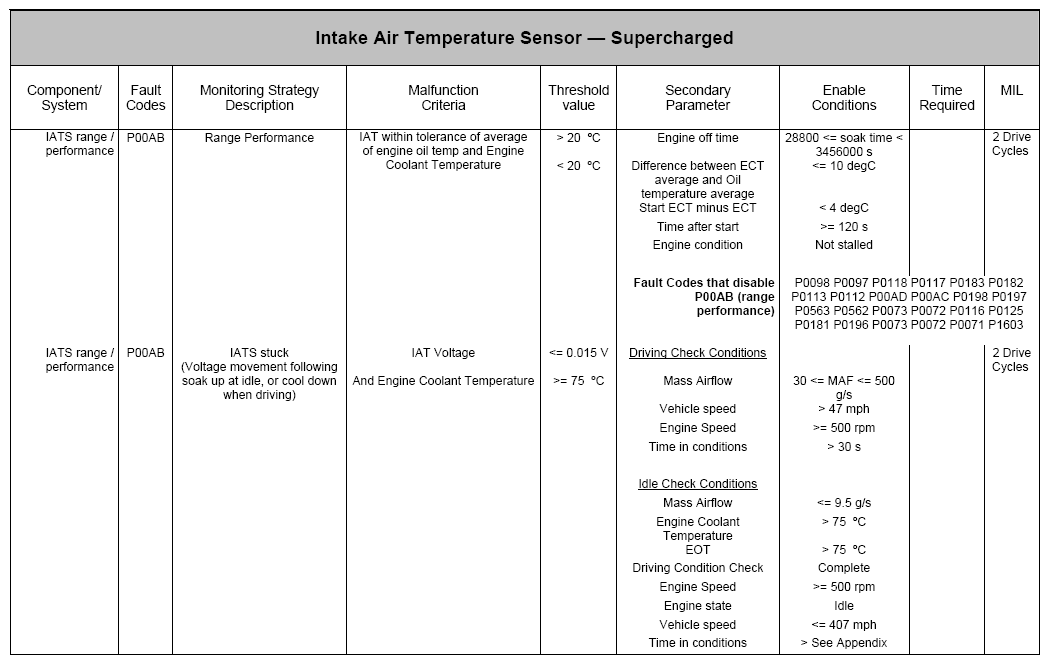

Fig 3: Intake Air Temperature Sensor - Supercharged (P00AB) (2 Of 3)

Courtesy of JAGUAR CARS, INC.

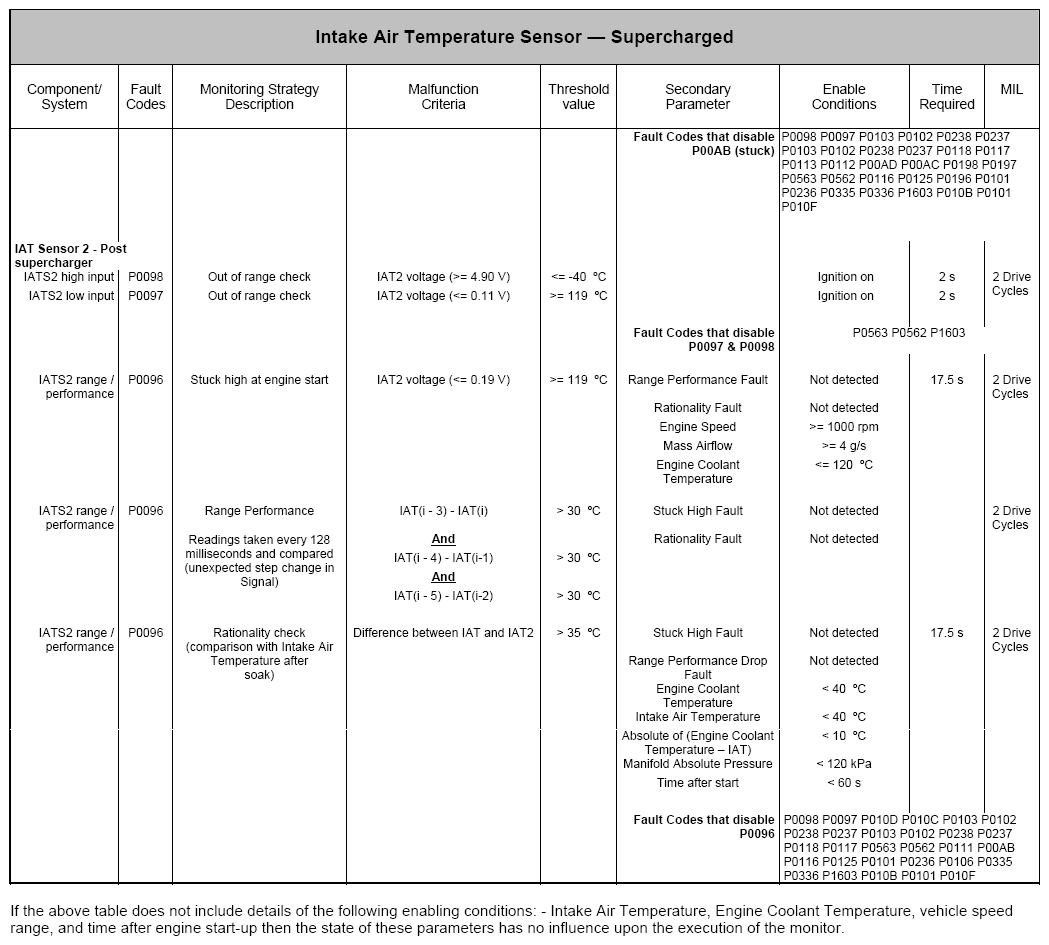

Fig 4: Intake Air Temperature Sensor - Supercharged (P0096, P0097, P0098) (3 Of 3)

Courtesy of JAGUAR CARS, INC.

Fig 5: Intake Air Temperature Sensor Performance Chart

Courtesy of JAGUAR CARS, INC.
