4.19.3 Monitoring Structure

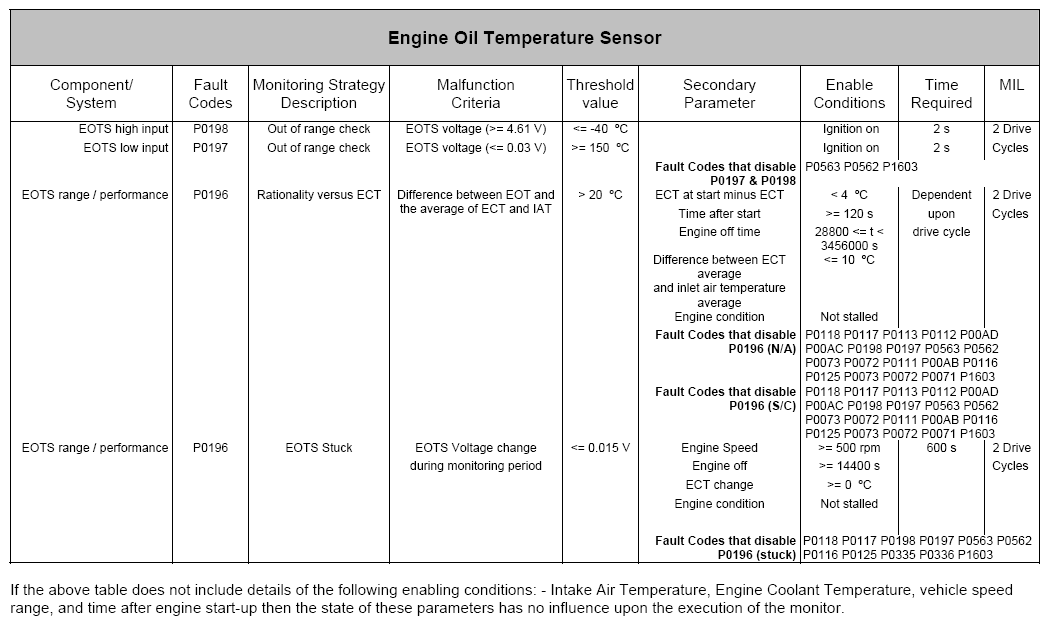

Fig 1: Engine Oil Temperature Sensor (P0196, P0197, P0198)
Courtesy of JAGUAR CARS, INC.
Courtesy of JAGUAR CARS, INC.
