4.20.3 Monitoring Structure

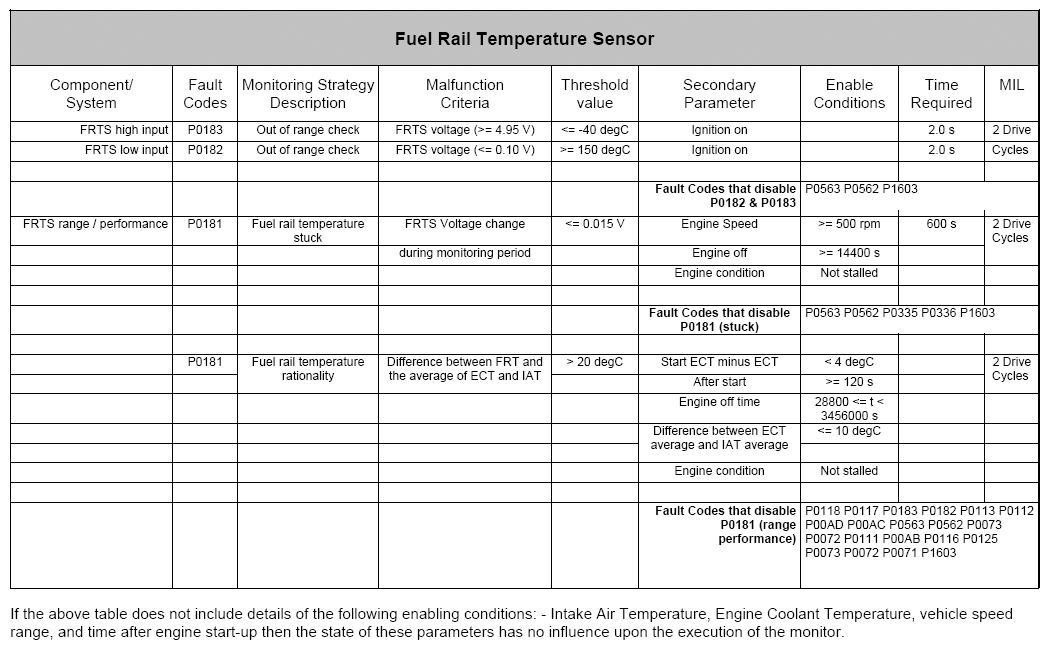

Fig 1: Fuel Rail Temperature Sensor (P0181, P0182, P0183)
Courtesy of JAGUAR CARS, INC.
Courtesy of JAGUAR CARS, INC.
