4.6.2 Monitoring Structure

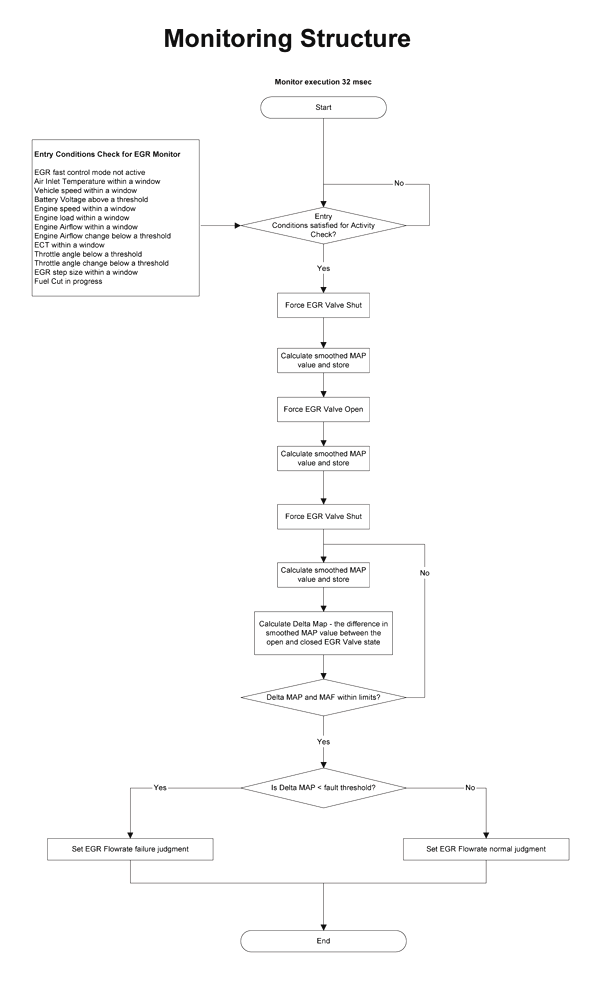

Fig 1: Monitoring Structure

G06421680

Courtesy of JAGUAR CARS, INC.

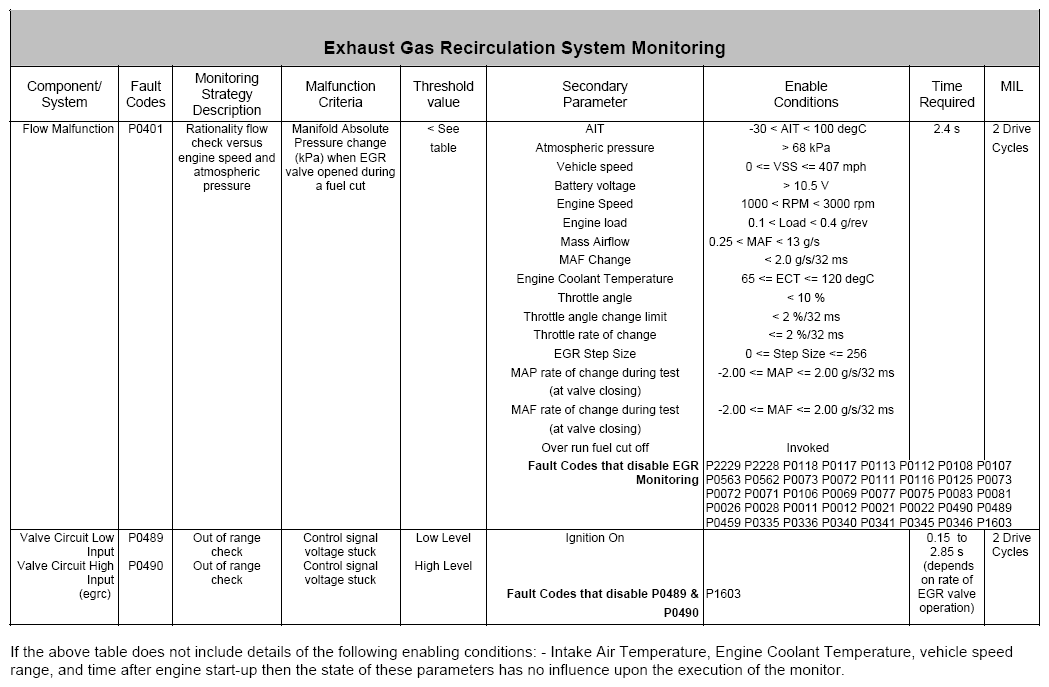

Fig 2: Exhaust Gas Recirculation System Monitoring (P0401, P0489, P0490)

G06421681

Courtesy of JAGUAR CARS, INC.
