Rear Climate Control Module Connector End View

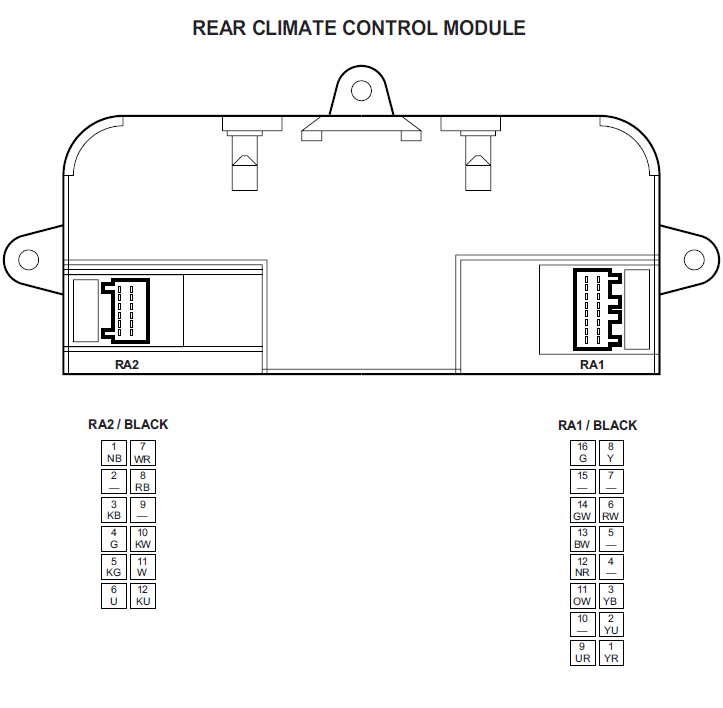

Fig 1: Rear Climate Control Module Connector End View
G00558692Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
