Climate Controlled Seat Module Connector End View

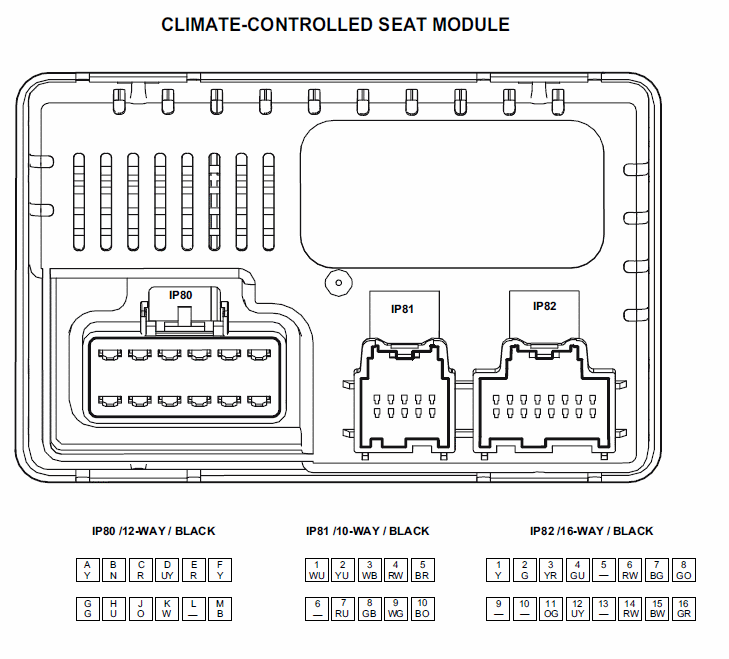

Fig 1: Climate Controlled Seat Module Connector End View
G00558683Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
