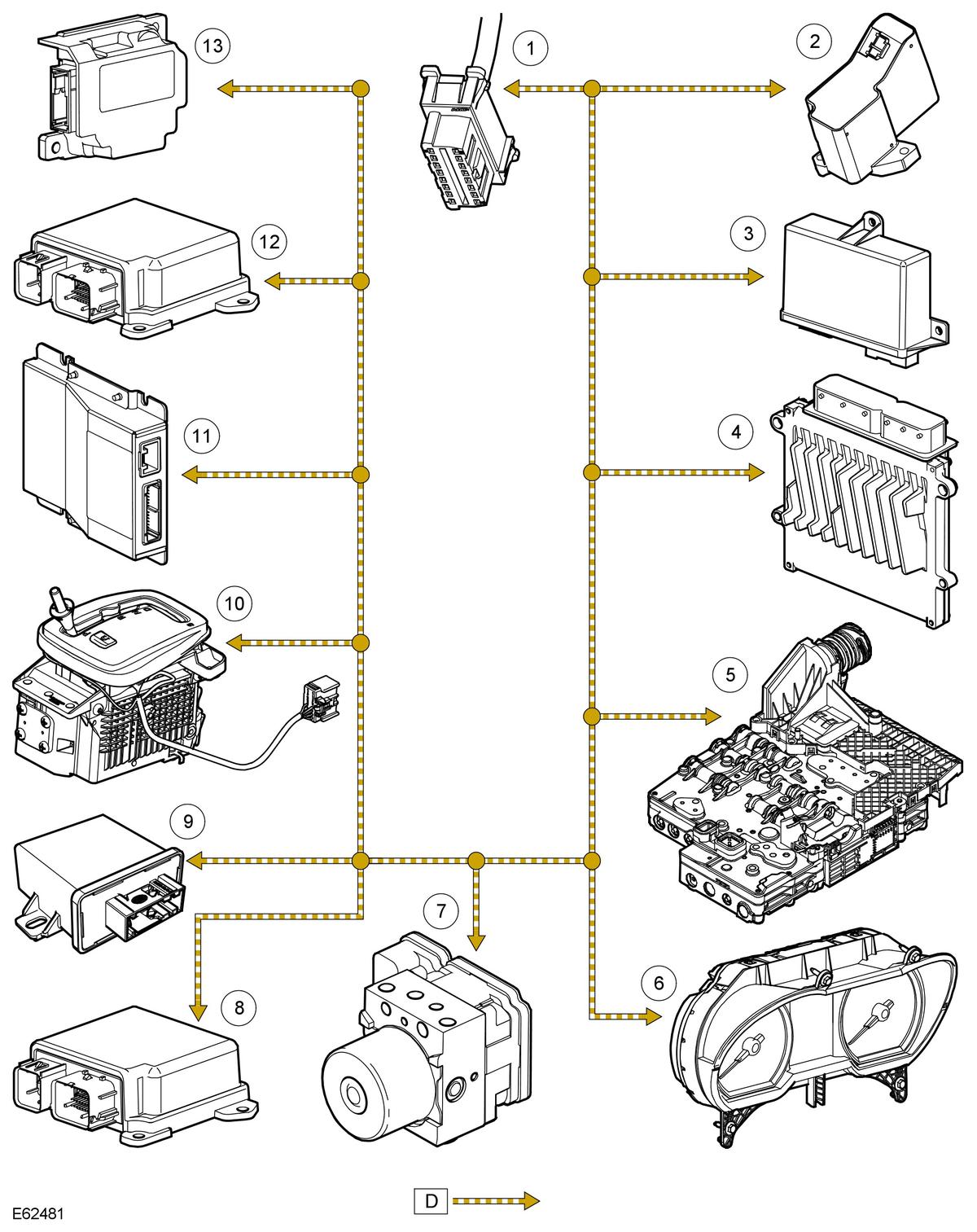

Control Diagram - High Speed Can Bus
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2009 Jaguar XKR, 2009 Jaguar XK8, 2008 Jaguar XKR, 2008 Jaguar XK8, and 2007 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.
| Item Number | Description |
|---|---|
| 1 | Diagnostic socket |
| 2 | Electric steering column lock |
| 3 | Park brake module |
| 4 | Engine Control Module (ECM) |
| 5 | Transmission Control Module (TCM) |
| 6 | Instrument cluster |
| 7 | Anti-lock Brake System (ABS) module |
| 8 | Restraints control module |
| 9 | Adaptive front lighting system control module |
| 10 | Gear shift module |
| 11 | Adaptive Damping Control Module (ADCM) |
| 12 | Pedestrian protection module |
| 13 | Adaptive speed control module |
NOTE:
D = High speed CAN bus
