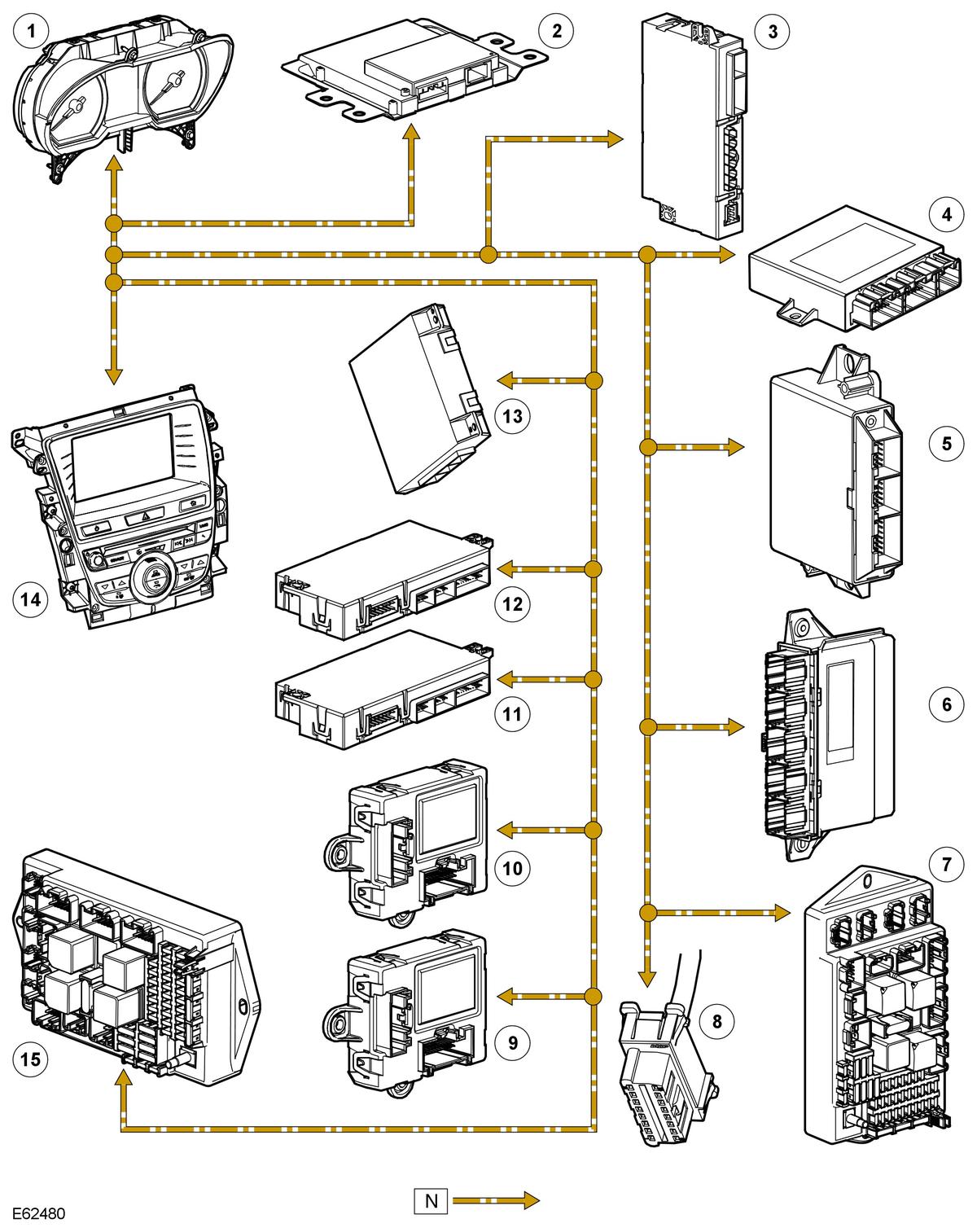

Control Diagram - Medium Speed Can Bus
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2009 Jaguar XKR, 2009 Jaguar XK8, 2008 Jaguar XKR, 2008 Jaguar XK8, and 2007 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.
| Item Number | Description |
|---|---|
| 1 | Instrument cluster |
| 2 | Information and Entertainment control module |
| 3 | Convertible top control module |
| 4 | Tire pressure monitoring control module |
| 5 | Parking aid module |
| 6 | Keyless vehicle module |
| 7 | Central Junction Box (CJB) |
| 8 | Diagnostic socket |
| 9 | Passenger door control module |
| 10 | Drivers door control module |
| 11 | Passenger seat module |
| 12 | Drivers seat module |
| 13 | Automatic Temperature Control (ATC) module |
| 14 | Integrated control panel |
| 15 | Auxiliary junction box |
NOTE:
N
= Medium speed CAN bus
NOTE:
Only the buttons of the Integrated control panel are connected to the medium speed CAN bus. The Touch Screen Display (TSD) is connected to the MOST ring.
