Circuit Protection Devices

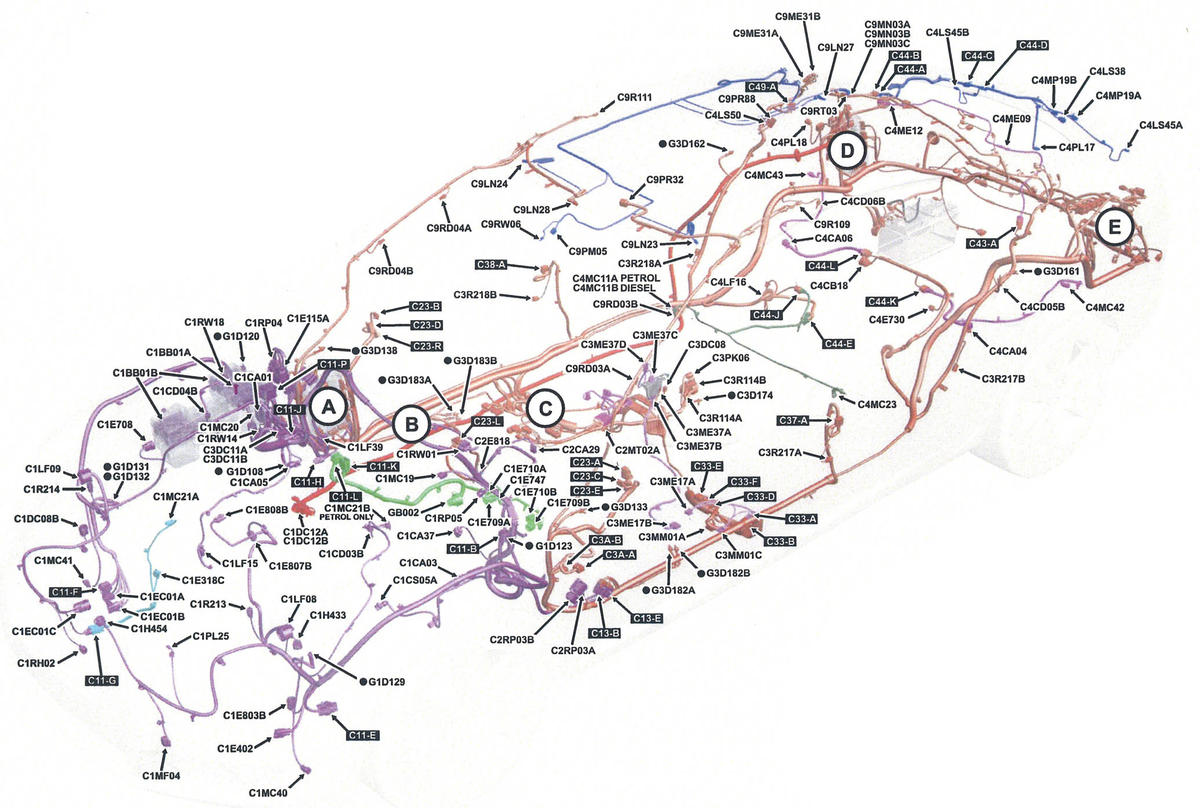

CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location |
|---|---|

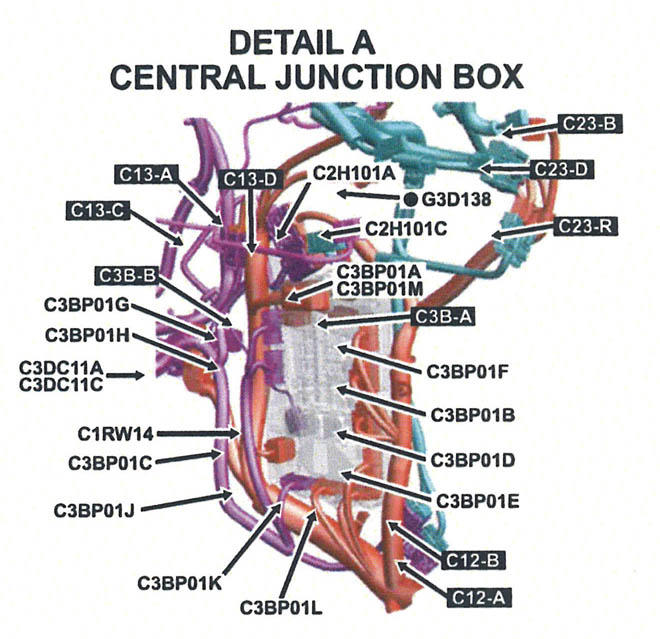

| Central Junction Box (C3BP01A) | Right kick panel. See Figure. |
| Engine Compartment Fuse Box | Right rear of engine compartment. |

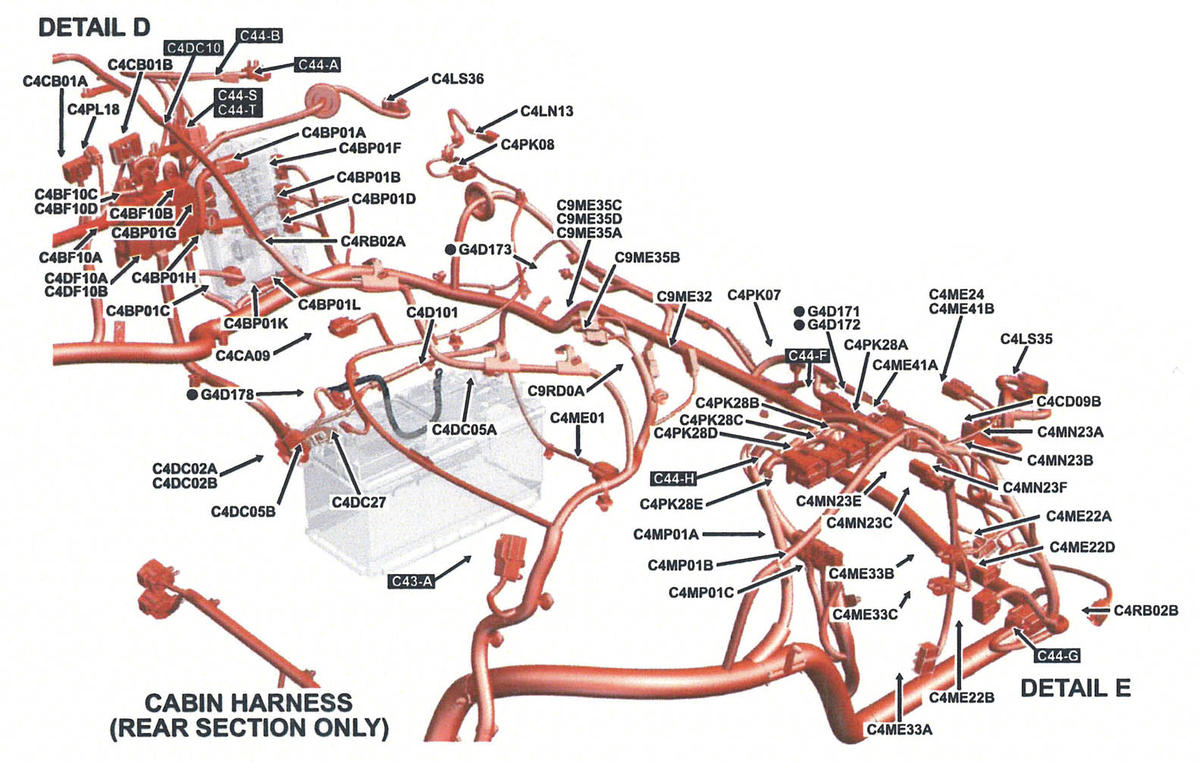

| Junction Box - Battery (C4BF10A) | Right side of luggage compartment. See Figure. |
| Junction Box - Engine (C1BB01A) | Under engine compartment fuse box. See Figure. |
| Junction Box - Rear (C4BP01B) | Right side of luggage compartment. See Figure. |
