Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| ABS Module (C1CA01) | Right rear of engine compartment. See Figure. |

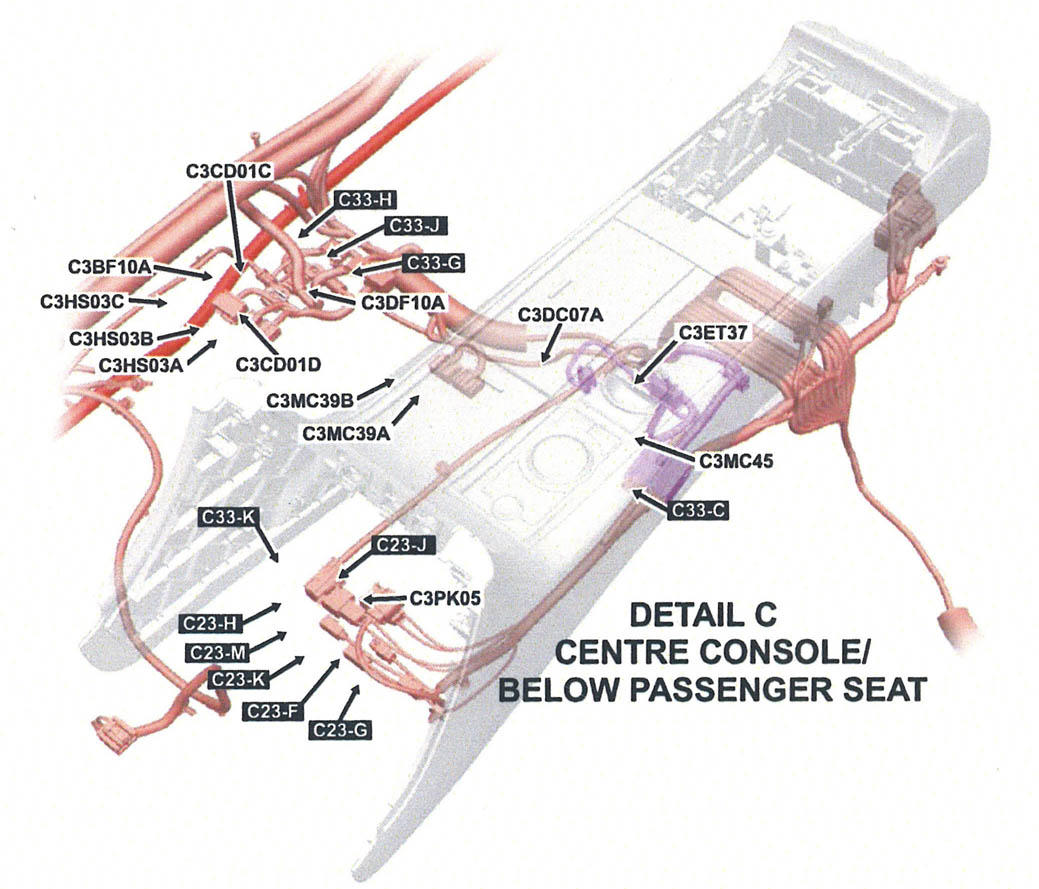

| Adaptive Damping Module (C3CD01C) | Under front passenger's seat. See Figure. |
| Blind Spot Monitoring Module - Left | Behind left side of rear bumper. |
| Blind Spot Monitoring Module - Right | Behind right side of rear bumper. |

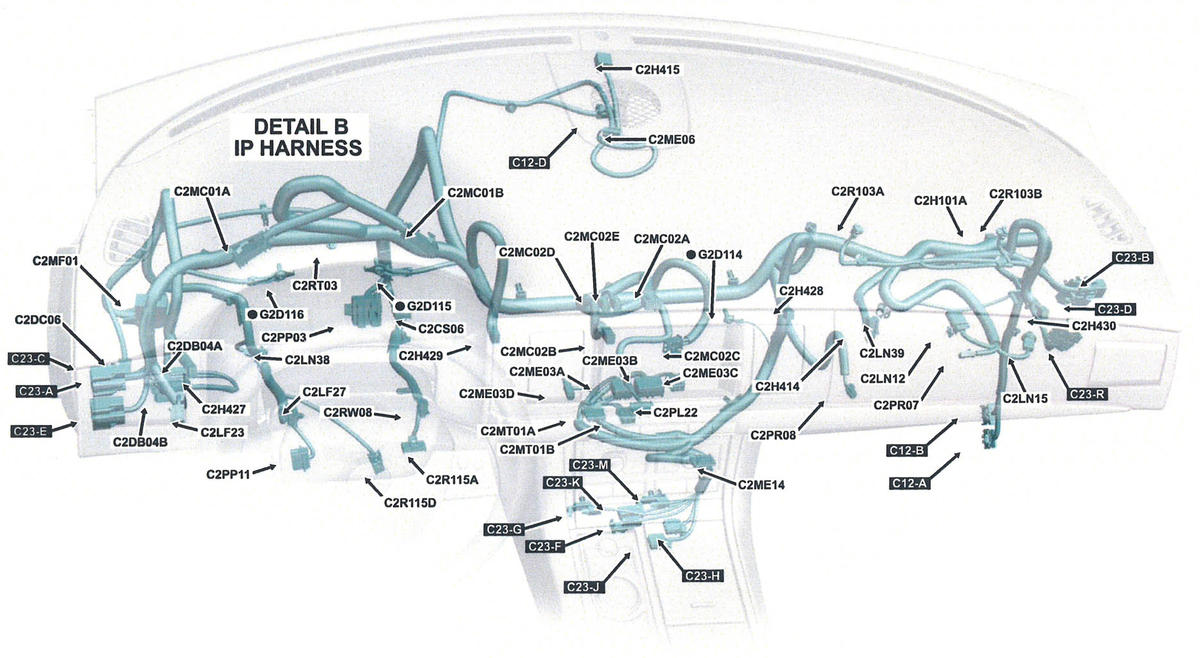

| Blower Motor Control Module (C2H102) | Behind right side of dash. See Figure. |
| Climate Controlled Seat Module | Under front passenger's seat. |
| Climate Control Module (C2H101A) | Top of right kick panel. See Figure. |
| Cooling Fan Control Unit (C1EC01C) | Behind right side of front bumper. See Figure. |
| Driver Seat Module | Under driver's seat. |
| Engine Control Module (ECM) (C1E117B) | Right rear of engine compartment. See Figure. |
| Fuel Pump Driver Module | Under right rear of vehicle. |
| Glove Compartment Control Module (C2PR08) | Behind right side of dash. See Figure. |
| Headlight Control Module (C1LF39) | In passenger's footwell. See Figure. |
| Keyless Vehicle Module (C4PK28A) | Left side of luggage compartment. See Figure. |
| Navigation System Module (C4MN23A) | Left side of luggage compartment. See Figure. |
| Parking Aid Module (C4MP01A) | Left side of luggage compartment. See Figure. |
| Parking Brake Module (C4CB01A) | Right rear of luggage compartment. See Figure. |
| Pedestrian Protection Module (C2RP03A) | Left kick panel. See Figure. |
| Restraints Control Module (RCM) | Under rear of center console. |
| SDARS Module (C4ME41A) | Left side of luggage compartment. See Figure. |
| Seat Occupancy Module | Under front passenger's seat. |
| Speed Control Module (C2MF01) | Behind left end of dash. See Figure. |
| Start Control Unit (C2DC06) | Left end of dash. See Figure. |
| Steering Column Locking Module (C2RT03) | Behind instrument cluster. See Figure. |
| Steering Column Unit (C2PP03) | On steering column. See Figure. |
| Telephone Module | Under driver's seat. |
| Tire Pressure Monitoring System Module (C3MC39A) | Under front passenger's seat. See Figure. |
| Transmission Control Module (TCM) | Right side of transmission. |
| Transmission Shift Module (C3ET37) | Under center console. See Figure. |
