2.1 Inputs and Outputs

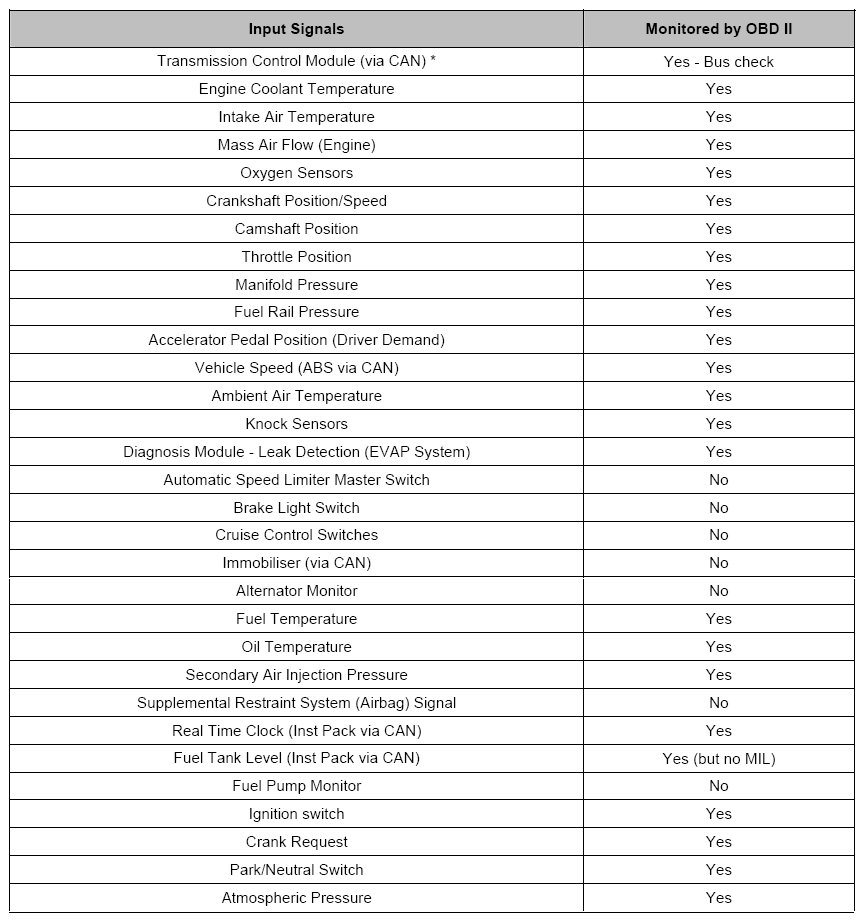

Fig 1: Input Signals Chart
G06421771Courtesy of JAGUAR CARS, INC.

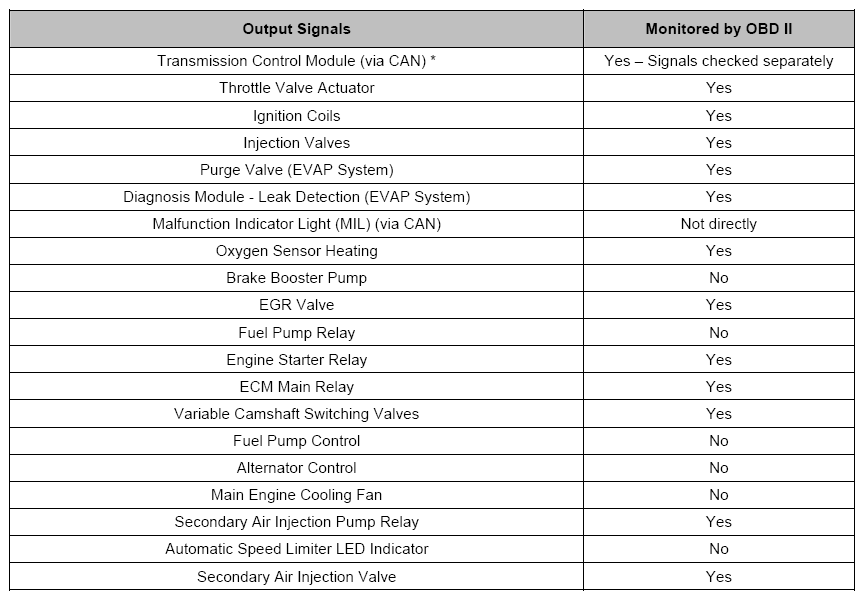

Fig 2: Output Signals Chart
G06421772Courtesy of JAGUAR CARS, INC.
