4.1.2 Monitoring Structure

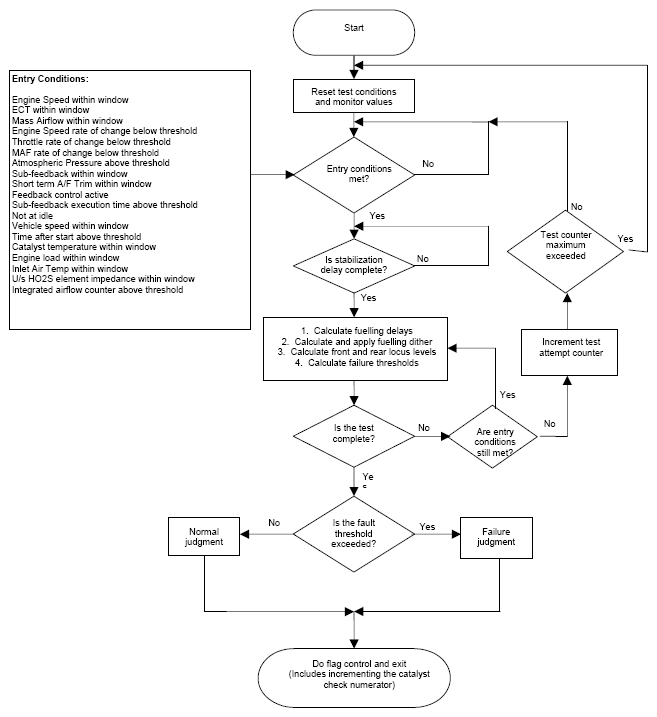

Fig 1: Monitoring Structure
G06421786Courtesy of JAGUAR CARS, INC.

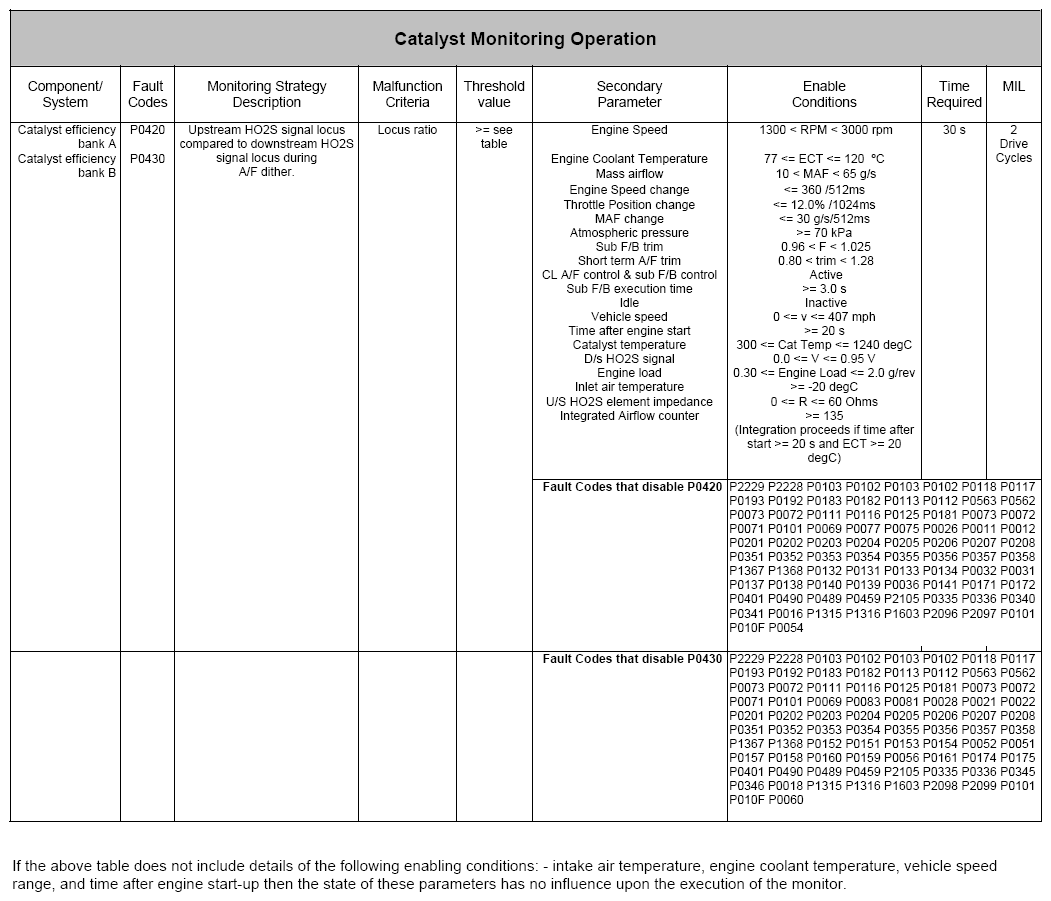

Fig 2: Catalyst Monitoring Operation (Diagnostic Trouble Code P0420, P0430)
G06421787Courtesy of JAGUAR CARS, INC.
Fig 3: Catalyst Monitor Fault Chart
G06421788Courtesy of JAGUAR CARS, INC.
