4.20.3 Monitoring Structure

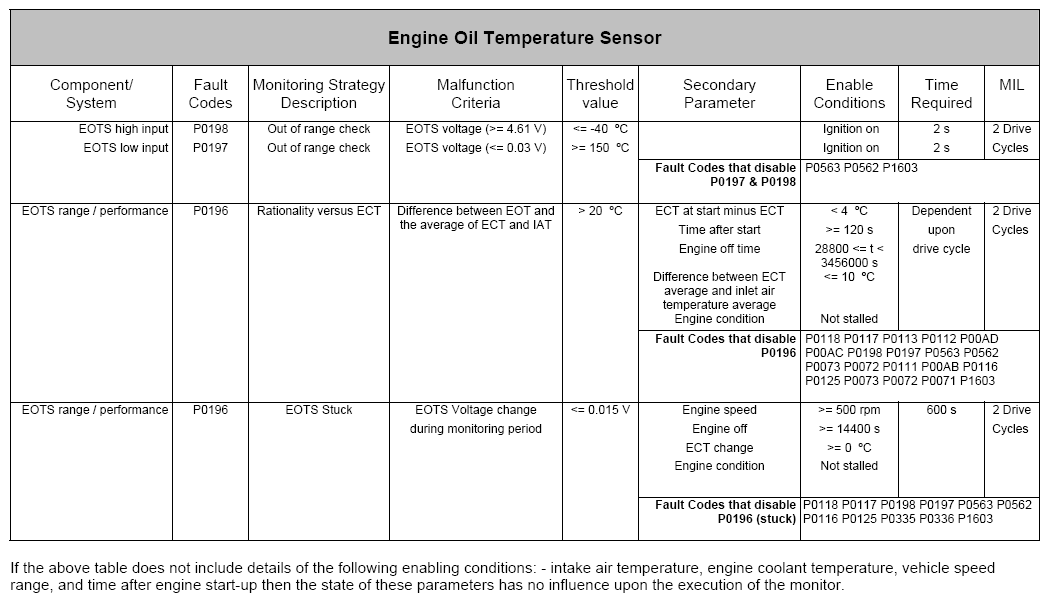

Fig 1: Engine Oil Temperature Sensor (Diagnostic Trouble Codes P0196, P0197, P0198)
G06421860Courtesy of JAGUAR CARS, INC.
