XF (X250) V8-5.0L SC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Air Bag Control Module
>>
C3R114B Restraints Control Module (RCM)
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

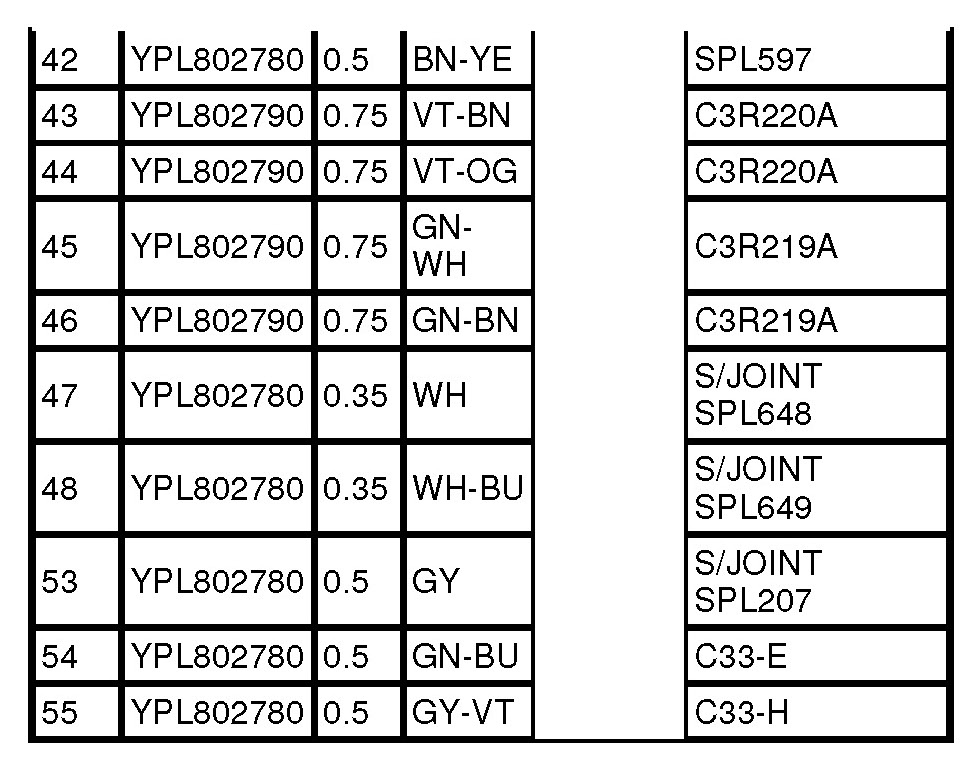

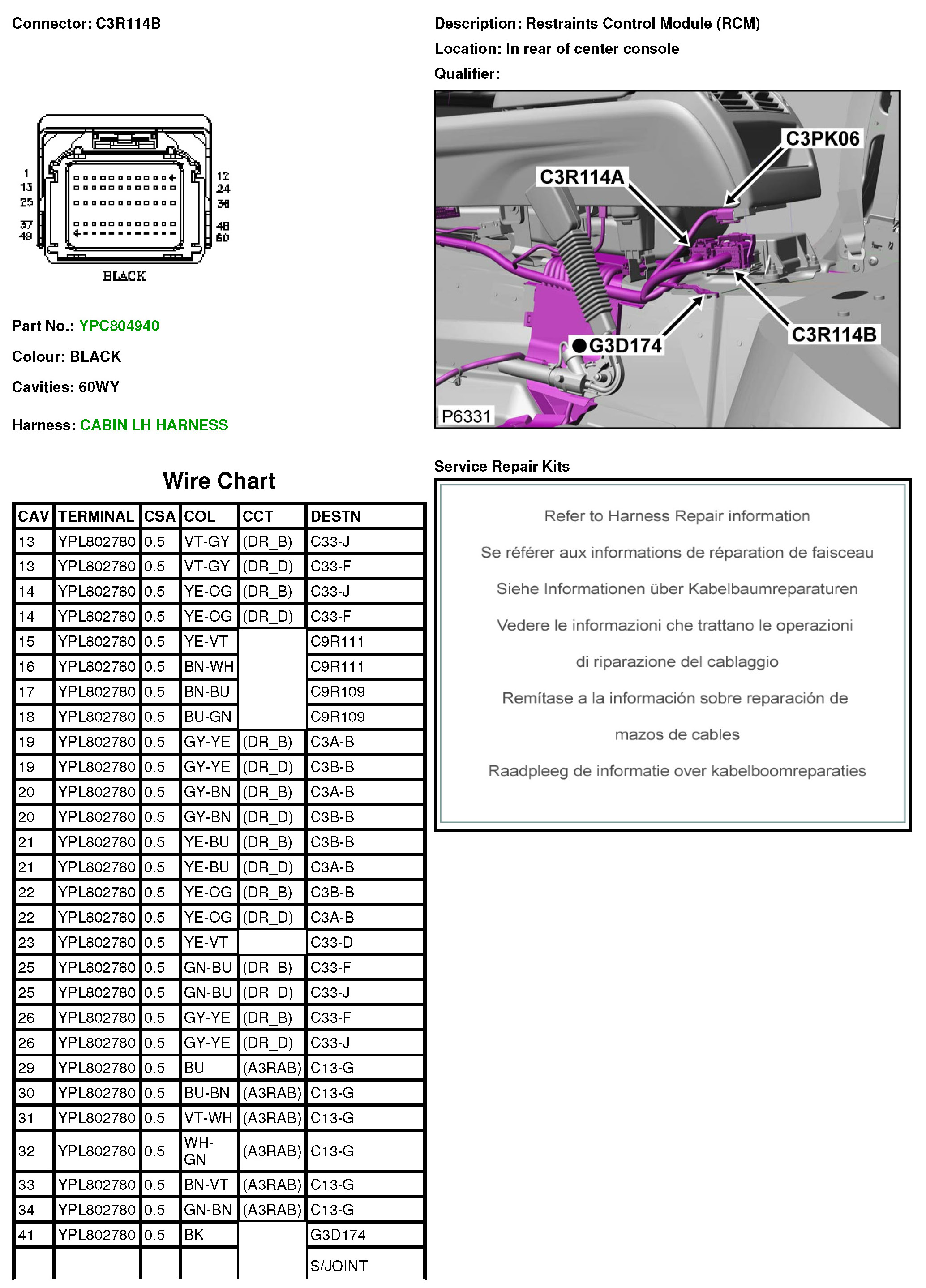

C3R114B Restraints Control Module (RCM)
C3R114B
