XF (X250) V8-5.0L SC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Control Unit, Differential Lock
>>
C4ET63A Rear Differential Control Module
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

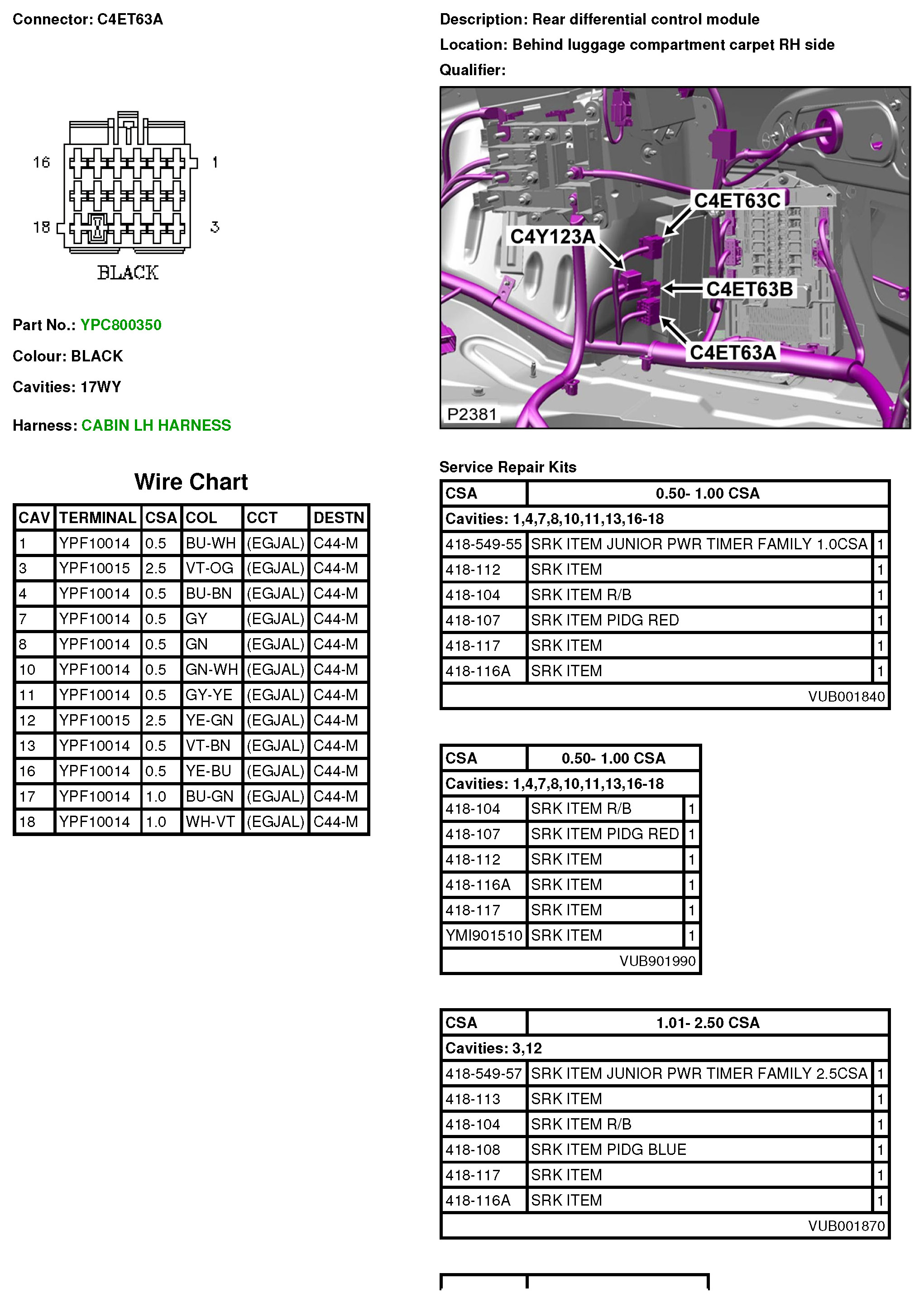

C4ET63A Rear Differential Control Module
C4ET63A
