LEMON Manuals: Even more car manuals for everyone: 1960-2025
Home >> Jaguar >> 2012 >> XF (X250) V8-5.0L SC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Door Module >> CBPL64 Module-Door Latch-Passenger
April 5, 2026: LEMON Manuals is launched! Read the announcement.

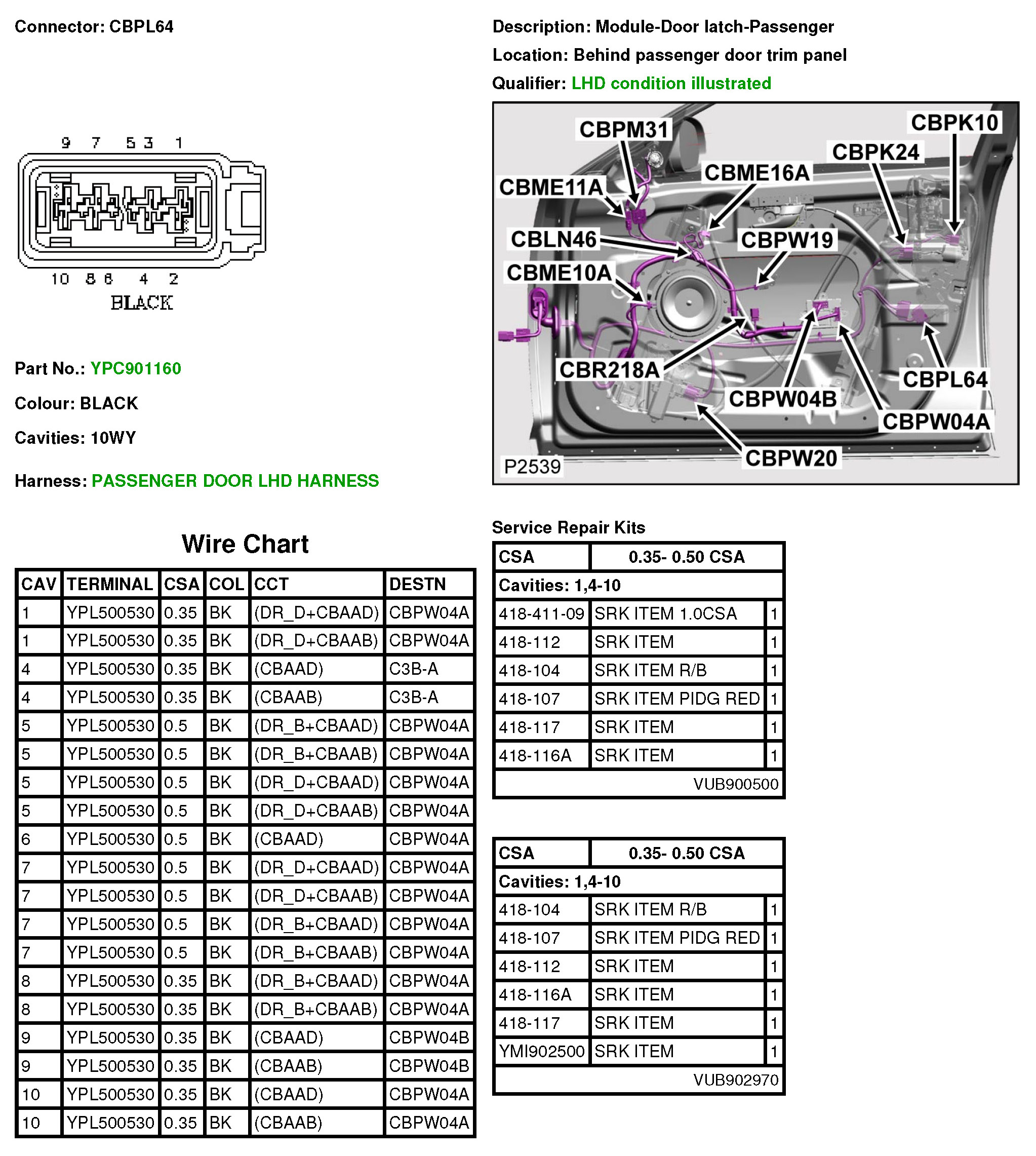

CBPL64 Module-Door Latch-Passenger



CBPL64
