Jaguar
>>
2012
>>
XF (X250) V8-5.0L SC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Parking Brake Control Module
>>
C4CB01B Module-Parking Brake
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

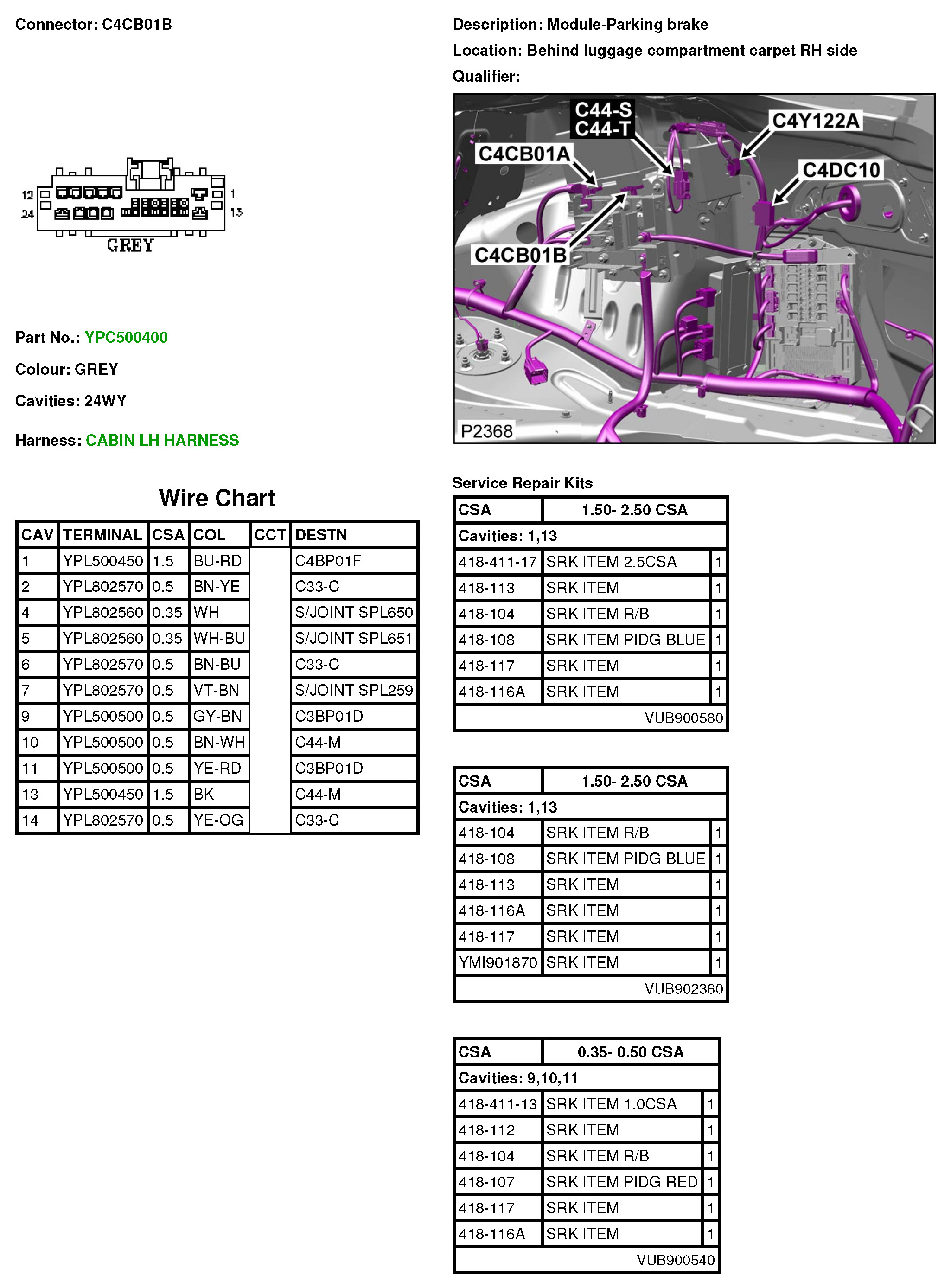

C4CB01B Module-Parking Brake
C4CB01B
