Home >> Jaguar >> 2012 >> XF (X250) V8-5.0L SC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Window Switch >> C7PW23 Switch-Window-Rear-LH
April 5, 2026: LEMON Manuals is launched! Read the announcement.

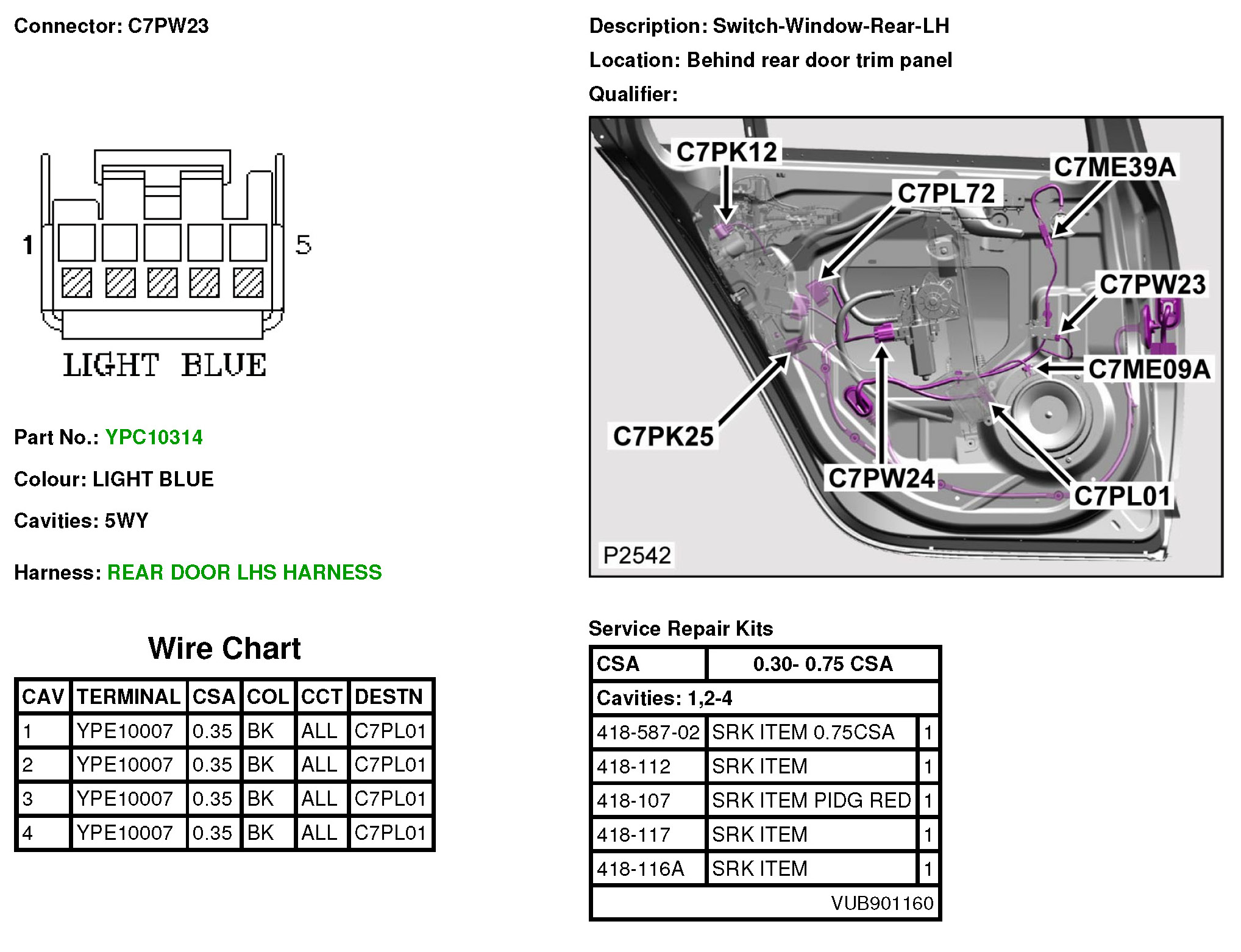

C7PW23 Switch-Window-Rear-LH



C7PW23
