Home >> Jaguar >> 2012 >> XF (X250) V8-5.0L SC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Suspension Control Module >> C3CD01A Module-Adaptive Damping
April 5, 2026: LEMON Manuals is launched! Read the announcement.

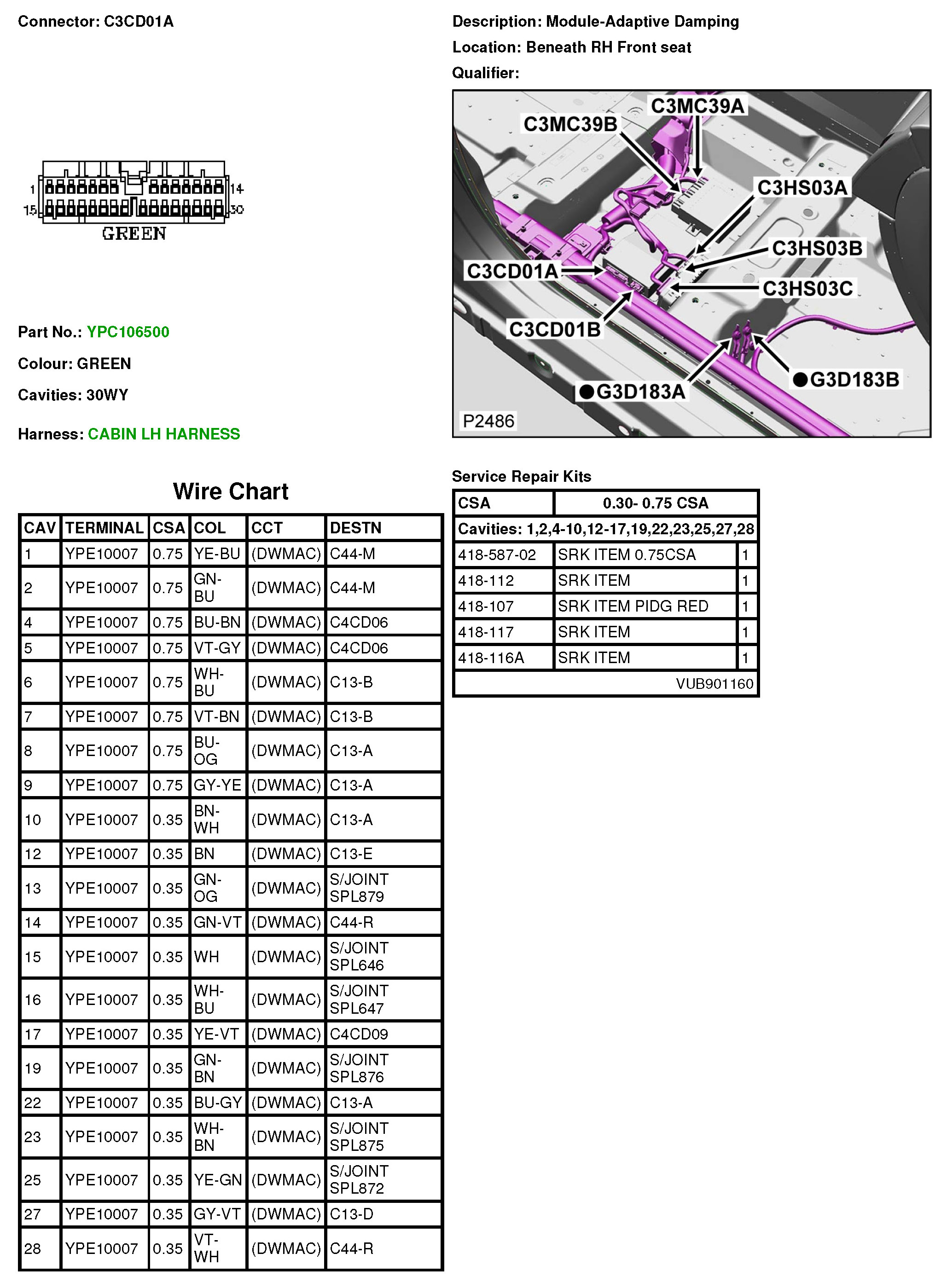

C3CD01A Module-Adaptive Damping



C3CD01A
